Advanced Policy Configuration

This chapter describes advanced features and use cases for DANZ Monitoring Fabric (DMF) policies.

Advanced Match Rules

Optional parameters of a match rule (such as src-ip, dst-ip, src-port, dst-port) must be listed in a specific order. To determine the permitted order for optional keywords, use the tab key to display completion options. Keywords in a match rule not entered in the correct order results in the following message:

Error: Unexpected additional arguments ...

Match Fields and Criteria

The following summarizes the different match criteria available:

src-ip, dst-ip, src-mac, and dst-mac are maskable. If the mask for src-ip, dst-ip, src-mac, or dst-mac is not specified, it is assumed to be an exact match.
For src-ip and dst-ip, specify the mask in either CIDR notation (for example, /24) or dotted-decimal notation (255.255.255.0).
For src-ip and dst-ip, the mask must be contiguous. For example, a mask of 255.0.0.255 or 0.0.255.255 is not supported.
For TCP, the tcp-flags option allows a match on the following TCP flags: URG, ACK, PSH, RST, SYN, and FIN.

The following match combinations are not allowed in the same match rule in the same DMF policy.

src-ip-range and dst-ip-range
src-ip address group and dst-ip address group
ip-range and ip address group

DANZ Monitoring Fabric (DMF) supports matching on user-defined L3/L4 offsets instead of matching on these criteria. However, it is not possible to use both matching packet methods in the same DMF. Switching between these match modes may cause policies defined under the previous mode to fail.

Apply match rules to the following fields in the packet header:

dscp-value Match on DSCP value. Value range is 0..63
dst-ip Match dst ip
dst-port Match dst port
is-fragment Match if the packet is IP fragmented
is-not-fragment Match if the packet is not IP fragmented
l3-offset Match on l3 offset
l4-offset Match on l4 offset
range-dst-ip Match dst-ip range
range-dst-port Match dst port ramge
range-src-ip Match src-ip range
range-src-port Match src port range
src-ip Match src ip
src-port Match src port
untagged Untagged (no vlan tag)
vlan-id Match vlan-id
vlan-id-range Match vlan-id range
<ip-proto> IP Protocol

Warning: Matching on untagged packets cannot be applied to DMF policies when in push-per-policy mode.

DMF uses a logical AND if a policy match rule has multiple fields. For example, the following rule matches if the packet has src-ip 1.1.1.1 AND dst-ip 2.2.2.2:

1 match ip src-ip 1.1.1.1 255.255.255.255 dst-ip 2.2.2.2 255.255.255.255

DMF uses a logical OR when configuring two different match rules. For example, the following matches if the packet has src-ip 1.1.1.1 OR dst-ip 2.2.2.2:

1 match ip src-ip 1.1.1.1 255.255.255.255
2 match ip dst-ip 2.2.2.2 255.255.255.255

A match rule with the any keyword matches all traffic entering the filter interfaces in a policy:

controller-1(config)# policy dmf-policy-1
controller-1(config-policy)# 10 match any

The following commands match on the TCP SYN and SYN ACK flags:

1 match tcp tcp-flags 2 2
2 match tcp tcp-flags 18 18

Note: In the DMF GUI, when configuring a match on TCP flags, the current GUI workflow also sets the hex value of the TCP flags for the mask attribute. When configuring a different value for the tcp-flags and tcp-flags-mask attributes in a rule via the DMF CLI, editing the rule in the GUI will override the tcp-flags-mask.

Match-except Rules

The following summarizes match-except rules with examples which allow a policy to permit packets that meet the match criteria, except packets that match the value specified using the except command.

Match-except only supports IPv4 source-IP and IPv4 destination-IP match fields.
- Example - Permit src-ip network, except ip-address:
```
1 match ip src-ip 172.16.0.0/16 except-src-ip 172.16.0.1
```
- Example - Permit dst-ip network, except subnet
```
1 match ip dst-ip 172.16.0.0/16 except-dst-ip 172.16.128.0/17
```
In a rule, the except condition can only be used with either src-ip or dst-ip, but not with src-ip and dst-ip together.
- Example - Except being used with src-ip:
```
1 match icmp src-ip 172.16.0.0/16 except-src-ip 172.16.0.1 dst-ip 172.16.0.0/16
```
- Example - Except being used with dst-ip:
```
1 match icmp src-ip 224.248.0.0/24 dst-ip 172.16.0.0/16 except-dst-ip 172.16.0.0/18
```
Except-src-ip or except-dst-ip can only be used after a match for src-ip or dst-ip, respectively.
- Example - Incorrect match rule:
```
1 match icmp except-src-ip 192.168.1.10
```
- Example - Correct match rule:
```
1 match icmp src-ip 192.168.1.0/24 except-src-ip 192.168.1.10
```
In a match rule, only one IP address, or one subnet (range of IP addresses) can be used with the except command.
- Example - Deny a subnet:
```
1 match ip dst-ip 172.16.0.0/16 except-dst-ip 172.16.0.0/18
```
- Example - Deny an IP Address:
```
1 match ip dst-ip 172.16.0.0/16 except-dst-ip 172.16.0.1
```

Matching with IPv6 Addresses

The value of the EtherType field determines whether the src-ip field to match is IPv4 or IPv6. The DANZ Monitoring Fabric (DMF) Controller displays an error if there is a mismatch between the EtherType and the IP address format.

DMF supports IPv6 address/mask matching, either on src-IP or dst-IP. Optionally, UDP/TCP ports can be used with the IPv6 address/mask match. Specify an address/mask or a group; DMF does not support ranges for IPv6 addresses.

Note: Match rules containing both MAC addresses and IPv6 addresses are not accepted and cause a validation error.

The preferred IPv6 address representation is as follows: xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx, where each x is a hexadecimal digit representing 4 bits.
IPv6 addresses range from 0000:0000:0000:0000:0000:0000:0000:0000 to ffff:ffff:ffff:ffff:ffff:ffff:ffff.
In addition to this preferred format, IPv6 addresses may be specified in two other shortened formats:
- Omit Leading Zeros: Specify IPv6 addresses by omitting leading zeros. For example, write IPv6 address 1050:0000:0000:0000:0005:0600:300c:326b as 1050:0:0:0:5:600:300c:326b.
- Double Colon: Specify IPv6 addresses using double colons (::) instead of a series of zeros. For example, write IPv6 address ff06:0:0:0:0:0:0:c3 as ff06::c3. Double colons may be used only once in an IP address.

DMF does not support the IPv4 address embedded in the IPv6 address format. For example, neither 0:0:0:0:0:0:101.45.75.219 nor ::101.45.75.219 can be used.

Both IPv4 and IPv6 masks must be in CIDR format. For example, FFFF:FFFF:FFFF:FFFF:0:0:0:0 is valid in DMF, but FFFF:0:0:FFFF:FFFF:0:0:0:0 is not a valid mask.

Both the colon-separated hexadecimal representation and the CIDR-style mask format are supported. The following example illustrates the correct format for IPv6 addresses and subnet masks:

controller-1(config)# policy dmf-ipv6-policy
controller-1(config-policy)# 10 match ip6 src-ip 2001::0 ffff:ffff:ffff:ffff:0:0:0:0
controller-1(config-policy)# 11 match ip6 dst-ip 2001:db8:122:344::/64
controller-1(config-policy)# filter-interface all
controller-1(config-policy)# action drop

Port and VLAN Range Matches

DANZ Monitoring Fabric (DMF) policy supports matching on source and destination port ranges with optimized hardware resource utilization. DMF uses efficient masking algorithms to minimize the number of flow entries in hardware for each VLAN range. For example, a VLAN range of 12-99 uses only five flows in hardware.

Note: Use the untagged keyword to match traffic without a VLAN tag.

Provide the IP protocol information when using source and destination port ranges, fully supported for IPv4 and IPv6 for TCP and UDP. These keywords have the following options:

range-dst-ip: Match dst-ip range.
range-dst-port: Match dst port range.
range-src-ip: Match src-ip range.
range-src-port: Match src port range.

Specify either src-port-range or dst-port-range or both in each match rule, as illustrated in the following example:

controller-1(config)# policy ip-port-range-policy
controller-1(config-policy)# 10 match tcp range-src-port 10 100
controller-1(config-policy)# 15 match udp range-dst-port 300 400
controller-1(config-policy)# 20 match tcp range-src-port 10 2000 range-dst-port 400 800
controller-1(config-policy)# 30 match tcp6 range-src-port 8 20
controller-1(config-policy)# 40 match tcp6 range-src-ip 1:2:3:4::/64 range-src-port 10 300
controller-1(config-policy)# filter-interface all
controller-1(config-policy)# delivery-interface all
controller-1(config-policy)# action forward

DMF policy supports matches for the VLAN ID range with optimized hardware resource utilization. Combining a VLAN ID range with a source or destination port range is supported, but not using all three ranges in a single match. The following example illustrates a valid use of the VLAN ID range option:

controller-1(config)# policy vlan-range-policy
controller-1(config-policy)# 10 match mac vlan-id-range 30 400
controller-1(config-policy)# 20 match full ether-type ip protocol 6 vlan-id-range 1000 3000 srcip 1.
1.1.1 255.255.255.255 src-port-range 100 500

To determine the number of flow entries required for a range, use the optimized-match option, as shown in the following example:

controller-1(config-policy)# show running-config policy
! policy
policy vlan-range-policy
action forward
delivery-interface TOOL-PORT-1
filter-interface TAP-PORT-1
10 match mac vlan-id-range 12 99
controller-1(config-policy)# show policy vlan-range-policy optimized-match
Optimized Matches :
10 vlan-min 12 vlan-max 15
10 vlan-min 16 vlan-max 31
10 vlan-min 32 vlan-max 63
10 vlan-min 64 vlan-max 95
10 vlan-min 96 vlan-max 99

User Defined Filters

Up to eight two-byte user-defined offsets are allowed on each switch. To view the currently defined offsets, select Monitoring > User Defined Offsets.

Note: The DANZ Monitoring Fabric (DMF) Controller must be in push-per-policy mode for a user-defined filter to work accurately.

Selecting the User Defined Offsets option when the L3-L4 Offset Match switching mode is not enabled, the system displays a message to enable the correct match mode.

After enabling the L3-L4 Offset Match mode and selecting Monitoring > User Defined Offsets, DMF displays a table listing the currently defined offsets.

Note:Matching on a user-defined offset is not recommended when forwarding traffic to a tunnel, because some packets may be dropped.

Each offset match has the following four components:

Anchor: Specified from where the user can define the matching criteria. There are three options: a) L3-start: Start of layer 3 header. b) L4-start: Start of layer 4 header. c) Packet-start: Start of the packet from layer 2 header.
Offset: The number of bytes from the specified anchor.
Length: The number of matching bytes, either 2 or 4 bytes.
Value: The matching value of the specified length in hexadecimal, decimal, or IPv4 format.
Mask: The value that is ANDed with the match value.

Note: DMF allows users to combine up to four 4-byte user-defined offsets or up to eight 2-byte offsets to match up to sixteen bytes in the same match condition. In this case, the multiple offset matching conditions in a single match statement will be considered ANDed. For example, to match on eight bytes, in a single match condition, define two user-defined offsets and configure two rules in an AND fashion so that the first rule matches on the first four bytes and the second rule matches on the remaining four bytes.

Configure each switch with a maximum of eight different offsets matching two bytes each, used in a single policy or any combination in different policies. In the example below, the policy matches on a value of 0x00001000 at offset 40 from the start of the L3-header and a value of 0x00002000 at offset 64 from the start of the L4-header.

controller-1(config-policy)# 1 match udp dst-port 2152 l3-offset 40 length 4 value 0x00001000 mask
0xffffffff l4-offset 64 length 4 value 0x00002000 mask 0xffffffff

Enter the show user-defined-offset command to display the values configured in the user-defined-offset table.

controller-1# show user-defined-offset
# Switch Slot Anchor Offset Length Policy
-|--------------|----|--------|------|------|-------------------------------------------------------|
1 DMF-FILTER-SW1 0l4-start 64 2DMF-UDF-TEST-1, _DMF-UDF-TEST-1_o_SAVE-TO-RECORDER-NODE
2 DMF-FILTER-SW1 1l4-start 66 2DMF-UDF-TEST-1, _DMF-UDF-TEST-1_o_SAVE-TO-RECORDER-NODE
3 DMF-FILTER-SW1 2l3-start 40 2DMF-UDF-TEST-1, _DMF-UDF-TEST-1_o_SAVE-TO-RECORDER-NODE
4 DMF-FILTER-SW1 3l3-start 42 2DMF-UDF-TEST-1, _DMF-UDF-TEST-1_o_SAVE-TO-RECORDER-NODE
controller-1#

DMF supports user-defined filtering on Trident 3 switches. The following are the UDF limitations on a Trident 3 switch in comparison to a non-Trident 3 switch:


UDF Features	Non-Trident SWL Switch	Trident 3 SWL Switch	EOS Switches
Total UDF Length	16 bytes	12 bytes	12 bytes
Minimum Chunk Size	2 bytes	2 bytes	2 bytes
Packet Start (Layer 2 Anchor)	8 offsets	2 offsets	6 offsets
Layer 3 Anchor	8 offsets	6 offsets	6 offsets
Layer 4 Anchor	8 offsets	6 offsets	6 offsets
Layer 2 Offset Range	0 - 126 bytes	0 - 62 bytes	0 - 126 bytes
Layer 3 Offset Range	0 - 114 bytes	0 - 112 bytes	0 - 114 bytes
Layer 4 Offset Range	0 - 96 bytes	0 - 112 bytes	0 - 96 bytes

Note: Please refer to the DMF Hardware Compatibility List for a complete list of supported switches and their corresponding Network ASIC types (Trident 3, Trident 2, etc).

Using the Filter and Delivery Role with MAC Loopback for a Two-stage Policy

Use the Filter and Delivery role with a MAC (software) loopback to support monitoring as a service. This option uses a two-stage policy to replicate the incoming feed from one or more filter interfaces and send it to multiple intermediate interfaces (one per end customer or organization).

Define policies on the intermediate interface for forwarding to customer-specific tools. These intermediate interfaces must also be assigned the Filter and Delivery role enabled with the MAC loopback option. This method eliminates the need for a physical loopback cable and a second interface, simplifying monitoring deployment as a service.

When multiple user-defined policies with overlapping rules select traffic from the same filter interfaces for forwarding to different delivery interfaces, overlapping policies are automatically generated to replicate the requisite traffic to the delivery interfaces. The number of overlapping policies increases exponentially with the number of user-defined policies.

Switch hardware limits limit the total number of policies in the fabric. Using a Filter and Delivery role with a MAC loopback can also help eliminate scale and operational issues seen with overlapping policies.

To configure an interface with the Filter and Delivery role and enable the MAC (software) loopback option, use the loopback-mode mac command to assign an unused interface as a loopback. This command enables the physical interface without requiring a physical connection to the interface. Use a software loopback interface for copying traffic in any scenario where a physical loopback is required.

The user can also assign the Filter and Delivery role to a software loopback interface, which allows the use of a single interface for copying traffic to multiple destination interfaces. When assigning this role to an interface in loopback mode, use the interface as a delivery interface in relation to the original filter interface and as a filter interface in relation to the final destination interface.

The following figure illustrates the physical configuration for a switch that uses four software loopback interfaces to copy traffic from a single filter interface to four different tools:

Figure 1. Using Software Loopback Interfaces to Avoid Overlapping Policies

Use this configuration to copy different types of traffic from a single filter interface (F1) to four delivery interfaces (D1 to D4). Assign the Filter and Delivery role to the software loopback interfaces (LFD1 through LFD4) using just four physical interfaces. Physical loopbacks would require twice as many interfaces.

Considerations

The SFP decides the Mac loopback speed. DMF uses the max port speed if there is no SFP (i.e., an empty port).
The port speed configuration (if any) will not impact the Mac loopback speed. The Mac loopback speed is set based on the SFP or the max port speed if there is no SFP.
The Rate-limit option limits the Mac loopback traffic at Rx side.

Note: When using a switch with the T2 chip, the 40G port Mac loopback is limited to the 10G speed.

Using the GUI To Configure a Filter and Delivery Interface with MAC Loopback

To configure an interface with the Filter and Delivery role and enable the MAC (software) loopback option in the GUI, perform the following steps:

Display the available interfaces by selecting Fabric > Interfaces.
The system displays the Interfaces page, which lists the interfaces connected to the DANZ Monitoring Fabric (DMF) fabric.

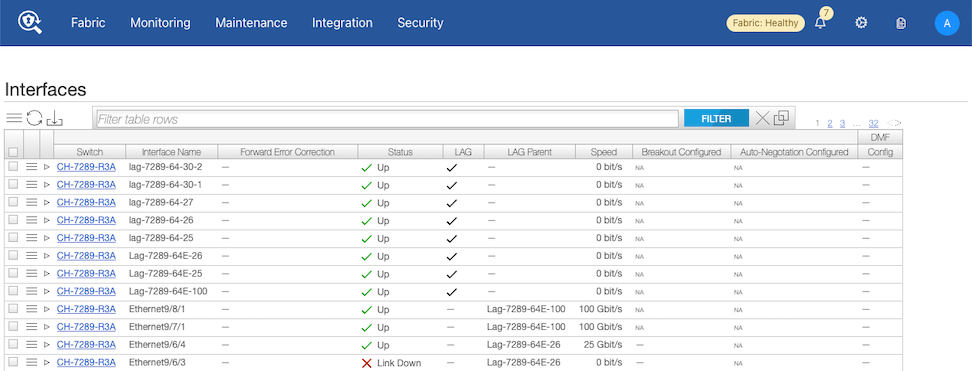

Figure 2. Fabric Interfaces
Click the Menu control for the interface to use and select Configure from the pull-down menu.

The system displays the following dialog:

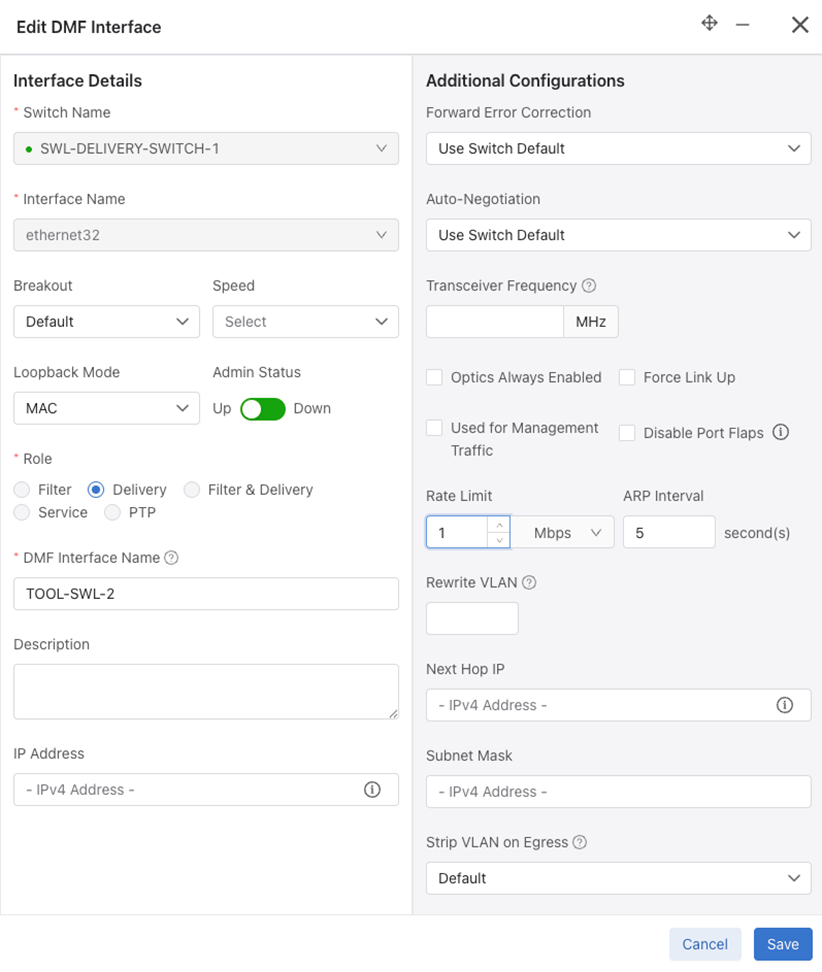

Figure 3. Fabric > Interfaces > Edit Interface > Port
(Optional) Type a description for the interface.
Enable the MAC Loopback Mode slider.
Click Next.

Figure 4. Fabric > Interfaces > Edit Interface > Traffic
(Optional) Configure Rate Limiting, if required, and click Next.

Figure 5. Fabric > Interfaces > Edit Interface > DMF
Enable the Filter and Delivery radio button.
Optionally enable the Rewrite VLAN feature.
Note: The rewrite VLAN ID feature cannot be used with tunneling.
Click Save to complete and save the configuration.

Using the CLI To Configure a Filter and Delivery Interface with MAC Loopback

The CLI interface configuration for copying traffic to multiple delivery ports is shown in the following example:

switch DMF-FILTER-SWITCH-1
admin hashed-password
$6$5niT1gPm$Jc24qOMF.hxNPI20DvnKaFZKYD6lIo59IMp3O4xIdwVTu2hx0s8Djpvz9xXAXXndiSkKe5jH.9PKoHHrWviSl0
mac 70:72:cf:dc:99:5c
interface ethernet1
role filter interface-name TAP-PORT-1
interface ethernet13
role delivery interface-name TOOL-PORT-1
interface ethernet15
role delivery interface-name TOOL-PORT-1
interface ethernet17
role delivery interface-name TOOL-PORT-3
interface ethernet19
role delivery interface-name TOOL-PORT-4
interface ethernet25
loopback-mode mac
role both-filter-and-delivery interface-name LOOPBACK-PORT-1
interface ethernet26
loopback-mode mac
role both-filter-and-delivery interface-name LOOPBACK-PORT-2
interface ethernet27
loopback-mode mac
role both-filter-and-delivery interface-name LOOPBACK-PORT-3
interface ethernet28
loopback-mode mac
role both-filter-and-delivery interface-name LOOPBACK-PORT-4

The following example illustrates using five policies to implement this use case without creating overlapping policies. Otherwise, sixteen overlapping policies would be created without using the loopback interfaces to copy the traffic to separate filter interfaces.

! policy
policy TAP-NETWORK-1
action forward
delivery-interface LOOPBACK-PORT-1
delivery-interface LOOPBACK-PORT-2
delivery-interface LOOPBACK-PORT-3
delivery-interface LOOPBACK-PORT-4
filter-interface TAP-PORT-1
1 match any
!
policy DUPLICATED-TRAFFIC-1
action forward
delivery-interface TOOL-PORT-1
filter-interface LOOPBACK-PORT-1
1 match ip src-ip 100.1.1.1 255.255.255.252
!
policy DUPLICATED-TRAFFIC-2
action forward
delivery-interface TOOL-PORT-2
filter-interface LOOPBACK-PORT-2
1 match ip dst-ip 100.1.1.1 255.255.255.252
!
policy DUPLICATED-TRAFFIC-3
action forward
delivery-interface TOOL-PORT-3
filter-interface LOOPBACK-PORT-3
1 match tcp src-port 1234
!
policy DUPLICATED-TRAFFIC-4
action forward
delivery-interface TOOL-PORT-4
filter-interface LOOPBACK-PORT-4
1 match tcp dst-port 80

Use the show policy command to verify the policy configuration.

Rate Limiting Traffic to Delivery Interfaces

The option exists to limit the traffic rate on a delivery interface, which can be a regular interface, a port channel, a tunnel interface, or a loopback interface.

For information about using rate limiting on tunnels, refer to the section Using the CLI to Rate Limit the Packets on a VXLAN Tunnel.

Use kbps to configure the rate-limit for the regular delivery interface. Arista Networks recommends configuring the rate limit in multiples of 64 kbps.

Rate Limiting Using the GUI

To use the GUI to set the rate limit for an interface, perform the following steps:

Select Fabric > Interfaces.
Click the Menu control for a specific interface and select Configure.
Click Next or select Traffic to display the Traffic page on the Edit Interface dialog.

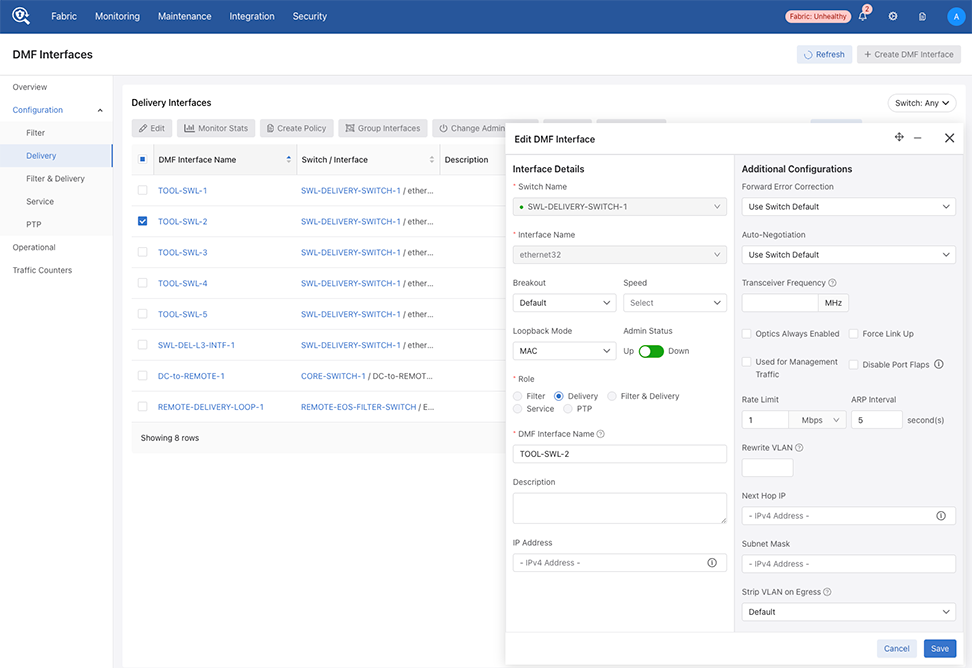

Figure 6. Setting the Rate Limit for an Interface
Enable the Rate Limit checkbox.
Use the number spinner to set the number of Kbps traffic limit.
Click Save.

Rate Limiting Using the CLI

CLI Procedure

The following example applies a rate limit of 10 Mb/s to the delivery interface tobcotDelivery:

CONTROLLER-1(config)#switch DMF-DELIVERY-SWITCH-1
CONTROLLER-1(config-switch)# interface ethernet1
CONTROLLER-1(config-switch-if)# role delivery interface-name TOOL-PORT-1
CONTROLLER-1(config-switch-if)# rate-limit 10240

To view the configuration, enter the show this command, as in the following example:

CONTROLLER-1(config-switch-if)# show this
! switch
switch DMF-DELIVERY-SWITCH-1
!
interface ethernet1
rate-limit 10000
role delivery interface-name TOOL-PORT-1
CONTROLLER-1 (config-switch-if)#

Configure the rate limit for each member interface to rate limit a port channel. Configure individual rate limits for each member interface if the port channel has two member interfaces.

lag-interface lag1
hash-type l3
member ethernet43
member ethernet45
interface ethernet43
rate-limit 10000 <------ set the rate-limit to 10 Mbps
interface ethernet45
rate-limit 128000 <---------- set the rate-limit to 128 Mbps

To display the configured rate limit, use the show topology and show interface-names commands, as in the following examples:

Note: In the current release, the Rate Limit column does not show the configured value for LAG and tunnel interfaces.

Configuring Overlapping Policies

When two or more policies have one or more filter ports in common, the match rules in these policies may intersect. If the priorities are different, the policy with the higher priority takes effect. However, if the policies have the same priority, the policies overlap, as illustrated in the figure below:

In the policy illustrated, packets received on interface Filter 1 with the source-IP address 10.1.1.x/24 are delivered to D1. In a separate policy, with the same priority, packets received at Filter 1 with the destination IP address 20.1.1.y/24 are delivered to D2. With both these policies applied, when a packet arrives at F1 with a source IP address 10.1.1.5/24 and a destination IP address 20.1.1.5/24, the packets are copied and forwarded to both D1 and D2. Enabled by default, the DANZ Monitoring Fabric (DMF) policy overlap feature causes this behavior.

DMF manages overlapping policies automatically by copying packets received on the same filter interface that match multiple rules but which the policy forwards to different delivery interfaces.

Two policies are said to be overlapping when all of the following conditions are met:

At least one delivery interface is different.
At least one filter interface is shared.
Match rules across policies intersect, which occurs under these conditions:
- The match rules match on the same field, but a different value OR both policies have the same configured priority (or same default priority).
- The match rules match on completely different fields.

Note: Automatically created dynamic policies will be visible in the show policy command. However, they will not be visible in the running config, nor can they get deleted manually.

When overlapping policies are detected, by default, DMF performs the following operations:

Creates a new dynamic policy that aggregates the policy actions.
Assigns policy names, using this dynamic policy naming convention: _<policy1>_o_<policy2>_
Adds match combinations and configuration as appropriate.
Assigns a slightly higher priority to the new aggregated policy so that it overrules the overlapping policies, which, as a result, only applies to traffic that does not match the new aggregated policy. An incremental value of .1 is added to the original policy priority. For example, if the original policies have a priority of 100, the dynamic policy priority is 101.
Note: When changing the configurable parameters in an existing DMF out-of-band policy, any counters associated with the policy, including service-node-managed services counters, are reset to zero.

The overlap-limit-strict command, enabled by default, strictly limits the number of overlapping policies to the maximum configured using the overlap-policy-limit command. For example, the operation fails with a validation error when setting the maximum number of overlapping policies to four (the default) and attempting to create a fifth policy using the same filter interface. To disable strict enforcement, use the no overlap-limit-strict command.

Note: The overlap-strict-limit command is disabled and must be manually enabled to enforce configurable policy limits.

Configuring the Policy Overlap Limit Using the GUI

Policy Overlap Limit

Perform the following steps to configure the Policy Overlap Limit.

Control the configuration of this feature using the Edit icon by locating the corresponding card and clicking on the pencil icon.

Figure 8. Policy Overlap Limit
A configuration edit dialogue window pops up, displaying the corresponding prompt message. By default, the Policy Overlap Limit is 4.

Figure 9. Edit Policy Overlap Limit
Adjust the Value (minimum value: 0, maximum value: 10). There are two ways to adjust the value:
- Directly enter the desired value in the input area.
- Use the up and down arrow buttons in the input area to adjust the value accordingly. Pressing the up arrow increments the value by 1, while pressing the down arrow decrements it by 1.
Click the Submit button to confirm the configuration changes or the Cancel button to discard the changes.
After successfully setting the configuration, the current configuration status displays next to the edit button.

Figure 10. Policy Overlap Limit Change Success

Configuring the Overlapping Policy Limit Using the CLI

By default, the number of overlapping policies allowed is four. The maximum number to configure for overlapping policies is ten. Set the overlap policy limit to zero to disable the overlapping policy feature.

To change the default limit for overlapping policies, use the following command:

controller-1(config)# overlap-policy-limit integer

Replace integer with the maximum number of overlapping policies to support fabric-wide.

For example, the following command sets the number of overlapping policies supported to the maximum value (10):

controller-1(config)# overlap-policy-limit 10

The following command disables the overlapping policies feature:

controller-1(config)# overlap-policy-limit 0

Note: When setting the Policy Overlap Limit to zero, ensure the policies do not overlap. If active policies overlap after disabling this feature, the forwarding result may be unpredictable.

Using the CLI to View Overlapping Policies

Enter the show policy command to view statistics for dynamic (overlapping) policies. If an overlapping policy appears in the output, the parent policies are identified, as in the following example:

controller-1(config-policy)# show policy
# Policy Name Config Status Runtime Status ActionType Priority Overlap Priority Rewrite VLAN Filter BW Delivery BW Services
-|-----------|---------------------|--------------|-------|----------|--------|----------------|------------|---------|-----------|--------|
1 _p2_o_p1active and forwarding installedforward Dynamic10010- -
2 p1active and forwarding installedforward Configured 10000- -
3 p2active and forwarding installedforward Configured 10000- -

In this example:

show overlap _P1_O_P2, lists component policies: source P1, P2.
show P1, lists dynamic policies: overlap _P1_O_P2.

To view the details for a specific overlapping policy, append the policy name to the show policy command, as in the following example:

controller-1(config-policy)# show policy _p1_o_p2
Policy Name : _p1_o_p2
Config Status : active and forwarding
Runtime Status : installed
Detailed Status : installed - installed to forward
Action : forward
Priority : 100
Overlap Priority : 1
Description : runtime policy
# of switches with filter interfaces : 1
# of switches with delivery interfaces : 1
# of switches with service interfaces : 0
# of filter interfaces : 1
# of delivery interfaces : 2
# of core interfaces : 4
# of services : 0
# of pre service interfaces : 0
# of post service interfaces : 0
Rewrite VLAN : 0
Total Ingress Rate : -
Total Delivery Rate : -
Total Pre Service Rate : -
Total Post Service Rate : -
Overlapping Policies : none
Component Policies : p2, p1,
Failed Overlap Policy Exceeding Max Rules :
Rewrite valid? : False
Service Names :
Overlap Matches :
1 ether-type 2048 src-ip 10.1.1.1 255.255.255.0 dst-ip 20.1.1.1 255.255.255.0
Strip VLAN : False
Delivery Bandwidth : 20 Gbps
explicitly-scheduled : False
Filter Bandwidth : 10 Gbps
Type : Dynamic
~ Match Rules ~
None.
~~~~~~~~~~~~~~~~~~~~~~~~~~~ Filter Interface(s) ~~~~~~~~~~~~~~~~~~~~~~~~~~~
# IF Switch IF Name State Dir Packets Bytes Pkt Rate Bit Rate
-|---------|-----------|--------|-----|---|-------|-----|--------|--------|
1 f1 filter-sw-1 s11-eth1 up rx 0 0 0 -
~~~~~~~~~~~~~~~~~~~~~~~~~~ Delivery Interface(s) ~~~~~~~~~~~~~~~~~~~~~~~~~~
# IF Switch IF Name State Dir Packets Bytes Pkt Rate Bit Rate
-|---------|-----------|--------|-----|---|-------|-----|--------|--------|
1 d1 filter-sw-2 s12-eth1 up tx 0 0 0 -
2 d2 filter-sw-2 s12-eth2 up tx 0 0 0 -
~ Service(s) ~
None.
~~~~~~~~~~~~~~~~~~~~~~~ Core Interface(s) ~~~~~~~~~~~~~~~~~~~~~~~
# Switch IF State Dir Packets Bytes Pkt Rate Bit Rate
-|-----------|--------|-----|---|-------|-----|--------|--------|
1 filter-sw-1 s11-eth3 up tx 0 0 0 -
2 core-sw-2 s10-eth1 up rx 0 0 0 -
3 core-sw-2 s10-eth2 up tx 0 0 0 -
~ Failed Path(s) ~
None.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Event History ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# Time Event Detail
-|-------------------|---------------------|-------------------------------------------|
1 2014-08-05 22:22:27 start forward pending installation - installed to forward
2 2014-08-05 22:22:27 installation complete installed - installed to forward

Configuring the Policy Overlap Limit Strict using the GUI

The Policy Overlap Limit Strict option, enabled by default, strictly limits the number of overlapping policies to the maximum configured. For example, when setting the maximum number of overlapping policies to 4 (the default) and users create a fifth policy using the same filter interface, the operation fails with a validation error.

From the DANZ Monitoring Fabric (DMF) Features page, proceed to the Configuring the Policy Overlap Limit Strict feature card.

Select the Policy Overlap Limit Strict card.

Note: The Policy Overlap Limit Strict option is enabled by default. The following steps guide if the Policy Overlap Limit Strict option is disabled.

Figure 11. Policy Overlap Limit Strict Disabled
Toggle the Policy Overlap Limit Strict switch to On.
Confirm the activation by clicking Enableor Cancel to return to the DMF Features page.

Figure 12. Enable Policy Overlap Limit Strict
Retain Configuring the Policy Overlap Limit Strict is running.

Figure 13. Policy Overlap Limit Strict Enabled
To disable the feature, toggle the Policy Overlap Limit Strict switch to Off. Click Disable and confirm.

Figure 14. Disable Policy Overlap Limit Strict

The feature card updates with the status.

Figure 15. Policy Overlap Limit Strict Disabled

Configuring the Policy Overlap Limit Strict using the CLI

Use the following commands to disable or enable the Policy Overlap Limit Strict feature using the CLI.

controller-1(config)# no overlap-limit-strict

controller-1(config)# overlap-limit-strict

Exclude Inactive Policies from Overlap Limit Calculation

Previously, DANZ Monitoring Fabric (DMF) calculated the overlap policy limit by determining how many policies use the same filter interface, irrespective of whether the policies are active or inactive. By default, the overlap policy limit is 4, and the maximum is 10.

Suppose the limit is 4, and a user attempts to create a 5th policy using the same filter interface (f1). DMF throws the following error message: Error: Validation failed: Filter interfaces used in more than 4 policies: f1.

This count will include filter interfaces used in active or inactive policies.

The DMF policy overlap calculation excludes inactive policies when using the inactive command in policy configuration. For example, using the same policy limit settings described above, DMF supports creating a 5th policy using the same filter interface (f1) by first putting the 5th policy in an inactive state using the inactive command under policy configuration.

Note: This feature applies to switches running SWL OS and EOS.

Global Configuration Example

Select a switch and enter the config mode using the following command:
```
(config)# switch core1
```
Select an interface on the switch used as the filter-interface, as shown in the following example.
```
(config-switch)# interface ethernet1
```
Create a filter interface, for example, f1, using the following command:
```
(config-switch-if)# role filter interface-name f1
```

Repeat the process to create the delivery interfaces.

(config-switch)# interface ethernet2
(config-switch-if)# role delivery interface-name d1
(config-switch)# interface ethernet3
(config-switch-if)# role delivery interface-name d2
(config-switch)# interface ethernet4
(config-switch-if)# role delivery interface-name d3

Set a max overlap-policy-limit value, for example, 2.
```
(config-switch)# overlap-policy-limit 2
```

Create overlap policies using the same filter-interface, in this example, f1.

(config-switch)# policy p1
(config-policy)# filter-interface f1
(config-policy)# delivery-interface d1
(config-policy)# action forward
(config-policy)# 1 match any

(config-switch)# policy p2
(config-policy)# filter-interface f1
(config-policy)# delivery-interface d2
(config-policy)# action forward
(config-policy)# 1 match any

Since the overlap-policy-limit value is 2, the third overlap policy will not allow the use of the same filter interface f1 in the third policy, p3. DMF throws a validation error.

(config-switch)# policy p3
(config-policy)# delivery-interface d3
(config-policy)# action forward
(config-policy)# filter-interface f1
Error: Validation failed: Filter interfaces used in more than 2 policies: f1

Show Commands

The following command example displays the configured policies listing two overlap policies _p1_o_p2.

(config-policy)# show policy
# Policy Name ActionRuntime Status Type Priority Overlap Priority Push VLAN Filter BW (truncated...)
-|-----------|-------|----------------------------|----------|--------|----------------|---------|--------- (truncated...)
1 _p1_o_p2forward A component policy failedDynamic10013 10Gbps(truncated...)
2 p1forward all delivery interfaces down Configured 10001 10Gbps(truncated...)
3 p2forward all delivery interfaces down Configured 10002 10Gbps(truncated...)
4 p3forward inactive Configured 10004 - (truncated...)

To add filter interface f1 to the third overlap policy, p3, set the policy to inactive.

(config-switch)# policy p3
(config-policy)# inactive
(config-policy)# filter-interface f1

This results in an inactive policy p3 being configured with filter interface f1. Use the show running-config policy command to view the status.

(config-policy)# show running-config policy
! policy
policy p1
action forward
delivery-interface d1
filter-interface f1
1 match any

policy p2
action forward
delivery-interface d2
filter-interface f1
1 match any

policy p3
action forward
delivery-interface d3
filter-interface f1
inactive
1 match any

Viewing Information about Policies

Installing and activating overlapping policies may take more than a minute, depending on the number of overlapping policies and the number of rules in each policy.

Viewing Policy Flows

The show policy-flow command lists all the flows installed by the DANZ Monitoring Fabric (DMF) application on the switches in the monitoring fabric. The following is the command syntax:

show policy-flow policy_name

Flows are sorted on a per-policy basis. Each flow entry includes the configured policy name. The packet and byte count is affiliated with each flow entry, as shown in the following example:

controller-1# show policy-flow _P1_o_P2
# Policy Name SwitchPkts Bytes PriT Match Instructions
1 _P1_o_P2DMF-CORE-SWITCH-1 (00:00:cc:37:ab:a0:90:71) 00 6401 1 in-port 16,vlan-vid 7 apply: name=_P1_o_P2 output: max-length=65535, port=15
2 _P1_o_P2DMF-CORE-SWITCH-1 (00:00:cc:37:ab:a0:90:71) 00 6401 1 in-port 16,eth-type ipv6,vlan-vid 7 apply: name=_P1_o_P2 output: max-length=65535, port=15
3 _P1_o_P2DMF-DELIVERY-SWITCH-1 (00:00:cc:37:ab:60:d4:74) 00 6401 1 in-port 49,eth-type ipv6,vlan-vid 7 apply: name=_P1_o_P2 output: max-length=65535, port=15,output: max-length=65535, port=1
4 _P1_o_P2DMF-DELIVERY-SWITCH-1 (00:00:cc:37:ab:60:d4:74) 00 6401 1 in-port 49,vlan-vid 7 apply: name=_P1_o_P2 output: max-length=65535, port=15,output: max-length=65535, port=1
--------------------------------------------------------------------------------------output truncated--------------------------------------------------

Viewing Packets Dropped by Policies

The drops option displays the current value of the transmit drop packet counters at the filter, delivery, and core interfaces for the specified policy, as shown in the following example:

controller-1# show policy p1 drops
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Filter Interface(s) Drops ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# IFSwitch IF Name state speed Xmit Drops Pkt Count Xmit Drops Pkt Rate Rx Drops Pkt Count Rx Drops Pkt Rate
-|---|-----------------------|--------|-----|-------|--------------------|-------------------|------------------|-----------------|
1 f100:00:00:00:00:00:00:0c s12-eth1 up10 Gbps 00 00
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Delivery Interface(s) Drops ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
# IFSwitch IF Name state speed Xmit Drops Pkt Count Xmit Drops Pkt Rate Rx Drops Pkt Count Rx Drops Pkt Rate
-|---|-----------------------|--------|-----|-------|--------------------|-------------------|------------------|-----------------|
1 d100:00:00:00:00:00:00:0c s12-eth2 up10 Gbps 00 00
~ Core Interface(s) Drops ~
None.
~ Service Interface(s) Drops ~
None.

Using Rule Groups

DANZ Monitoring Fabric (DMF) supports using an IP address group in multiple policies, referring to the group by name in match rules. If no subnet mask is provided in the address group, it is assumed to be an exact match. For example, for an IPv4 address group, no mask is interpreted as a mask of /32. For an IPv6 address group, no mask is interpreted as /128.

Identify only a single IP address group for a specific policy match rule. Address lists with both src-ip and dst-ip options cannot be used in the same match rule.

Using the GUI to Configure Rule Groups

To create an interface group from the Monitoring > Interfaces table, perform the following steps:

Select the Monitoring > Rule Groups option.

Figure 16. Creating Rule Groups
On the Rule Groups table, click on the + sign to create a new rule group.
In the pop-up menu, enter a preferred name for the rule group and, optionally, a description.

Figure 17. Creating Rule Groups: Enter a Rule Group Name and Description
Click NEXT to add specific rules to the rule group.
In this pop-up section, add predefined rules by clicking on the options provided. In the example below, add a rule to match all IPv4 traffic by clicking on IPv4.

Figure 18. Creating Rule Groups: Add a Predefined Rule to the Rule Group
As an alternative to the previous step, add custom rules by clicking the + sign under Rules and adding the necessary fields in the new pop-up screen.

Figure 19. Creating Rule Groups: Add Custom Rules to the Rule Group
Complete the dialog that appears to assign a descriptive name to the rule group.
Add this rule group to DANZ Monitoring Fabric (DMF) policies as a match condition.

Using the CLI to Configure Interface Groups

The following example describes configuring two interface groups: a filter interface group, TAP-PORT-GRP, and a delivery interface group, TOOL-PORT-GRP.

controller-1(config-switch)# filter-interface-group TAP-PORT-GRP
controller-1(config-filter-interface-group)# filter-interface TAP-PORT-1
controller-1(config-filter-interface-group)# filter-interface TAP-PORT-2
controller-1(config-switch)# delivery-interface-group TOOL-PORT-GRP
controller-1(config-delivery-interface-group)# delivery-interface TOOL-PORT-1
controller-1(config-delivery-interface-group)# delivery-interface TOOL-PORT-2

To view information about the interface groups in the DANZ Monitoring Fabric (DMF) fabric, enter the show filter-interface-group command, as in the following examples:

Filter Interface Groups

controller-1(config-filter-interface-group)# show filter-interface-group
! show filter-interface-group TAP-PORT-GRP
# Name Big Tap IF NameSwitchIF NameDirection Speed State VLAN Tag
-|------------|--------------------------|-----------------|----------|---------|-------|-----|--------|
1 TAP-PORT-GRP TAP-PORT-1 DMF-CORE-SWITCH-1 ethernet17 rx100Gbps up 0
2 TAP-PORT-GRP TAP-PORT-2 DMF-CORE-SWITCH-1 ethernet18 rx100Gbps up 0
controller1(config-filter-interface-group)#

Delivery Interface Groups

controller1(config-filter-interface-group)# show delivery-interface-group
! show delivery-interface-group DELIVERY-PORT-GRP
# Name Big TapIF Name SwitchIF NameDirection SpeedRatelimit State Strip Forwarding Vlan
-|-----------------|---------------|---------------------|----------|---------|------|---------|-----|---------------------|
1 TOOL-PORT-GRP TOOL-PORT-1 DMF-DELIVERY-SWITCH-1 ethernet15 tx10Gbps upTrue
2 TOOL-PORT-GRP TOOL-PORT-2 DMF-DELIVERY-SWITCH-1 ethernet16 tx10Gbps upTrue
controller-1(config-filter-interface-group)#

PTP Timestamping

DANZ Monitoring Fabric (DMF) rewrites the source MAC address of packets that match a policy with a 48-bit timestamp value sourced from a high-precision hardware clock.

Connect a switch with a filter interface to a PTP network with a dedicated interface for the Precision Time Protocol. With a valid PTP interface, the switch will be configured in boundary clock mode and can sync the hardware clock with an available Grandmaster clock.

Once configuring a policy to use timestamping, any packet matching on this policy will get its source MAC address rewritten with a timestamp value. The same holds true for any overlapping policy that carries traffic belonging to a user policy with timestamp enabled.

The following options are available to configure a switch in boundary mode:
- domain: Value for data plane PTP domain (0-255) (optional)
- Priority1: Value of priority1 data plane PTP (0-255) (optional)
- Source IPv4 Address: Used to restamp PTP messages from a switch to the endpoints (optional)
- Source IPv6 Address: Used to restamp PTP messages from a switch to the endpoints (optional)

The following options are available to configure an interface with role “ptp”:
- Announce Interval: Set ptp announce interval between messages (-3,4). Default is 1 (optional)
- Delay Request Interval: Set ptp delay request interval between messages (-7,8). The default is 5 (optional)
- Sync Message Interval: Set ptp sync message interval between messages (-7,3). The default is 0 (optional)
- PTP Vlan: VLANs used for Trunk or Access mode of operation for a ptp interface

A policy should have enabled timestamping and have its filter interfaces on a switch with a valid PTP config to get its packets timestamped.

Platform Compatibility

DANZ Monitoring Fabric (DMF) supports the timestamping feature on 7280R3 switches.

Use the show switch all property command to check which switch in DMF fabric supports timestamping. If the following properties exist in the output, the feature is supported:

ptp-timestamp-cap-replace-smac
ptp-timestamp-cap-header-48bit
ptp-timestamp-cap-flow-based

# show switch all property
# Switch                      ...   PTP Timestamp Supported Capabilities
-|----------------------------| ...  |-------------------------------------|
1 S1 (00:00:2c:dd:e9:96:2b:ff)...   ptp-timestamp-cap-replace-smac,
                                ...   ptp-timestamp-cap-header-64bit,
                                ...   ptp-timestamp-cap-header-48bit,
                                ...   ptp-timestamp-cap-flow-based,
                                ...   ptp-timestamp-cap-add-header-after-l2
2 S2 (00:00:cc:1a:a3:91:a7:6c)...
2 S3 (00:00:cc:1a:a3:c0:94:3e)...

Note: The CLI output example above is truncated for illustrative purposes. The actual output will differ.

Configuration

The following three sections describe the configuration for PTP and timestamping:

PTP Switch Configuration
PTP Interface Configuration
Policy Configuration for Timestamping

Note: Configuring the PTP domain for the distribution of PTP-based time sync in the network is beyond the scope of this document. The assumption is the network exists with a PTP domain and all necessary components.

Configuring PTP Timestamping using the CLI

Configure the switch at a global level under the config submode in the CLI or for each switch under the config-switch submode. Irrespective of the place, it has the following options:

Domain: Set the data plane PTP domain. The default value is 0. Valid values are [0 to 255] inclusive.
Priority1: Set the value of priority1 data plane PTP. The default value is 128. Valid values are [0 to 255] inclusive.
Source-ipv4-address: This is the source IPv4 address used to restamp PTP messages from this switch to the endpoints. Some master clock devices do not accept default source IP (0.0.0.0). If so, configureit can to sync with such devices. The default is 0.0.0.0 .
Source-ipv6-address: This is the source IPv6 address used to restamp PTP messages from this switch to the endpoints. Some master clock devices do not accept default source IP (::/0). If so, configure it to sync with such devices. The default is ::/0 .

All fields are optional, and default values are selected if not configured by the user.

Global Configuration

The global configuration is a central place to provide a common switch config for PTP. It only takes effect after creating a ptp-interface for a switch. Under the config submode, provide PTP switch properties using the following commands:

> enable
# config
(config)# ptp priority1 0 domain 1 source-ipv4-address 1.1.1.1

Local Configuration

The local configuration provides a local PTP configuration or overrides a global PTP config for a selected switch. Select the switch using the command switch switch name. PTP switch config (local or global) only takes effect after creating a ptp-interface for a switch. Under the config-switch submode, provide local PTP switch properties using the following commands:

(config)# switch eos
(config-switch)# ptp priority1 1 domain 2

Configuring PTP Timestamping using the GUI

Global Configuration

To view or edit the global PTP configuration, navigate to the DANZ Monitoring Fabric (DMF) Features page by clicking the gear icon.

The DMF Feature page is new in DMF release 8.4. It provides fabric-wide settings management for DMF.

Scroll to the PTP Timestamping card and click the edit button (pencil icon) to configure or modify the global PTP Timestamping settings.

Local Configuration

Provide a local PTP configuration for the switch or override the global PTP configuration for a selected switch while configuring or editing a switch configuration (under the PTP step) using the Monitoring > Switches page.

PTP Interface Configuration

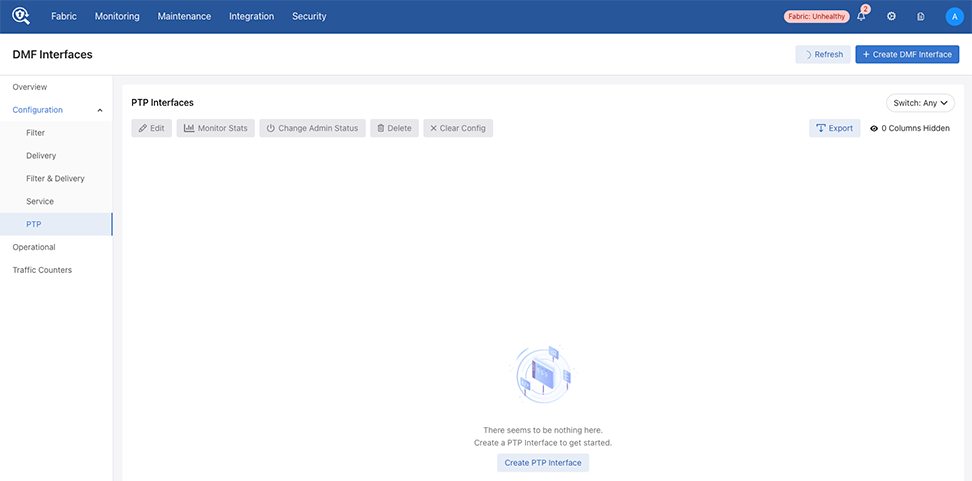

Configure a PTP Interface on the Monitoring > Interfaces page.

Timestamping Policy Configuration

DMF supports flow-based timestamping. This function requires programming a policy to match relevant traffic and enable timestamping for the matched traffic. In the Create/Edit Policy workflow (on the Monitoring > Policies page), use the PTP Timestamping toggle to enable or disable timestamping.

PTP Interface Configuration

A switch that syncs its hardware clock using PTP requires a physical front panel interface configured as a PTP interface. This interface is solely responsible for communication with the master clock and has no other purpose.

To configure the PTP interface, select an interface on the switch, as illustrated in the following command.

(config-switch)#interface Ethernet6/1

Use the role command to assign a ptp role and interface name and select switchport-mode for the specified interface.

(config-switch-if)# role ptp interface-name ptp1 access-mode announce-interval 1 delay-request-interval 1 sync-message-interval 1

A switchport is required to configure a PTP interface. The options for switchport mode are:

trunk-mode
access-mode
routed-mode

The switchport mode configuration for a PTP interface is necessary to match the PTP master switch's interface configuration. Configure the master switch to communicate PTP messages with or without a vlan tag. Use the trunk-mode with the appropriate ptp vlan when configuring the neighbor similarly. If the neighbor's interface is in switch-port access mode or routed mode, use either of these to match it on the filter switch.

Other fields are optional, using default values when no configuration is provided.

Optional fields:

announce-interval: Set PTP to announce interval between messages [-3,4]. The default value is 1.
delay-request-interval: Set PTP delay request interval between messages [-7,8]. The default value is 5.
sync-message-interval: Set PTP sync message interval between messages (-7,3). The default value is 0.

Depending on the switchport mode selected for this interface, provide VLANs that will be associated with the selected ptp-interface using the following commands:

(config-switch-if)# ptp vlan 1
(config-switch-if)# ptp vlan 2

In routed switchport mode, we ignore the configured VLANs. In access switchport mode, the first VLAN is used for programming while ignoring the rest. In trunk switchport mode, all configured VLANs are programmed into the switch.

Policy Configuration for Timestamping

DANZ Monitoring Fabric (DMF) supports flow-based timestamping. This function requires programming a policy to match relevant traffic and enable timestamping for the matched traffic.

Create a policy using the command policy policy name.

Under config-policy submode, enable timestamping using the following command:

(config-policy)# use-timestamping

L2GRE Encapsulation of Packets with Arista Timestamp Headers

L2GRE encapsulation of packets with Arista timestamp headers is an extension of an existing feature allowing DANZ Monitoring Fabric (DMF) to use intra-fabric L2GRE tunnels.

These tunnels enable forwarding unmodified production network packets over intermediate L3 networks used by DMF, which can now forward packets with Arista Networks Timestamp headers across L2GRE tunnels defined on EOS switches.

When a PTP header-based timestamping capable filter switch is in a remote location, and the remote filter switches connect to the centralized tool farm via L2GRE tunnels, timestamp the packets using PTP timestamping. These packets are encapsulated in an L2GRE header and sent to the core switch via the L2GRE tunnel. The timestamped packets will properly decapsulate at the remote end and be forwarded to the destination tools.

Note: DMF only supports PTP timestamping with L2GRE encapsulation with the header-based timestamping feature.

Please refer to the Tunneling Between Data Centers section on using L2GRE tunnels in DMF.

Using the CLI Show Commands

PTP State Show Commands

Use the show switch switch name ptp info| masters | interface | local-clock command to obtain the PTP state of the selected switch.

The show switch switch name ptp info command summarizes the switch's PTP state and the PTP interfaces' status.

Controller# show switch eos ptp info
PTP Mode: Boundary Clock
PTP Profile: Default ( IEEE1588 )
Clock Identity: 0x2c:dd:e9:ff:ff:96:2b:ff
Grandmaster Clock Identity: 0x44:a8:42:ff:fe:34:fd:7e
Number of slave ports: 1
Number of master ports: 1
Slave port: Ethernet1
Offset From Master (nanoseconds): -128
Mean Path Delay (nanoseconds): 71
Steps Removed: 2
Skew (estimated local-to-master clock frequency ratio): 1.0000080070748882
Last Sync Time: 00:52:44 UTC Aug 09 2023
Current PTP System Time: 00:52:44 UTC Aug 09 2023
Interface StateTransportDelay
Mechanism
--------------- ------------ --------------- ---------
Et1 Slaveipv4 e2e
Et47Master ipv4 e2e

The show switch switch name ptp master command provides information about the PTP master and grandmaster clocks.

Controller# show switch eos ptp master
Parent Clock:
Parent Clock Identity: 0x28:99:3a:ff:ff:21:81:d3
Parent Port Number: 10
Parent IP Address: N/A
Parent Two Step Flag: True
Observed Parent Offset (log variance): N/A
Observed Parent Clock Phase Change Rate: N/A

Grandmaster Clock:
Grandmaster Clock Identity: 0x44:a8:42:ff:fe:34:fd:7e
Grandmaster Clock Quality:
Class: 127
Accuracy: 0xfe
OffsetScaledLogVariance: 0x7060
Priority1: 120
Priority2: 128

The show switch switch name ptp interface interface name command provides the PTP interface configuration and state on the device.

Controller# show switch eos ptp interface Ethernet1
Ethernet1
Interface Ethernet1
PTP: Enabled
Port state: Slave
Sync interval: 1.0 seconds
Announce interval: 2.0 seconds
Announce interval timeout multiplier: 3
Delay mechanism: end to end
Delay request message interval: 2.0 seconds
Transport mode: ipv4
Announce messages sent: 3
Announce messages received: 371
Sync messages sent: 4
Sync messages received: 739
Follow up messages sent: 3
Follow up messages received: 739
Delay request messages sent: 371
Delay request messages received: 0
Delay response messages sent: 0
Delay response messages received: 371
Peer delay request messages sent: 0
Peer delay request messages received: 0
Peer delay response messages sent: 0
Peer delay response messages received: 0
Peer delay response follow up messages sent: 0
Peer delay response follow up messages received: 0
Management messages sent: 0
Management messages received: 0
Signaling messages sent: 0
Signaling messages received: 0

The show switch switch name ptp local-clock command provides PTP local clock information.

Controller# show switch eos ptp local-clock
PTP Mode: Boundary Clock
Clock Identity: 0x2c:dd:e9:ff:ff:96:2b:ff
Clock Domain: 0
Number of PTP ports: 56
Priority1: 128
Priority2: 128
Clock Quality:
Class: 248
Accuracy: 0x30
OffsetScaledLogVariance: 0xffff
Offset From Master (nanoseconds): -146
Mean Path Delay: 83 nanoseconds
Steps Removed: 2
Skew: 1.0000081185368557
Last Sync Time: 01:01:41 UTC Aug 09 2023
Current PTP System Time: 01:01:41 UTC Aug 09 2023

Policy State Show Commands

Use the show policy command to view the timestamping status for a given policy.

> show policy
# Policy Name Action Runtime Status Type Priority Overlap Priority Push VLAN Filter BW Delivery BW Post Match Filter Traffic Delivery Traffic Services Installed Time Installed Duration Ptp Timestamping
-|-----------|------------------|--------------|----------|--------|----------------|---------|---------|-----------|-------------------------|----------------|--------|--------------|------------------|----------------|
1 p1unspecified action inactive Configured 10001 - - - - True

Configuration Validation Messages

In push-per-policy mode, a validation exception occurs if a policy uses NetFlow managed-service with records-per-interface option and the same policy also uses timestamping. The following message appears:

Validation failed: Policy policy1 cannot have timestamping enabled along with header modifying netflow service.
Netflow service netflow1 is configured with records-per-interface in push-per-policy mode

In push-per-policy mode, a validation exception occurs if a policy uses the ipfix managed-service (using a template with records-per-dmf-interface key) and the same policy also uses timestamping. The following message appears:

Validation failed: Policy policy1 cannot have timestamping enabled along with header modifying ipfix service.
Ipfix service ipfix1 is configured with records-per-dmf-interface in push-per-policy mode

Only unicast source-ipv4-address or source-ipv6-address are allowed in the switch PTP config.

Examples of invalid ipv6 addresses: ff02::1, ff02::1a, ff02::d, ff02::5

Validation failed: Source IPv6 address must be a unicast address

Examples of invalid ipv4 addresses: 239.10.10.10, 239.255.255.255, 255.255.255.255

Validation failed: Source IPv4 address must be a unicast address

Troubleshooting

A policy programmed to use timestamping can fail for the following reasons:

The filter switch does not support syncing its hardware clock using PTP.
An unconfigured PTP interface or the interface is inactive.
The PTP switch configuration or PTP interface configuration is invalid or incomplete.
Configuring the PTP interface on a logical port (Lag or Tunnel).

Reasons for failure will be available in the runtime state of the policy and viewed using the show policy policy name command.

As the Platform Compatibility Section describes, use the show switch all properties command to confirm a switch supports the feature.

Limitations

The source MAC address of the user packet is re-written with a 48-bit timestamp value on the filter switch. This action can exhibit the following behavior changes or limitations:

Dedup managed service will not work as expected. A high-precision timestamp can be different for duplicate packet matching on two different filter interfaces. Thus, the dedup managed service will consider this duplicate packet to be different in the L2 header. To circumvent this limitation, use an anchor/offset in the dedup managed-service config to ignore the source MAC address.
Any Decap managed service except for decap-l3-mpls will remove the timestamp information header.
The user source MAC address is lost and unrecoverable when using this feature.
The rewrite-dst-mac feature cannot be used on the filter interface that is part of the policy using the timestamping feature.
In push-per-filter mode, if a user has src-mac match condition as part of their policy config, the traffic will not be forwarded as expected and can get dropped at the core switch.
The in-port masking feature will be disabled for a policy using PTP timestamping.
Logical ports (Lag/Tunnel) as PTP interfaces are not allowed.

DANZ Monitoring Fabric User Guide - Advanced Policy Configuration Print
