Built-In Studios

There are currently seven built-in Studios in the beta-version, which each relate to a network feature. You can create your own custom-built Studios by following the Creating a New Studio instructions.

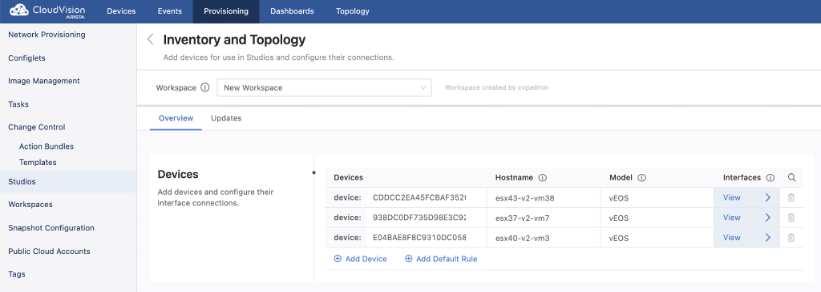

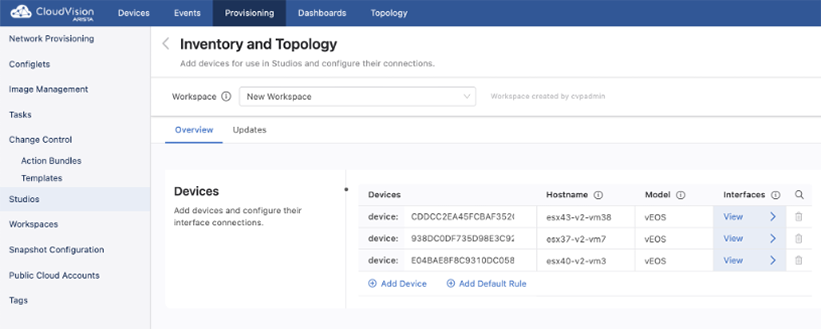

Any devices you wish to include in a Workspace configuration must already have been commissioned by using the Inventory and Topology Studio. Consequently, this is the first Studio that you should use and which enables the use of all other Studios.

When using any Studio, except for Inventory and Topology, it is important to remember that you need to assign User Tags to the Studio. These tags relate to devices commissioned with the Inventory and Topology Studio. Only devices tagged to a Studio will be affected by any proposed configuration.

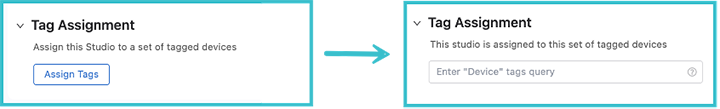

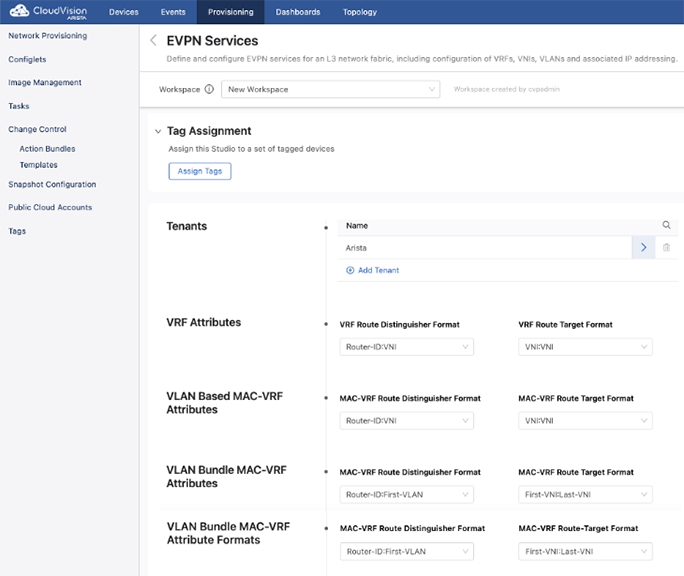

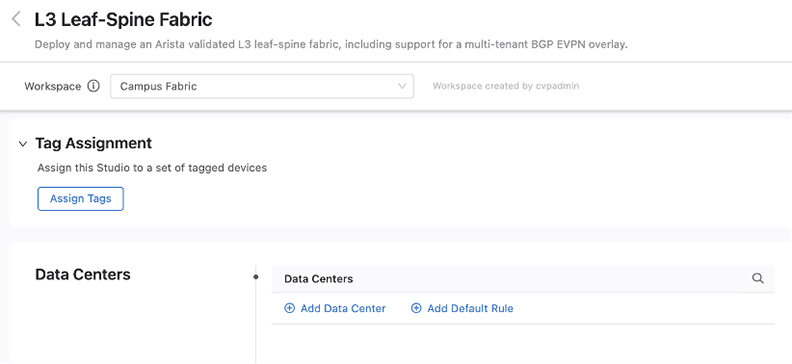

When you open up any Studio, other than Inventory and Topology, you will see the tag assignment option. Click Assign Tags and enter the User Tags for the devices you want the Studio to affect.

Figure 1. Tag Assignment
