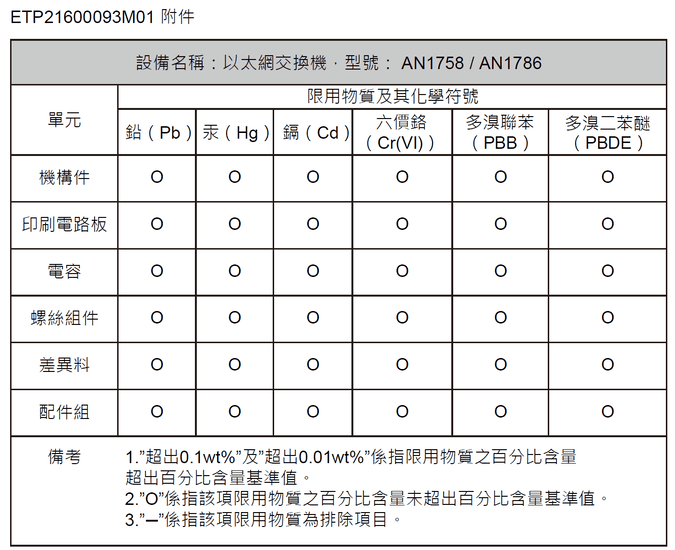

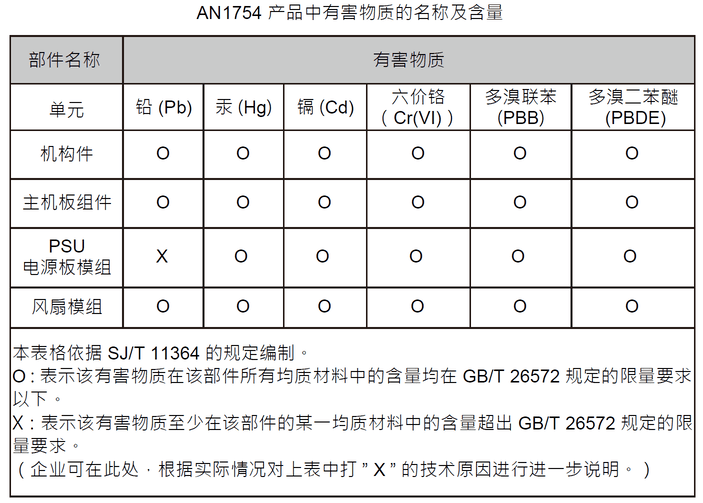

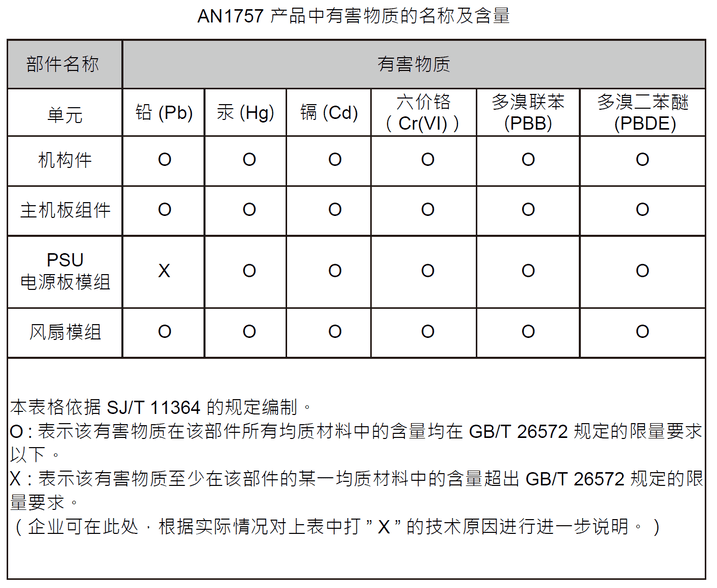

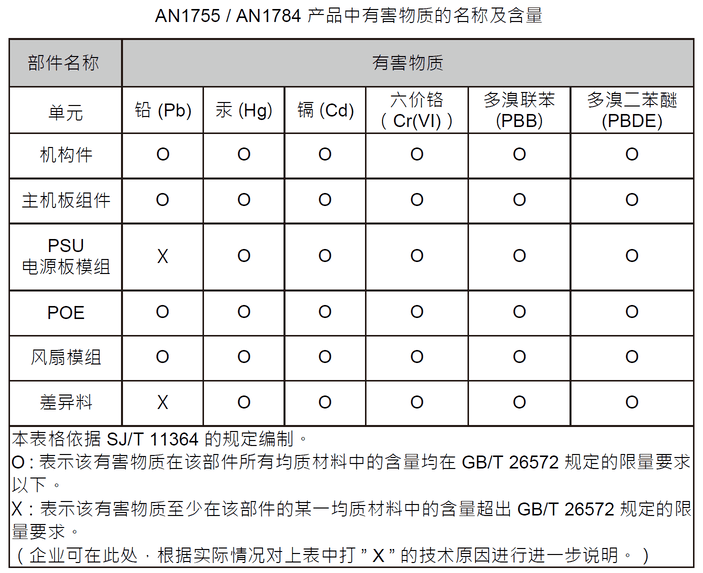

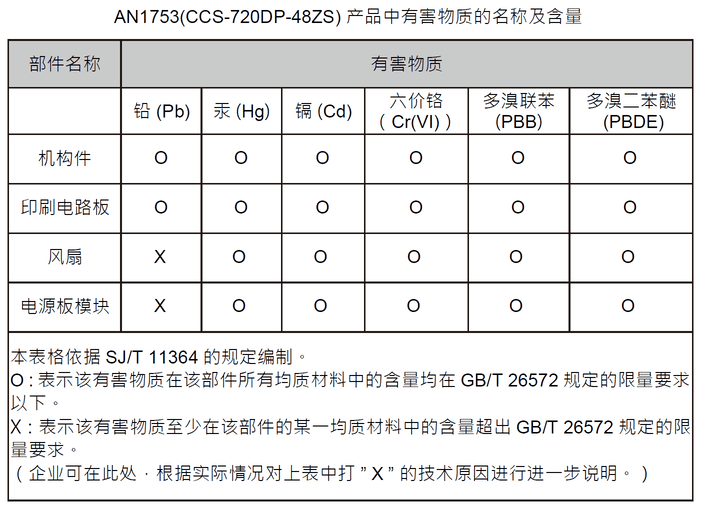

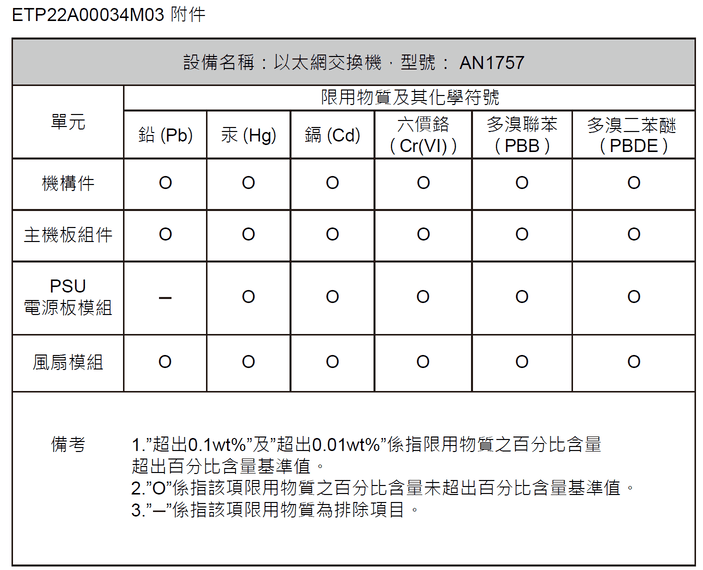

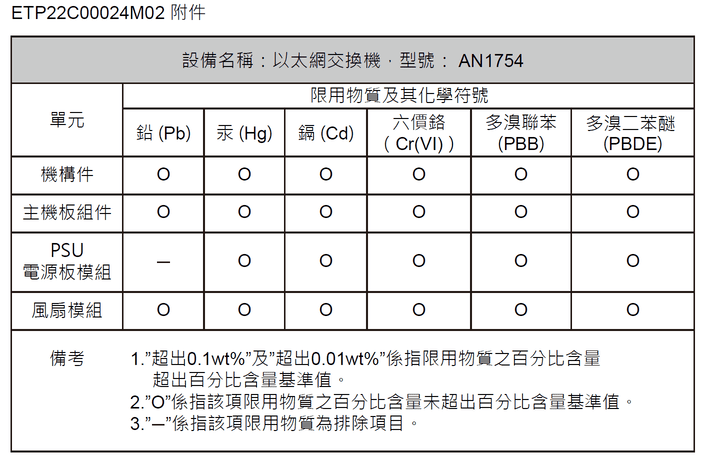

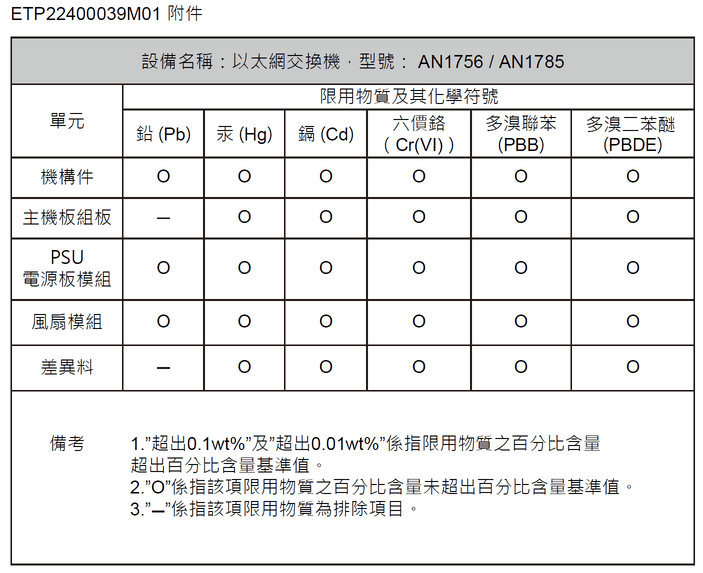

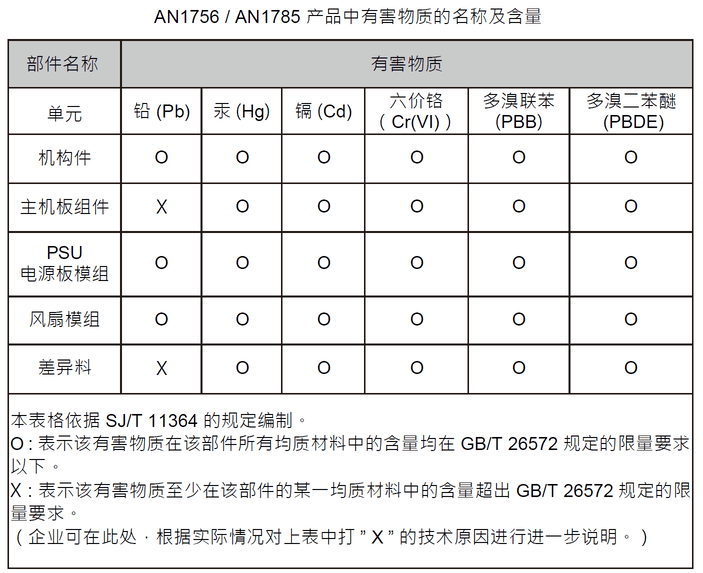

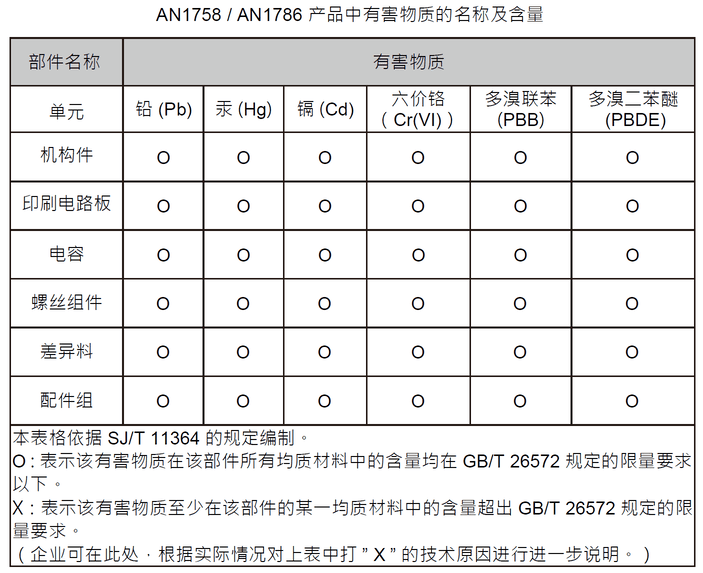

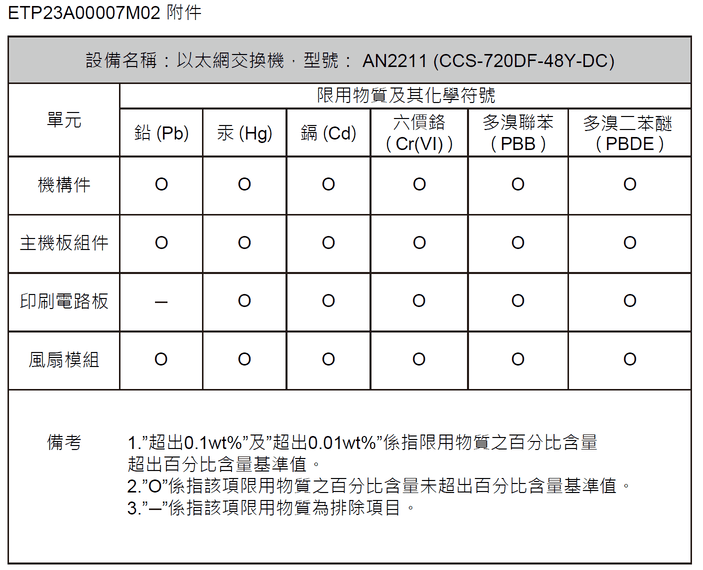

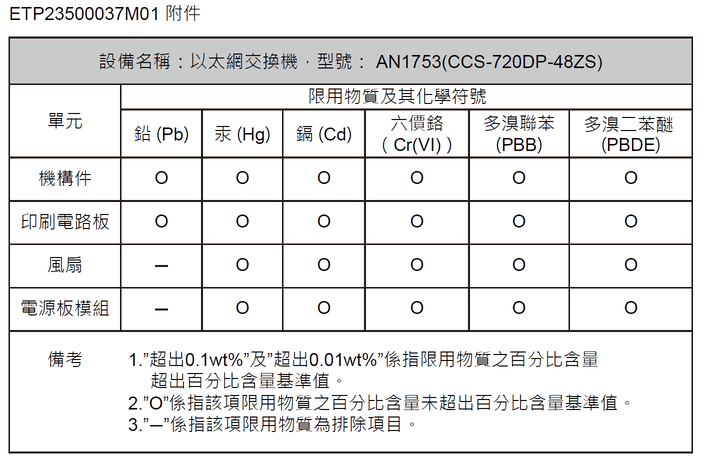

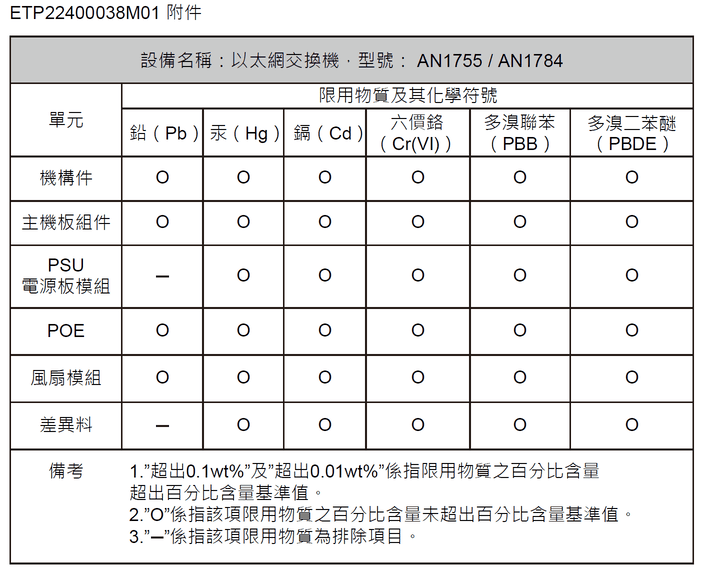

RoHS Information

This section provides the Taiwan and China RoHS information for the Ethernet switches this guide covers.




































BSMI Class A Statement

This section provides the Taiwan BSMI Class A Statement information for switches this guide covers.



Figure 1. Taiwan BSMI Class A Statement

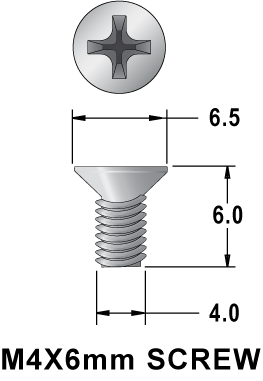

Screw Size Details

This section describes the detailed screw size information required for mounting the switch. Refer to Rack Mounting the Switch.





Regulatory Model Numbers

This section lists the Regulatory Model Numbers (RMNs) of the Ethernet switches described in this guide.



Table 1. Regulatory Model Numbers
Product Number Regulatory Model Number (RMN)
CCS-720DP-48S-2F

CCS-720DP-48S-M-S-2F

 AN1755
CCS-720DP-24S-2F

CCS-720DP-24S-M-S-2F

 AN1756
CCS-720DT-48S-2F AN1784
CCS-720DT-48S-2R AN1784
CCS-720DT-24S-2F

CCS-720DT-24S-M-S-2F

 AN1785
CCS-720DT-24S-2R AN1785
CCS-720DF-48Y-2F

CCS-720DF-48Y-M-S-2F

 AN1757
CCS-720DP-24ZS-2F AN1754
CCS-720DP-48ZS-2F AN1753
CCS-720DF-48Y-DC-2F AN2211



Operating Mode Button

This section discusses the functionality of the mode button located on the front panel of the switch.



Figure 1. Mode Button States



The mode button port LEDs will transition to different modes as listed below when the user presses the mode button for less than 2 seconds, and the same is indicated by the corresponding mode status LED.

  • Normal Mode

  • PoE Mode

  • Speed Mode



In addition to controlling the port/mode LEDs, the button can trigger other actions, including a hard reset and a factory reset. To access these actions, it is required to long-press the button as shown in the Figure 1 - Mode Button States.

  • Entering Reset States:

    If you select and hold the button for more than 2 seconds, all the 3 mode status LEDs will flash to indicate the transition from regular operating states to reset states. If the button is released before 5 seconds, no action will occur, and the system will return to its previous mode (normal, PoE, or link speed).



  • Hard Reset:

    If you select and hold the button for about 5 to 15 seconds, it will trigger a hard reset of the system 2 seconds later.



  • Factory Reset:

    If you select and hold the button for about 15 seconds or longer, it will trigger a hard reset of the system 2 seconds later. In addition, the system will also trigger factory reset on system configuration.



Rear Panel

The section discusses the rear panel of the Ethernet Switch.

CCS-720DP-48S-2F / CCS-720DP-48S-M-S-2F

The CCS-720DP-48S-2F / CCS-720DP-48S-M-S-2F rear panel includes the following key components:



Figure 1. CCS-720DP-48S-2F / CCS-720DP-48S-M-S-2F Rear Panel

1 Power supply 1 (PS1) 5 Fan 3
2 Functional Grounding Point 6 Fan 4
3 Fan 1 7 Power Supply 2 (PS2)
4 Fan 2



CCS-720DP-24S-2F / CCS-720DP-24S-M-S-2F

The CCS-720DP-24S-2F / CCS-720DP-24S-M-S-2F rear panel includes the following key components:



Figure 2. CCS-720DP-24S-2F / CCS-720DP-24S-M-S-2F Rear Panel

1 Power supply 1 (PS1) 4 Fan 2
2 Functional Grounding Point 5 Fan 3
3 Fan 1 6 Power Supply 2 (PS2)

CCS-720DT-48S-2F

The CCS-720DT-48S-2F rear panel includes the following key components:



Figure 3. CCS-720DT-48S-2F Rear Panel

1 Power supply 1 (PS1) 4 Fan 2
2 Functional Grounding Point 5 Power Supply 2 (PS2)
3 Fan 1



CCS-720DT-24S-2F / CCS-720DT-24S-M-S-2F

The CCS-720DT-24S-2F / CCS-720DT-24S-M-S-2F rear panel includes the following key components:



Figure 4. CCS-720DT-24S-2F / CCS-720DT-24S-M-S-2F Rear Panel

1 Power supply 1 (PS1) 4 Fan 2
2 Functional Grounding Point 5 Power Supply 2 (PS2)
3 Fan 1



CCS-720DT-24S-2R

The CCS-720DT-24S-2R rear panel includes the following key components:



Figure 5. CCS-720DT-24S-2R Rear Panel

1 Power supply 1 (PS1) 4 Fan 2
2 Functional Grounding Point 5 Power Supply 2 (PS2)
3 Fan 1



CCS-720DT-48S-2R

The CCS-720DT-48S-2R rear panel includes the following key components:



Figure 6. CCS-720DT-48S-2R Rear Panel

1 Power supply 1 (PS1) 4 Fan 2
2 Functional Grounding Point 5 Power Supply 2 (PS2)
3 Fan 1



CCS-720DF-48Y-2F / CCS-720DF-48Y-M-S-2F

The CCS-720DF-48Y-2F / CCS-720DF-48Y-M-S-2F rear panel includes the following key components:



Figure 7. CCS-720DF-48Y-2F / CCS-720DF-48Y-M-S-2F Rear Panel

1 Power supply 1 (PS1) 4 Fan 2
2 Functional Grounding Point 5 Fan 3
3 Fan 1 6 Power Supply 2 (PS2)



CCS-720DF-48Y-DC-2F

The CCS-720DF-48Y-DC-2F rear panel includes the following key components:

Figure 8. CCS-720DF-48Y-DC-2F Rear Panel

1 Power supply 1 (PS1) 4 Fan 2
2 Functional Grounding Point 5 Fan 3
3 Fan 1 6 Power Supply 2 (PS2)



CCS-720DP-24ZS-2F

The CCS-720DP-24ZS-2F rear panel includes the following key components:



Figure 9. CCS-720DP-24ZS-2F Rear Panel

1 Power supply 1 (PS1) 5 Fan 3
2 Functional Grounding Point 6 Fan 4
3 Fan 1 7 Power Supply 2 (PS2)
4 Fan 2



CCS-720DP-48ZS-2F

The CCS-720DP-48ZS-2F rear panel includes the following key components:



Figure 10. CCS-720DP-48ZS-2F Rear Panel

1 Power supply 1 (PS1) 5 Fan 3
2 Functional Grounding Point 6 Fan 4
3 Fan 1 7 Power Supply 2 (PS2)
4 Fan 2



Front Panel



This section discusses the front panel of the Ethernet Switch.

CCS-720DP-48S

The CCS-720DP-48S front panel includes the following key components:



Figure 1. CCS-720DP-48S Front Panel

1 System Status LEDs 6 4x10G SFP+ Ports
2 RJ45 Ethernet Management Port 7 SFP+ Port LEDs
3 USB Port 8 48x1G PoE Ports
4 Console Port 9 Mode Button
5 Port LEDs 10 Mode Status LEDs



CCS-720DP-48S-M-S

The CCS-720DP-48S-M-S front panel includes the following key components:



Figure 2. CCS-720DP-48S-M-S Front Panel

1 System Status LEDs 6 4x10G SFP+ Ports
2 RJ45 Ethernet Management Port 7 SFP+ Port LEDs
3 USB Port 8 48x1G PoE Ports
4 Console Port 9 Mode Button
5 Port LEDs 10 Mode Status LEDs



CCS-720DP-24S

The CCS-720DP-24S front panel includes the following key components:



Figure 3. CCS-720DP-24S-M-S Front Panel

1 System Status LEDs 6 4x10G SFP+ Ports
2 RJ45 Ethernet Management Port 7 SFP+ Port LEDs
3 USB Port 8 24x1G PoE Ports
4 Console Port 9 Mode Button
5 Port LEDs 10 Mode Status LEDs



CCS-720DP-24S-M-S

The CCS-720DP-24S-M-S front panel includes the following key components:



Figure 4. CCS-720DP-24S-M-S Front Panel

1 System Status LEDs 6 4x10G SFP+ Ports
2 RJ45 Ethernet Management Port 7 SFP+ Port LEDs
3 USB Port 8 24x1G PoE Ports
4 Console Port 9 Mode Button
5 Port LEDs 10 Mode Status LEDs



CCS-720DT-48S

The CCS-720DT-48S front panel includes the following key components:



Figure 5. CCS-720DT-48S Front Panel

1 System Status LEDs 6 4x10G SFP+ Ports
2 RJ45 Ethernet Management Port 7 SFP+ Port LEDs
3 USB Port 8 48x1G PoE Ports
4 Console Port 9 Mode Button
5 Port LEDs 10 Mode Status LEDs



CCS-720DT-24S

The CCS-720DT-24S front panel includes the following key components:



Figure 6. CCS-720DT-24S Front Panel

1 System Status LEDs 6 4x10G SFP+ Ports
2 RJ45 Ethernet Management Port 7 SFP+ Port LEDs
3 USB Port 8 24x1G Ports
4 Console Port 9 Mode Button
5 Port LEDs 10 Mode Status LEDs

CCS-720DT-24S-M-S

The CCS-720DT-24S-M-S front panel includes the following key components:



Figure 7. CCS-720DT-24S-M-S Front Panel

1 System Status LEDs 6 4x10G SFP+ Ports
2 RJ45 Ethernet Management Port 7 SFP+ Port LEDs
3 USB Port 8 24x1G Ports
4 Console Port 9 Mode Button
5 Port LEDs 10 Mode Status LEDs



CCS-720DF-48Y

The CCS-720DF-48Y front panel includes the following key components:



Figure 8. CCS-720DF-48Y Front Panel

1 System Status LEDs 6 4x25G SFP28 Ports
2 RJ45 Ethernet Management Port 7 SFP28 Port LEDs
3 USB Port 8 48x1G SFP Ports
4 Console Port 9 Mode Button
5 Port LEDs 10 Mode Status LEDs



CCS-720DF-48Y-M-S

The CCS-720DF-48Y-M-S front panel includes the following key components:



Figure 9. CCS-720DF-48Y-M-S Front Panel

1 System Status LEDs 6 4x25G SFP28 Ports
2 RJ45 Ethernet Management Port 7 SFP28 Port LEDs
3 USB Port 8 48x1G SFP Ports
4 Console Port 9 Mode Button
5 Port LEDs 10 Mode Status LEDs



CCS-720DP-24ZS

The CCS-720DP-24ZS front panel includes the following key components:



Figure 10. CCS-720DP-24ZS Front Panel

1 System Status LEDs 6 4x10G SFP+ Ports
2 RJ45 Ethernet Management Port 7 SFP+ Port LEDs
3 USB Port 8 24x2.5G PoE Ports
4 Console Port 9 Mode Button
5 Port LEDs 10 Mode Status LEDs



CCS-720DP-48ZS

The CCS-720DP-48ZS front panel includes the following key components:



Figure 11. CCS-720DP-48ZS Front Panel

1 System Status LEDs 6 4x10G SFP+ Ports
2 RJ45 Ethernet Management Port 7 SFP+ Port LEDs
3 USB Port 8 48x2.5G PoE Ports
4 Console Port 9 Mode Button
5 Port LEDs 10 Mode Status LEDs



Parts List

This section lists the installation parts contained in the switch accessory kit. Each device has an accessory kit that contains the necessary parts to install the switch.

Two-post Rack Mount

The following accessories are available along with the device:

  • Figure 1. Two-post Rack Mount Kit Parts
    1 L-bracket (left) 2 L-bracket (right) 3 Flat head screw M4x6mm





    Figure 2. Two-post Rack Mount Kit Parts (CCS-720DF-48Y-DC)

    1

    		 L-bracket (left) 2 L-bracket (right) 3 Flat head screw M4x6mm



  • Console Cables

    • CBL-00100 RJ45 <-> RJ45 CAT5E Ethernet cable

    • CBL-00002 RJ45 <-> DB9 console cable



  • Power cable (specified during time of purchase as it's country-specific or no power cord)



Optional Accessories

The following are the optional accessories and should be ordered separately if required:

Spare SKU Description
KIT-720 Spare Accessory kit for Arista 720D Series 1RU Switches
KIT-7010-4Post Spare 4-post rack mount kit for 7010 switches



SKU and Product Details

The following are the list of SKU numbers related to the respective product.



Table 1. SKU and Product Details
SKU Product Description
CCS-720DP-48S-2F Arista 720DP, 48x1G PoE, 4x10G SFP+ switch, front to rear air, 2x950W AC
CCS-720DP-48S-M-S-2F Arista 720DP, 48x1G POE, 4x10G SFP+ switch, expanded memory, front to rear air, 2x950W AC
CCS-720DP-24S-2F Arista 720DP, 24x1G PoE, 4x10G SFP+ switch, front to rear air, 2x460W AC
CCS-720DP-24S-M-S-2F Arista 720DP, 24x1G POE, 4x10G SFP+ switch, expanded memory, front to rear air, 2x460W AC
CCS-720DT-48S-2F Arista 720DT, 48x1G, 4x10G SFP+ switch, front to rear air, 2x100W AC
CCS-720DT-48S-2R Arista 720DT, 48x1G, 4x10G SFP+ switch, rear to front air, 2x100W AC
CCS-720DT-24S-2F Arista 720DT, 24x1G, 4x10G SFP+ switch, front to rear air, 2x100W AC
CCS-720DT-24S-M-S-2F Arista 720DT, 24x1G, 4x10G SFP+ switch, expanded memory, front to rear air, 2x100W AC
CCS-720DT-24S-2R Arista 720DT, 24x1G, 4x10G SFP+ switch, rear to front air, 2x100W AC
CCS-720DF-48Y-2F Arista 720DF, 48x1G SFP, 4x25G SFP28 switch, front to rear air, 2x200W AC
CCS-720DF-48Y-M-S-2F Arista 720DF, 48x1G SFP, 4x25G SFP28 switch, expanded memory, front to rear air, 2x200W AC
CCS-720DP-24ZS-2F Arista 720DP, 24x2.5G PoE, 4x10G SFP+ switch, front to rear air, 2x950W AC
CCS-720DP-48ZS-2F Arista 720DP, 48x2.5G PoE, 4x10G SFP+ switch, front to rear air, 2x1800W AC
CCS-720DF-48Y-DC-2F Arista 720DF, 48x1G SFP, 4x25G SFP28 switch, front to rear air, 2x240W DC



Status Indicators

This section describes the front panel LED status of the device.

LED Status Indicators





































Table 1. LED Status
LED Name LED State Device Status
System Status LED Off No power or in the midst of a power cycle.
Blinking Green The system is powering up.
Green The system is operating in a normal initialization sequence. Normal operations.
Blue The locator function is active.
Amber The system is malfunctioning. The system is overheating, or temperature sensors have recorded passing the software-defined critical threshold.

The switch will automatically execute a “graceful shutdown” shortly.
Cloud Connect Status LED Off Not connected to the cloud.
Green The system is connected to the cloud.
Amber Problem connecting to the cloud.
Fan Status LED Green All fan modules are operating normally.
Amber The single fan module is malfunctioning.
Power Supply Status LED Off The power supply unit is not available.
Green The power supply unit is fully functional.
Amber The power supply unit has a fault.
Port Normal Mode LED Off Normal mode is not selected.
Green Port LED is selected to indicate port link status (normal mode).
Port PoE Mode LED

(CCS-720DP-48S, CCS-720DP-24S, CCS-720DP-24ZS, CCS-720DP-48ZS)

 Off PoE mode is not selected.
Green Port LED is selected to indicate port PoE status.
Port Speed Mode LED Off Speed mode is not selected.
Green Port LED is selected to indicate port speed.





Table 2. Port LED Modes
Port LEDs Normal Mode PoE Mode Speed Mode
1GE RJ45 Port LED Off Port link is down Off No PoE Blinking Amber 10M
Green Port link is up Blinking Amber 15W Amber 100M
Amber Port is software disabled Amber 30W Green 1G
2.5GE RJ45 Port LED Off Port link is down Off No PoE Blinking Amber 100M
Green Port link is up Blinking Amber 15W Amber 1G
Amber Port is software disabled Amber 30W Green 2.5G
    Blinking Green 60W
SFP+ Port LED Off Port link is down Off No PoE Blinking Amber 100M
Green Port link is up Amber 1G
Amber Port is software disabled Green 10G
SFP28 Port LED Off Port link is down Off No PoE Blinking Amber 1G
Green Port link is up Amber 10G
Amber Port is software disabled Green 25G

Configuring the Switch

Arista switches ship from the factory in Zero Touch Provisioning (ZTP) mode. ZTP configures the switch without user intervention by downloading a startup configuration file or a boot script from a location specified by a DHCP server. To manually configure a switch, ZTP is bypassed. The initial configuration provides one username (admin) that is accessible only through the console port because it has no password.

When bypassing ZTP, initial switch access requires logging in as admin, with no password, through the console port. Then you can configure an admin password and other password protected usernames.

This manual configuration procedure cancels ZTP mode, logs into the switch, assigns a password to admin, assigns an IP address to the management port, and defines a default route to a network gateway.

  1. Provide power to the switch (Connecting Power Cables).
  2. Connect the console port to a PC (Connecting Serial and Management Cables).

    As the switch boots without a startup-config file, it displays the following through the console:



    The device is in Zero Touch Provisioning mode and is
attempting to download the startup-config from a remote system.
The device will not be fully functional until either a valid
startup-config is downloaded from a remote system or Zero Touch
Provisioning is cancelled. To cancel Zero Touch Provisioning, login
as admin and type 'zerotouch cancel' at the CLI.
localhost login:



  3. Log into the switch by typing admin at the login prompt.
    localhost login: admin



  4. Cancel ZTP mode by typing zerotouch cancel.
    IMPORTANT: This step initiates a switch reboot.
    localhost> zerotouch cancel



  5. After the switch boots, log into the switch again by typing admin at the login prompt.
    Arista EOS
localhost login: admin
Last login: Fri Mar 15 13:17:13 on console



  6. Enter global configuration mode.
    localhost> enable
localhost# config



  7. Assign a password to the admin username with the username secret command.
    localhost(config)# username admin secret pxq123



  8. Configure a default route to the network gateway.
    localhost(config)# ip route 0.0.0.0/0 192.0.2.1



  9. Assign an IP address (192.0.2.8/24 in this example) to an Ethernet management port.
    localhost(config)# interface management 1
localhost(config-if-Ma1/1)# ip address 192.0.2.8/24



  10. Save the configuration by typing write memory or copy running-config startup-config.
    localhost# copy running-config startup-config



  11. When the management port IP address is configured, use this command to access the switch from a host, using the address configured in Step 9.
    ssh admin@192.0.2.8



    Refer to the Arista Networks User Manual for complete switch configuration information.

    Note: The device configuration does not stream voltage and current data.
