Quick Start Guide
7010 Series 1RU
Data Center Switches
Arista Networks

www.arista.com

PDOC-00061-06

Headquarters
5453 Great America Parkway
Santa Clara, CA 95054, USA
+1-408 547-5500
www.arista.com
Support
+1-408 547-5502
+1-866 476-0000
This email address is being protected from spambots. You need JavaScript enabled to view it.
Sales
+1-408 547-5501
+1-866 497-0000
This email address is being protected from spambots. You need JavaScript enabled to view it.
© Copyright 2024 Arista Networks, Inc. The information contained herein is subject to change without notice. Arista Networks and the Arista logo are trademarks of Arista Networks, Inc., in the United States and other countries. Other product or service names may be trademarks or service marks of others.

Regulatory Model Numbers

This appendix lists the Regulatory Model Numbers (RMNs) for the product models for the switches described in this document.

Table 1. Regulatory Model Numbers and Product Numbers
Regulatory Model Number (RMN) Product Name(s)
DCS-7010T-48 DCS-7010T-48, DCS-7010T-48-DC

AN1738

 DCS-7010TX-48
AN1764 DCS-7010TX-48-DC

Maintenance and Field Replacement

Only the fan module is field replaceable.

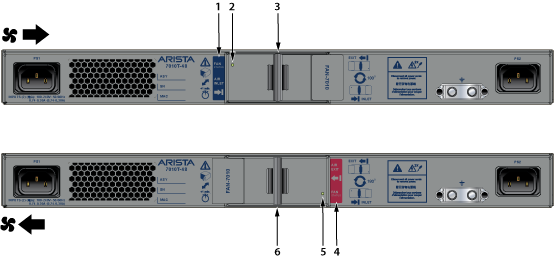

Note: Hot swap or reorient fans within one minute to prevent the switch from overheating and shutting down.

Ensure that the module you are replacing matches those already installed in the switch.

Considerations

  • The fan module is hot swappable and can be reoriented for airflow direction.
  • The switch will shut down if the fan module is disconnected for more than a minute.
  • Before you begin, refer to the Arista Networks document Safety Information and Translated Safety Warnings available at: https://www.arista.com/en/support/product-documentation.

Removing a Fan Module

The following steps are required when removing or replacing fans from a switch.
  1. Ground yourself with an ESD wrist strap.
  2. While squeezing the fan module handle, pull the fan module out of the switch.

Installing a Fan Module

You must make space for installing the fan module by removing an existing one (Removing a Fan Module).
  1. Remove the replacement fan from its packaging.
  2. Slide the new fan module into the switch until the module is fully seated and the release lever snaps into place.
  3. Verify that the fan module is working normally.
Note: The fan module status LED should be a steady green for normal operation.

Rear Panel

This appendix displays the rear panel of all switches covered by this guide. Depending on the modules installed, the rear panel on your switch may appear slightly different.

Figure 1. DCS-7010T-48

1 Power Supply Module 1 4 Airflow direction indicator label (inactive) 7 Airflow direction indicator label (active)
2 Grounding location 5 Fan release handle
3 Power Supply Module 2 6 Fan status LED





Figure 2. DCS-7010TX-48

1 Power supply module 1 4 Power supply module 2 7 Fan release handle
2 Power supply 1 status LED 5 Power supply 2 status LED 8 Fan status LED
3 Grounding location 6 Airflow direction indicator label (inactive) 9 Airflow direction indicator label (active)





Figure 3. DCS-7010T-48-DC

1 Power supply 1 terminals 3 Power supply 2 terminal cover 5 Grounding location
2 Power supply 1 terminal cover 4 Power supply 2 terminals





Figure 4. DCS-7010TX-48-DC

1 Power supply 1 terminals 4 Power supply 2 terminals 7 Fan release handle
2 Power supply 1 status LED 5 Power supply 2 status LED 8 Fan status LED
3 Grounding location 6 Airflow direction indicator label (inactive) 9 Airflow direction indicator label (active)

Front Panel

This appendix displays the front panel of all switches covered by this guide.

Figure 1. DCS-7010T-48 and DCS-7010T-48-DC

1 Port numbers 5 System status LED 9 USB port
2 Port status LED 6 Fan tray status LED 10 Ethernet management port
3 SFP+ Ports 7 Power supply 1 status LED 11 RJ-45 ports
4 Console serial port 8 Power supply 2 status LED

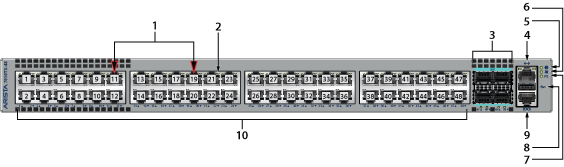

Figure 2. DCS-7010TX-48 and DCS-7010TX-48-DC

1 Port numbers 5 System status LED 9 Console serial port
2 Port status LED 6 Fan tray status LED 10 RJ-45 ports
3 SFP25 Ports 7 Power supply status LED
4 Ethernet management port 8 USB port

Parts List

Each switch provides an accessory kit that contains parts that are required to install the switch. This appendix lists the installation parts contained in the switch accessory kit.

The Parts List section reviews the following topics:

Installation Parts

The accessory kit includes rack mount parts and rubber pads.

Figure 1. Rack Mount Parts

Figure 2. Surface Mount Rubber Pads


1 Rubber pads

Cables

Describes the cables required to install the device.

Quantity Description
2 Power cables: IEC-320/C13-C14, 10 A, 250 V
Note: All provided power cables are for use only with Arista products.

Cabling the Switch

The Cabling the Switch section reviews the following topics:

Grounding the Switch

Describes grounding the device to the data center ground.

After mounting the switch into the rack, connect the switch to the data center ground. The following figure shows the grounding location and the power sockets for the 7010T-48 and 7010TX-48 switches.

Figure 1. Grounding Points and Power Sockets for 7010T-48 and 7010TX-48 Switches

1 Power supply module 1

4

Air exit indicator (Red label)

 7 Air vent
2 Grounding location 5 Fan module handle
3 Power supply module 2 6 Air inlet indicator (Blue label)



The following figure shows the grounding location and the power terminals for the 7010T-48-DC and 7010TX-48-DC switches.

Figure 2. Grounding Points and Power Terminals for 7010T-48-DC and 7010TX-48-DC Switches

1 Power supply module 1 4 Power supply module 2
2 PSU 1 cover 5 Grounding location
3 PSU 2 cover 6 Air inlet indicator (Blue label)



The switches operate with two internal power supplies. At least one of the supplies must connect to a power source. Two circuits provide redundancy protection.

Important:

Grounding wires and grounding lugs (M4 x 0.7) are not supplied. Wire size should meet local and national installation requirements. Commercially available 6 AWG wire is recommended for installations in the U.S.



À la terre et de mise à la terre fils cosses (M4 x 0.7) ne sont pas fournis. Calibre des fils doit satisfaire des exigences de l’installation locale et nationale. Disponible dans le commerce 6 fils AWG est recommandé pour les installations aux États-Unis.



Grounding Lug Preparation

The following procedure describes the lug preparation to connect the chassis to the data center ground:

  1. Prepare the (stranded) copper wiring for the ground wire.
  2. Use agency-approved compression (pressure) lugs for wiring terminations.
  3. Slip on heat-shrink tubing on the wire end before assembling the lugs on to the wire.
  4. Crimp the lugs with the proper tool, and ensure that the tubing extends over the barrel of the lug and the insulation on the wire as shown in the following figure.
    Figure 3. Lug Preparation

    1 Insulated wire A 1/4”
    2 Heat-shrink tubing B 1/2”
    3 Lug C 5/8”



  5. Shrink the tubing with a heat gun.

Connecting Power Cables

Describes the installation requirements for connecting the power cables to the device.

Important:

Installation of this equipment must comply with local and national electrical codes. If necessary, consult with the appropriate regulatory agencies and inspection authorities to ensure compliance.

Read all installation instructions before connecting the system to the power source.

This equipment must be grounded. Never defeat the ground conductor.

This unit requires overcurrent protection.





Installation de cet équipement doit être conformes aux codes électriques locaux et nationaux. Si nécessaire, consulter les organismes de réglementation appropriés et des autorités de contrôle pour assurer la conformité.

Lire toutes les instructions d'installation avant de brancher le système à la source d'alimentation.

Cet équipement doit être mis à la terre. Ne jamais modifier le conducteur de terre.

Cet appareil requiert une protection contre les surintensités.



Connecting AC Power

Describes how to connect the AC power supply to the device.

Power requirements vary by switch. Refer to Table 3 for information regarding your specific switch.

Rear Panel shows the location of the power supply connections on the rear panel of the switch.

Power Configurations

  • Non-redundant: Connect power to either of the two power supplies.
  • Redundant: Connect each AC power supply to a separate circuit that provides the required power.
Note:

To power down the Switch, remove all power cords and wires from the power supplies.

Input power and power Supply redundancy is dependent on the actual system power draw.

For maximum Input Power redundancy, each power supply should be connected to its own input overcurrent protection.

Power supplies use cables that comply with IEC-320 and have a C13 plug. The accessory kit provides two IEC-320 C13 to C14 power cables.



Connecting DC Power

Describes how to connect the DC power supply to the device.

Power requirements vary by switch. Refer to Table 3 for information regarding your specific switch.

Rear Panel displays the location of the power supplies on the rear panel of the switch. There is a cover over the DC supply terminals.

Important:

A disconnect device must be provided as part of the installation.

Ensure power is removed from DC circuits before performing any installation actions. Locate the disconnect device, circuit breakers or fuses on DC power lines servicing the circuits. Turn off the power line circuits or remove the fuses.

Wire size must comply with local and national requirements and electrical codes. Use only copper wire.

Apply ground connection to the switch first during installation and remove last when removing power.





Un dispositif de sectionnement doit être fourni dans le cadre de l'installation.

Pouvoir assurer qu'il est retiré de circuits DC avant d'effectuer des actions d'installation . Localiser les disjoncteurs ou des fusibles sur les lignes de courant continu desservant les circuits. Coupez les circuits de lignes d'alimentation ou retirer les fusibles.

Le calibre du fil doit être conforme aux exigences locales et nationales et les codes électriques. Utiliser du fil de cuivre.

Appliquer connexion à la terre à l'interrupteur premier lors de l'installation et de supprimer la dernière alimentation lors du débranchement.

Power Configurations

  • Non-redundant: Connect power to either of the two power supplies.
  • Redundant: Connect each DC power supply to a circuit that provides the required power.



Connecting DC Power Supply to Power Source

Describes how to connect the DC power supply to the power source.

Important:

Wire size must comply with local and national requirements and electrical codes. Use only copper wire.

Apply the ground connection first during installation and remove last when removing power.





Calibre doit respecter les exigences locales et nationales et les codes de l’électricité. Utiliser seulement du fil de cuivre.

Appliquer le motif connexion tout d’abord pendant l’installation et supprimer dernière lors du retrait de puissance.



To connect a DC power supply to the power source perform the following:

  1. Remove the terminal cover to expose the connectors on the terminal block on the face.
  2. Attach the appropriate lugs to the source DC wires.

    Use DC cables with either insulated crimp-on spade lugs or insulated crimp-on ring connectors.

  3. Connect the DC-input wires to the terminal block in this order:
    1. Ground cable to the ground connector on the face of the power supply.
    2. Negative (–) source DC cable to the negative (–) connector on the terminal block.
    3. Positive (+) source DC cable to the positive (+) connector on the terminal block.
    4. Torque the screws as specified in the following table.
      Table 1. Wiring, Lug, and Tightening Torques for DC PSUs

      Switch

      		 Wire Size Lug Type Tightening Torque
      (AWG) (mm2) N∙m in∙lbs
      DCS-7010T-48-DC 12 to 22 3.3 to 0.33 ring1 0.8 7.0
      DCS-7010TX-48-DC 14 to 18 1.5 to 0.75 ring1 0.8 7.0

      1 Single #6 hole

  4. Replace the terminal cover.



Connecting Serial and Management Cables

Cables required to connect the device.

The accessory kit includes the following cables:

  • RJ-45 to DB-9 serial adapter cable
  • RJ-45 Ethernet cable

The following RJ-45 to DB-9 table lists the pin connections of the RJ-45 to DB-9 adapter cable.

Table 2. RJ-45 to DB-9 Connections
RJ-45 DB-9



 RJ-45 DB-9
RTS 1 8 CTS GND 5 5 GND
DTR 2 6 DSR RXD 6 3 TXD
TXD 3 2 RXD DSR 7 4 DTR
GND 4 5 GND CTS 8 7 RTS



Figure 4. Front Panel Ports

1

Console serial port

2

Ethernet management port

3

USB port

Connect the front panel ports as follows:

  • Console (Serial) Port: Connect to a PC with the RJ-45 to DB-9 serial adapter cable. The switch uses the following default settings:

    • 9600 baud
    • No flow control
    • 1 stop bit
    • No parity bits
    • 8 data bits
  • Ethernet Management Port: Connect to 10/100/1000 management network with RJ-45 Ethernet cable.
  • USB Port: The USB port may be used for software or configuration updates.



    Important:

    Excessive bending can damage interface cables, especially optical cables.

    Flexion excessive peut endommager les câbles d'interface, notamment des câbles optiques.

Configuring the Switch

Arista switches ship from the factory in Zero Touch Provisioning (ZTP) mode. ZTP configures the switch without user intervention by downloading a startup configuration file or a boot script from a location specified by a DHCP server. To manually configure a switch, ZTP is bypassed. The initial configuration provides one username (admin) accessible only through the console port because it has no password.

When bypassing ZTP, initial switch access requires logging in as admin, with no password, through the console port. Then you can configure an admin password and other password protected usernames.

This manual configuration procedure cancels ZTP mode, logs into the switch, assigns a password to admin, assigns an IP address to the management port, and defines a default route to a network gateway.

  1. Provide power to the switch (Connecting Power Cables).
  2. Connect the console port to a PC (Connecting Serial and Management Cables).

    As the switch boots without a startup-config file, it displays the following through the console:

    The device is in Zero Touch Provisioning mode and is
attempting to download the startup-config from a remote system.
The device will not be fully functional until either a valid
startup-config is downloaded from a remote system or Zero Touch
Provisioning is cancelled. To cancel Zero Touch Provisioning, login
as admin and type 'zerotouch cancel' at the CLI.
localhost login:
  3. Log into the switch by typing admin at the login prompt.
    localhost login: admin
  4. Cancel ZTP mode by typing zerotouch cancel.
    IMPORTANT: This step initiates a switch reboot.
    localhost>zerotouch cancel
  5. After the switch boots, log into the switch again by typing adminat the login prompt.
    Arista EOS
localhost login:admin
Last login: Fri Mar 15 13:17:13 on console
  6. Enter global configuration mode.
    localhost>enable
localhost#config
  7. Assign a password to the admin username with the username secret command.
    localhost(config)#username admin secret pxq123
  8. Configure a default route to the network gateway.
    localhost(config)#ip route 0.0.0.0/0 192.0.2.1
  9. Assign an IP address (192.0.2.8/24 in this example) to an Ethernet management port.
    localhost(config)#interface management 1
localhost(config-if-Ma1/1)#ip address 192.0.2.8/24
  10. Save the configuration by typing write memory or copy running-config startup-config.
    localhost#copy running-config startup-config
  11. When the management port IP address is configured, use this command to access the switch from a host, using the address configured in step 9:
    ssh admin@192.0.2.8



    Refer to the Arista Networks User Manual for complete switch configuration information.

Status Indicators

The Status Indicators section reviews the following topics:

Front Indicators

System and port status LED indicators are located on the front of the switches.

Switch Indicators

Front panel LEDs are located on the right side of the chassis and display system, fan, and power supply status. Front Panel displays the front panels of all switches covered by this guide.

Figure 1 displays the front panel LEDs.

Figure 1. System Status Indicators
1 Port numbers 5 System status LED 9 Console serial port
2 Port status LED 6 Fan tray status LED 10 RJ-45 ports
3 SFP25 Ports 7 Power supply status LED
4 Ethernet management port 8 USB port



Table 1. Switch Indicators LED States
LED Name LED State Device Status
System Status Blinking Green System powering up.
Green All power supplies and fans are operating normally.
Blue The locator function is active.
Red A power supply or fan is missing or in a failed state.
Fan Status Green All fans are operating normally.
Red One or more fans are not inserted or have failed.
Power Supply Status Off Power supply is not inserted or is not powered.
Green Power supply operating normally.
Red Power supply has failed.

Port Indicators

Port LEDs, located in the vicinity of their corresponding ports, provide link and operational status.The following figure displays the Port LED location on a representative switch.

Figure 2. Port LEDs

1 Port numbers 5 System status LED 9 Console serial port
2 Port status LED 6 Fan tray status LED 10 RJ-45 ports
3 SFP25 Ports 7 Power supply status LED
4 Ethernet management port 8 USB port



Table 2 provide status conditions that correspond to port LED states. Port LED behavior for QSFP+ and SFP+ ports is consistent.

Table 2. Port LED States
LED State Status
Off Port link is down.
Green Port link is up.
Yellow Port is software disabled.
Flashing Yellow Port failed diagnostics.

Rear Status Indicators

The fan module contains an LED that reports the module status. Fan Status LEDs are on the fan modules and are visible through the cover.

The fan module orientation determines the direction of air flowing through the switch. The fan module, when inserted, covers one of the two airflow labels with the visible label indicating the current airflow direction.

The switch shuts down when the fan module is removed for more than one minute.

Figure 3. Fan Status LED

1 Airflow direction indicator label 3 Fan module handle and release 5 Fan status LED
2 Fan status LED 4 Airflow direction indicator label 6 Fan module handle and release

The following table provides status conditions that correspond to fan status LED states.

Table 3. Fan Status LED States
LED State Status
Off The fan module is inserted but not receiving power – it may not be properly seated.
Green The fan is operating normally.
Red The fan has failed.





Note: You can narrow down the error condition by logging in to the switch to view the specific device state. Refer to the Arista User Manual’s Switch Environment Control chapter, under the topic Viewing Environment Status, for further information on the show environment commands.
