Regulatory Model Numbers

This section lists the Regulatory Model Numbers (RMNs), where applicable, for the product models for the switches described in this document.



Table 1. Regulatory Model Numbers and Product Numbers
Regulatory Model Number (RMN) Product Number(s)
AN1501 DCS-7050SX-72Q
AN1502 DCS-7050SX2-72Q
AN1704 DCS-7050SX3-48YC12
AN1705 DCS-7050CX3-32S
AN1710 DCS-7050SX3-48YC8

DCS-7050SX3-48C8

DCS-7050SX3-48YC8C
AN1729 DCS-7050CX3M-32S
AN1727 DCS-7050TX3-48C8
AN2409 DCS-7050SX3-24YC4C-S



Maintenance and Field Replacement



This section discusses the following topics:

Considerations

Tips and requirements for maintenance issues.

  • All fans and power supplies are hot-swappable.
  • The switch can be running while a power supply is being installed or removed, but the power supply being replaced must not be connected to a power source.
  • All slots must be filled or covered with a blank for operation (even though the power supply or fans may not be functional).
  • Before you begin, refer to the Arista Networks document Safety Information and Translated Safety Warnings at https://www.arista.com/en/support/product-documentation.



    Note: Descriptions for removing and replacing power supplies and fans are for a representative power supply or fan. Locations of status indicator LEDs may differ. Refer to your device's front and rear panel illustrations to locate the appropriate LED.



Power Supplies

The following steps are required when removing and replacing power supplies from a switch.



Note: Only a representative power supply module is shown in Figure 1 - Removing and Installing Power Supply. For the location of the power supply on your switch, refer to Rear Panel.



Removing a Power Supply

Complete the following steps to remove a power supply.

  1. Ground yourself with an ESD wrist strap.
  2. Power down the power supply, which will be removed by disconnecting the AC power cable.
  3. Push the power supply release lever and remove the power supply.



    Figure 1. Removing and Installing Power Supply


    1 Release lever 2 Remove PSU

Installing a Power Supply

You must make space for installing the power supply by removing an existing one (Removing a Power Supply).

To install a power supply, complete the following steps:
  1. Remove the replacement power supply from its packaging.
  2. Slide the new power supply into the empty slot.
  3. Slide the new power supply into the switch until the power supply is fully seated and the release lever snaps into place (Removing a Power Supply).
  4. Connect the power cord to the power supply.
  5. Verify the LED(s) on the power supply.



    Note: The Power Supply status LED should be a steady green for normal operation.





  6. Verify the new power supply operation by issuing the show environment power command.
    switch# show environment power



    The command output lists the power supplies in operation and includes the one you replaced.



Fan Modules

Fan module requirements when hot-swapping the modules.



Note: Hot-swap fans within 30 seconds to prevent the switch from overheating. Ensure that the module you replace matches those already installed in the switch.



Removing a Fan Module

The following steps are required when removing or replacing fans from a switch.



Note: Only a representative fan module is shown in Figure 2 - Removing Fan Module. Refer to the rear panel for the location of the fan modules on your switch.



  1. Ground yourself with an ESD wrist strap.
  2. Push the fan module release lever and slide the fan module out of the switch (Figure 2 - Removing Fan Module).



    Figure 2. Removing Fan Module


    1 Release lever



Installing a Fan Module

You must make space for installing the fan module by removing an existing one (Figure 2 - Removing Fan Module).

Complete the following steps to install a fan module.

  1. Remove the replacement fan from its packaging.
  2. Slide the new fan module into the switch until the module is fully seated and the release lever snaps into place (Figure 3 - Inserting Fan Module).



    Figure 3. Inserting Fan Module



  3. Verify that the fan module is working normally.



    Note: The fan module status LED should be a steady green for normal operation.



Rear Panel

All switches covered by this guide use one of the rear panels shown below. Depending on the installed power supply module, the appearance could differ from those shown.



Note: All devices are designed to fit into a 19” rack. The appearance may differ from those shown based on the PSU and the fan modules used.





Note: Handle or label color indicates airflow direction.





Figure 1. Rear Panel for Models with Management Ports in the Front


1 Power supply module 1 5 Fan module 4 9 Fan module 3 status LED
2 Fan module 1 6 Power supply module 2 10 Fan module 2 status LED
3 Fan module 2 7 PSU module 2 status LED 11 Fan module 1 status LED
4 Fan module 3 8 Fan module 4 status LED 12 PSU module 1 status LED





Figure 2. Rear Panel for Models with Management Ports in the Rear


1 Power supply module 1 6 Fan module 3 11 Fan module 3 status LE
2 System status LED 7 Fan module 4 12 Fan module 2 status LED
3 Ethernet management port 8 Power supply module 2 13 Fan module 1 status LED
4 Fan module 1 9 Earth grounding pad 14 Console serial port
5 Fan module 2 10 Fan module 4 status LED 15 USB port





Figure 3. Rear Panel for Models with Management Ports in the Rear and two Dual-fan Modules


1 Power supply 1 status LED 4 Fan module 2 handle 7 Fan module 2 status LED
2 Fan module 1 handle 5 Power supply 2 status LED 8 Fan module 1 status LED
3 Fan module bezel1 6 Power supply 2 9 Power supply 1

1. The bezel and handle color indicate airflow direction.





Figure 4. Rear Panel for Models with Management Ports in the Rear and three Dual-fan Modules


1 Power supply module 1 5 Fan module 1 status LED 9 Fan module 3 status LED
2 Power supply module 1 status LED 6 Fan module 2 release 10 Power supply module 2
3 Management ports 7 Fan module 2 status LED 11 Power supply module 2 status LED
4 Fan module 1 release 8 Fan module 3 release 12 Fan module bezel1

1. Bezel and handle color indicate airflow direction.



Front Panel

This section discusses the front panel of all switches this guide covers.



Note: All devices are designed to fit into a 19” rack. The appearance may differ from those shown based on the PSU and the fan modules used.



Port-Speed Groups

For devices that support the port-speed group feature, the groups are called out in the relevant illustrations with the ports in the group identified.

Some of the devices shown in this section have ports that are grouped to provide flexibility in configuring Ethernet speeds for the individual members of the group. The default configuration supports the maximum possible Ethernet speed and other lower allowable speeds by the individual members of the group. Care must be taken when inserting optics for lower-speed connectivity, as further configuration may be required for the port(s) in the group to operate as desired.

Front Panels

Figure 1. DCS-7050QX-32S

1 Console serial port 4 Power supply 1 status LED 7 Ethernet management port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port





Figure 2. DCS-7050TX-48

1 Console serial port 4 Power supply 1 status LED 7 Ethernet management port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port





Figure 3. DCS-7050QX2-32S

1 Console serial port 4 Power supply 1 status LED 7 Ethernet management port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port





Figure 4. DCS-7050TX-64

1 Console serial port 4 Power supply 1 status LED 7 Ethernet management port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port





Figure 5. DCS-7050SX-64

1 Console serial port 4 Power supply 1 status LED 7 Ethernet management port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port





Figure 6. DCS-7050TX-72

1 Console serial port 4 Power supply 1 status LED 7 Ethernet management port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port





Figure 7. DCS-7050SX-72

1 Console serial port 4 Power supply 1 status LED 7 Ethernet management port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port





Figure 8. DCS-7050TX-72Q

1 System status LED 3 Power supply 1 status LED 5 USB port
2 Fan status LED 4 Power supply 2 status LED 6 Port numbers





Figure 9. DCS-7050SX-72Q

1 System status LED 3 Power supply 1 status LED 5 USB port
2 Fan status LED 4 Power supply 2 status LED 6 Port numbers





Figure 10. DCS-7050TX-96

1 Console serial port 4 Power supply 1 status LED 7 Ethernet management port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port





Figure 11. DCS-7050SX2-72Q

1 System status LED 3 Power supply 1 status LED 5 USB port
2 Fan status LED 4 Power supply 2 status LED 6 Port numbers





Figure 12. DCS-7050SX-96

1 Console serial port 4 Power supply 1 status LED 7 Ethernet management port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port





Figure 13. DCS-7050CX3-32S

1 Ethernet management port 4 Power supply 1 status LED 7 Console serial port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port





Figure 14. DCS-7050SX3-48YC12

1 System status LED 3 Power supply 1 status LED 5 Port numbers
2 Fan status LED 4 Power supply 2 status LED 6 Port-speed group





Figure 15. DCS-7050SX3-48YC8

1 System status LED 3 Power supply 1 status LED 5 Port numbers
2 Fan status LED 4 Power supply 2 status LED





Figure 16. DCS-7050CX3M-32S

1 Ethernet management port 4 Power supply 1 status LED 7 Console serial port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port





Figure 17. DCS-7050TX3-48C8

1 System status LED 3 Power supply 1 status LED 5 Port numbers
2 Fan status LED 4 Power supply 2 status LED





Figure 18. DCS-7050SX3-48C8

1 System status LED 3 Power supply 1 status LED 5 Port numbers
2 Fan status LED 4 Power supply 2 status LED





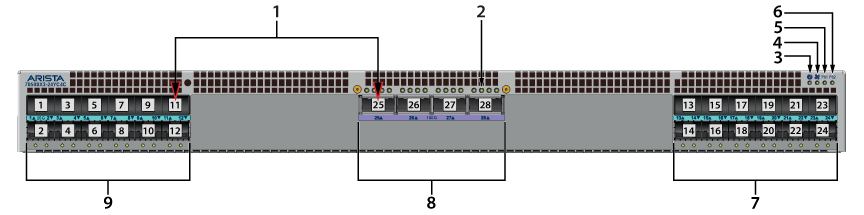

Figure 19. DCS-7050SX3-24YC4C-S

1 Port numbers 4 Fan status LED 7 25GbE SFP ports
2 Port status LED 5 Power supply 1 status LED 8 100GbE QSFP ports
3 System status LED 6 Power supply 2 status LED 9 25GbE SFP ports
Note: The face-plate on the DCS-7050SX3-24YC4C-S switch is 7050SX3-24YC4C.

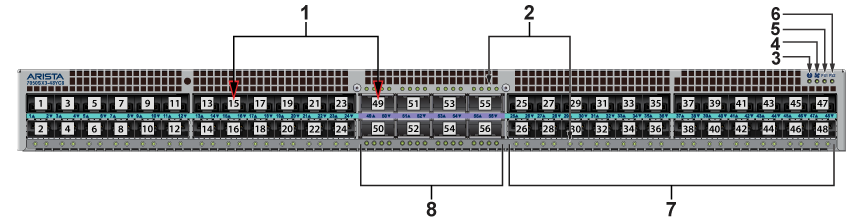

Figure 20. DCS-7050SX3-48YC8C

1 Port numbers 4 Fan status LED 7 25GbE SFP ports
2 Port status LED 5 Power supply 1 status LED 8 100GbE QSFP ports
3 System status LED 6 Power supply 2 status LED

Parts List

Each switch provides an accessory kit containing the parts required to install the switch. This section lists the installation parts contained in the switch accessory kit.

This section discusses the following topics:

Rack Mount Parts

This section discusses the parts and accessories required for the two-post and four-post installation methods.

Two-Post Rack Mount Parts

Figure 1. Two-Post Rack Mount Parts

1 Two-post rack mount parts



Four-Post Rack Mount Parts

Figure 2. Four-Post Rack Mount Parts

1 Rail-slide 3 Rack plugs (detail)
2 Rail-rod 4 Rail (assembled)



Cables

This section discusses the cables required to install the device.



Quantity Description
2 Power cables: IEC-320/C13-C14, 13 A, 250 V
1 RJ-45 Patch Panel Cable
1 RJ-45 to DB9 Adapter Cable





Warning:

All provided power cables are for use only with Arista products.







Ground Extender Kit (Optional)

This section discusses the optional ground extender kit for NEBS compliance.



SKU Description
KIT-GND-EXT-1RU1 Ground extender kit for NEBS compliance

1 Available only for certain devices.



Status Indicators

This section discusses the following topics:

Front Indicators

Front panel LEDs are located on the right side of the chassis and display system, fan, and power supply status.

Switch Indicators

The front panel LEDs are labeled as shown in the Figure 1 - System Status Indicators or the Figure 2 - System Status Indicators figures. Check your device for the specific method utilized.



Figure 1. System Status Indicators

1 System status LED 3 Power supply 1 status LED
2 Fan status LED 4 Power supply 2 status LED





Figure 2. System Status Indicators

1 System status LED 3 Power supply 1 status LED
2 Fan status LED 4 Power supply 2 status LED





Table 1. Switch Indicators LED States (Front)
LED Name LED State Device Status
System Status LED Blinking Green1 System is powering up.
Green Normal operations. Due to power supply and fan redundancy, this LED will remain green if a single fan or power supply is missing or in a failed state.
Blue / Blinking Blue The locator function is active.
Amber / Yellow / Orange Two or more fans (any combination of fan modules or PSU fans) are disconnected, malfunctioning, or incompatible.
Fan Status LED Green All fan and power modules are operating normally.
Amber / Yellow / Orange Single fan module is removed or malfunctioning. It is also amber when a PSU is completely removed or has a stuck fan rotor.
Red Two or more fans (any combination of fan modules or PSU fans) are disconnected or malfunctioning. The switch will automatically execute a “graceful shutdown” shortly.
PSU [1:2] Status LED Green PSU is functioning and fully operational. AC is present, Aux output is ON, and Main output is ON.
Red PSU has been removed or is not operating properly due to the AC cord being unplugged, its fan rotor being stuck, or an internal fault.

1. The system could take up to ten minutes to boot up and be ready for operation. Other LEDs could be off.



Port Indicators

Port LEDs near their corresponding ports provide a link and operational status.

Figure 3 - Port LEDs display the Port LED location on the DCS-7050QX-32S switch.



Figure 3. Port LEDs

1 Port 4 LED 3 Port 2 LEDs
2 Port 3 LEDs 4 Port 1 LEDs



Table 2 - Port LED States (Front) provides status conditions corresponding to port LED states. Port LED behavior for QSFP+ and SFP+ ports is consistent.



Table 2. Port LED States (Front)
LED State Status
Off Port link is down.
Green Port link is up.
Yellow / Orange / Amber Port is software disabled.
Flashing Yellow Software controlled.



Rear Status Indicators

You can access the fan and power supply modules from the rear panel.Each fan and power supply module contains an LED that reports the module status.

Fan module status LEDs are on the fan modules, as displayed in Figure 4 - Fan Status LED.



Figure 4. Fan Status LED

1 Fan module status LED





Note: Handle or bezel color indicates airflow direction.





Table 3 - Fan Status LED States (Rear) provide conditions corresponding to the fan status LED states.



Table 3. Fan Status LED States (Rear)
LED State Status
Off The fan module is not detected. If it is inserted, it may not be seated properly.
Green The fan is operating normally. This LED state is exclusive to its fan module and independent of the states of its neighboring fans and power supplies.
Red The fan has failed.



The AC Power Supply Status LEDs are on the power supply modules, as displayed for a representative PSU, in Figure 5 - AC Power Supply Status LED.



Figure 5. AC Power Supply Status LED

1 Power supply status LED



Table 4 - AC Power Supply Status LED States (Rear) provides conditions corresponding to the AC power supply status LED states.



Table 4. AC Power Supply Status LED States (Rear)
Power Supply State PWR-500AC-F

PWR-500AC-R

 PWR-511-AC-RED

PWR-511-AC-Blue
Input power present Normal operation Green Green
Input power present Power Supply fault Yellow / Amber / Orange Yellow
No Input power Supply installed in chassis Off Off
Input power present Supply not installed in chassis Green Green



The DC Power Supply Status LEDs are on the power supply modules, as displayed for a representative PSU, in Figure 6 - DC Power Supply Status LED .



Figure 6. DC Power Supply Status LED

1 Power supply status LED 3 Battery Return
2 -48V 4 Protective Earth



Table 5 - DC Power Supply Status LED States (Rear) provides conditions corresponding to the DC power supply status LED states.



Table 5. DC Power Supply Status LED States (Rear)
Power Supply State PWR-500-DC-F

PWR-500-DC-R

 PWR-511-DC-RED

PWR-511-DC-Blue
Input power present Normal operation Green Green
Input power present Power Supply fault Blinking Yellow Blinking Yellow
No Input power Supply installed in chassis Off Off
Input power present Supply not installed in chassis Blinking Yellow Blinking Yellow





Note: You can narrow the error condition by logging in to the switch to view the specific device state. Refer to the Arista User Manual’s Switch Environment Control chapter, under Viewing Environment Status, for further information on the show environment commands.

Configuring the Switch

Arista switches ship from the factory in Zero Touch Provisioning (ZTP) mode. ZTP configures the switch without user intervention by downloading a startup configuration file or a boot script from a location specified by a DHCP server.

To manually configure a switch, ZTP is bypassed. The initial configuration provides one username (admin) that is accessible only through the console port because it has no password.

When bypassing ZTP, initial switch access requires logging in as admin, with no password, through the console port. Then, you can configure an admin password and other password-protected usernames.

This manual configuration procedure cancels ZTP mode, logs into the switch, assigns a password to the admin, assigns an IP address to the management port, and defines a default route to a network gateway.

  1. Provide power to the switch (Connecting Power Cables).
  2. Connect the console port to a PC (Connecting Serial and Management Cables).

    As the switch boots without a startup-config file, it displays the following through the console:

    The device is in Zero Touch Provisioning mode and is attempting to
download the startup-config from a remote system. The device will not
be fully functional until either a valid startup-config is downloaded
from a remote system or Zero Touch Provisioning is cancelled. To cancel
Zero Touch Provisioning, login as admin and type 'zerotouch cancel'
at the CLI.

localhost login:



  3. Log into the switch by typing admin at the login prompt.
    localhost login: admin



  4. Cancel ZTP mode by typing zerotouch cancel.
    Important: This step initiates a switch reboot.



    localhost> zerotouch cancel



  5. After the switch boots, log into the switch again by typing admin at the login prompt.
    Arista EOS
localhost login: admin
Last login: Fri Mar 15 13:17:13 on console



  6. Enter global configuration mode.
    localhost> enable
localhost# config



  7. Assign a password to the admin username with the username secret command.
    localhost(config)# username admin secret pxq123



  8. Configure a default route to the network gateway.
    localhost(config)# ip route 0.0.0.0/0 192.0.2.1



  9. Assign an IP address (192.0.2.8/24 in this example) to an Ethernet management port.
    localhost(config)# interface management 1
localhost(config-if-Ma1/1)# ip address 192.0.2.8/24



  10. Save the configuration by typing write memory or copy running-config startup-config.
    localhost# copy running-config startup-config



    When the management port IP address is configured, use this command to access the switch from a host using the address configured in Step 9:

    ssh admin@192.0.2.8



    Refer to the Arista Networks User Manual for complete switch configuration information.

Cabling the Switch

This section discusses the following topics:

Grounding the Switch

After mounting the switch into the rack, this section discusses how to connect the switch to the data center ground.

Figure 1 - Earth Grounding Pad Sockets for Models without Management Ports on the Rear Panel display the grounding pads on the rear panel's bottom corners for the models with no management ports on the rear panel.

Figure 2 - Earth Grounding Pad Sockets for Models with Management Ports on the Rear Panel display the location of the grounding pads on the rear panel for models with management ports on the rear panel. There are threaded holes under the sticker on the right (next to PS2) that warn about “1 min”.

Figure 3 - Earth Grounding Adapter for DCS-7050SX3-48YC8 displays the location of the grounding assembly on the rear panel for DCS-7050SX3-48YC8.



Important:

Grounding wires and grounding lugs (M4 x 0.7) are not supplied. Wire size should meet local and national installation requirements. Commercially available 6 AWG wire is recommended for installations in the U.S.



À la terre et de mise à la terre fils cosses (M4 x 0.7) ne sont pas fournis. Calibre des fils doit satisfaire des exigences de l’installation locale et nationale. Disponible dans le commerce 6 fils AWG est recommandé pour les installations aux États-Unis.





Figure 1. Earth Grounding Pad Sockets for Models without Management Ports on the Rear Panel

1 Earth grounding pad





Figure 2. Earth Grounding Pad Sockets for Models with Management Ports on the Rear Panel

1 Earth grounding pad





Figure 3. Earth Grounding Adapter for DCS-7050SX3-48YC8




Grounding Adapter Assembly (DCS-7050SX3-48YC8)

Use the following steps to assemble and attach a grounding assembly to the chassis before mounting it into the rack.

Note: NEBS-compliant deployments require chassis grounding. Use the grounding point(s) on the switch directly or with the appropriate ground adapter kit to ground the chassis. Grounding on the hot-swappable power supplies cannot ensure continuous grounding to the chassis when a power supply is removed.

Figure 4 - Earth Grounding Adapter Assembly for DCS-7050SX3-48YC8 shows the exploded and assembled views.



Figure 4. Earth Grounding Adapter Assembly for DCS-7050SX3-48YC8




Note: The chassis is shown upside down in the following figure.





The following switches support external chassis grounding. Identify the location for attaching the adapter or the lug. As shown in the example, the attachment point is on the bottom of the chassis for the switches that support the KIT-GND-EXT-1RU grounding kit.

Table 1. Grounding Kit Adapter Support (1RU)
Switch Grounding Kit Adapter
DCS-7050QX-32S Attach ground directly to back
DCS-7050TX-64 Attach ground directly to back
DCS-7050SX-72
DCS-7050TX-96
DCS-7050CX3-32S Attach ground directly to back
DCS-7050CX3M-32S Attach ground directly to back
DCS-7050SX3-24YC4C-S KIT-GND-EXT-1RU
DCS-7050TX-48 Attach ground directly to back
DCS-7050SX-64 Attach ground directly to back
DCS-7050TX-72Q Attach ground directly to back
DCS-7050SX2-72Q Attach ground directly to back
DCS-7050SX3-48YC12 Attach ground directly to back
DCS-7050TX3-48C8 KIT-GND-EXT-1RU
DCS-7050SX3-48YC8C KIT-GND-EXT-1RU
DCS-7050QX2-32S Attach ground directly to back
DCS-7050TX-72 Attach ground directly to back
DCS-7050SX-72Q
DCS-7050SX-96
DCS-7050SX3-48YC8 KIT-GND-EXT-1RU
DCS-7050SX3-48C8 KIT-GND-EXT-1RU
  1. Identify all the components to be assembled:
    • 1x Grounding adapter
    • 1x Grounding bracket
    • 2x Flat-head screws (Phillips,M4 x 5.00 long, stainless steel)
    • 2x Hex nuts (#10-32, Serrated Flange, stainless steel)
    • 1x Grounding lug (Copper, 2-hole, 6 AWG, straight barrel)
  2. Insert the grounding adapter through the holes in the grounding bracket.
  3. Insert the ground lug onto the grounding adapter studs and fasten using the hex nuts to form the grounding assembly.
  4. With the chassis on its top on a flat surface, attach the grounding assembly to the chassis using the flat head screws.
  5. Turn the chassis over before mounting it into a rack and connecting cables.

Connecting Power Cables

This section discusses the correct procedure for connecting the power cables to the device.



Important:

Installation of this equipment must comply with local and national electrical codes. Consult with the appropriate regulatory agencies and inspection authorities to ensure compliance if necessary.



L'installation de cet équipement doit être conforme aux codes électriques locaux et nationaux. Consultez les agences de réglementation et les autorités d'inspection appropriées pour garantir la conformité si nécessaire.



The switch operates with two installed power supplies. At least one power supply must connect to a power source. Two circuits provide redundancy protection. The Rear Panel displays the location of the power supplies on the rear panel of the switch.



Important:

Read all installation instructions before connecting the system to the power source.



Lire toutes les instructions d’installation avant de brancher le système à la source d’alimentation.



  • Non-Redundant Configuration:Connect power to either of the two power supplies.
  • Redundant Power Supply Configuration:Connect power to both power supplies.
  • Power down the Switch: Remove all power cords and wires from the power supplies.





    Important:

    This equipment must be grounded. Never defeat the ground conductor.



    Cet équipement doit être mis à la terre. Ne jamais modifier le conducteur de terre.





    Important:

    This unit requires overcurrent protection.



    Cet appareil requiert une protection contre les surintensités.



AC Power Supplies

The following AC power supplies are supported.
  • PWR-500AC
  • PWR-511-AC
  • PWR-1011-AC-RED



    Note: The handle color indicates the airflow direction for all PSUs.





The Figure 5 - PWR-500AC AC Power Supply displays the PWR-500AC AC power supply, including the power socket on the left side of the module. The AC power supply connects to a circuit providing the required power, as Table 4 - Switch Specifications (Power Draw) specified.



Figure 5. PWR-500AC AC Power Supply

1 Power supply status LED



The Figure 6 - PWR-1011-AC-RED AC Power Supply displays the PWR-1011-AC-RED AC power supply, including the power socket on the right side of the module. The AC power supply connects to a circuit providing the required power, as Table 4 - Switch Specifications (Power Draw) specified.



Figure 6. PWR-1011-AC-RED AC Power Supply

1 Handle 2 Power supply status LED 3 Release



The power supplies require power cables that comply with IEC-320. The accessory kit provides two IEC-320-compliant power cables with appropriate connectors for the PSUs.

DC Power Supplies

The following DC power supplies are supported. Figure 7 - PWR-500-DC DC Power Supplies displays PWR-500-DC DC power supply
  • PWR-500-DC
  • PWR-511-DC
  • PWR-1011-DC-RED





    Note: The handle color indicates the airflow direction for all PSUs.





Figure 7. PWR-500-DC DC Power Supplies


1 Power supply status LED 3 Battery Return
2 -48V 4 Protective Earth



The Figure 8 - PWR-1011-DC DC Power Supplies displays the PWR-1011-DC DC power supply.



Figure 8. PWR-1011-DC DC Power Supplies

1 Power supply status LED 4 Battery Return 7 Terminal cover
2 -48V 5 Protective Earth
3 Release 6 Handle





Important:

A disconnect device must be provided as part of the installation.



Un dispositif de sectionnement doit être fourni dans le cadre de l'installation.





Important:



Ensure power is removed from DC circuits before performing any installation actions. Locate the disconnect device, circuit breakers, or fuses on DC power lines servicing the circuits. Turn off the power line circuits or remove the fuses.



Pouvoir assurer qu'il est retiré de circuits DC avant d'effectuer des actions d'installation . Localiser les disjoncteurs ou des fusibles sur les lignes de courant continu desservant les circuits. Coupez les circuits de lignes d'alimentation ou retirer les fusibles.





Important:

Wire size must comply with local and national requirements and electrical codes. Use only copper wire.



Le calibre du fil doit être conforme aux exigences locales et nationales et les codes électriques. Utiliser du fil de cuivre.





Important:

Apply ground connection to the switch during installation and remove last when removing power.



Appliquez une connexion à la terre au commutateur pendant l'installation et retirez-la en dernier lors de la mise hors tension.



Connecting the DC Power Supply

Wire and Lug Preparation

Before installing, remove power from DC circuits by turning off the power line servicing the circuits. Prepare the stranded wiring before you begin a DC power installation.



Note: Stranded copper wiring is required and should meet local and national installation requirements. Wires and grounding lugs are not supplied.





  1. Attach an ESD grounding strap.
  2. Prepare the stranded copper wiring for the power supply to be used.
  3. Table 2 - Wiring, Lug, and Tightening Torques for DC PSUs provide wiring, lug, and tightening torque information for the power supplies covered in this guide.



    Table 2. Wiring, Lug, and Tightening Torques for DC PSUs
    PSU Wire Size(1) Lug Type(2) Tightening Torque
    (AWG) (mm2) N • m in. • lbs.
    PWR-500-DC 14 or larger 2.0 or larger ring or spade/forkring 1.0 9.0
    PWR-511-DC 10 - 12 6.0 - 4.0 1.0 9.0
    PWR-1011-DC 6 - 8 16.0 - 10.0 2.7 24
    1. Unless otherwise noted, wire size applies to -48V, Battery return, and Protective earth wires.
    2. Unless otherwise noted, twin #10 studs spaced for dual-hole lug with 5/8" hole spacing.

  4. Strip the wires to the appropriate length for the lugs to be used.
  5. Use agency-approved compression (pressure) lugs for wiring terminations.
  6. Slip on heat-shrink tubing on the wire ends before assembling the lugs onto the wire.
  7. Crimp the lugs with the proper tool, and ensure that the tubing extends over the barrel of the lugs and the insulation on the wires.
  8. Shrink the tubing with a heat gun.

Connecting a DC Power Supply to a Power Source

To connect a DC power supply to a power source:



Important:

Ensure power is removed from DC circuits before performing any installation actions. Locate circuit breakers or fuses on DC power lines servicing the circuits. Turn off the power line circuits or remove the fuses.



Assurez-vous de pouvoir retirer des circuits en courant continu avant d’effectuer toute action d’installation.Localiser les disjoncteurs ou fusibles sur les lignes électriques DC entretien des circuits. Mettez hors tension le circuit ligne ou retirer les fusibles.





Important:

Wire size must comply with local and national requirements and electrical codes. Use only copper wire.



Calibre doit respecter les exigences locales et nationales et les codes de l’électricité. Utiliser seulement du fil de cuivre.





Important:

Apply the ground connection first during installation and remove it last when removing power.



Appliquez d'abord la connexion à la terre lors de l'installation et retirez-la en dernier lors de la mise hors tension.





  1. Prepare the stranded wiring (Wire and Lug Preparation).
  2. Attach the appropriate lugs to the source DC wires.
  3. Connect the DC-input wires to the appropriate terminals using the specified torque (Wire and Lug Preparation) in the following order.
    1. Ground wire to the Protective Earth (PE) terminal.
    2. Negative source DC cable to the negative (- / -48V) terminal.
    3. Positive (+) source DC cable to the positive (+ / Rtn) terminal.



    Note: Remove terminal covers as needed.





  4. Replace the terminal covers as required.

Connecting Serial and Management Cables

This section discusses the serial and management cable requirements and connections.

The accessory kit includes the following cables:
  • RJ-45 to DB-9 serial adapter cable.
  • RJ-45 Ethernet cable.



The front or rear panels have the console, management, and USB ports.

Table 3 - RJ-45 to DB-9 Connections lists the pin connections of the RJ-45 to DB-9 adapter cable.



Table 3. RJ-45 to DB-9 Connections
RJ-45 DB-9   RJ-45 DB-9
RTS 1 8 CTS   GND 5 5 GND
DTR 2 6 DSR   RXD 6 3 TXD
TXD 3 2 RXD   DSR 7 4 DTR
GND 4 5 GND   CTS 8 7 RTS





Note: RJ-45 to DB-9 connections: For models with a console management port on the rear panel, RJ-45 pin 1 (RTS) is connected to RJ-45 pin 8 (CTS); RJ-45 pin 2 (DTR) and RJ-45 pin 7 (DSR) are not electrically connected to any signal.





Figure 9 - Console, Management, and USB Ports display the console, management, and USB ports in a representative configuration. Some earlier devices had ports where the USB port was located slightly differently.



Figure 9. Console, Management, and USB Ports

1 System status LED 3 Activity status LED 5 USB port
2 Ethernet management port 4 Serial console port 6 Link status LED



Connect the front or rear panel ports as follows:
  • Console (Serial) Port: Connect to a PC with the RJ-45 to DB-9 serial adapter cable. The switch uses the following default settings:
    • 9600 baud
    • No flow control
    • 1 stop bit
    • No parity bits
    • 8 data bits



  • Ethernet Management Port: Connect to 10/100/1000 management network with RJ-45 Ethernet cable.
  • USB Port: The USB port may be used for software or configuration updates.





    CAUTION:

    Excessive bending can damage interface cables, especially optical cables.



    Flexion excessive peut endommager les câbles d’interface, notamment des câbles optiques.



Rack Mounting the Switch

Important:

The rack mounting procedure is identical for all switches covered by this guide. Illustrations in this chapter depict the mounting of a DCS-7050QX-32S switch.



Les procédure de montage du bâti est identique pour tous les commutateurs visés par ce guide. Illustrations dans ce chapitre montrent le montage d’un interrupteur de DCS-7050QX-32S.





Note: Use the rack-mount parts included with your switch for mounting. For heavier switches, only a four-post mount is supported.





Note: A four-post rack mount is recommended for all switches. Use the rack-mount parts included with your switch for mounting. Rails from different kit SKUs may look similar but incompatible, leading to the inability to properly mount or remove a switch from the rack.





After completing the instructions for your rack type, proceed to Cabling the Switch.

Two-Post Rack Mount

Discusses two-post rack mounting options.

To mount the switch onto a two-post rack, assemble the mounting brackets to the chassis, then attach the brackets to the rack posts. Two-post accessory kits include the following two-post mounting parts:

2 - Three-hole Mounting Brackets

Each chassis side has attachment pins that align with bracket holes. Pin orientation is symmetric and equidistant, supporting bracket placements where the flange is flush with the front switch panel, flush with the rear panel, or not flush with either panel. Each bracket hole includes a key opening for placing the bracket flush with the chassis and then locking it into place.



Important:

Attachment pins must engage all three upper bracket holes.



Goupilles de fixation doivent être bloquer tous les trois trous de la bride supérieure.





Figure 1 - Bracket Mount Examples for Two-Post Rack Mount displays proper bracket mount configuration examples.displays improper bracket mount configuration examples.



Figure 1. Bracket Mount Examples for Two-Post Rack Mount






Figure 2 - Improper Bracket Mount Examples for Two-Post Rack Mount
Figure 2. Improper Bracket Mount Examples for Two-Post Rack Mount




Attaching Mounting Brackets to the Two-Post Chassis

The following image displays the front bracket alignment for mounting the switch into a four-post rack.



Figure 3. Attaching the Mounting Brackets to the Switch Chassis (Front Mount)




Note: Deep and heavy devices could droop and cause damage to the equipment rack if front or rear-mounted. Arista recommends only center mounting for switches covered in this guide when two-post mounting is required, and the switch accessory kit includes two-post mounting ears. Four-post mounting ears differ from two-post mounting ears and should not be used for two-post mounting.





Figure 4. Attaching the Mounting Brackets to the Switch Chassis (Center Mount)





Note: Deep and heavy devices could droop and cause damage to the equipment rack if front or rear mounted. Arista recommends only center mounting for switches covered in this guide when two-post mounting is required, and the switch accessory kit includes two-post mounting ears. Four-post mounting ears are different from the two-post mounting ears and should not be used for two-post mounting.



This procedure attaches mounting brackets to the switch chassis as depicted by Figure 3 - Attaching the Mounting Brackets to the Switch Chassis (Front Mount)Attaching the Mounting Brackets to the Switch Chassis and Figure 4 - Attaching the Mounting Brackets to the Switch Chassis (Center Mount).

  1. Align the mounting brackets with the attachment pins to obtain the desired mounting position.
  2. Place the bracket flush on the chassis with attachment pins protruding through key openings.
  3. Slide the bracket toward the front flange until the bracket clip locks with an audible click.
    To remove the mounting bracket from the chassis, lift the front edge of the mounting bracket clip with a flathead screwdriver and slide the bracket away from the front flange (opposite from the installation direction).



Inserting the Switch into the Rack

This procedure attaches the switch to the rack (Figure 5 - Inserting the Switch into the Rack (Front Mount)).

  1. Lift the chassis into the rack. Position the flanges against the rack posts.
  2. Select mounting screws that fit your equipment rack.
  3. Attach the bracket flanges to the rack posts.



    Figure 5. Inserting the Switch into the Rack (Front Mount)






    Figure 6. Inserting the Switch into the Rack (Center Mount - Recommended)



    After completing the two-post rack mount, proceed to Cabling the Switch.

Four-Post Rack Mount

Discusses the four-post racking option.

The switch is mounted onto a four-post rack by assembling two rails onto the rear posts, sliding the switch onto the rails, and securing the switch to the front posts.

The installation kit provides the following four-post mounting parts:
  • 2 six-hole mounting brackets
  • 2 rail-rods
  • 2 rail-slides



The rail rods and rail slides assemble into two identical slide rails.

Each chassis side has attachment pins that align with bracket holes. Pin orientation is symmetric and equidistant, supporting bracket placements where the flange is flush with the front switch panel, flush with the rear panel, or not flush with either panel. Each bracket hole includes a key opening for placing the bracket flush with the chassis and then locking it into place.



Important:

Attachment pins must engage at least five of the six bracket holes.



Goupilles de fixation doivent être lock au moins cinq des trous du six support.



Figure 7 - Bracket Mount Examples for Four-Post Rack Mountdisplays proper bracket mount configuration examples. Figure 8 - Improper Bracket Mount Example for Four-Post Rack Mount displays an improper bracket mount configuration example.



Figure 7. Bracket Mount Examples for Four-Post Rack Mount






Figure 8. Improper Bracket Mount Example for Four-Post Rack Mount

1 Bracket not attached by at least 5 pins



Attaching Mounting Brackets to the Four-Post Chassis

The following image displays the front bracket alignment for mounting the switch into a four-post rack.



Figure 9. Attaching the Mounting Brackets to the Switch Chassis




This procedure attaches mounting brackets to the switch chassis as depicted by Figure 9 - Attaching the Mounting Brackets to the Switch Chassis (Front Mount)Attaching the Mounting Brackets to the Switch Chassis.

  1. Align the mounting brackets with the attachment pins to obtain the desired mounting position.
  2. Place the bracket flush on the chassis with attachment pins protruding through key openings.
  3. Slide the bracket toward the front flange until the bracket clip locks with an audible click.
    To remove the mounting bracket from the chassis, lift the front edge of the mounting bracket clip with a flathead screwdriver and slide the bracket away from the front flange (opposite from the installation direction).



Assembling the Rails onto the Equipment Rack

Rail rods and rail slides assemble into two identical rails. Each rail connects a front post to a rear post. When the rails are installed, the switch slides on the rails into the rack. Each bracket includes a screw that attaches the switch to the rail.

Each end of an assembled rail contains two rack plugs (Figure 10 - Attaching the Four-Post Mounting Brackets to the Switch Chassis). The rails are installed into a rack by inserting the plugs into rack slots. When installing rails into posts with threaded or rounded holes, remove all plugs on both sides of the assembled rails, then install the rails with bolts that fit the rack.



Figure 10. Attaching the Four-Post Mounting Brackets to the Switch Chassis

1 Step 1 2 Step 2 3 Step 3
4 Bracket clip (attached) 5 Bracket clip (aligned)



This procedure attaches the rails to a four-post rack:

  1. Slide a rail rod into a rail slide (Figure 11 - Assembling the Rails) until the rail clip makes an audible click.

    The rail clip prevents the extension of the rail beyond the maximum supported distance between the front and rear rack posts.



    Figure 11. Assembling the Rails

    1 Rail slide 2 Rail rod
    3 Rack plugs 4 Rail (assembled)



  2. Attach the rail to the right rear rack post by inserting rod-end rack plugs into post slots (Attaching the Rails, Detail A). The slide assembly must be inside the right posts relative to the left rack posts.

    If the rack plugs were previously removed, use bolts to attach the rail to the rack.



  3. Attach the slide end of the rail to the front post by extending the rail end past the post, then contracting the rail while guiding the rack plugs into the post (Attaching the Rails, Detail B).
  4. Repeat Step 1 through 3 for the left posts. Ensure the rails are on the same horizontal level.



    Figure 12. Attaching the Rails

    1 Detail A 2 Detail B



Attaching the Switch to the Rack

After the rails are installed, the switch slides on the rails into the rack. Each bracket includes a thumb screw that attaches the switch to the rail.

  1. Lift the switch into the rack and insert the mounting brackets into the slide rails.



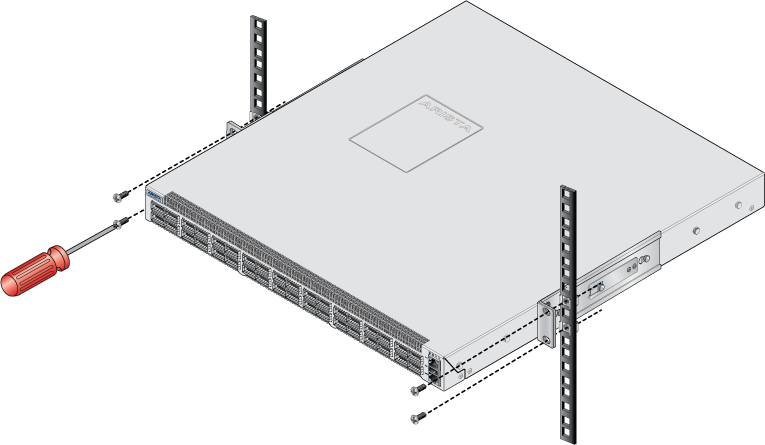

    Figure 13. Inserting the Switch onto the Rails



  2. Slide the switch on the rails toward the rear posts until the mounting bracket flanges are flush with the rail flanges attached to the rack posts.
  3. Attach the bracket flanges to the rack post using the quick-release thumb screws supplied with the brackets (Figure 14 - Attaching the Switch to the Rack Posts).



    Figure 14. Attaching the Switch to the Rack Posts




    After completing the four-post rack mount, proceed to Cabling the Switch.
