Transceivers & Cables

10/100/1000 RJ45TypeMedia/Reach
7048, 7050T, 7050TX Cat5e, Cat6, Cat6A, Cat7 100m
1GbE SFPTypeMedia/Reach
All SFP/SFP+ Ports 1000BASE-SX 50µ MMF / 550m
1000BASE-LX 9µ SMF / 10km
1000BASE-T Cat5e / 100m
10GBASE-T RJ45TypeMedia/Reach
All 10GBASE-T Ports Cat5e/6 U/UTP 55m
Cat6/6A F/UTP 100m
Cat7 S/FTP 100m
10G Optical SFP+TypeMedia/Reach
All SFP/SFP+ Ports 10GBASE-SRL 50µ MMF / 100m
10GBASE-SR 50µ MMF / 300m
10GBASE-LRL 9µ SMF / 1km
10GBASE-LR 9µ SMF / 10km
10GBASE-ER 9µ SMF / 40km
10GBASE-ZR 9µ SMF / 80km
10GBASE-DWDM (40 Wavelengths) 9µ SMF / 80km
10GBASE-DWDM (Tunable) 9µ SMF / 80km
10GBASE-AOC Pre-terminated in 3, 5, 7, 10, 15, 20, 25, 30m lengths
10G Copper SFP+TypeMedia/Reach
All SFP/SFP+ Ports 10GBASE-CR Twinax / CX1 / 'Direct Attach' Pre-terminated in 0.5m, 1m, 1.5m, 2m, 2.5m 3m, 5m lengths
40G Optical QSFPTypeMedia/Reach
All QSFP+ Ports 40GBASE-SR4 50µ MMF / 100m
40GBASE-XSR4 50µ MMF / 300m
Operates as 1 x 40G with MTP-MTP OM3 MMF or 4 x 10G with 'octopus' MTP-4xLC OM3 MMF patch cable
40GBASE-BIDI 50µ MMF / 100m
40GBASE-UNIV 50µ MMF / 150m, 9µ SMF / 500m
40GBASE-LR4 9µ SMF / 10km
40GBASE-LRL4 9µ SMF / 1km
40GBASE-PLR4 9µ SMF / 10km
40GBASE-PLRL4 9µ SMF/1km
40GBASE-ER4 9µ SMF/40km
40GBASE-AOC Pre-Terminated 3, 5, 7, 10, 15, 20, 25, 30,50, 75, 100m lengths
40G Copper QSFPTypeMedia/Reach
All QSFP+ Ports 40GBASE-CR4 Twinax / 'Direct Attach' 40G to 40G Pre-terminated in 0.5m, 1m, 2m, 3m, 5m lengths
40GBASE-CR4 to 4 x 10G-CX1 40G to 10G Pre-terminated in 0.5m, 1m, 2m, 3m, 5m lengths
100G Optical QSFPTypeMedia/Reach
All QSFP100 Ports 100GBASE-AOC Pre-Terminated 3, 5, 7, 10, 15, 20, 25, 30m lengths
100GBASE-SR4 50µ MMF / 70m
100GBASE-CWDM4 9µ SMF / 2km
100GBASE-LR4 9µ SMF / 10km
100GBASE-LRL4 9µ SMF / 2km
100G Copper QSFPTypeMedia/Reach
All QSFP100 Ports 100GBASE-CR4 Twinax/Direct Attach 100G to 100G Pre-terminated in 1m, 2m, 3m, 5m lengths
100G Optical CFP2TypeMedia/Reach
All CFP2 Ports 100GBASE-XSR10 50µ MMF/300m
100GBASE-LR4 9µ SMF/10km
100GBASE-ER4 9µ SMF/40km
Port TypeTransceiver & ConnectorArista Switch Platform
7010T7048T7150S7280E7500E7250QX7300X7320X
10/100/1000GBASE-T RJ45
10GBASE-T RJ45
1000BASE-SX SFP (LC)
1000BASE-LX SFP (LC)
1000BASE-T SFP (RJ45)
10GBASE-SRL SFP+ (LC)
10GBASE-SR SFP+ (LC)
10GBASE-LR/10GBASE-LRL SFP+ (LC)
10GBASE-ER SFP+ (LC)
10GBASE-ZR SFP+ (LC)
10GBASE-DWDM 40 colors SFP+ (LC)
10GBASE-DWDM Tunable SFP+ (LC)
10GBASE-CR SFP+ (DAC)
10GBASE-AOC SFP+ (DAC)
40GBASE-SR4/40GBASE-XSR4
QSFP+ (MTP)
40GBASE-BIDI QSFP+ (LC)
40GBASE-UNIV QSFP+ (LC)
40GBASE-LR4 QSFP+ (LC)
40GBASE-LRL4 QSFP+ (LC)
40GBASE-PLR4
QSFP+ (MTP)
40GBASE-PLRL4
QSFP+ (MTP)
40GBASE-ER4 QSFP+ (LC)
40GBASE-CR4
QSFP+ (DAC)
40GBASE-AOC QSFP+ (DAC)
100GBASE-XSR10 CFP2 (MTP)
100GBASE-LR4 CFP2 (LC)
100GBASE-ER4 CFP2 (LC)
100GBASE-CR4 QSFP100 (DAC)
100GBASE-AOC QSFP100 (DAC)
100GBASE-SR4 QSFP100 (DAC)
100GBASE-CWDM4 QSFP100 (LC)
100GBASE-LR4 QSFP100 (LC)
100GBASE-LRL4 QSFP100 (LC)



Port TypeTransceiver & ConnectorArista Switch Platform
7050 Series7050X Series7060CX7260QX7260CX
7050S7050T7050QSFP+ PortsQSFP+ Ports
10/100/1000BASE-T RJ45     (*7050TX only)
10GBASE-T RJ45     (*7050TX only)
1000BASE-SX SFP (LC)
1000BASE-LX SFP (LC)
1000BASE-T SFP (RJ45)
10GBASE-SRL SFP+ (LC)
10GBASE-SR SFP+ (LC)
10GBASE-LR/10GBASE-LRL SFP+ (LC)
10GBASE-ER SFP+ (LC)
10GBASE-ZR SFP+ (LC)
10GBASE-DWDM 40 colors SFP+ (LC)
10GBASE-DWDM Tunable SFP+ (LC)
10GBASE-CR SFP+ (DAC)
10GBASE-AOC SFP+ (DAC)
40GBASE-SR4/40GBASE-XSR4
QSFP+ (MTP)
40GBASE-BIDI QSFP+ (LC)
40GBASE-UNIV QSFP+ (LC)
40GBASE-LR4 QSFP+ (LC)
40GBASE-LRL4 QSFP+ (LC)
40GBASE-PLR4
QSFP+ (MTP)
40GBASE-PLRL4
QSFP+ (MTP)
40GBASE-ER4 QSFP+ (LC)
40GBASE-CR4 (Q-Q) QSFP+ (DAC)
40GBASE-CR4 (Q-4S)
40GBASE-AOC QSFP+ (DAC)
100GBASE-SR4 QSFP100 (MTP)
100GBASE-CWDM4 QSFP100 (LC)
100GBASE-LRL4 QSFP100 (LC)
100GBASE-LR4 QSFP100 (LC)
100GBASE-AOC QSFP100 (DAC)
100GBASE-CR4 QSFP100 (DAC)

.

Deployment Flexibility in the Same Physical Port

The Arista 1 Gigabit, 10 Gigabit Ethernet SFP/SFP+ (Small-Form-Factor Pluggables), 10GBASE-CR cables, 40 Gigabit Ethernet QSFP+, 40GBASE-CR4 cables, 100 Gigabit Ethernet QSFP100 and CFP2 and 100GBASE-CR4 offer customers a wide variety of connectivity options over copper or fiber for data center and HPC environments.

Supported 100 Gigabit Ethernet QSFP100 Cables & Optics:

100GBASE-AOC Optical Cable
  • Link lengths of 3, 5, 7, 10, 15, 20, 25 and 30m over Active Optical Cable
100GBASE-SR4 QSFP100 Transceiver
  • Up to 70m link lengths over parallel OM3 or 100m over OM4 MMF
100GBASE-CWDM4 QSFP100 Transceiver
  • Up to 2km link lengths over duplex single mode fiber
  • 40G/100G Dual rate transceiver
100GBASE-LR4 QSFP100 Transceiver
  • Up to 10km link lengths over duplex single mode fiber
100GBASE-LRL4 QSFP100 Transceiver
  • Up to 2km link lengths over duplex single mode fiber
  • Optical interoperability with 100GBASE-LR4 up to 2km
100GBASE-CR4 QSFP100 to QSFP100 Twinax Copper Cables
  • Link lengths of 1, 2, 3 and 5m over twinax copper cable

Supported 100 Gigabit Ethernet CFP2 Options:

100GBASE-XSR10 CFP2 Transceiver
  • Up to 300m link lengths over parallel OM3 or 400m over OM4 MMF
  • Optical Interoperability with 100GBASE-SR10 up to 100/150m
100GBASE-LR4 (Long Reach)
  • Up to 10km link lengths over duplex single-mode fiber
100GBASE-ER4 (Extended Reach)
  • Up to 40km link lengths over duplex single-mode fiber

Supported 40 Gigabit Ethernet QSFP+ Cables and Optics:

40GBASE-CR4 QSFP+ to QSFP+ twinax copper cables
  • Link lengths of 0.5, 1, 2, 3 and 5m over twinax copper cable
40GBASE-AOC Optical Cable
  • Link lengths of 3, 5, 7, 10, 15, 20, 25, 30, 50, 75 and 100m over Active Optical Cables
40GBASE-SR4 QSFP+ Transceiver
  • Up to 100m link lengths over parallel OM3 or 150m over OM4 MMF
  • Optical interoperability with 40GBASE-XSR4 up to 100/150m
40GBASE-XSR4 QSFP+ Transceiver
  • Up to 300m link lengths over parallel OM3 or 400m over OM4 MMF
  • Optical interoperability with 40GBASE-SR4 up to 100/150m
40GBASE-BIDI QSFP+ Transceiver
  • Up to 100m link lengths over duplex OM3 or 150m over duplex OM4 MMF

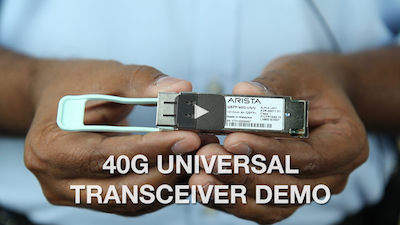

40GBASE-UNIV QSFP+ Transceiver
  • Up to 150m over duplex OM3/OM4 MMF
  • Up to 500m over duplex SMF
  • Interoperates with 40GBASE-LR4 and 40G-LRL4 up to 500m
40GBASE-LR4 QSFP+ Transceiver
  • Up to 10km link lengths over duplex single-mode fiber
40GBASE-LRL4 QSFP+ Transceiver
  • Up to 1km over Single Mode Fiber
  • Interoperates with 40GBASE-LR4 up to 1km
40GBASE-PLR4 Transceiver
  • Up to 10km over parallel single-mode fiber
  • Interoperates with 10GBASE-LR (10km) and 10G-LRL (1km) with 4x10G splitter option
40GBASE-PLRL4 Transceiver
  • Up to 1km over parallel Single Mode Fiber
  • Inter-operates with 10G-LRL (1KM) with 4x10G splitter option
40GBASE-ER4 Transceiver
  • Up to 40km link lengths over duplex Single Mode Fiber

Supported 10 Gigabit Ethernet SFP+ Options:

10GBASE-SR (Short Reach)
  • Up to 300m link lengths over multi-mode fiber
  • Optical interoperability with 10GBASE-SRL
10GBASE-SRL (Short Reach Lite)
  • Up to 100m link lengths over multi-mode fiber
  • Optical interoperability with 10GBASE-SR
10GBASE-LRL (Long Reach Lite)
  • Up to 1km link lengths over single-mode fiber
  • Optical interoperability with 10GBASE-LR up to 1km
10GBASE-LR (Long Reach)
  • Up to 10km link lengths over single-mode fiber
  • Optical interoperability with 10GBASE-LRL up to 1km
10GBASE-ER (Extended Reach)
  • Up to 40km link lengths over single-mode fiber
10GBASE-ZR (Extended Reach)
  • Up to 80km link lengths over single-mode fiber
10GBASE-DWDM (Dense Wavelength Division Multiplexing)
  • Choice of 40 colors up to 80km link lengths over single-mode fiber
10GBASE-DWDM Tunable
  • Full C-Band Tunable with support for 50GHz and 100GHz grid spacing
  • Up to 80km link lengths over single-mode fiber
10GBASE-AOC Optical Cable
  • Link lengths of 3, 5, 7, 10, 15, 20, 25 and 30m over Active Optical Cables



Supported 10 Gigabit Ethernet CR Cable Options:

10GBASE-CR SFP+ to SFP+ Cables
  • Link lengths of 0.5, 1, 1.5, 2, 2.5, 3 and 5m over twinax copper cable
  • Includes SFP+ connectors on both ends
4 x 10GbE QSFP+ to 4 x SFP+ twinax copper cables
  • Link lengths of 0.5, 1, 2, 3 and 5m over twinax copper cable





Supported Gigabit Ethernet SFP Options:

1000BASE-SX (Short Haul)
  • Up to 550m link lengths over multi-mode fiber
1000BASE-LX (Long Haul)
  • Up to 10km links on single-mode and 550m on multi-mode fiber
1000BASE-T (RJ-45 Copper)
  • Full duplex 1000Mbps connectivity over existing category 5 cabling
