400/800G Leaf and Spine solutions for hyperscale cloud and I/O intensive environments
The 7060X5 Series are high density and power efficient fixed configuration data center switches for 800G, 400GbE, 200GbE and 100GbE; optimized for Hyperscale Cloud, Artificial Intelligence and Machine Learning environments employing high network radix. They provide a compelling solution for the largest hyperscale cloud and IO intensive environments, with consistent low latency combined with proven visibility, traffic instrumentation and automation features. The 7060X5 Series deliver wirespeed layer 2 and layer 3 with flexible resources, robust traffic management and load balancing features.
The 7060X5 series are multi-role platforms. As the data center leaf, they provide dense 50G, 100G, 200G and 400G connectivity, addressing today’s high end storage and HPC requirements as well as future server connectivity.
Implemented at the spine the 7060X5 provides up to 32 ports of 800G in a single rack unit enabling efficient high radix clusters that maximize the 25.6T bandwidth performance of compute and storage by eliminating bottlenecks between leaf and spine tiers. The 7060X5 series also supports up to 64 x 400G or 256 x 100G using breakouts, doubling current densities with new, cost effective, 800G optics.
The following tables provide an overview of all Arista 7060X5 Series models grouped by interface type.
Arista 7060X5 Series
7060DX5-64E 7060PX5-64E |
|
---|---|
7060DX5-64S |
|
7060DX5-32 |
|
Flexible Solutions with 800G and 400G
- Up to 32 ports of 800G in 1RU, with 25.6 Tbps of wirespeed performance

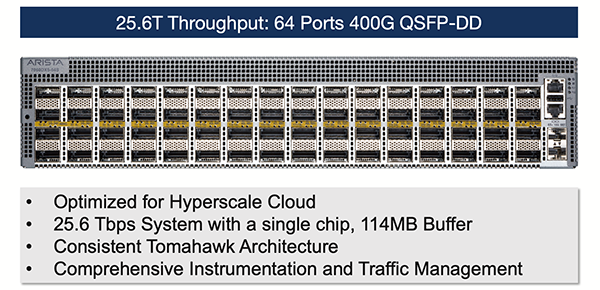

- Up to 64 ports of 400G in 2RU, with 25.6 Tbps of wirespeed performance
- Up to 32 ports of 400G in 1RU, with 12.8 Tbps of wirespeed performance
- Up top 25.6 terabits per second
- Up to 10.6 billion packets per second
- Wire speed L2 and L3 forwarding
- Latency from 825ns for 400G
Optimized for DC Designs
- Up to 64 ports of 400G QSFP-DD in 2RU
- Typical power of under 16W per port
- Over 93% efficient power supplies
- 1+1 redundant & hot-swappable power
- N+1 redundant & hot-swappable fans
- Front-to-rear only cooling
- Tool less rails for simple installation
Cloud Networking Ready
- 128-way ECMP for hyperscale networks
- Dynamic Load Balancing for advanced multi-pathing
- Advanced Congestion Management for NVMe and AI workloads
- Flow aware traffic scheduling
- Shared 114MB Buffer with burst absorption
- Up to 128K MAC addresses
- Over 800K IPv4 Routes
- Over 500K IPv6 Routes
- DirectFlow and eAPI
Advanced Traffic Control, Provisioning and Monitoring
- CloudVision for Workflow Automation and Orchestration
- LANZ for Microburst Detection
- VXLAN and EOS Network Tracers
- Open Extensibility and Programmability
- Software Driven Cloud Networking
- Flow aware traffic management for optimal traffic distribution and link utilization
- Elephant flow detector to detect and prioritize large flows in real time
High Availability
- 1+1 hot-swappable power supplies and four N+1 hot-swap fans
- Color coded PSU’s and fans
- Live software patching for zero downtime maintenance
- Self healing software with Stateful Fault Repair (SFR)
- Smart System Upgrade (SSU) and Accelerated Software Update (ASU)
- Up to 256 100GbE or 128 200GbE or 64 400GbE ports per LAG
- Multi-chassis LAG for active/active L2 multi-pathing
- 128-way ECMP routing for load balancing and redundancy
The 7060X5 Series enables highly scalable multi-tier network designs with L2 MLAG, L3 ECMP and VXLAN/EVPN technologies.
MLAG Spine - All Active Multipath for Layer 2
- Standards based protocol (LACP)
- Simplified or eliminates Spanning Tree topology
- Simple to understand and easy to engineer traffic
ECMP - All Active Multipath for Layer 3
- Standards based protocols (OSPF, BGP)
- Eliminates L2 for exceptional scalability and fault tolerance
- Exceptional scale with consistent performance in multiple network tiers
VXLAN Layer 2 over Layer 3 - Best of Both Worlds
- All active multipath using ECMP (up to 128-way)
- Single L3 network for all applications
- L2 extensions for stateful VM - VM over Layer 3
- Extends L2 with exceptional Scalability (16M Virtual NWs)
7060X5 Series Technical Specifications
7060DX5-64E |
7060PX5-64E |
7060DX5-64S |
7060DX5-32 |
|
---|---|---|---|---|
Description | 32-Port 800G QSFP-DD800 | 32-Port 800G OSFP800 | 64-Port 400G QSFP-DD | 32-Port 400G QSFP-DD |
Maximum 800G (2x400G) | 32 | 32 | - | - |
Maximum 400G | 64 | 64 | 64 | 32 |
Maximum 200G | 128 | 128 | 128 | 64 |
Maximum 100G | 256 | 256 | 256 | 128 |
Maximum 50G | 256 | 256 | 256 | 128 |
Maximum 40G | 32 | 32 | 64 | 32 |
Maximum 25G | 128 | 128 | 256 | 128 |
Maximum 10G | 128 | 128 | 256 | 128 + 1 |
L2/L3 Throughput | 25.6 Tbps | 25.6 Tbps | 25.6 Tbps | 12.8 Tbps |
L2/L3 PPS | 10.6 Bpps | 10.6 Bpps | 10.6 Bpps | 5.3 Bpps |
Latency | From 850 nsec | From 850 nsec | From 850 nsec | From 850 nsec |
Typical System Power Draw | TBD | TBD | TBD | TBD |
Total System Buffer | 114MB | 114MB | 114MB | 57MB |
RU | 1 | 1 | 2 | 1 |
CloudVision | Yes | Yes | Yes | Yes |
Smart System Upgrade* | Yes | Yes | Yes | Yes |
ZTP | Yes | Yes | Yes | Yes |
VM Tracer | Yes | Yes | Yes | Yes |
AEM | Yes | Yes | Yes | Yes |
VXLAN | Yes | Yes | Yes | Yes |
LANZ* | Yes | Yes | Yes | Yes |
Hitless Speed Changes | Yes | Yes | Yes | Yes |
Airflow | Front to Rear | Front to Rear | Front to Rear | Front to Rear or Rear to Front |
AC and DC PSU | Yes | Yes | Yes |
* Not yet supported in EOS
Common system resources:
Resources* | 7060X5 |
---|---|
MAC Table Size | 128K |
Maximum v4/v6 Host Routes | 500K / 800K |
Maximum IPv4 Route Prefixes | 800K |
Maximum IPv6 Route Prefixes | 500K |
Maximum Multicast Groups | 128K max, with 512 unique groups |
Maximum LAG Groups | 128 (In breakout mode) |
Maximum LAG Members | 64 Ports |
Maximum ECMP Fanout | 128-way |
* All resource values are maximum hardware capacity
