Status Indicators
A.1 Supervisor Module
The supervisor displays switch component status and contains Ethernet management and console ports. Appendix C displays the supervisor location on the switch.
The supervisor provides one serial console port, two Ethernet management ports (one RJ-45, one optical), and one USB port. Four LEDs on the top edge report system status, fan status, power status, and switch module status. Figure A-1 shows the supervisor module status LEDs.
Figure A-1: Supervisor Module Status LEDs
1
|
System Status LED
|
2
|
Fan Status LED
|
3
|
Power Supply Status LED
|
4
|
Switch Card Status LED
|
Supervisor Status LEDs
Table A-1 interprets the states of the LED indicators on the supervisor module. When error conditions are indicated, refer to LEDs on the specified components to determine the condition’s source.
LED Name
|
LED State
|
Module State
|
Power Supply
|
Green
|
All powered modules are operating normally.
|
Red
|
At least one module has failed.
|
|
System
|
Green
|
All linecards are operating normally.
|
Red
|
At least one linecard has failed.
|
|
Switch Card
|
Green
|
Module is operating normally.
|
Red
|
Module has failed.
|
|
Fan
|
Amber
|
At least one fan is missing or has failed.
|
Green
|
All modules are operating normally.
|
|
Red
|
There are insufficient functional fans installed in the switch.
|
(1): If all Status LEDs are OFF, check the following: power feeds are live, power supplies are installed, Switch Card is properly seated, and Supervisor is properly seated. The system will not power up unless all four of these conditions are valid.
A.2 Line Card Module Indicators
Each line card module provides one status LED plus LEDs for each port on the card. The figures in Appendix E indicate the location of the LEDs on each line card. Figure A-2 displays the status LED and Port LEDs on the DCS-7368-16C-LC line card. Arrows indicate the port status being displayed by the corresponding port status LED.

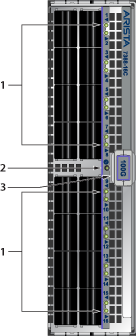

Figure A-2: Linecard Status LEDs (DCS-7368-16C-LC)
1
|
Linecard Port LEDs
|
2
|
Linecard Status LED
|
3
|
Linecard Ejector Latch
|
|
|
The Line Card Status LED is in the center of the DCS-7368-16C-LC. Table A-2 interprets the states of the Status LED. Table A-3 interprets the port LED states.
LED State
|
Status
|
Off
|
Line card not inserted.
|
Green
|
Line card operating normally.
|
Amber
|
Line card administratively shut down.
|
Red
|
Line card has failed.
|
LED State
|
Status
|
Off
|
Port link is down.
|
Green
|
Port link is up.
|
Yellow
|
Port is disabled in software.
|
A.3 Fan Module Status Indicators
The fan modules are inserted into the switch card module. Each switch contains one switch card and five fan modules. Appendix D displays the rear panel of the switch covered by this guide.The fan module indicator is displayed in Figure A-3. The fan handle color indicates the airflow direction. All fan modules must have the same color handle.
Note The orientation of the fan module as inserted in the switch may be different from the one shown.
Figure A-3: Fan Status LEDs
1
|
Fan Release Handle
|
2
|
Fan Installation Indicator
|
3
|
Fan Status LED
|
|
|
The fan installation Indicator is green when the fan module is properly installed or red when the module is not fully installed. Table A-4 interprets the states of the Fan Status LED.
LED State
|
Status
|
Off
|
The module is inserted but not receiving power – it may not be properly seated.
|
Green
|
The module is operating normally.
|
Red
|
The module has failed.
|
A.4 Power Supply Status Indicators
Power Supply LEDs are on power supply modules. The rear panel contains power supply modules for all switches. Appendix D (rear panels) displays the position of these LEDs on each switch.
Figure A-4 display a power supply module.
The power supply handle indicates the power supply fan direction. Verify the airflow direction of all modules have the same color handles.
Figure A-4: Power Supply
1
|
Power Supply Status LED
|
|
|
Table A-5 interprets the states of the Power Supply Status LED.
LED
|
Status
|
Green
|
Power Supply module operating normally.
|
Off
|
No AC power to the module.
|
Red
|
Module has faulted.
|
Blinking Green
|
PSU has AC power but hasn't been enabled by the system - indicates that either the power supply or the Switch Module isn't fully inserted.
|
