Status Indicators

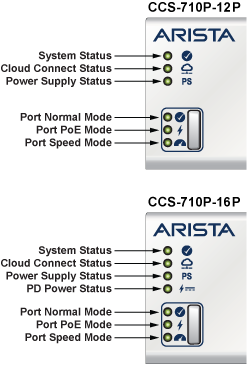

This section describes the front panel LED status of the device.
|
LED Name |
LED State |
Device Status |
|---|---|---|
|
System Status LED |
Off |
No power or in the midst of a power cycle. |
|
Blinking Green |
System is powering up. |
|
|
Green |
The system is operating in a normal initialization sequence. Normal operations. |
|
|
Blue |
The locator function is active. |
|
|
Amber |
System is malfunctioning. System is overheating or temperature sensors have recorded passing the SW defined critical threshold. The switch will automatically execute a “graceful shutdown” shortly. |
|
|
Cloud Connect Status LED |
Off |
Not connected to the cloud. |
|
Green |
System is connected to the cloud. |
|
|
Amber |
Problem connecting to the cloud. |
|
|
Power Supply Status LED |
Off |
Power supply adapter is not available. |
|
Green |
Power supply adapter is fully functional. |
|
|
Amber |
Power supply adapter has a fault. |
|
|
PD Port Power Status LED (710P-16P only) |
Off |
PD port power is not available. |
|
Green |
PD port power is fully functional. |
|
|
Amber |
PD port power has a fault. |
|
|
Port Normal Mode LED |
Off |
Normal mode is not selected. |
|
Green |
Port LED is selected to indicate port link status (normal mode). |
|
|
Port PoE Mode LED |
Off |
PoE mode is not selected. |
|
Green |
Port LED is selected to indicate port PoE status. |
|
|
Port Speed Mode LED |
Off |
Speed mode is not selected. |
|
Green |
Port LED is selected to indicate port speed. |
|
Port LEDs |
Normal Mode |
PoE Mode |
Speed Mode |
|||
|---|---|---|---|---|---|---|
|
1GE RJ45 Port LED (P1 to P12) |
Off |
Port link is down |
Off |
No PoE |
Blinking Amber |
10M |
|
Green |
Port link is up |
Blinking Amber |
15W |
Amber |
100M |
|
|
Amber |
Port is software disabled |
Amber |
30W |
Green |
1G |
|
|
5GE RJ45 Port LED (P13 to P14, 710P-16P only) |
Off |
Port link is down |
Off |
No PoE |
Blinking Amber |
1G |
|
Green |
Port link is up |
Blinking Amber |
15W |
Amber |
2.5G |
|
|
Amber |
Port is software disabled |
Amber |
30W |
Green |
5G |
|
|
Blinking Green |
60W |
|||||
|
5GE RJ45 Port LED (P15, 710P-16P only) |
Off |
Port link is down |
Off |
No PoE |
Blinking Amber |
1G |
|
Green |
Port link is up |
Amber |
2.5G |
|||
|
Amber |
Port is software disabled |
Green |
5G |
|||
|
5GE RJ45 Port LED (P16, 710P-16P only) |
Off |
Port link is down |
Off |
No PoE |
Blinking Amber |
1G |
|
Green |
Port link is up |
Blinking Green |
60W |
Amber |
2.5G |
|
|
Amber |
Port is software disabled |
Green |
90W |
Green |
5G |
|
|
SFP+ Port LED (P13 to P14, 710P-12 / P17 to P18, 710P-16P) |
Off |
Port link is down |
Off |
No PoE |
Blinking Amber |
100M |
|
Green |
Port link is up |
Amber |
1G |
|||
|
Amber |
Port is software disabled |
Green |
10G |
|||
