Rear Panel



This appendix displays the rear panel of all appliances covered by this guide.

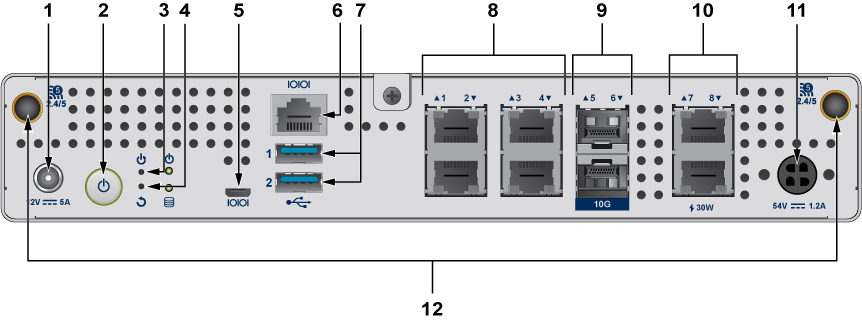

Figure 1. CCA-ETM-Q8W Rear Panel

1 12V power port 5 Micro USB console port 9 10 Gbit SFP+ ports
2 Power button 6 Console port 10 1Gb PoE ports
3 Reset button 7 USB ports 11 54v power port
4 Factory reset button 8 1Gb LAN ports 12 WiFi antenna ports
