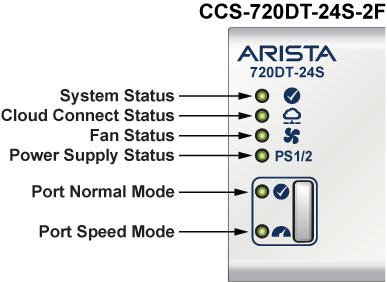

System Status LED

Off

No power or in the midst of a power cycle.

Blinking Green

System is powering up.

Green

The system is operating in a normal initialization sequence. Normal operations.

Blue

The locator function is active.

Amber

System is malfunctioning. System is overheating or temperature sensors have recorded passing the SW defined critical threshold.

The switch will automatically execute a “graceful shutdown” shortly.

Cloud Connect Status LED

Off

Not connected to the cloud.

Green

System is connected to the cloud.

Amber

Problem connecting to the cloud.

Fan Status LED

Green

All fan modules are operating normally.

Amber

Single fan module is malfunctioning.

Power Supply Status LED

Off

Power supply unit is not available.

Green

Power supply unit is fully functional.

Amber

Power supply unit has a fault.

Port Normal Mode LED

Off

Normal mode is not selected

Green

Port LED is selected to indicate port link status (normal mode).

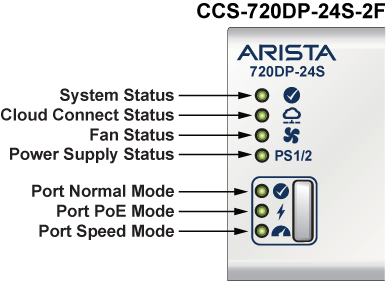

Port PoE Mode LED

(CCS-720DP-48S, CCS-720DP-24S, CCS-720DP-24ZS, CCS-720DP-48ZS)

Off

PoE mode is not selected.

Green

Port LED is selected to indicate port PoE status.

Port Speed Mode LED

Off

Speed mode is not selected.

Green

Port LED is selected to indicate port speed.
