Rear Panel of C-130E

The rear panel of the C-130E provides an PoE+ Ethernet port that enables you to connect the device to a wired LAN through a switch or a hub and power the device by using the 802.3af/802.3at standard.

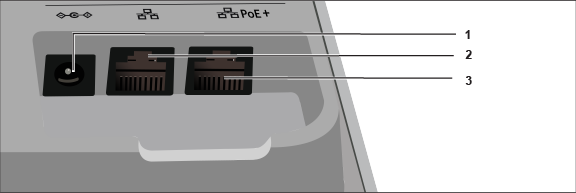

Figure 1. Rear Panel
Table 1. Labels: Rear Panel
Label Description
1 Power (DC IN)
2 LAN2
3 LAN1


Port

Description

Connector Type

Speed/Protocol

DC IN

Enables you to connect to and power on device using 12V DC power with 2.0 ampere.

6.3 mm barrel

--

Ethernet (LAN2)

Gigabit Ethernet port that can be

used for wired extension for an SSID.

RJ45

10/100/1000 Mbps Gigabit Ethernet

Ethernet (LAN1/PoE+)

Gigabit Ethernet port used to connect to the wired LAN and communicate with the Mojo Cloud or Server. This port can also be used to power the device using the 802.3af Power over Ethernet (PoE+) standard.

RJ45

  • 10/100/1000 Mbps Gigabit Ethernet
  • 802.3af/80 Class 0 PoE/PoE+
  • PoE input voltage: 48V

If using PoE (802.3af) some features will be disabled
