Top Side Ports on C-130E

Describes the supported AC power supplies and lists the power cables you can use to connect the supply to a power source.

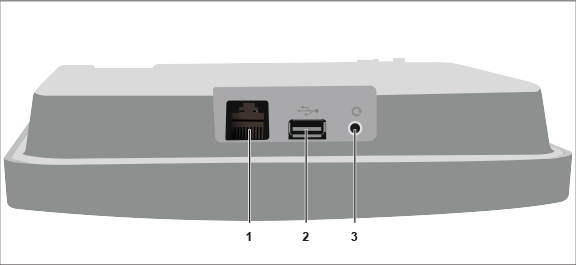

Figure 1. Top Side Panel
Table 1. Labels: Top Side Panel
Label Description
1 Console (Ethernet)
2 USB
3 Reset


Port

Description

Connector Type

Speed/Protocol

Ethernet

To establish 'Config Shell' terminal session via serial connection.

RJ45

  • RS 232 Serial Bits per second: 115200
  • Data Bits: 8, Stop Bits: 1
  • Parity: None
  • Flow Control: None

USB

USB 2.0 port

Not in use

Not in use

Reset Pinhole

Reset to factory default settings

Pin hole push button

Hold down and power cycle the device to reset

The Reset Pin Hole and the USB port are on the top side of the device as shown in the figure above. The Reset Pinhole resets the C-130E device to factory defaults. To reset the device, press and hold the Reset Pin Hole for 10 sec until all LEDs go off which indicates that the device has rebooted. Pressing the Reset Pin Hole while the device is booting up will not have any effect. You should perform this operation only when the device is running.

When you reset the device, the following settings are reset:

  • Config shell password is reset to config .
  • Server discovery value is erased and changed to the default, wifi-security-server .
  • All the VLAN configurations are lost.
  • If static IP is configured on the device, the IP address is erased and DHCP mode is set. If DHCP fails the factory default IP address of the device is set to 169.254.11.74.

The USB port on the C-130E is currently not in use.
