Power the Access Point On

Plug one end of the Ethernet cable into the PoE++ switch or compatible PoE injector (a Single-port High Power Midspan, 802.3bt compliant, up to 5Gigabit PoE with PD54V in power output) and the other end into the LAN1 (PoE++) on the AP. Make sure the PoE++ source you are using is turned ON. Use an active wrench with 27 mm opening to open the LAN (PoE++) port cap.

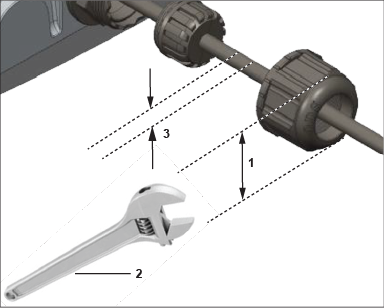

Figure 1. Use Active Wrench
Use an active wrench to open the LAN cap.
Table 1. Labels: Measurements
Label Description
1 The width of the LAN port cap is 27mm.
2 Use an active wrenchto open the LAN port cap.
3 LAN cable of 6 ~ 8mm width

Earthing or Grounding: The AP must be properly grounded using a copper grounding wire (12 ~ 10 AWG) and a tin-plated lug as shown in the following image. The wire and the lug must be tightened at the grounding screw on the AP.

Note: Connect the power cord of the power adapter (if used) to a socket outlet with an earthing connection.

The following two images show the position of the grounding screw on the AP (shown as serial number 1 in the image) and the dimension of the lug that attaches to the grounding screw.

Figure 2. Position of Earthing Screw on AP

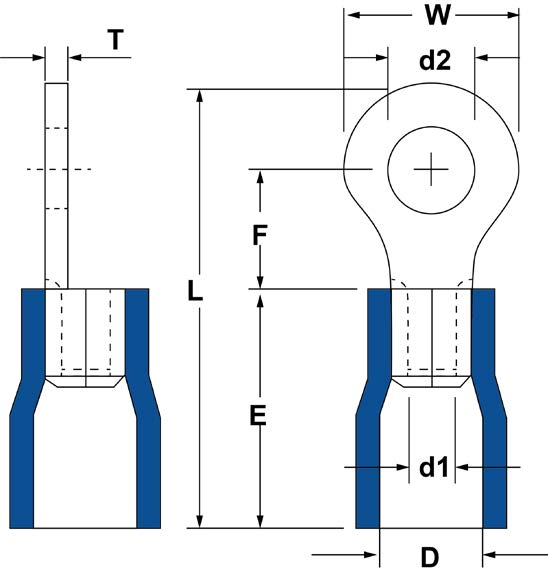

Figure 3. Lug Nut Dimensions
Note: The O-435 APs are intended to be supplied with UL-listed PoE+ power source suitable for use at 65 degree Celsius, and whose output meets LPS requirements or PS2, with a rating of 54V DC (0.8A or 800mA minimum).

The following table shows the dimension of the earthing screw and lug.

Item 1 2 3 4 5 6 7 8
Tolerance W: ± 0.5 d2: ± 0.2 L: ± 0.5 F: ± 0.5 E: ± 0.5 d1: ± 0.2 D: ± 0.2 T: ± 0.5
Size 7.20 4.30 21.50 5.90 13.00 3.40 6.70 1.00

Using the Access Point with Power Adapter

Use a compatible power adapter (Arista SKU: PWR-AP-W5) to power the AP.

Warning: Use the O-435 AP with a UL-listed PoE power source suitable for use at 45ºC. The power output should meet LPS requirements or PS2, with a rating of 48V DC (1A minimum). The current supplied by PoE++ should be 850mA. If not using PoE++, be sure to use only an AC power adapter supported by the AP. The power adapter should be suitable for use at 45ºC. Use this product with a Listed Direct Plug-In Power Unit marked as Class 2, Listed Power Adapter, or DC power source marked L.P.S. (or Limited Power Source) and rated from 12 V DC, 4A minimum.

The maximum altitude of operation for the power adapter is 5000m.

To power up the device with power adapter, perform the following steps:
  1. Plug the power cable into the DC power receptacle on the back of the AP.
  2. Plug the other end of the power cable into an 110V~240V 50/60 Hz AC power source.
  3. Wait until the AP LEDs light up. Refer to the LED status table.
