Front Panel

This section displays the front panel of all switches this guide covers.

Note: Depending on the components used to populate the chassis, the appearance of a specific switch may differ.
Note: Linecard slot numbering starts with '3'. When installing the linecards start at the lowest, begin with blanks.
Note: All switches are designed to fit in 19-inch racks.
Table 1. DCS-7804 Front Panel (Fully Populated)

Num Description
1 ESD attach point
2 Grounding locations
3 Supervisor lock
4 Supervisor modules
5 Supervisor slot number
6 Linecard lock
7 Linecard
8 Linecard slot numbers
9 Extraction tool
10 Power supplies
11 Power supplies slot numbers



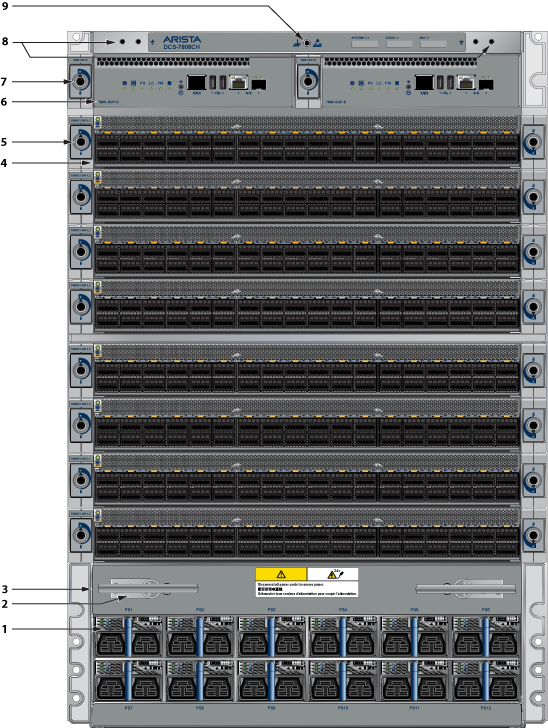

Table 2. DCS-7808 Front Panel (Fully Populated)

Num Description
1 ESD attach point
2 Supervisor lock
3 Supervisor modules
4 Supervisor slot numbers
5 Linecard lock
6 Linecard
7 Linecard slot numbers
8 Power supplies
9 Power supplies slot numbers



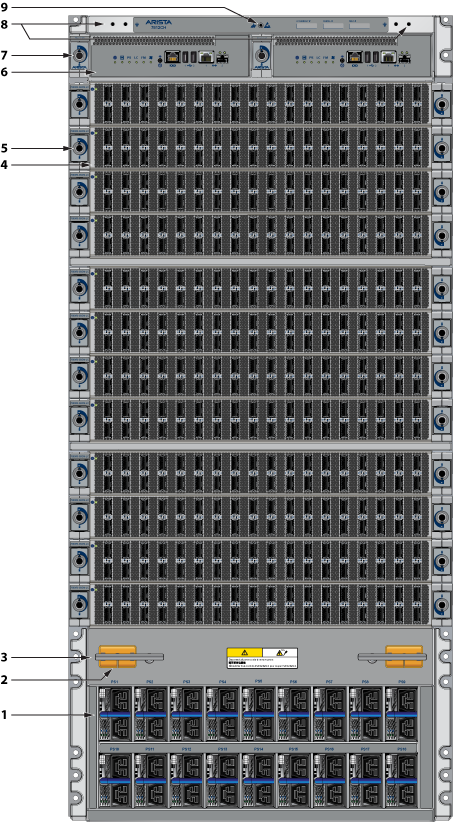

Table 3. DCS-7812 Front Panel (Fully Populated)

Num Description
1 ESD attach point
2 Grounding locations
3 Supervisor lock
4 Supervisor modules
5 Supervisor slot numbers
6 Linecard lock
7 Linecard
8 Linecard slot numbers
9 Extraction tool
10 Linecard and Supervisor extraction tool tether
11 Power supplies
12 Power supplies slot numbers



Table 4. DCS-7816 Front Panel (Fully Populated)

Num Description
1 ESD attach point
2 Grounding locations
3 Extraction tool
4 Linecard and Supervisor extraction tool tether
5 Linecard lock
6 Linecard
7 Linecard slot number
8 Supervisor lock
9 Supervisor modules
10 Supervisor slot numbers
11 Linecard lock
12 Linecard
13 ESD attach point
14 Extraction tool
15 Linecard and Supervisor extraction tool tether
16 Power supplies
17 Power supplies slot numbers
Table 5. DCS-7816L Front Panel (Fully Populated)

Num Description
1 ESD attach point
2 Grounding locations
3 Supervisor lock
4 Supervisor module
5 Supervisor slot numbers
6 Linecard lock
7 Linecard
8 Linecard slot numbers
9 Linecard lock
10 Linecard
11 Extraction tool
12 ESD attach point
13 Power supplies
14 Power supplies slot numbers
