Front Panel

This section displays the front panel of all switches this guide covers.



Note: All devices are designed to fit into a 19”, ORV3 or ORV3n rack.

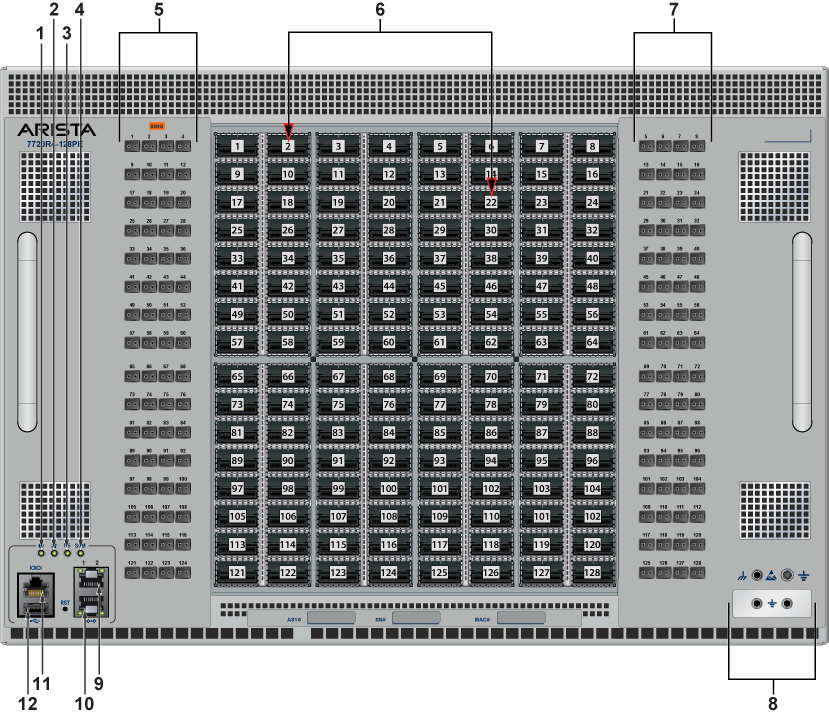

Figure 1. DCS-DS-7720R4-128PE

1 System status LED 5 Port status LED 9 Primary Ethernet management port (RJ45)
2 Fan status LED 6 Port numbers 10 Secondary Ethernet management port (RJ45)
3 Power supply status LED 7 Port status LED 11 Console (serial) port
4 Supervisor card module status LED 8 Grounding 12 USB port

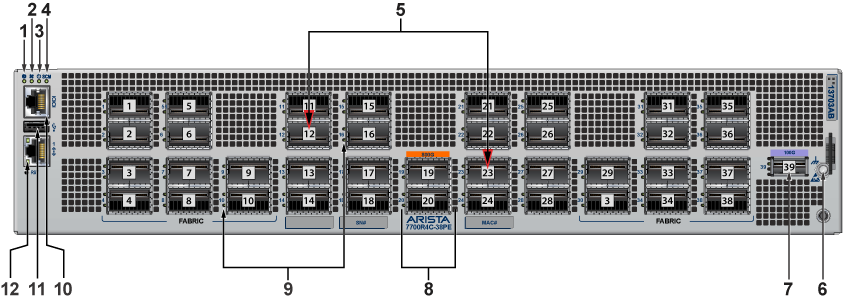

Figure 2. DCS-DL-7700R4-38PE

1 System status LED 5 Port numbers 9 Port status LEDs
2 Fan status LED 6 Port numbers 10 Ethernet management port (RJ45)
3 Power supply status LED 7 100G Port number 11 USB port
4 Supervisor card module status LED 8 Port status LEDs 12 Ethernet management port (RJ45)



Note: Ports 1 to 10 and 29 to 38 are fabric ports.
