Rear Panels

This Rear panel section displays the rear panel of all switches covered by this guide.

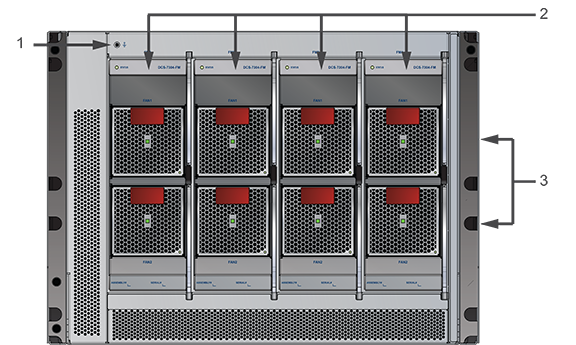

DCS-7304 and DCS-7324 Rear Panel



1 ESD grounding port
2 Fabric modules
3 Fan modules

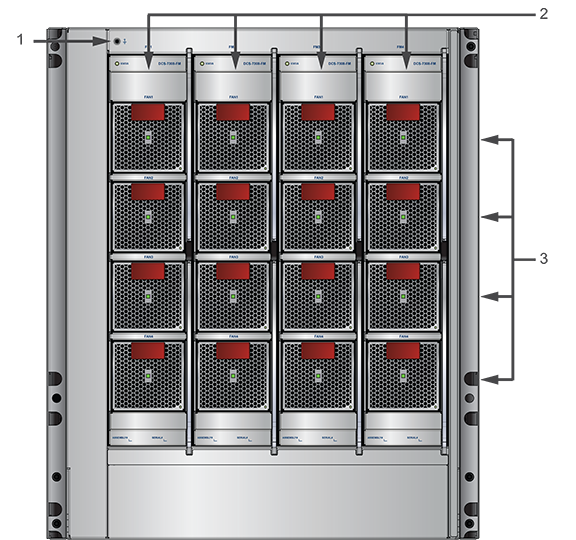

DCS-7308 and DCS-7328 Rear Panel



1 ESD grounding port
2 Fabric modules
3 Fan modules



DCS-7316 Rear Panel



1 ESD grounding port
2 Fabric modules
3 Fan modules
4 Power Supply Modules
