Rear Panel Features and Indicators

This section displays the rear panel of the CloudVision Appliance.

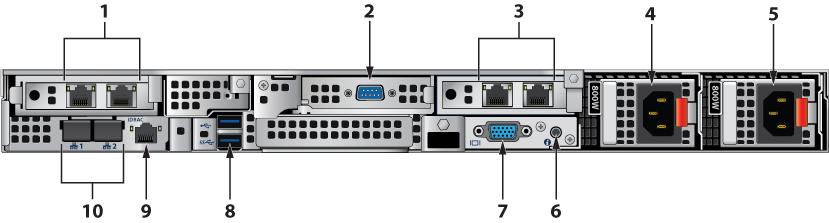

Figure 1. CloudVision Appliance (rear view)
Table 1. Rear Panel Features and Indicators
Number Indicator, Button, or Connector Description
1

Ethernet connector 1

Integrated 1000/10000 Mbps NIC connector.

2

Serial connector

Allows you to connect a serial device to the system.

3

Ethernet connector 2

Integrated 1000/10000 Mbps NIC connector.

4

PSU1

Power supply 1

5

PSU2

Power supply 2

6 System identification button The identification buttons on the front and back panels can be used to locate a particular system within a rack. When one of these buttons is pressed, the system status indicator on the back flashes until one of the buttons is pressed again.

Press to toggle the system ID on and off. If the system stops responding during POST, press and hold the system ID button for more than five seconds to enter BIOS progress mode.

To reset the iDRAC (if not disabled in F2 iDRAC setup) press and hold the button for more than 15 seconds.

7 Video connector Allows you to connect a VGA display to the system.
8 USB connector Allows you to connect USB devices to the system. The port is USB 2.0-compliant.
9

iDRAC port

Dedicated management port for the iDRAC port card.

10

Ethernet connector

Unused
