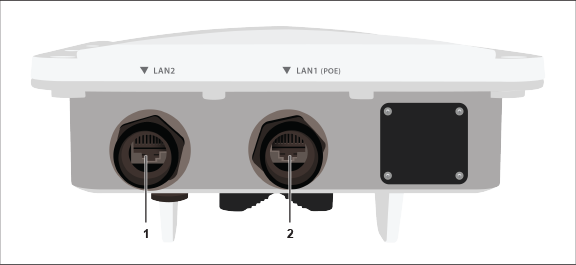

the bottom panel of the O-105 has LAN/poe connectors that enable you to connect the device to a wired LAN through a switch or a hub. the ports provide power for the device by using the 802.3at standard.

Table 1. Labels: Ports

Label	Description
1	LAN2
2	LAN1 (poe)

Table 2. O-105 Port Details

Port/Button	Description	connector Type	Speed/Protocol
LAN1	1 Gigabit Ethernet with 802.3at compliant poe	RJ-45	10/100/1000 Mbps Ethernet
LAN2	1 Gigabit Ethernet with 802.3at compliant poe	RJ-45	10/100/1000 Mbps Ethernet
Reset	Enables you to reset the O-105	--	--
