Bottom Panel of O-105E

The bottom panel of the O-105E has LAN or PoE connectors that enable you to connect the device to a wired LAN through a switch or a hub. The ports provide power for the device by using the 802.3at standard.

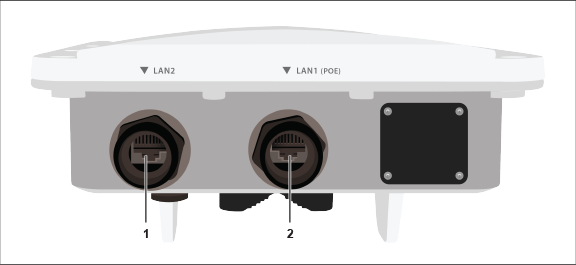

Figure 1: O-105E Bottom Panel
Table 1. Labels: Ports
Label Description
1 LAN2
2 LAN1 (PoE)
Table 2. O-105E Port Details
Port/Button Description Connector Type Speed/Protocol
LAN1 1 Gigabit Ethernet with 802.3at compliant PoE RJ-45 10/100/1000 Mbps Ethernet
LAN2 1 Gigabit Ethernet with 802.3at compliant PoE RJ-45 10/100/1000 Mbps Ethernet
Reset Enables you to reset the O-105E -- --
