Pole Mount the O-105E
Use the pole-mount bracket and pole strap to install the O-105E device on a pole. Standard accessories include two metal clamps.:
Use the mounting base to install the O-105E device on the wall. To mount the device:
- Attach the device to the mounting base.

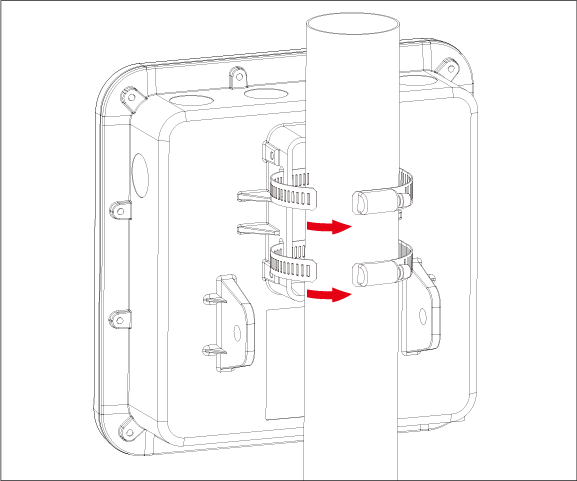

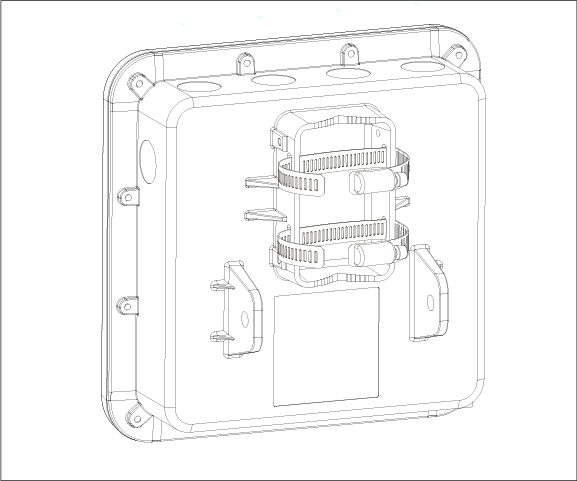

- Attach the pole-mount bracket to the mounting base. You can position the pole-mount bracket for use on a vertical or horizontal pole. Insert the pole strap in to the pole-mount bracket.

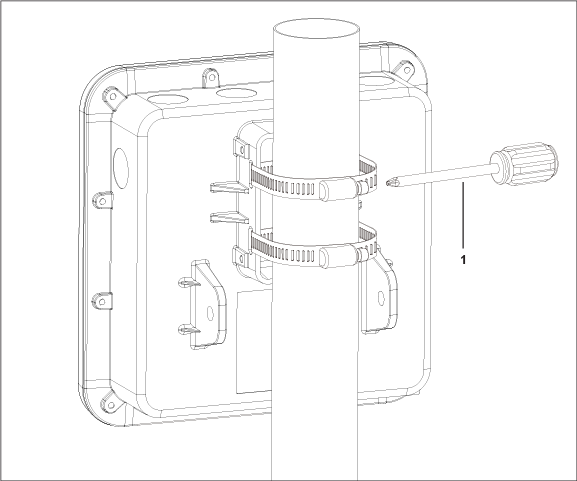

- Mount the device securely to the pole by using the pole strap and a Philips #2 screwdriver.
Table 1. Labels: Parts Label Description 1 Philips #2 screwdriver.
