Wall Mount the O-105E
Mounting the access point (AP) on the wall consists of the following steps:
- Affix the expansion bolts on the wall such that the holes on the mounting base can be perfectly placed over them.

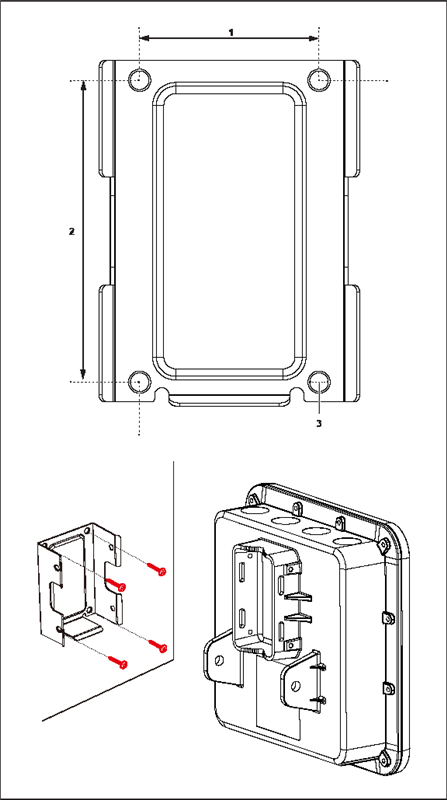

Table 1. Labels: Dimensions Label Description 1 Horizontal distance between holes: 50mm 2 Vertical distance between holes: 84mm 3 Diameter of the hole: 6.5mm, depth 30mm

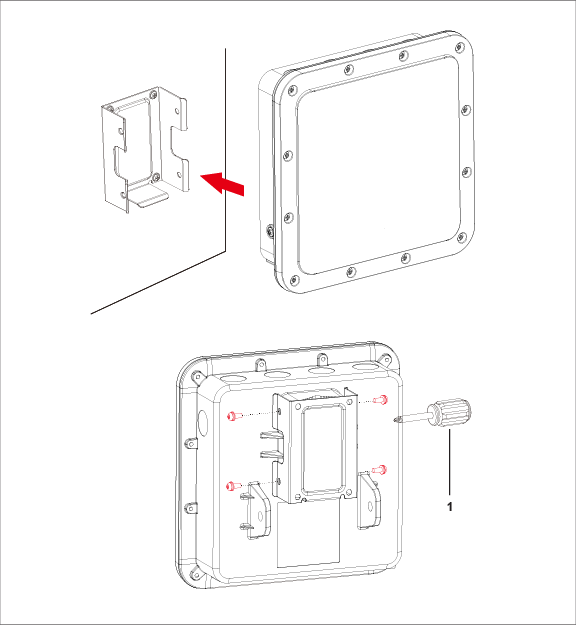

- Attach the mounting base to the bottom cover of the O-105E device.
Table 2. Labels: Parts Label Description 1 Philips #2 screwdriver. Length >= 100mm

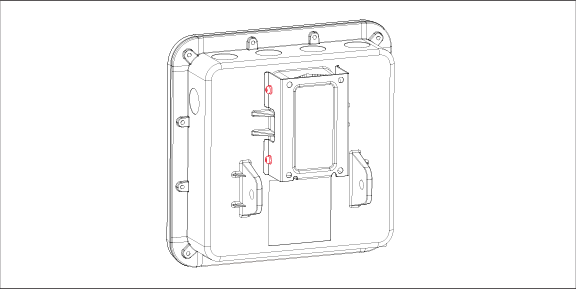

- Mount the device on the expansion bolts.
