Front Panel

This section describes the front panel of the Ethernet Switch.

CCS-710XP-12TH-2S

The CCS-710XP-12TH-2S front panel includes the following key components:

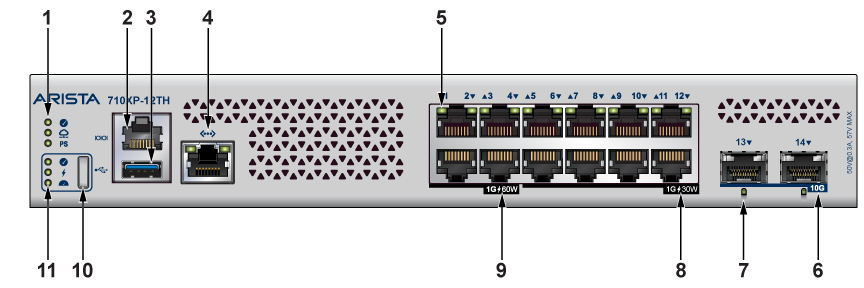

Figure 1. CCS-710XP-12TH-2S Front Panel

1 System Status LEDs 7 SFP+ Port LEDs
2 Console Port 8 8x1G 30W PoE Ports
3 USB Port 9 4x1G 60W PoE Ports
4 RJ45 Ethernet Management Port 10 Mode Button
5 Port LEDs 11 Mode Status LEDs
6 2x10G SFP+ Ports
