Rear Panel
All switches covered by this guide use one of the rear panels shown below. Depending on the installed power supply module, the appearance could be different from those shown.
Note All devices are designed to fit into a 19” rack. The appearance may be different than those shown based on the PSU and the fan modules used.
Note Handle or label color indicates airflow direction.
Figure D-1: Rear Panel for Models with Management Ports in the Front


1
Power supply module 1
5
Fan module 4
9
Fan module 3 status LED
2
Fan module 1
6
Power supply module 2
10
Fan module 2 status LED
3
Fan module 2
7
PSU module 2 status LED
11
Fan module 1 status LED
4
Fan module 3
8
Fan module 4 status LED
12
PSU module 1 status LED

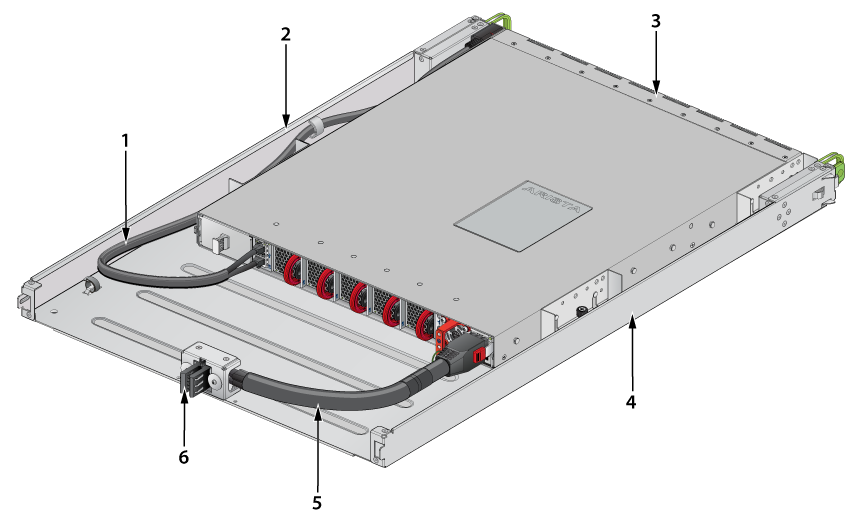

Figure D-2: Rear Panel for Models with Management Ports in the Rear

1
Power supply module 1
5
Fan module 3
9
Earth grounding pad
2
Ethernet management port
6
Fan module 4
10
Console serial port
3
Fan module 1
7
Clock Input
11
USB port
4
Fan module 2
8
PSU 2

Figure D-3: DCS-7060PX4-32 and DCS-7060DX4-32 Rear Panel


1
Power supply module 1
6
Fan module 5
11
Fan module 3 status LED
2
Fan module 1
7
PSU 2
12
Fan module 2 status LED
3
Fan module 2
8
PSU 2 status LED
13
Fan module 1 status LED
4
Fan module 3
9
Fan module 5 status LED
14
PSU 2 status LED
5
Fan module 4
10
Fan module 5 status LED
