Front Panel

This section describes the front panel of the following router:

AWE-7220RP-5TH-2S-F

The Arista 7220R Enterprise WAN router front panel includes the following key components:

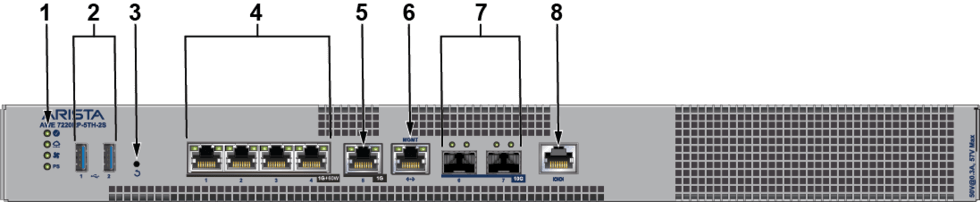

Figure 1. Front Panel

1 System status LEDs 5 1x1GBASE-T port
2 USB port Type-A 6 RJ45 Ethernet management port
3 Reset button 7 2x10G SFP+ ports
4 4x1GBASE-T POE++ ports 8 RJ45 Console port
