Front View of the System



This section discusses the following topic:

Front View of the System

This front view displays the features available on the front panel of the CloudVision AGNI Appliance.

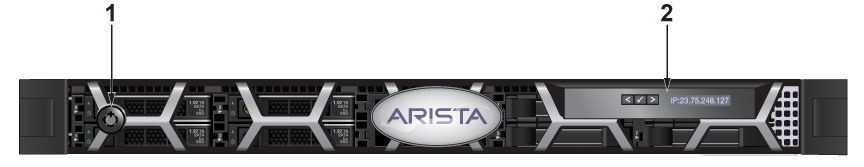

Figure 1. Front Panel Bezel of DCA-AGNI-200 1RU


Item Ports, panels, and slots Description
1 Bezel Lock Displays the keyed mechanical lock that secures the front bezel to prevent unauthorized access to drive bays and controls.
2 LCD Panel

Displays system information, status and error messages or iDRAC IP address.
Note: Front bezel is not supported on systems with front I/O configuration.

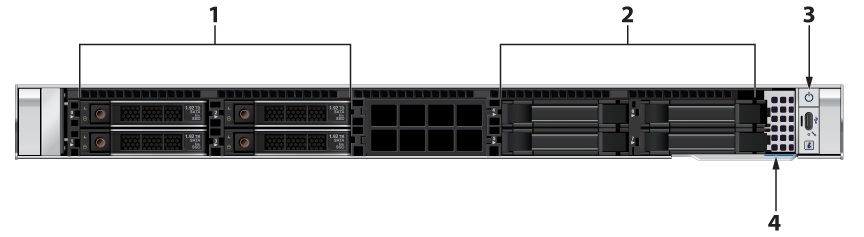

Figure 1. Front Panel of DCA-AGNI-200 1RU


Item Ports, panels, and slots Description
1 SSD bays Contains hot-swappable 2.5-inch SATA/NVMe SSDs (slots 0-3).
2 Hard drive slots Displays unpopulated drive bays (slots 4-7) fitted with blank covers to maintain proper cooling airflow.
3 Right control panel Contains the power button, USB port, iDRAC Direct micro port, and the iDRAC Direct status LED.
4 Information tag A slide-out label panel that contains system information, such as Service Tag, NIC, and MAC address, for your reference.
