Status Indicators

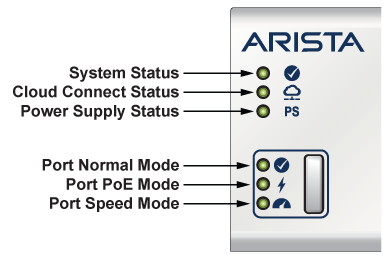

This section describes the front panel LED status of the device.
| LED Name | LED State | Device Status |
|---|---|---|
| System Status LED | Off | No power or in the midst of a power cycle. |
| Blinking Green | The system is powering up. | |
| Green | The system is operating in a normal initialization sequence. | |
| Blue | The locator function is active. | |
| Amber | The system is malfunctioning. The system is overheating, or temperature sensors have recorded passing the software-defined critical threshold.
The switch will automatically execute a “graceful shutdown” shortly. |
|
| Cloud Connect Status LED | Off | The system is not connected to the cloud. |
| Green | The system is connected to the cloud. | |
| Amber | Problem connecting to the cloud. | |
| Power Supply Status LED | Off | The power supply unit is not available. |
| Green | The power supply unit is fully functional. | |
| Amber | The power supply unit has a fault. | |
| Port Normal Mode LED | Off | Normal mode is not selected. |
| Green | Port LED is selected to indicate the port link status (normal mode). | |
| Port PoE Mode LED | Off | PoE mode is not selected. |
| Green | Port LED is selected to indicate the port PoE status. | |
| Port Speed Mode LED | Off | Speed mode is not selected. |
| Green | Port LED is selected to indicate the port speed. |
| Port LEDs | Normal Mode | PoE Mode | Speed Mode | |||
|---|---|---|---|---|---|---|
| 1GE RJ45 Port LED | Off | Port link is down | Off | No PoE | Blinking Amber | 10M |
| Green | Port link is up | Blinking Amber | 15W | Amber | 100M | |
| Amber | Port is software disabled | Amber | 30W | Green | 1G | |
| Blinking Green | 60W | |||||
| 5GE RJ45 Port LED | Off | Port link is down | Off | No PoE | Blinking Amber | 1G |
| Green | Port link is up | Blinking Amber | 15W | Amber | 2.5G | |
| Amber | Port is software disabled | Amber | 30W | Green | 5G | |
| Blinking Green | 60W | |||||
| Green | 90W | |||||
| 10GE RJ45 Port LED | Off | Port link is down | Off | No PoE | Blinking Amber | 2.5G |
| Green | Port link is up | Blinking Amber | 15W | Amber | 5G | |
| Amber | Port is software disabled | Amber | 30W | Green | 10G | |
| Blinking Green | 60W | |||||
| Green | 90W | |||||
| SFP+ Port LED | Off | Port link is down | Off | No PoE | Blinking Amber | 100M |
| Green | Port link is up | Amber | 1G | |||
| Amber | Port is software disabled | Green | 10G | |||
