Access Point Overview

C-400/C-400P is a Wi-Fi 7 multi-radio 802.11be access point. Refer to the datasheet for more information.

Note: This equipment is suitable for use in environment air spaces (plenums).
This chapter provides an overview of the access point (AP) and describes:

Front Panel

The front panel of the AP has 6 LEDs that indicate the status of various AP functions.

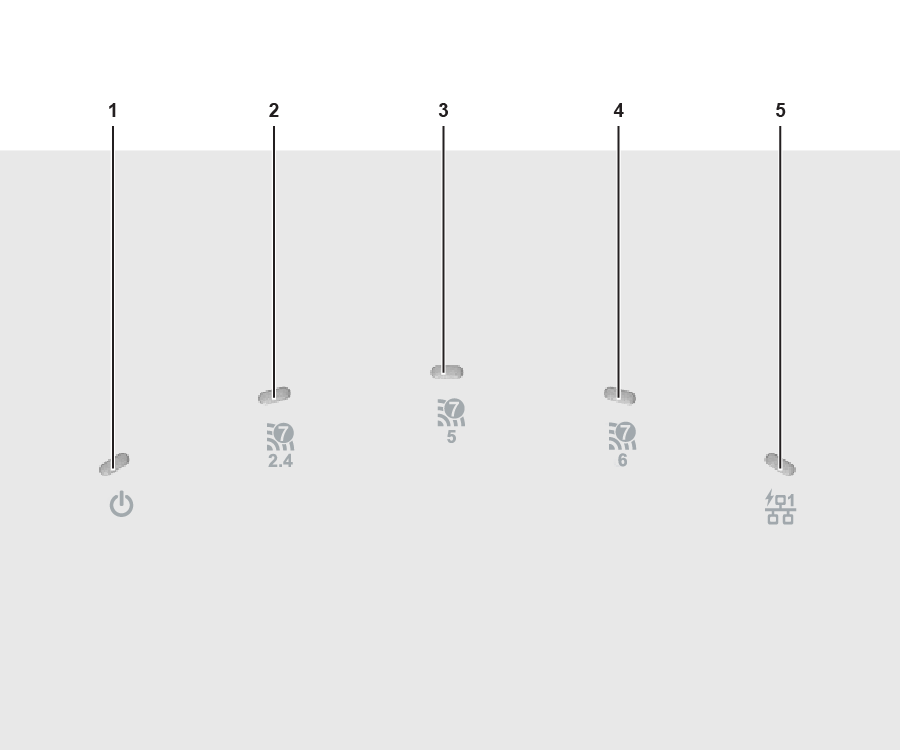

Figure 1. Front Panel LEDs
Table 1. Labels: Front Panel LEDs
1 Power 2 2.4 GHz Radio 3 5 GHz Radio
4 6 GHz Radio 5 LAN1

Power LED: The following table describes the Power LED indicator states.

Table 2. Power LED Indicator States Description
  Green Orange
Solid Running at full capability Running at reduced capability
Blinking Received IP address, but not connected to the server Did not receive an IP address

Reduced capability indicates that the AP receives less than the required maximum power from the PoE+ switch. The AP receives 802.3af instead of 802.3at.

LAN1 LED: ON when the corresponding interface UP.

Radio LEDs: ON when the corresponding radio is operational.

Rear Panel

The rear panel of the AP has a DC power port and a 802.3at compliant PoE+ LAN port to power the AP and connect it to a wired LAN.

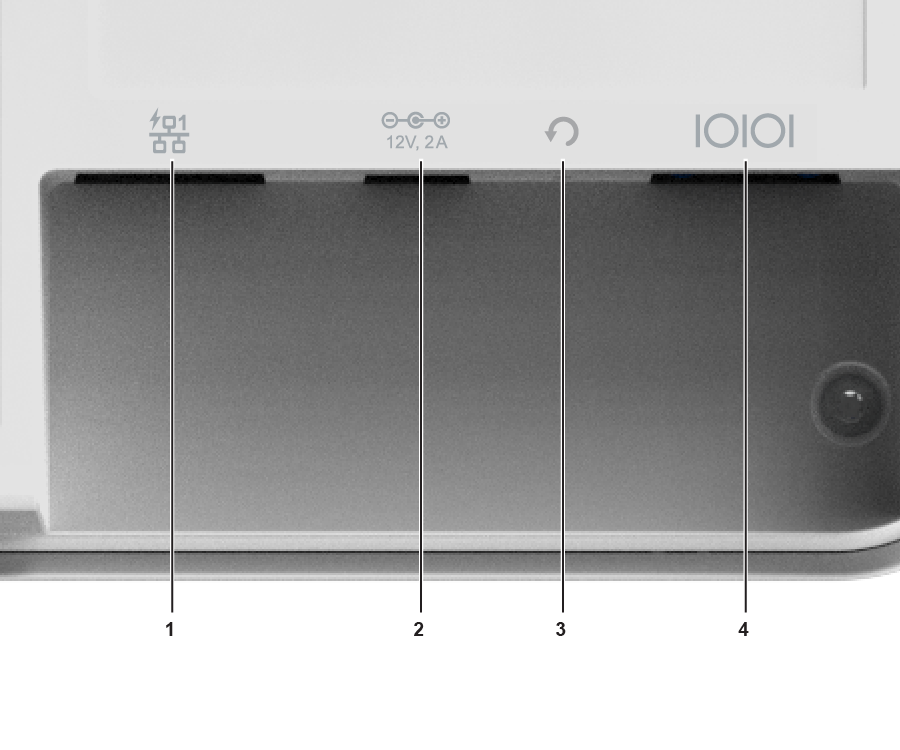

Figure 2. Rear Panel
Table 3. Labels: Rear Panel
1 LAN1, POE+ 2 DC Power
3 Reset 4 Console
Table 4. Port Details
Port Description Connector Type Speed/Protocol
Power 12V DC/2A 5.5 mm overall diameter / 2.1 mm center pinhole N/A
LAN 1 5 Gigabit Ethernet with 802.3at compliant PoE RJ-45 100 /1000 Mbps / 2.5/ 5 Gbps Ethernet
Reset

Reset to factory default settings port. Hold down and power cycle the device to reset.

 Pin hole push button NA
Console

Establish a ‘config shell’ terminal session through a serial connection

 RJ-45 NA
