Front Panel
This appendix displays the front panel of all switches covered by this guide.

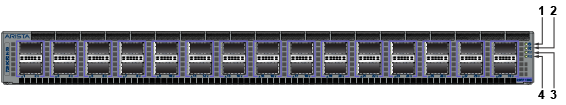

Figure C-1: DCS-7280CR2A-30, DCS-7280CR2K-30, and DCS-7280CR2M-30


1
System status LED
3
Power supply 1 status LED
2
Fan tray status LED
4
Power supply 2 status LED
