Rear Panel

This section displays the rear panel of all Arista NDR appliances covered by this guide.

Note:
  • All devices are designed to fit into a 19” rack. The appearance may be different than those shown based on the PSU types and the modules used.
  • For detailed information on indicators, refer to Rear Panel Status Indicators.



Figure 1. DCA-NDR-S100MB and DCA-NDR-S1




1 Ethernet port 2 Unused slot 3 Packet capture ports
4 Unused slot 5 UID LED 6 VGA
7 Unused port 8 Management port 9 USB ports
10 COM port 11 Power supplies



Figure 2. DCA-NDR-A5 and DCA-NDR-S5




1 Unused slot 2 Packet capture ports 3 SSD drives
4 Unused slots 5 VGA 6 UID LED
7 COM port 8 IPMI Ethernet port 9 USB ports
10 Management port 11 Power supplies



Figure 3. DCA-NDR-S10




1 Unused slot 2 Capture ports 3 SSD drives
4 Unused slots 5 VGA 6 UID LED
7 COM port 8 IPMI Ethernet port 9 USB ports
10 Management port 11 Power supplies



Figure 4. DCA-NDR-NB10 and DCA-NDR-CC




1 Unused slot 2 Interconnect ports 3 SSD drives
4 Unused slots 5 VGA 6 UID LED
7 COM port 8 IPMI Ethernet port 9 USB ports
10 Management ports 11 Power supplies



Figure 5. DCA-NDR-S10X




1 PSU1 2 JBOD port 3 JBOD port
4 IPMI 1Gb Ethernet Port 5 25/10 GbE SFP28 Capture Ports 6 Spare 10 GbE port
7 10 GbE Management port 8 COM port 9 USB ports
10 VGA port 11 PSU2

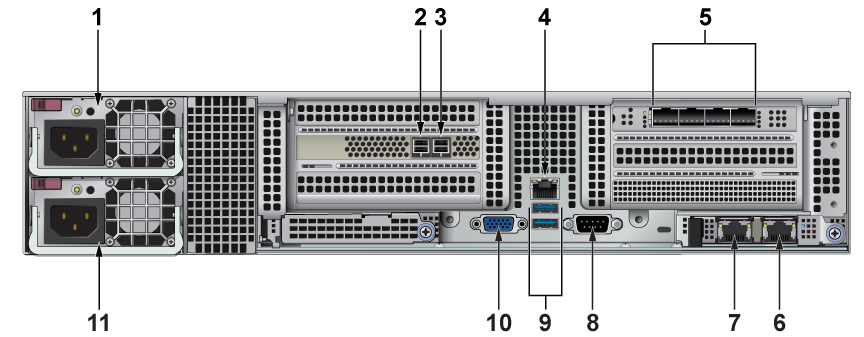

Figure 6. DCA-NDR-NB10X




1 PSU1 2 JBOD port 3 JBOD port
4 IPMI 1Gb Ethernet Port 5 25/10 GbE SFP28 Interconnect Ports 6 Spare 10 GbE port
7 10 GbE Management port 8 COM port 9 USB ports
10 VGA port 11 PSU2

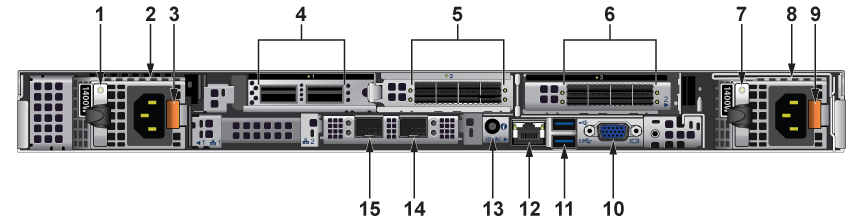

Figure 7. DCA-NDR-S40




1 AC PSU status indicator 2 Power supply plug 3 Release latch
4 100 Gb QSFP28 Capture ports 5 Storage connector ports 6 AC PSU status indicator
7 Power supply plug 8 Release latch 9 VGA port
10 USB port 11 IPMI 1 Gb Ethernet port 12 System ID LED
13 Spare 25/10 GbE SFP28 port 14 25/10 GbE SFP28 Management port

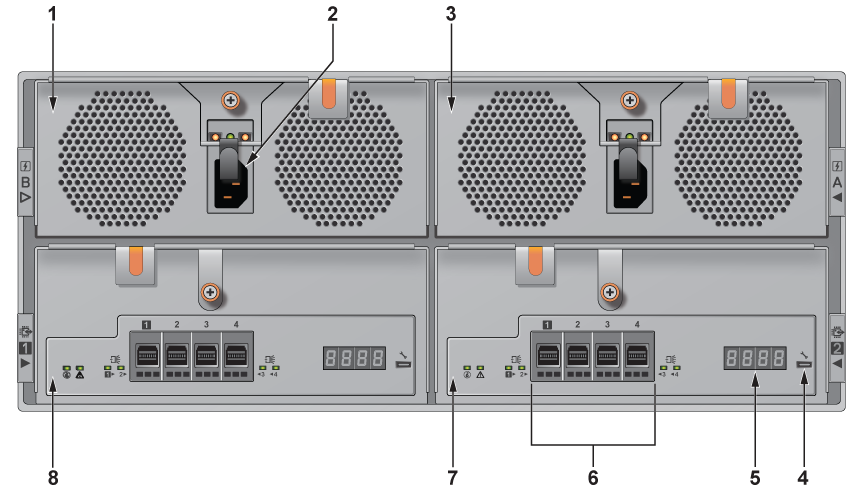

Figure 8. DCA-NDR-STR




1 PSU B 2 Power supply plug 3 PSU A
4 USB Type-C debug port 5 7-segment LED - Unused 6 Mini-SAS HD port
7 EMM slot 2 / Side B 8 EMM Slot 1 / Side A
