Manage Gateway Pools and Gateways
Arista network consists of multiple service Gateways deployed at top tier network and cloud data centers. The Gateway provides the advantage of cloud-delivered services and optimized paths to all applications, branches, and data centers. Service providers can also deploy their own Partner Gateways in their private cloud infrastructure.
Manage Gateway Pools
A Gateway Pool is a group of Gateways.
Gateways can be organized into pools that are then assigned to a network. An unpopulated default Gateway pool is available after you install Orchestrator. If required, you can create additional Gateway pools.
As a Partner Super user and Partner Admin user, you can create, manage, download, and delete Gateway pools created by a Partner user or a Partner Managed Gateway pools created by the Operator.
The New Gateway Pool and Download options are available only for Partners with Gateway management access activated. If the Gateway management access is deactivated for a Partner, then the Partner will have only read-only permission for the configured Gateway pools. To request Gateway Management access, Partners must contact the Operator Super user.
To manage Gateway pools, perform the following steps:
- In the Orchestrator UI, select the Gateway Management tab and go to Gateway Pools in the left navigation pane.
The Gateway Pools page appears.

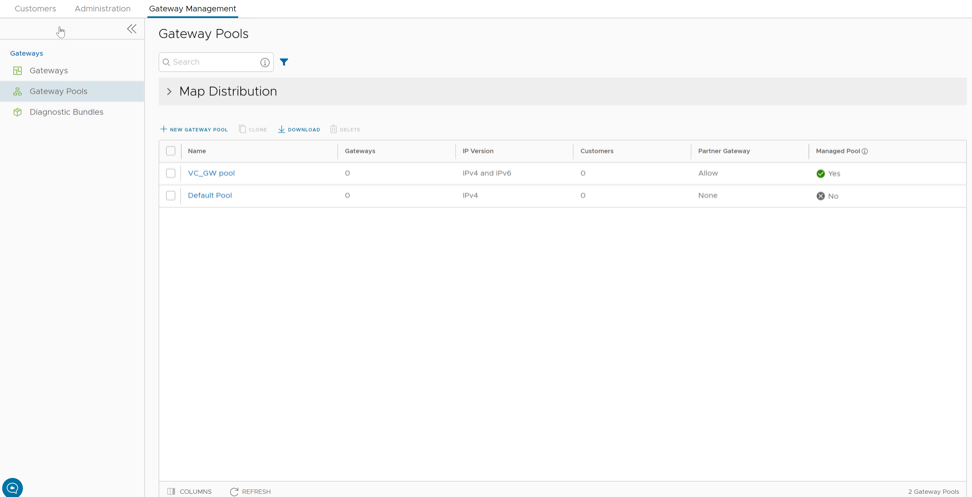

Figure 1. Manage Gateway Pools
- New Gateway Pool – Creates a new Gateway pool. See Create New Gateway Pool.
- Clone – Creates a new Gateway pool, by cloning the existing configurations from the selected Gateway pool. See Clone a Gateway Pool.
- Download- Downloads the CSV file for all Gateway pools or the selected Gateway pool.
- Delete – Deletes the selected Gateway pool. You cannot delete a Gateway pool that is already being used by an Enterprise Customer.
- You can also configure the existing Gateway pools by selecting the name link of the Gateway pool. See Configure Gateway Pools.
Create New Gateway Pool
In addition to the default Gateway pool, you can create new Gateway pools and associate them with Enterprise Customers.
- In the New Gateway Pool dialog, configure the following details and select Create.

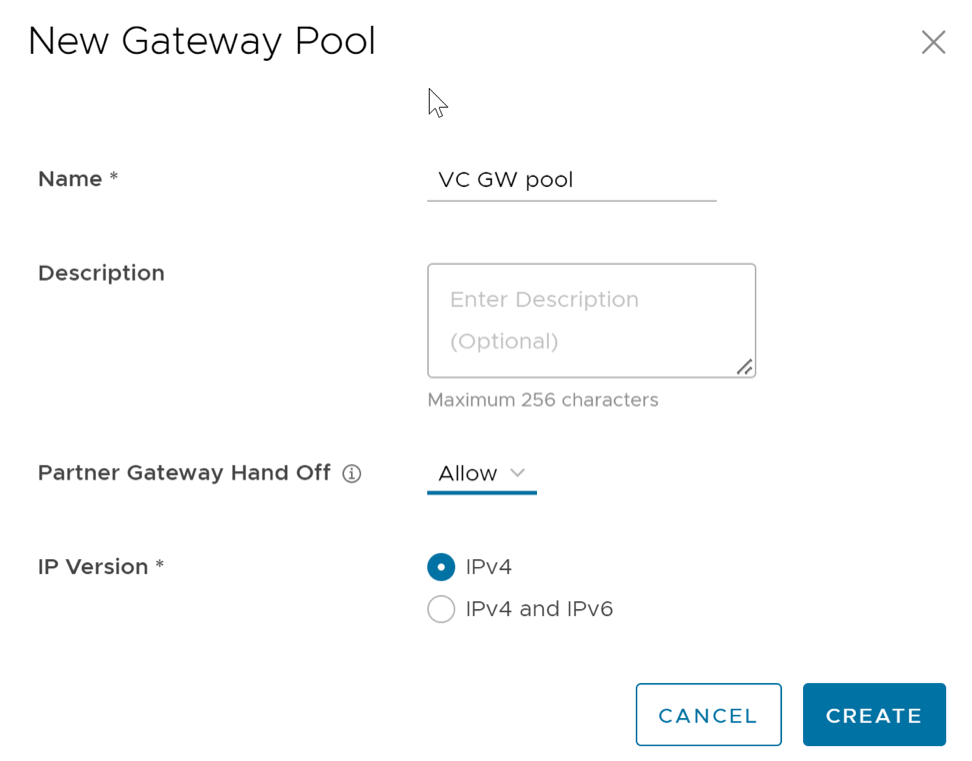

Figure 2. Create New Gateway Pool
Table 2. New Gateway Pool Field Descriptions Field Description Name Enter a name for the new Gateway pool. Description Enter a description for the Gateway pool. Partner Gateway Hand Off This option determines the method to hand off the Gateways to Partners. Choose one of the following options from the drop-down list: - None – Select this option when Partner Gateway hand off is not required.
- Allow – Select this option when you want the Gateway pool to support a mix of both the Partner Gateways and Cloud Gateways.
- Only Partner Gateways – Select this option when Edges in the Enterprise should not be assigned with Cloud Gateways from the pool, and will only be assigned with the Gateways that are set for an individual Edge.
IP Version Choose one of the following address types with which the Gateway pool should be enabled: - IPv4 – Allows to add IPv4 only Gateways.
- IPv4 and IPv6 – Allows to add Gateways with IPv4 and IPv6 addresses.
Note: If you want to use Edges with IPv6 support, then choose IPv4 and IPv6.
- Configure the Gateway pool by adding Gateways to the pool. See Configure Gateway Pools.
Clone a Gateway Pool
You can clone the configurations from an existing Gateway pool and create a new Gateway pool with the cloned settings.
- In the Gateway Pools table, select the Gateway pool that you want to clone and select Clone.
The New Gateway Pool dialog with the cloned settings appears.

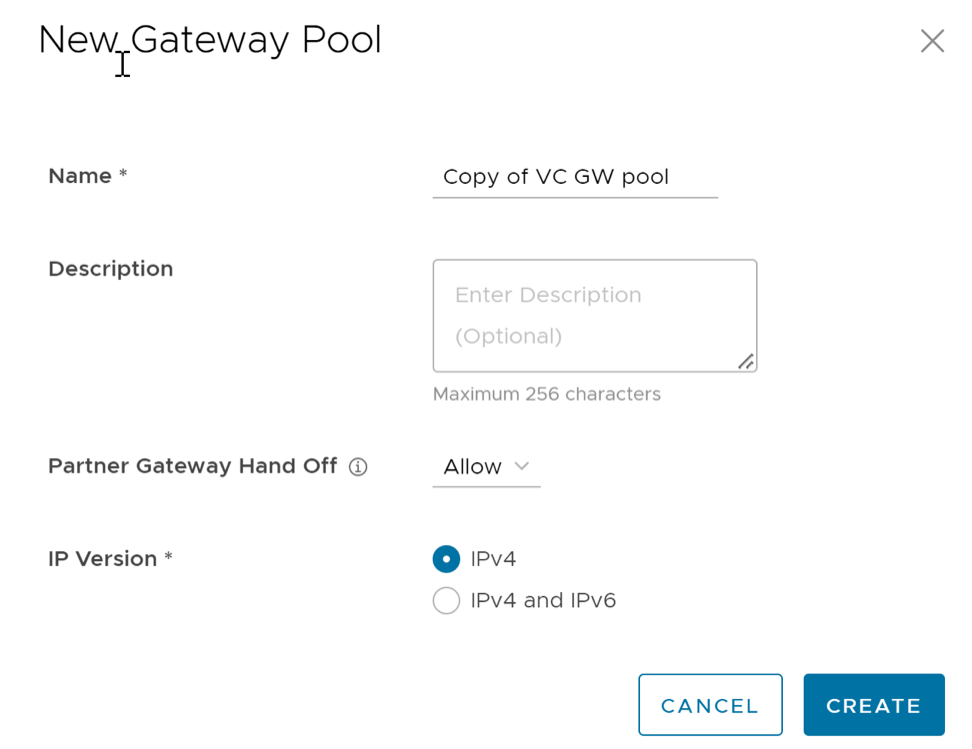

Figure 3. Cloned Gateway Pool
The Gateway pool clones the existing configuration from the selected Gateway pool. If required, you can modify the details. For more information on the options, see Create New Gateway Pool.
- Configure the Gateway pool by adding Gateways to the pool. See Configure Gateway Pools.
Configure Gateway Pools
After creating a Gateway pool, you can add Gateways to the pool and associate the pool to an Enterprise Customer.
- Configure the following details for the Gateway pool:

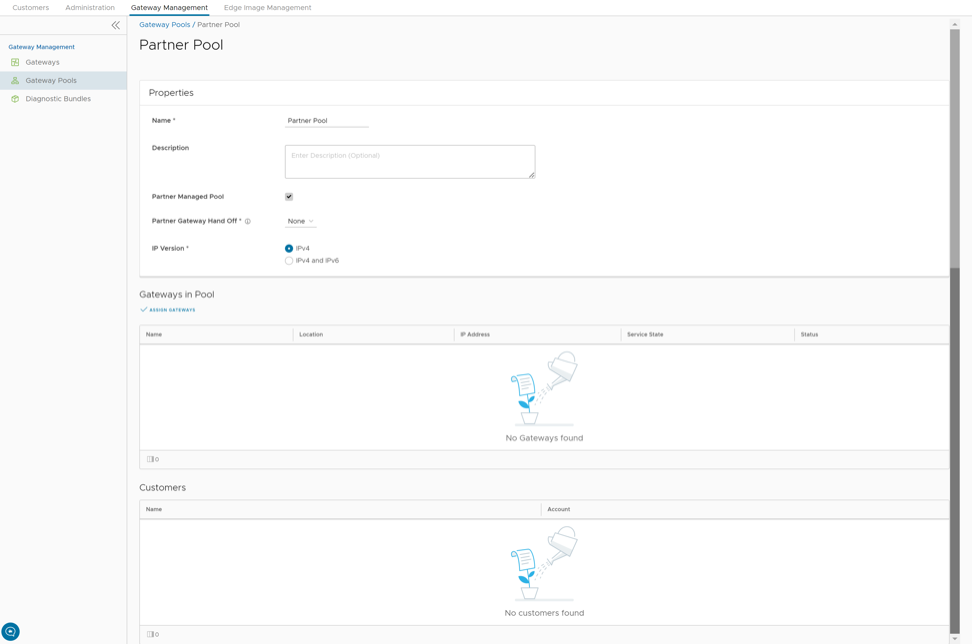

Figure 4. Configure Gateway Pools
- In the Properties section, the existing Name, Description, Partner Gateway Hand Off details, and the Association Type are displayed. If required, you can modify these details.
- In the Gateways in Pool section, select Manage to add Gateways to the pool. The Assign Gateways to Gateway pool dialog appears.
- In the Assign Gateways to Gateway pool dialog, move the required Gateways from the Available pane to Assigned pane using the Arrows and select Update.

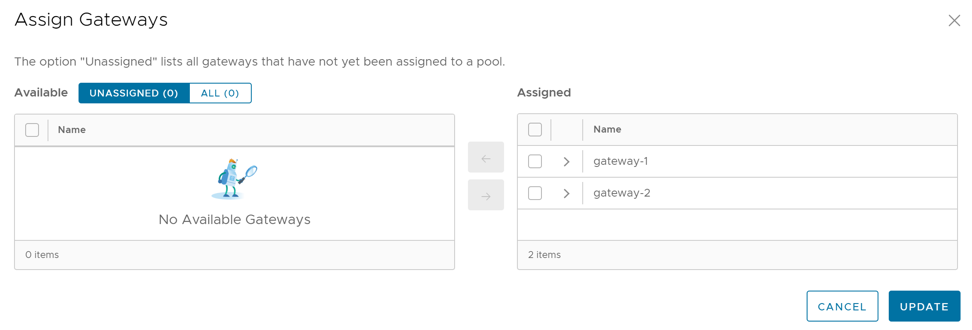

Figure 5. Assign Gateways to Gateway pool

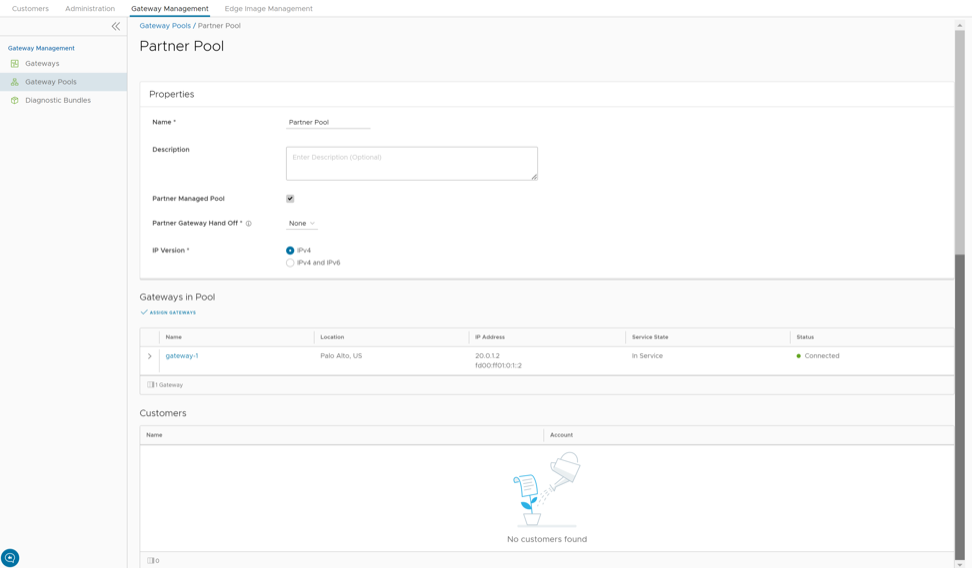

- The Gateways assigned to the selected Gateway pool are displayed as follows.
Figure 6. Gateways in Pool
You can associate the Gateway pool to an Enterprise Customer. The Edges available in the Enterprise are connected to the Gateways available in the pool.
Refer to the following links to associate the Gateway pool:
- For a new customer, see Creating a New Partner Customer.
- For an existing customer, see Configure Partner Customers.
Manage Gateways
VeloCloud Gateways are a distributed network of gateways, deployed around the world or on-premises at service providers, provide scalability, redundancy and on-demand flexibility. The Gateways optimize data paths to all applications, branches, and data centers along with the ability to deliver network services to and from the cloud.
By default, the Gateways named as gateway-1 and gateway-2 are available when you install Orchestrator. If required, you can create additional Gateways.
Partner Super user and Admin with Gateway management access activated can create, manage, and delete Gateways created by a Partner or Partner managed Gateways created by an Operator. The Partner IT support users can only view the configured Gateways.
To manage Gateways, perform the following steps:
- In the Orchestrator UI, select the Gateway Management tab and go to Gateways in the left navigation pane.
The Gateways page appears.

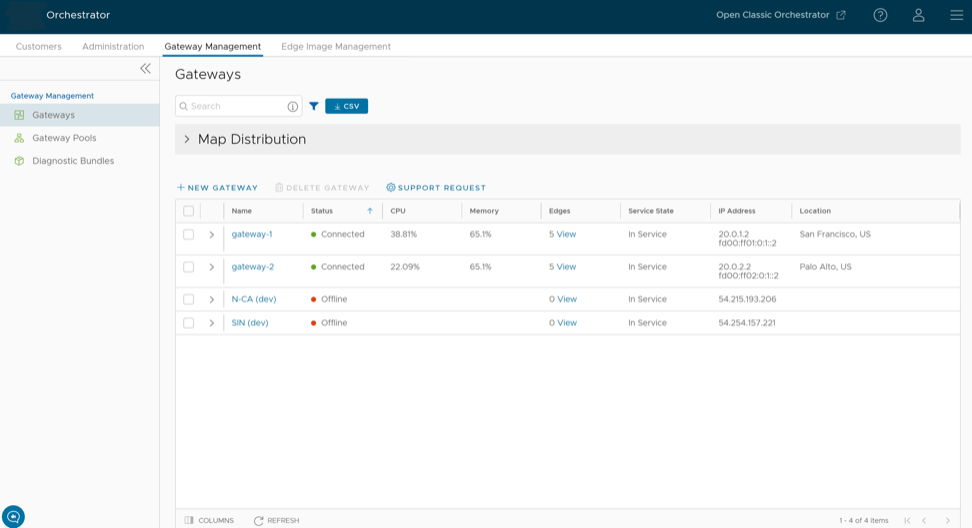

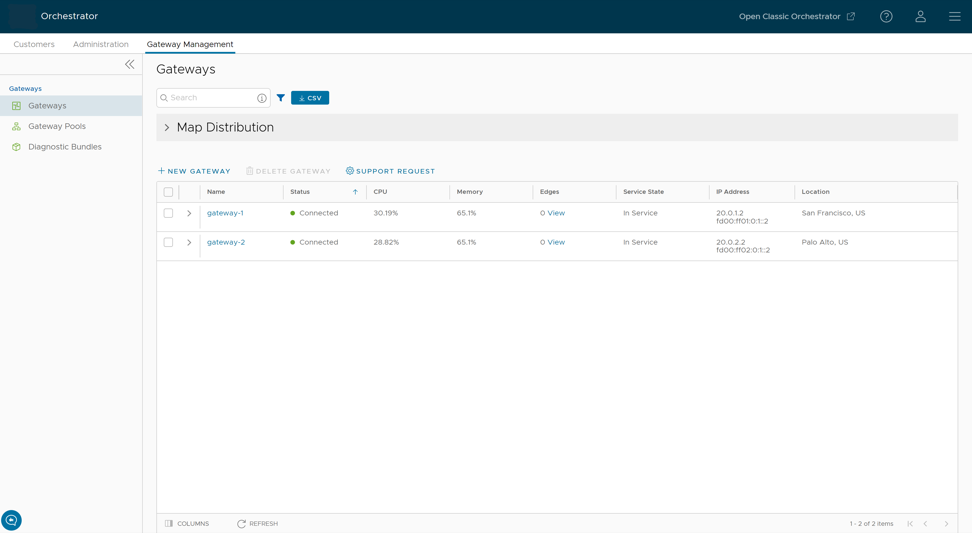

Figure 7. Gateway Management
On the Gateways page, you can perform the following activities:
- New Gateway – Creates a new Gateway. See Create New Gateway.
- Delete Gateway – Deletes the selected Gateway. You cannot delete a Gateway that is already being used by an Enterprise Customer.
- Support Request – Redirects to a Knowledge Base article that has instructions on how to file a support request.
Create New Gateway
In addition to the default Gateways, you can create Gateways and associate them with Enterprise Customers.
To create a Gateway, perform the following steps:
- In the New Gateway dialog, configure the following details:

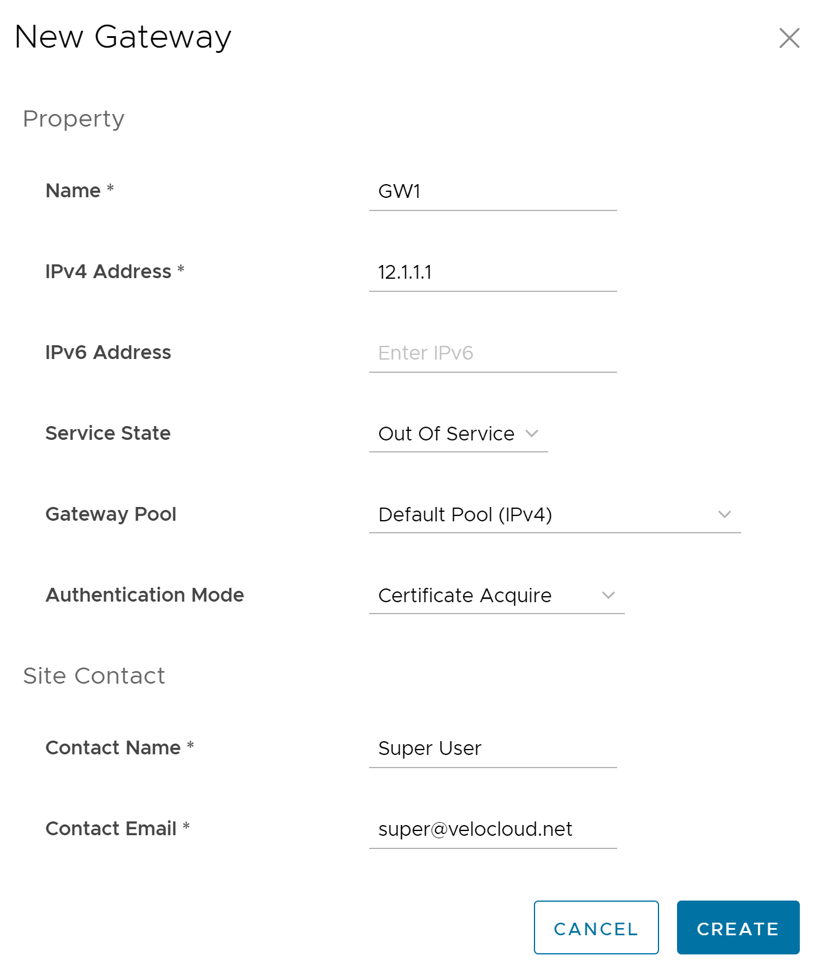

Figure 8. Create New Gateway
Table 4. New Gateway Field Descriptions Field Description Name Enter a name for the new Gateway. IPv4 Address Enter the IPv4 address of the Gateway. IPv6 Address Enter the IPv6 address of the Gateway. Service State Select the service state of the Gateway from the drop-down list. The following options are available: - In Service- The Gateway is connected and available.
- Out of Service- The Gateway is not connected.
- Quiesced- The Gateway service is quiesced or paused. Select this state for backup or maintenance purposes.
Note: The Quiesced and Out of Service states are only applicable for Cloud Gateway deployment.Gateway Pool Select the Gateway Pool from the drop-down list, to which the Gateway would be assigned. Authentication Mode Select the authentication mode of the Gateway from the following available options: - Certificate Not Required- Gateway uses a pre-shared key mode of authentication.
- Certificate Acquire- This option is selected by default and instructs the Gateway to acquire a certificate from the certificate authority of the Orchestrator, by generating a key pair and sending a certificate signing request to the Orchestrator. Once acquired, the Gateway uses the certificate for authentication to the Orchestrator and for establishment of VCMP tunnels.
Note: After acquiring the certificate, the option can be updated to Certificate Required.
- Certificate Required- Gateway uses the PKI certificate.
Contact Name Enter the name of the Site Contact. Contact Email Enter the Email ID of the Site Contact. Note:- Once you have created a Gateway, you cannot modify the IP addresses.
- Release 4.3.x and 4.4.x support Greenfield deployment of Gateways for IPv6. If you have upgraded a Gateway from a previous version earlier than 4.3.0, you cannot configure the upgraded Gateway with the IPv6 address.
- Release 4.5.0 supports both the Greenfield and Brownfield deployment of Gateways for IPv6. If you have upgraded a Gateway from a previous version earlier than 4.5.0, you can dynamically configure IPv6 address for the Gateway.
- IPv4/IPv6 dual-stack mode is not supported for Bastion Orchestrator configuration.
Once you create a new Gateway, you are redirected to the Configure Gateways page, where you can configure additional settings for the newly created Gateway.
To configure additional settings for the Gateway, see Configure Gateways.
Configure Gateways
When you create a new Gateway, you are automatically redirected to the Configure Gateways page, where you can configure the properties and other additional settings for the Gateway.
To configure an existing Gateway:
- In the Overview tab, you can configure the following details:
Figure 9. Configure Gateways
Table 5. Gateway Field Descriptions Field Description Properties Displays the existing Name and Description of the selected Gateway. If required, you can modify the information. You can also configure the Gateway Roles, as required:- Data Plane- Enables the Gateway to operate in the Data plane and is selected by default.
- Control Plane- Enables the Gateway to operate in the Control plane and is selected by default.
- Secure VPN Gateway- Select the option to use the Gateway to establish an IPsec tunnel to a Non SD-WAN Destination.
- Partner Gateway- Select the check box to allow the Gateway to be assigned as a Partner Gateway for Edges. If you select this option, configure the additional settings as described below in the Partner Gateway (Advanced Handoff) Details section.
- CDE- Enables the Gateway to operate in Cardholder Data Environment (CDE) mode. Select this option to assign the Gateway for customers who require to transmit PCI traffic.
- Cloud-to-Cloud Interconnect- Select the option to enable cloud-to-cloud-interconnect (CCI) tunnels on the VeloCloud Gateways.
Note: This Gateway Role option is shown if the
session.options.enableZscalerCcisystem property is set to True. - Symantec Web Security Service: Enables the Gateway's Symantec Web Security Service capability. The Orchestrator assigns this Gateway to the Edge as WSS Primary Gateway or WSS Secondary Gateway.
Note: This assignment works only when the Gateway Pool's Partner Gateway Handoff is not set to Only.
Status You can configure the following details: - Status- Displays the status of the Gateway which reflects the success or failure of periodic heartbeats sent to the Orchestrator. The following are the available statuses:
- Connected- Gateway is heart beating successfully to the Orchestrator.
- Degraded- Orchestrator has not heard from the Gateway for at least one minute.
- Offline- Orchestrator has not heard from the Gateway for at least two minutes.
- Service State- Select the Service State of the Gateway from the following available options:
- In Service- The Gateway is connected, and it is available for Primary or secondary tunnel assignments. When the Service state of the Gateway is switched from the 'Out Of Service' to 'In Service' state, the Primary or Secondary assignments, Super Gateways, Edge-to-Edge routes are recalculated for each Enterprise using the Gateway.
- Pending Service- The Gateway is connected, and it is pending for tunnel assignments.
- Out of Service- The Gateway is not connected or not available for any assignments. All the existing assignments are removed.
- Quiesced- The Gateway service is quiesced or paused. No new tunnels or NSD sites can be added to the Gateway. However, the existing assignments would still remain in the Gateway. Select this state for backup or maintenance purposes.
Note: The Quiesced and Out of Service states are only applicable for Cloud Gateway deployment.When the Service state is Quiesced, Orchestrator provides a self-service migration functionality that allows you to migrate from your existing Gateway to a new Gateway without your Operator’s support.
For more information, see Migrate Quiesced Gateways.
Note: Self-service migration is not supported on Partner Gateways.
Connected Edges Displays the number of Edges connected to the Gateway. This option is displayed only when the Gateway is activated. Gateway Authentication Mode Select the authentication mode of the Gateway from the drop-down menu: - Certificate Deactivated- Gateway uses a pre-shared key mode of authentication. If you change the mode from Certificate Deactivated to:
- Certificate Acquire: Tunnels based on PSK mode are not impacted. Only tunnels with Gateways are impacted. These tunnels are reconnected based on certificate. All tunnels configured with PSK mode continue to stay active and no disruption is seen in the traffic.
- Certificate Required:: The Orchestrator does not directly allow this change. You must first change the mode to Certificate Acquire, and then change it to Certificate Required. This helps avoiding heartbeat loss to the Orchestrator, when Edge is assigned a certificate.
- Certificate Acquire- This option is selected by default and instructs the Gateway to acquire a certificate from the certificate authority of the Orchestrator, by generating a key pair and sending a certificate signing request to the Orchestrator. Once acquired, the Gateway uses the certificate for authentication to the Orchestrator and for establishment of VCMP tunnels. If you change the mode from Certificate Acquire to:
- Certificate Deactivated: PSK based tunnels are not impacted. Tunnels with Gateways and all certificate-based tunnels are disconnected and reconnected based on PSK.
- Certificate Required: All peers configured with PSK mode are disconnected and cannot connect to the Hub. All current RSA tunnels stay active.
When the Hub is in Certificate Acquire mode, the tunnels based on the certificate are reestablished with new certificate. PSK based tunnels are not impacted.
Note: After acquiring the certificate, the option can be updated to Certificate Required. - Certificate Required- Gateway uses the PKI certificate. Operators can change the certificate renewal time window for Gateways using the system property
gateway.certificate.renewal.window. If you change the mode from Certificate Required to:- Certificate Deactivated: All peers with RSA tunnel are disconnected and cannot reconnect. All peers configured with PSK mode continue to stay active and no disruption is seen in the traffic.
- Certificate Acquire: All peers configured in PSK mode reconnect with Hub/Gateway. All current RSA tunnels stay active.
Note:- When Gateway certificate is revoked, the Gateway does not receive certificate revocation list (CRL) as it loses TLS connection immediately. Anyway, the Gateway is still operable.
- The current QuickSec design checks CRL time validity. The CRL time validity must match with current time of Edges for the CRL to have impact on new established connection. To implement this, ensure to update Orchestrator time properly to match with date and time of Edges.
IP Address Displays the public IP address that public WAN links of an Edge use to connect to the Gateway. This IP address is used to uniquely identify the Gateway. If you have configured the Gateway with both IPv4 and IPv6 addresses, this field displays both the IP addresses. If you have created IPv4 only Gateway or if there is an existing IPv4 Gateway upgraded from previous versions, you can enter the IPv6 address to support the dual stack. After you save the changes, the IPv6 address is not sent to the Edges immediately. You can trigger the rebalance operation to push the IPv6 address to the customer and the associated Edges manually or the IPv6 address is sent to the Edges during the next Control Plane update. Note: Adding IPv6 address is a one-time activity and once you save the changes, you cannot modify the IP addresses.CAUTION: An incorrectly configured IPv6 address, when pushed to Edges, might lead to failure of the IPv6 tunnelling to the IPv6 Gateway. In such cases, you need to deactivate the Gateway and create a new one to activate both the IPv4 and IPv6 addresses.Contact & Location Displays the existing contact details. If required, you can modify the information. NSD IP Portability Beginning with the 6.0 Orchestrator release, the NSD IP Portability for the Gateway is supported. Portable NSD IPs allow an Operators to move NSD configurations to different Gateways in the POP without requiring the customer to reconfigure their tunnels. Note: For a Partner user, the NSD Portability functionality is read-only and cannot be edited.Figure 10. NSD IP Portability
Syslog Settings Beginning with the 4.5 release, Gateways can export NAT information via a remote syslog server or via telegraf to the desired destination. For more information, see the Configure NAT Entry Syslog for Gateways section in the VeloCloud SD-WAN Operator Guide. Customer Usage Displays the usage details of different types of Gateways assigned to the customers. Pool Membership Displays the details of the Gateway pools to which the current Gateway is assigned. Partner Gateway (Advanced Handoff) Details This section is available only if you select the Partner Gateway check box. You can configure advanced handoff settings for the Partner Gateway. For more information, see the Partner Gateway (Advanced Handoff) Details section below. Partner Gateway (Advanced Handoff) DetailsYou can configure the following advanced handoff settings for the Partner Gateway:
Table 6. Partner Gateway Details Field Descriptions Field Description Static Routes | Subnets – Specify the subnets or routes that the Gateway should advertise to the Edge. This is global per Gateway and applies to ALL customers. With BGP, this section is used only if there is a shared subnet that all customers need to access and if NAT handoff is required. Remove the unused subnets from the Static Route list if you do not have any subnets that you need to advertise to the Edge and have the handoff of type NAT.
You can select the IPv4 or IPv6 tab to configure the corresponding address type for the Subnets.
Subnets Enter the IPv4 or IPv6 address of the Static Route Subnet that the Gateway should advertise to the Edge. Cost Enter the cost to apply weightage on the routes. The range is from 0 to 255. Encrypt Select the check box to encrypt the traffic between Edge and Gateway. Hand off Select the handoff type as VLAN or NAT. Description Optionally, enter a descriptive text for the static route. ICMP Probes and Ping Responders Settings ICMP Failover Probe – The Gateway uses ICMP probe to check for the reachability of a particular IP address and notifies the Edge to failover to the secondary Gateway if the IP address is not reachable. This option supports only IPv4 addresses. VLAN Tagging Select the VLAN tag from the drop-down list to apply to the ICMP probe packets. The following are the available options: - None – Untagged
- 802.1q – Single VLAN tag
- 802.1ad / QinQ(0x8100) / QinQ(0x9100) – Dual VLAN tag
Destination IP address Enter the IP address to be pinged. Frequency Enter the time interval, in seconds, to send the ping request. The range is from 1 to 60 seconds. Threshold Enter the number of times the ping replies can be missed to mark the routes as unreachable. The range is from 1 to 10. ICMP Responder- Allows the Gateway to respond to the ICMP probe from the next hop router when the tunnels are up. This option supports only IPv4 addresses. IP address Enter the virtual IP address that will respond to the ping requests. Mode Select one of the following modes from the drop-down list: - Conditional – Gateway responds to the ICMP request only when the service is up and when at least one tunnel is up.
- Always – Gateway always responds to the ICMP request from the peer.
Note: The ICMP probe parameters are optional and recommended only if you want to use ICMP to check the health of the Gateway. With BGP support on the Partner Gateway, using ICMP probe for failover and route convergence is no longer required. For more information on configuring BGP support and handoff settings for a Partner Gateway, see Configure Partner Gateway Handoff to Production Orchestrator.
Monitor Gateways
You can monitor the status and network usage data of Gateways available in the Partner portal of the Orchestrator.
To monitor the Gateways:
- Login to the Orchestrator as a Partner and in the Partner portal, select .
The Gateways page displays the list of available Gateways.
Figure 11. Monitor Gateways
- Select the link to a Gateway to view the details of the selected Gateway.

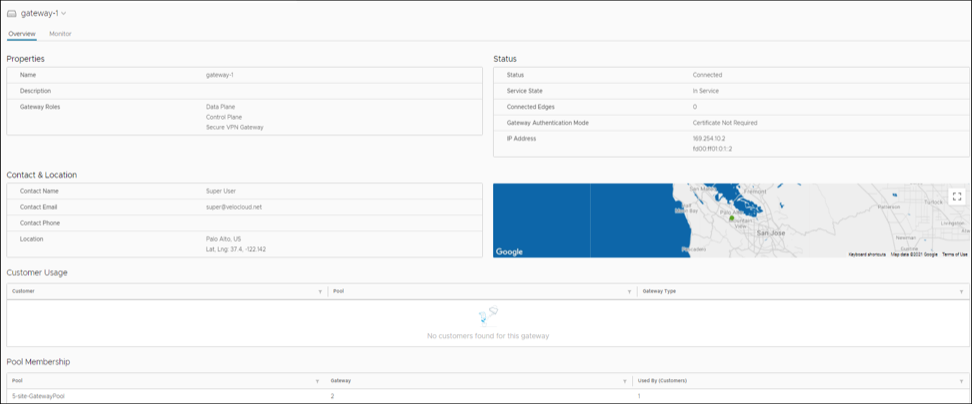

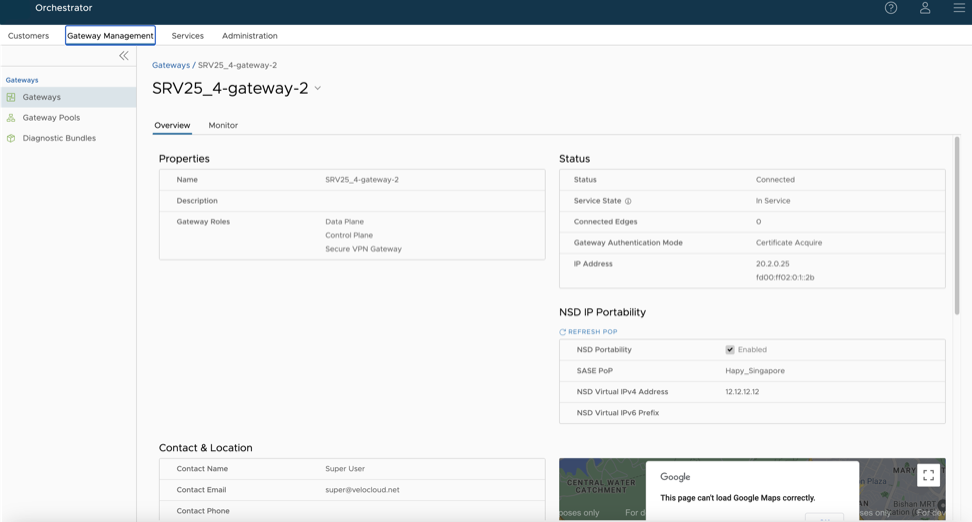

Figure 12. Details of Selected Gateway
The Overview tab displays the properties, status, location, customer usage, and Gateway Pool of the selected Gateway.
Note: You can only view the details of the selected Gateway, using this tab. To configure the options, navigate to the Gateways page in the Partner portal of the Orchestrator. - Select the Monitor tab to view the usage details of the selected Gateways.

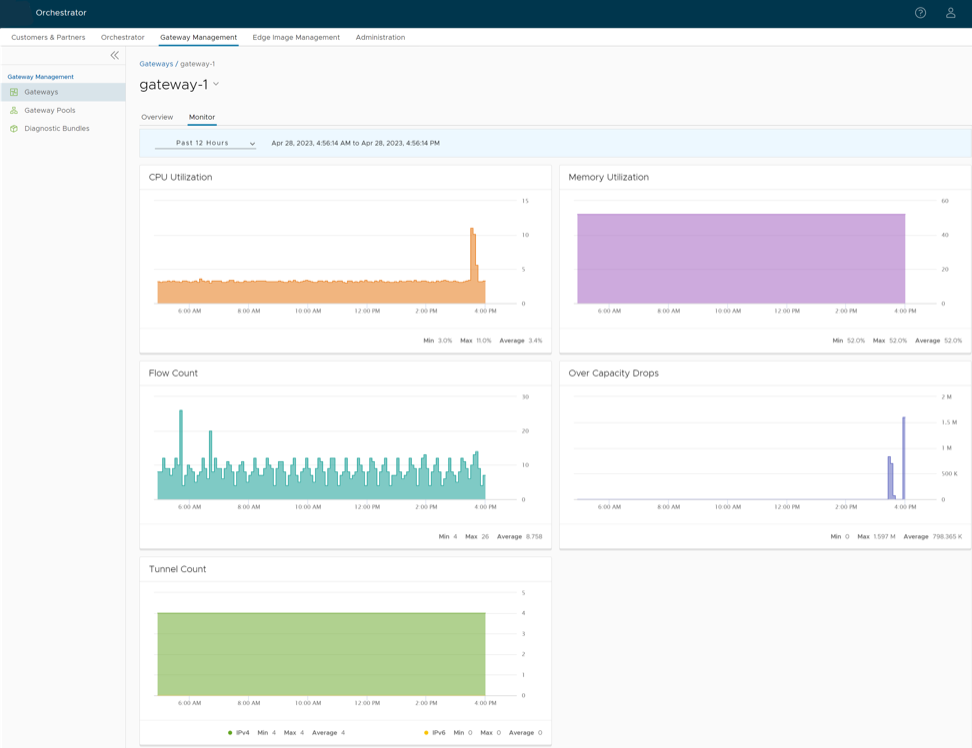

Figure 13. Usage Details of the Selected Gateways
At the top of the page, you can choose a specific time period to view the details of the Gateway for the selected duration.
The page displays graphical representation of usage details of the following parameters for the period of selected time duration, along with the minimum, maximum, and average values.- CPU Percentage – Percentage of usage of CPU.
- Memory Usage – Percentage of usage of memory.
- Flow Counts – Count of traffic flow.
- Over Capacity Drops – Total number of packets dropped due to over capacity since the last sync interval. Occasional drops are expected, usually caused by a large burst of traffic. However, a consistent increase in drops usually indicates a Gateway capacity issue.
- Tunnel Count – Count of tunnel sessions for both the IPv4 and IPv6 addresses.
Hover the mouse on the graphs to view more details.
VeloCloud Gateway Migration
VeloCloud Orchestrator provides a self-service migration functionality that allows you to migrate from your existing Gateway to a new Gateway without your Operator’s support.
- Achieve operational efficiency.
- Decommission old Gateways.
Gateways are configured with specific roles. For example, a Gateway with data plane role is used to forward data plane traffic from source to destination. Similarly, a Gateway with Control Plane role is called a Super Gateway and is assigned to an Enterprise. Edges within the Enterprise are connected to the Super Gateway. Also, there is a Gateway with Secure VPN role that is used to establish an IPSec tunnel to a Non SD-WAN destination (NSD). The migration steps may vary based on the role configured for the Gateway. For more information about the Gateway roles, see the “Configure Gateways” section in the VeloCloud SD-WAN Operator Guide.

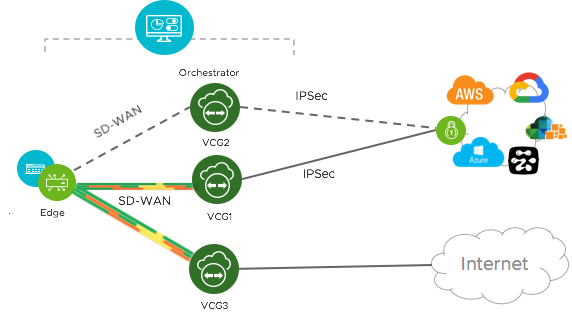

The following figure illustrates the migration process of the Secure VPN Gateway:
In this example, a VeloCloud Edge is connected to an NSD through a Secure VPN Gateway, VCG1. The VCG1 Gateway is planned to be decommissioned. Before decommissioning, a new Gateway, VCG2 is created. It is assigned with the same role and attached to the same Gateway pool as VCG1 so that VCG2 can be considered as a replacement to VCG1. The service state of VCG1 is changed to Quiesced. No new tunnels or NSDs can be added to VCG1. However, the existing assignments remain in VCG1. Configuration changes with respect to the IP address of VCG2 are made in the NSD, an IPSec tunnel is established between VCG2 and NSD, and the traffic is switched from VCG1 to VCG2. After confirming that VCG1 is empty, it is decommissioned.
Following is the high-level workflow of Secure VPN Gateway migration based on the User roles:
VeloCloud Gateway Migration - Limitations
- Self-service migration is not supported on Partner Gateways.
- There will be a minimum service disruption based on the time taken to switch Non SD-WAN Destinations (NSDs) from the quiesced Gateway to the new Gateway and to rebalance the Edges connected to the quiesced Gateway.
- If the NSD is configured with redundant Gateways and one of the Gateways is quiesced, the redundant Gateway cannot be the replacement Gateway for the quiesced Gateway.
- During self-service migration of a quiesced Gateway, the replacement Gateway must have the same Gateway Authentication mode as the quiesced Gateway.
- For a customer deploying a NSD via Gateway where BGP is configured on the NSD, if the customer migrates the NSD to a different Gateway using the Self-Service Gateway Migration feature on the Orchestrator, the BGP configurations are not migrated and all BGP sessions are dropped post-migration.
In this scenario, the existing Gateway assigned to the NSD is in a quiesced state and requires migration to another Gateway. The customer then navigates to on the Orchestrator and initiates the Gateway Migration process to move their NSD to another Gateway. Post-migration, the BGP Local ASN & Router ID information is not populated on the new Gateway and results in NSD BGP sessions not coming up with all routes being lost and traffic using those routes is disrupted until the user manually recreates all BGP settings.
This is a Day 1 issue and while the Gateway Migration feature accounts for many critical NSD settings, the NSD's BGP settings that are not accounted for, and their loss post-migration is an expected behavior.
Workaround: The migration of a Gateway should be done in a maintenance window only. Prior to the migration, the user should document all BGP settings and be prepared to manually reconfigure these settings post-migration to minimize impact to customer users.
Migrate Quiesced Gateways
Operators send notification emails about Gateway migration to Administrators with Super User privileges. Plan your migration based on the notification email that you receive from your Operator.
Before you migrate the Edges and NSDs (if configured) from the quiesced Gateway to the new Gateway, ensure that you schedule a maintenance window as traffic may be disrupted during migration.
To avoid any service disruption, ensure that you migrate to the new Gateway within the Migration Deadline mentioned in the notification email.
To migrate from a quiesced Gateway to a new Gateway, perform the following steps:
- In the SD-WAN service of the Enterprise portal, go to . The list of quiesced Gateways appears.

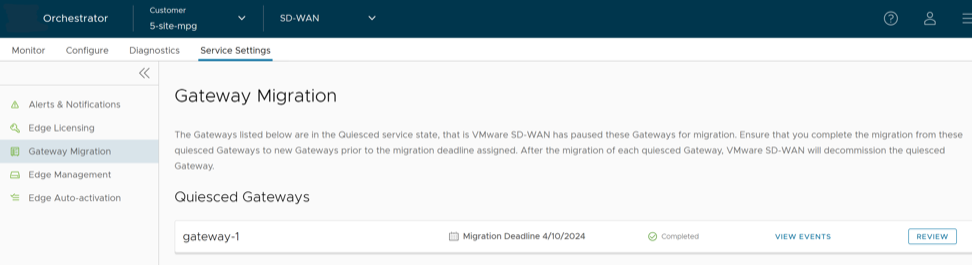

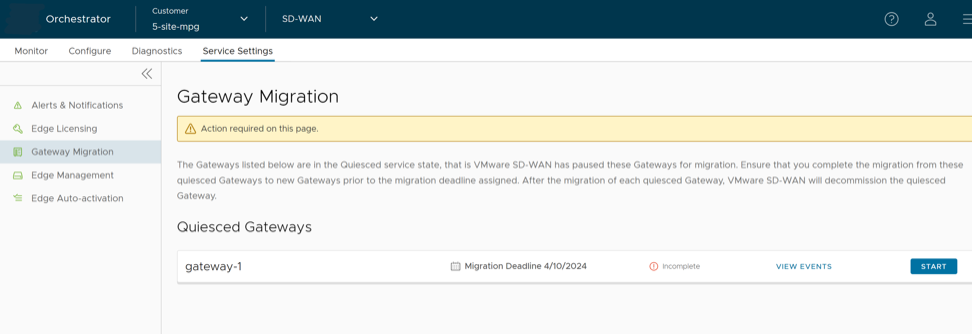

Figure 16. Quiesced Gateways List

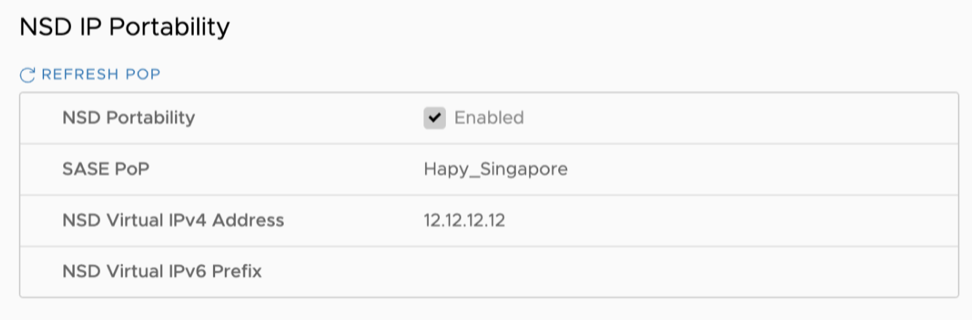

- Make the required configuration to all the NSDs that are configured through the quiesced Gateway.

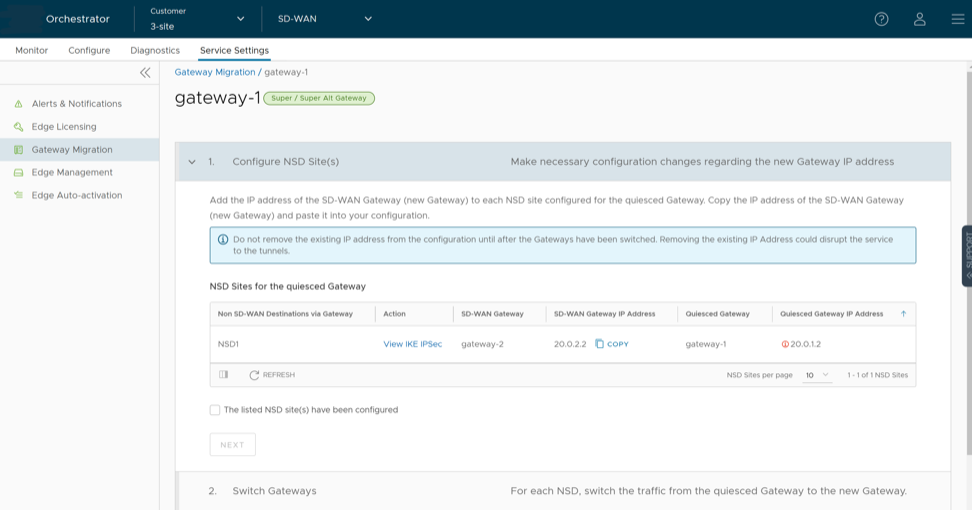

Figure 17. Configure NSDs
- Select the View IKE IPSec link to view a sample configuration for the NSD. Copy the template and customize it to suit your deployment.
- Add the IP address of the SD-WAN Gateway (new Gateway IP) to each NSD configured for the quiesced Gateway.
For example, if you have configured an NSD for AWS, you must add the IP address of the new Gateway in the NSD configuration in the AWS instance.
- After making the configuration changes to all the NSDs, select the The listed NSD site(s) have been configured check box, and then select Next.
Note: The Configure NSD Site(s) option is not available for NSDs configured automatically as well as for Gateways with Data Plane role that are not attached to any NSDs. - Select each NSD and select Switch Gateway to switch the traffic from the quiesced Gateway to the new Gateway.

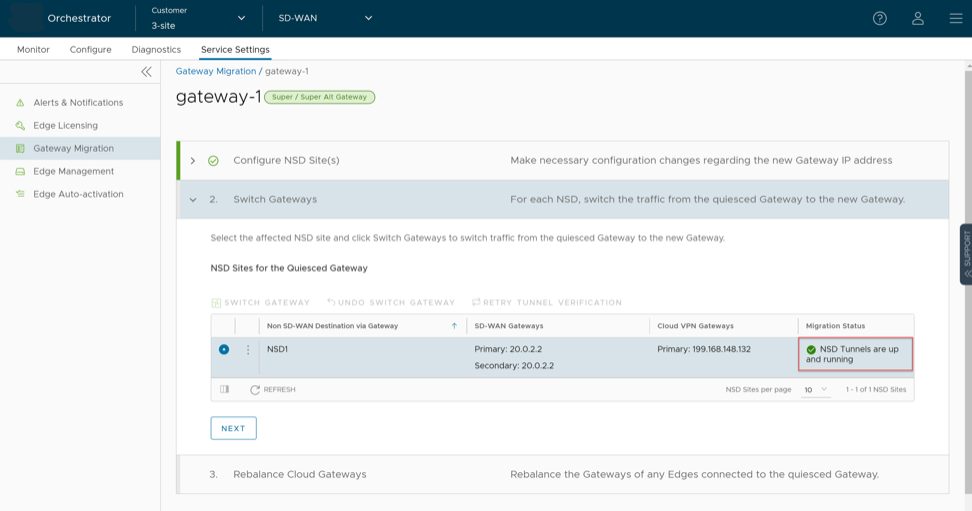

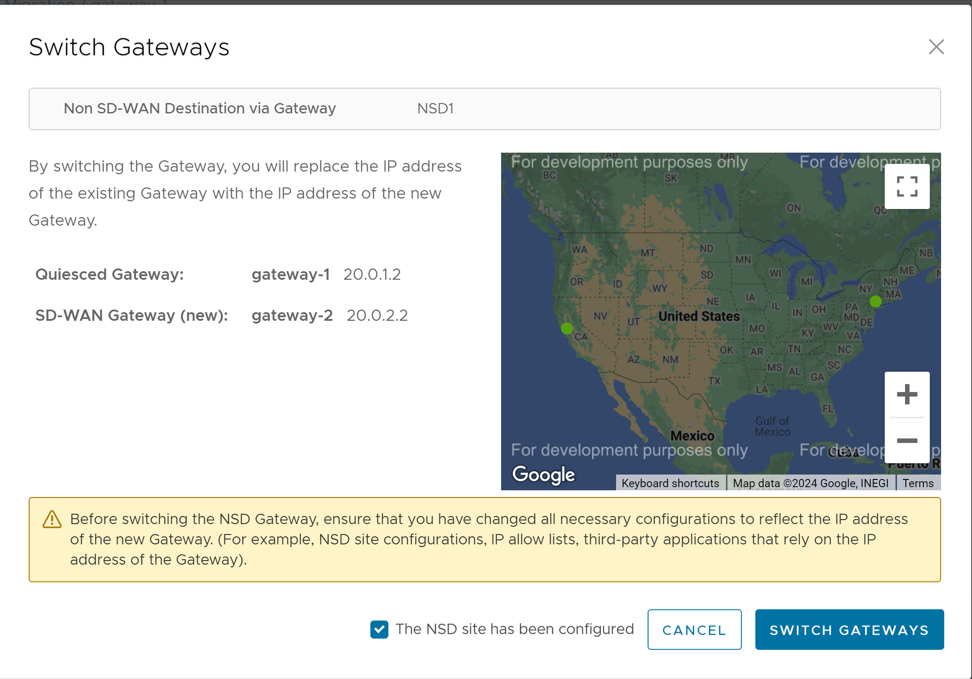

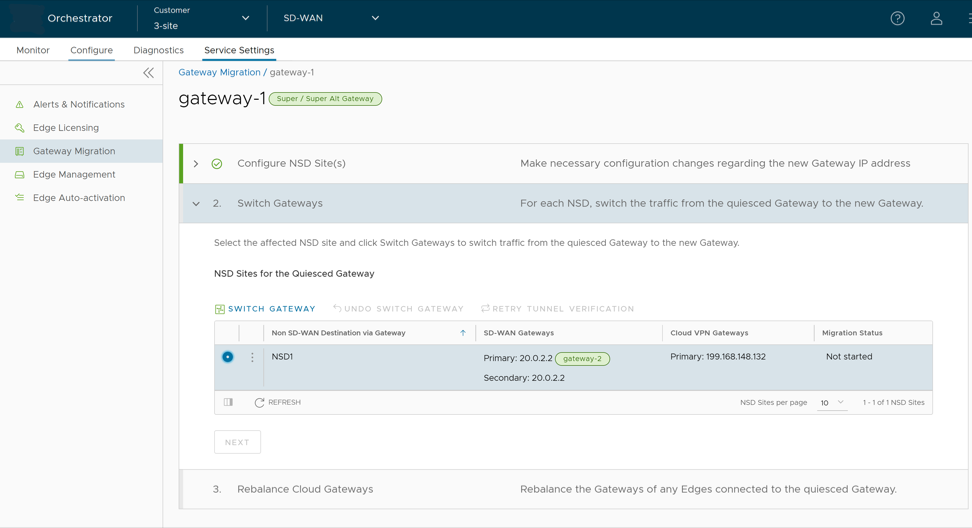

Figure 18. Switch to New Gateway
- In the Switch Gateway pop-up window, select the The NSD site has been configured check box to confirm that you have made the required changes to the remote-end NSD configuration.
Figure 19. Non-SD-WAN configuration
Note: This confirmation is not applicable for NSDs configured automatically. - Select Switch Gateway.
It may take few minutes to verify the tunnel status. The IP address of the quiesced Gateway is replaced with the IP address of the new Gateway so that the traffic switches to the new Gateway. The Migration Status changes to "NSD Tunnels are up and running" as shown in the following screen shot. If the Switch Gateway action fails, see What to do When Switch Gateway Action Fails.
Figure 20. Gateway Migration- Service Setting
- Select Next.
Note: The Switch Gateway option is not available for Gateways with Data Plane role that are not attached to any NSDs.

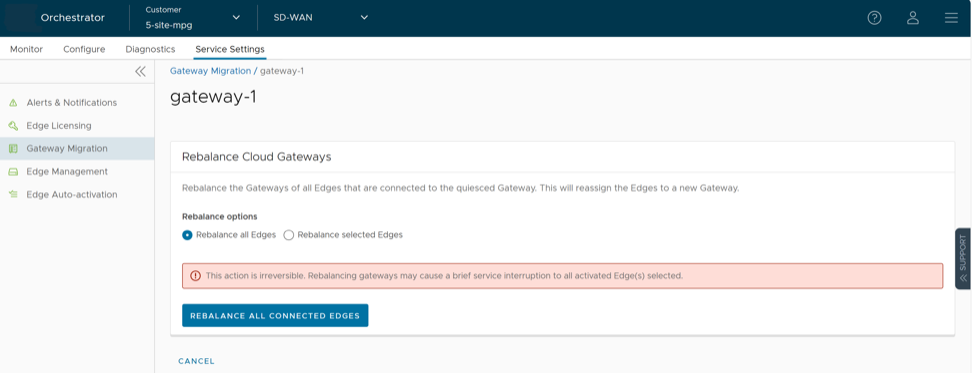

- Rebalance Cloud Gateways (Primary or Secondary or Super Gateways) of all Edges or the required Edges that are connected to the quiesced Gateway so that the Edges get reassigned to the new Gateway. You can rebalance Gateways from the page as well.

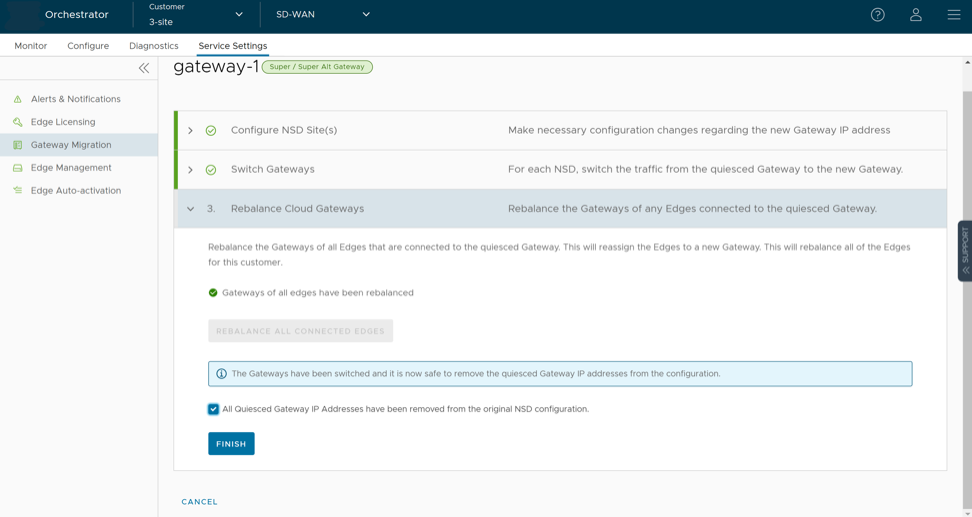

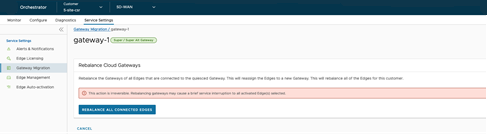

Figure 21. Rebalance All Connected Edges- Super Gateway
When rebalancing Super Gateways, all the Edges connected to the quiesced Gateway will be rebalanced. Rebalancing of selected Edges is not allowed.Figure 22. Rebalance All Connected Edges- Primary or Secondary Gateway

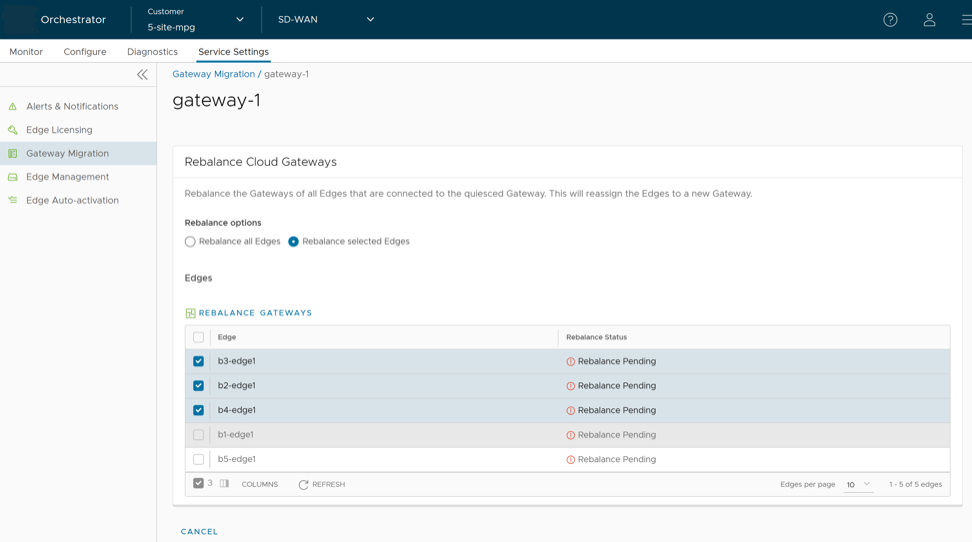

Figure 23. Rebalance Selected Edges- Primary or Secondary Gateway
Select the Edges that are connected to the quiesced Gateway and select Rebalance Gateway to reassign Edges to the new Gateway.Figure 24. Re-assign Edges to the New Gateway
- In the Switch Gateway pop-up window, select the The NSD site has been configured check box to confirm that you have made the required changes to the remote-end NSD configuration.
- Select Rebalance Gateway to complete the Gateway migration. The Edges connected to the quiesced Gateway are migrated to the new Gateway.
Figure 25. Rebalance Gateway
- Select Finish.
Go to the Gateway Migration page and select Review to review the migration steps, if required,
Figure 26. Review Gateway Migration
The Gateways that have been migrated remain in this page until the Migration Deadline assigned for the quiesced Gateway. After the Migration Deadline, you can view the history of migration events in the page.

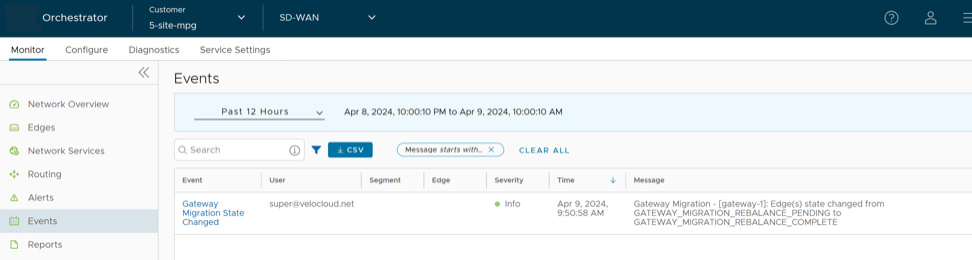

Figure 27. Monitor Events
What to do When Switch Gateway Action Fails
During the Gateway migration, when the Switch Gateway action for an Non SD-WAN Destination (NSD) fails, perform the following steps to troubleshoot the issue:
Select View Events in the Gateway Migration page to view the history of migration events in the page.
Diagnostic Bundles for Gateways
Request Diagnostic Bundles for Gateways
Diagnostic bundles allow users to collect all the configuration files and log files from a specific VeloCloud Gateway into a consolidated zipped file. The data available in the diagnostic bundles can be used for troubleshooting the Gateways.
To generate a new Diagnostic bundle:
- In the Request Diagnostic Bundle dialog, configure the following details and select Submit.

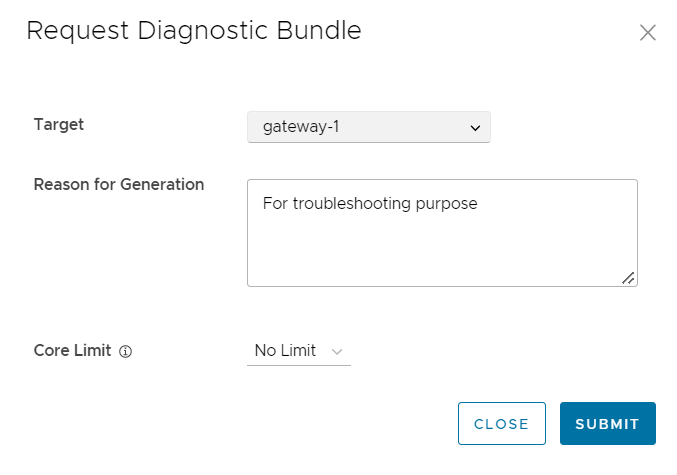

Figure 28. Request Diagnostic Bundle

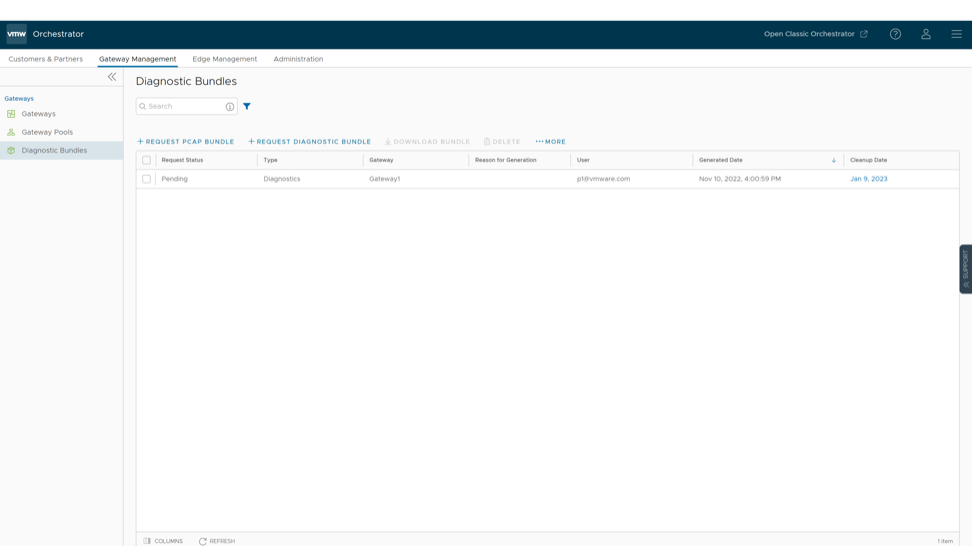

Table 7. Diagnostic Bundle Field Descriptions Field Description Target Select the target Gateway from the drop-down list. The data is collected from the selected Gateway. Reason for Generation Optionally, you can enter your reason for generating the bundle. Core Limit Select a Core Limit value from the drop-down, which is used to reduce the size of the uploaded bundle when the Internet connectivity is experiencing issues. Note: The Request Diagnostic Bundle and Download Bundle options are available only for Partners with Gateway management access activated. If the Gateway management access is deactivated for a Partner, then the Partner can only view the generated Diagnostic bundles and download only the CSV file, but cannot request a new Diagnostic bundle or download the generated bundle. To request Gateway Management access, Partners should contact the Operator Super user.The Diagnostic Bundles page displays the details of the bundle being generated, along with the status.Figure 29. Diagnostic Bundles List
- Download Diagnostic Bundle- You can download the generated Diagnostic bundles to troubleshoot an Edge. To download a generated bundle, select the link next to Complete in the Request Status column or select the bundle and select Download Bundle. The bundle is downloaded as a ZIP file. You can send the downloaded bundle to a Arista Support representative for debugging the data.
- Delete Diagnostic Bundle- The completed bundles get deleted automatically on the date displayed in the Cleanup Date column. You can select the link to the Cleanup Date or choose the bundle and select to modify the Date.
Figure 30. Delete Diagnostic Bundle

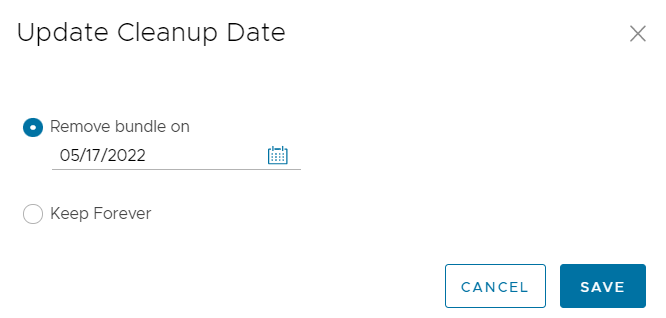

In the Update Cleanup Date dialog, choose the date on which the selected Bundle would be deleted.
If you want to retain the Bundle, select the Keep Forever check box, so that the Bundle does not get deleted automatically.
To delete a bundle manually, select the bundle and select Delete.
Request Packet Capture Bundle for Gateways
The Packet Capture bundle collects the packets data of a network. These files are used in analyzing the network characteristics. You can use the data for debugging the network traffic and determining network status.
To generate a PCAP bundle:
- In the Request PCAP Bundle dialog, configure the following details and select Generate.

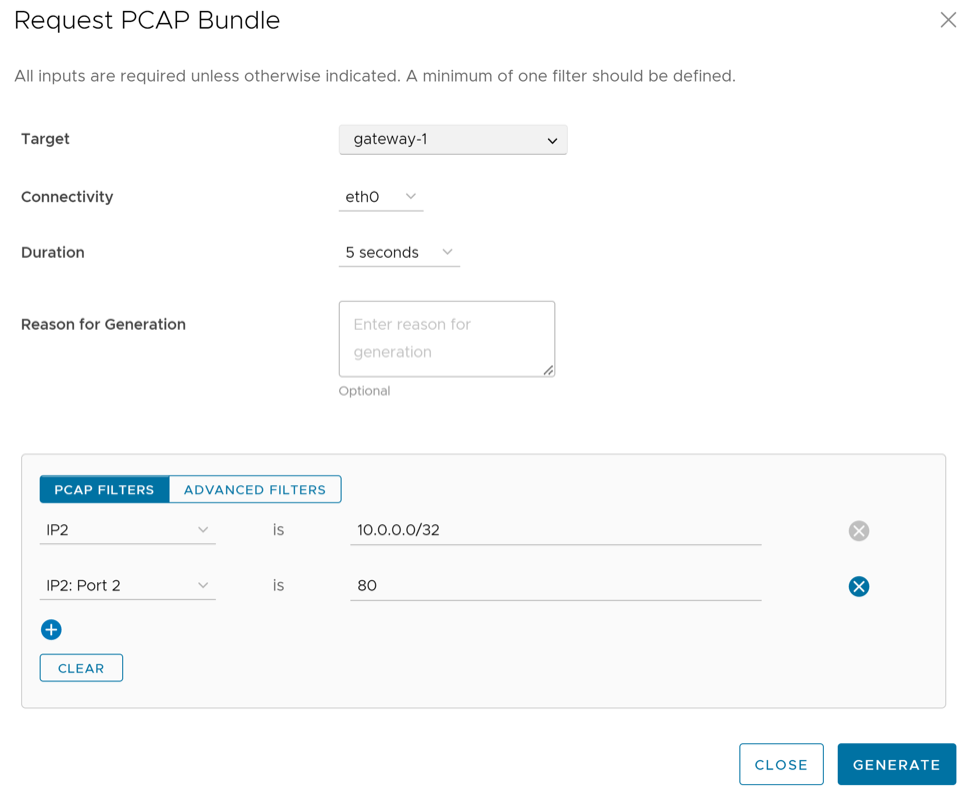

Figure 31. Request PCAP Bundle
Table 8. BCAP Bundle Field Description Field Description Target Choose the target Gateway from the drop-down list. The packets are collected from the selected Gateway. Connectivity Choose an Interface or an Edge ID from the drop-down list. The packets are collected on the selected Interface or Edge associated to the Gateway. Duration Choose the time in seconds. The packets are collected for the selected duration. The default value is 5 seconds. Reason for Generation Optionally, you can enter your reason for generating the bundle. PCAP Filters You can define PCAP filters by which you want to control the PCAP data to be generated by choosing the following options: - IP1- Enter an IPv4 address, or IPv6 address, or Subnet mask.
- IP2- Enter an IPv4 address, or IPv6 address, or Subnet mask.
- IP1:Port1- Enter a Port ID associated with IP1.
- IP2:Port2- Enter a Port ID associated with IP2.
- Protocol- Select a protocol from the list.
Note: If you choose to use the PCAP filtering capability then you must define at least one filter.Advanced Filters You can define free form filters by which you want to control the PCAP data to be generated. Note: The Request Diagnostic Bundle and Request PCAP Bundle options are available only for Partners with Gateway management access activated. If the Gateway management access is deactivated for a Partner, then the Partner can only view the generated Diagnostic bundles and download only the CSV file, but cannot request a new Diagnostic or PCAP bundle or download the generated bundle. To request Gateway Management access, Partners should contact the Operator Super user.The Diagnostic Bundles page displays the details of the PCAP bundle being generated, along with the status.
