Orchestrator Branding for Operator

This section provides guidelines to customize the Orchestrator user interface (UI) to your company’s brand. As an Operator user, you can brand the Orchestrator UI by applying your company’s name, logo, and colors at a global level.
Note: Orchestrator Branding applies only to dedicated Orchestrator instances. For shared Orchestrator instances, the branding feature is not available.
To enable Operator users to customize the orchestrator UI branding at a global level, you must first activate the Operator only Branding feature. To activate Operator only Branding, in the Operator portal, go to Orchestrator > System Properties , and set the value of the system property operator.branding.enabled to True.
Note: Changing the operator.branding.enabled property to true will immediately override any Partner/Enterprise branding, even if the Operator branding is unchanged.
Note: By default, this system property is set to False, allowing Partner and Enterprise users to customize the Orchestrator UI branding for their Orchestrator instances at the Partner and Enterprise levels, respectively.



As an Operator user, to customize the branding at a global level for all the Partners and Enterprises in the Orchestrator, perform the following steps:

  1. In the Operator portal, select Administration from the top menu.
  2. From the left menu, choose Orchestrator Branding.
    The Orchestrator Branding page appears.
    Figure 1. Orchestrator Branding
  3. To customize branding, activate the Custom Branding feature by turning on the Custom Branding toggle button.
  4. You can customize the following branding aspects of the Orchestrator UI:
    1. Operator Naming
    2. General Product Naming
    3. Support Naming
    4. Logos
    5. Header Display Name and Color
  5. As you customize the branding, the changes are applied to the Preview image on the right. Select Expand View to expand the preview image. Select Restore to Default to restore the branding settings to default.
  6. Once you are done with branding customization, select Save Changes and refresh the Orchestrator to view the applied custom branding.
    Note: The branding will apply to all the Partners and Enterprises in the Orchestrator.
  7. To deactivate the Custom Branding feature, turn off the Custom Branding toggle button.
    Allbranding settings will be restored to their default values.

Operator Naming Branding

You can customize the following textual elements located on the Operator Login screen.
Table 1. Customized Element Descriptions
Element Description
Operator Name Enter your Operator name. This updates the product title of Operator to the entered text. The Operator name is a maximum of 48 characters.
Operator Login Title Enter your Operator login title. This updates the product login title on the login screen of the Operator to the entered text. The Operator login title is a maximum of 48 characters.
Operator Login EULA This is optional. Add your Operator login EULA, limited to 200 characters. The Operator login EULA only appears on the login screen.

You can either enter your EULA in the box and then add a link by selecting the EULA, or directly add a link to the EULA login by choosing Insert Link.

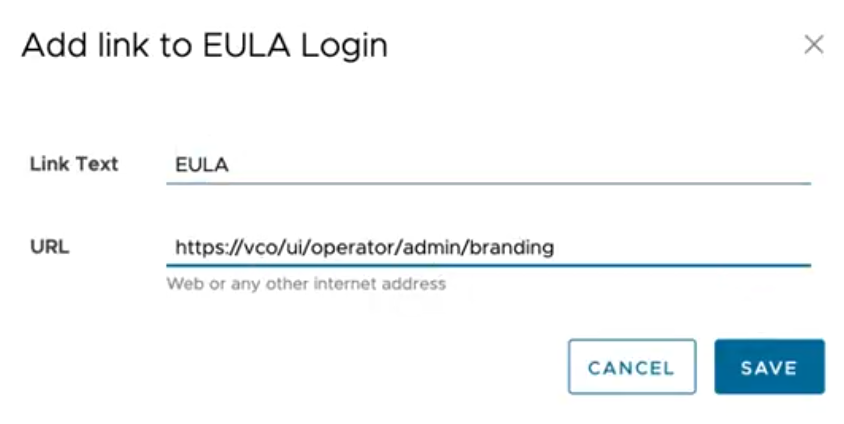

Figure 2. Add Link to EULA Login
Operator Copyright This is optional. Enter your Operator copyright name and text. The current year will appear next to the copyright name automatically. The copyright appears in the bottom left of the login page and help panel throughout the product. The Operator copyright text is a maximum of 30 characters.

If you have not entered any customized copyright text, the default copyright will be displayed.

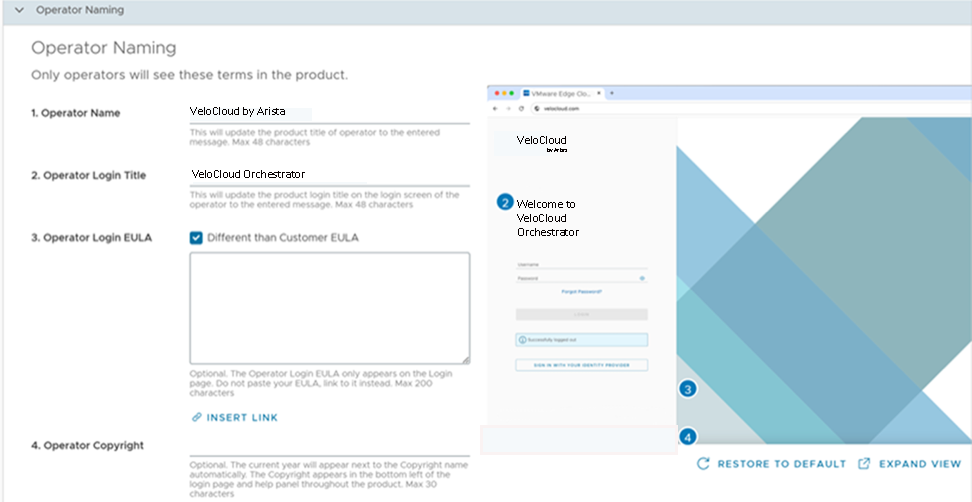

Figure 3. Operator Naming

General Product Naming Branding

You can customize the following textual elements located on the Partner and Enterprise Login screen.
Table 2. General Product Element Descriptions
Element Description
Product Name Enter your product name. This updates the title page in the browser with the custom product name entered. The product name can be a maximum of 48 characters.
Product Login Title Enter your product login title. This updates the product login title on the login screen of the users to the entered text. The product login title can be a maximum of 48 characters.
Customer Login EULA This is optional. Add your Customer login EULA, limited to 200 characters. The Customer login EULA only appears on the login screen.

You can either enter your EULA in the box and then add a link by selecting the EULA, or directly add a link to the EULA login by selecting Insert Link.
Customer Copyright This is optional. Enter your Customer copyright name and text. The current year will appear next to the copyright name automatically. The copyright appears in the bottom left of the Customer login page and help panel throughout the product. The Customer copyright text is a maximum of 30 characters.

If you have not entered any customized copyright text, the default copyright will be displayed.

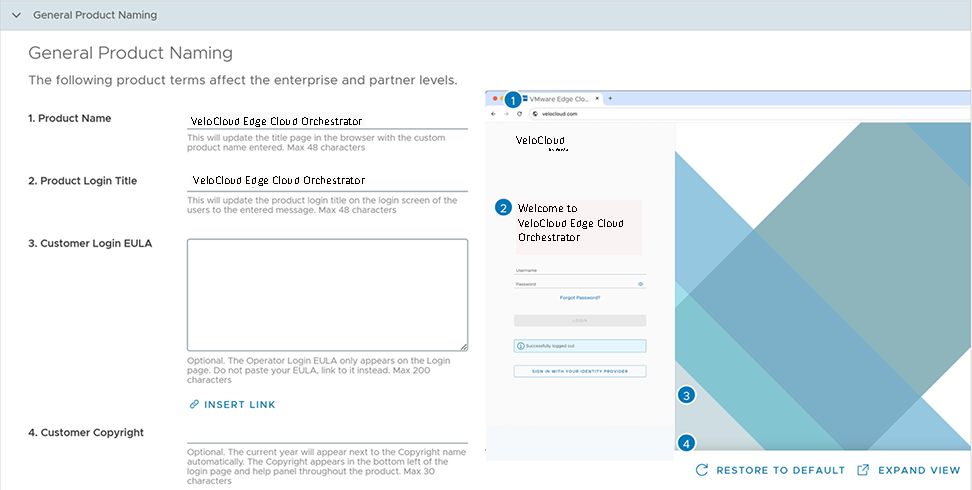

Figure 4. General Product Naming

Support Naming Branding

You can customize the Support name and contact details.
Table 3. Support Name Element Descriptions
Element Description
Support Name Enter your custom support name. This updates the product title of Operator to the entered text. The support name is a maximum of 48 characters.
Support Email Address This is optional. Enter your custom support email address. This updates the product login title on the login screen of the Operator to the entered text. The support email address is a maximum of 40 characters.

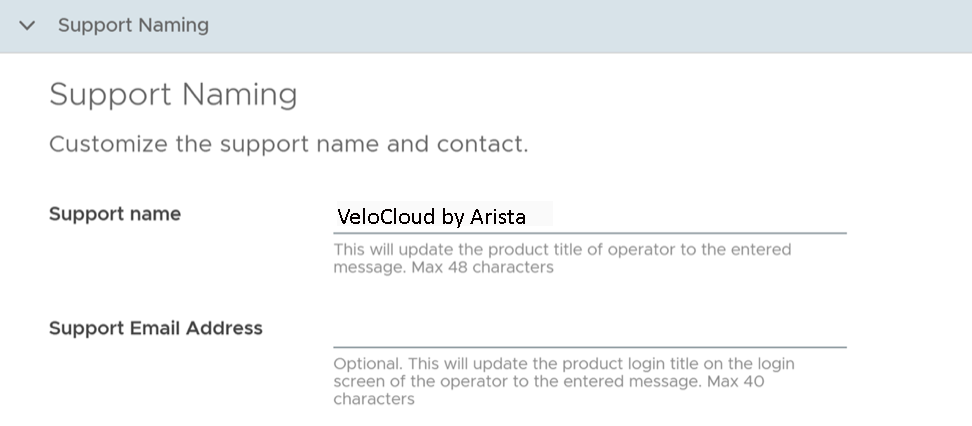

Figure 5. Support Naming

Logos Branding

Your logo is displayed on the top, left corner of the Login page of the Orchestrator UI. You can customize the following logo elements.
Table 4. Logo Branding Element Descriptions
Element Description
Color Horizontal Logo Select and upload your custom horizontal logo by selecting Upload.
Adhere to the following Logo requirements:
  • Allowed file types: png
  • Recommended dimensions: 150X50px
Color Square Logo Select and upload your custom square logo by selecting Upload.
Adhere to the following Logo requirements:
  • Allowed file types: png
  • Recommended dimensions: 30X30px
Inverse Logo Select and upload your custom inverse logo by selecting Upload.
Adhere to the following Logo requirements:
  • Allowed file types: png
  • Recommended dimensions: 150X50px
  • Recommended color: white or light color



Figure 6. Logo Branding

Header Display Name and Color Branding

You can customize the following textual and visual elements located on the Orchestrator UI header.
Table 5. Header Display Name and Color Branding Element Descriptions
Element Description
Header Display Name Enter your header display name. This updates the title page in the browser with the custom product name entered.
Header Text Color Enter or select the header text color. This updates the header display name color according to the entered or selected color.
Header Background Color Enter or select the header background color. This updates the header background color according to the entered or selected color.

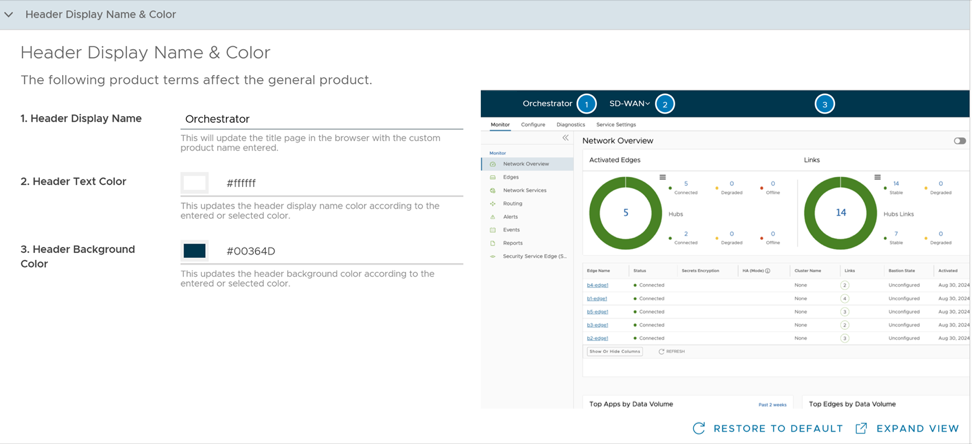

Figure 7. Header Display Name and Color
