Configure Network Services

As an Enterprise user, Orchestrator allows you to configure a number of network services across multiple Edges and Profiles.
Note: If you are logged in using a user ID that has Customer Support privileges, you can only view the Orchestrator objects. You cannot create new objects or configure/update existing ones.
  1. In the SD-WAN service of the Enterprise Portal, click Configure > Network Services .
  2. The following screen is displayed: Network Services
    Figure 1. Network Services Page
  3. You can configure the following network services:
    Note: Configuring Network Services is optional and can be configured in any order.

Configure a Non SD-WAN Destination

The Non SD-WAN Destination (earlier known as Non VeloCloud Site (NVS)) functionality consists of connecting a Arista network to an external Network (for example: Zscaler, Cloud Security Service, Azure, AWS, Partner Datacenter and so on). This is achieved by creating a secure Internet Protocol Security (IPsec) tunnel between a Arista entity and a VPN Gateway at the Network Provider.

It allows the Enterprise users to define and configure a datacenter type of Non SD-WAN Destination instance and establish a secure tunnel directly to an External network in the following two ways: Non SD-WAN Destinations via Gateway and Non SD-WAN Destinations via Edge, as described below.
  • Non SD-WAN Destinations via Gateway- Allows an Gateway to establish an IPsec tunnel directly to a Non SD-WAN Destination. It supports the following Non SD-WAN Destination configurations through Gateway:
    • AWS VPN Gateway
      Note: The AWS VPN Gateway type is introduced in the 4.3.0 release.
    • Check Point
    • Cisco ASA
    • Cisco ISR
    • Generic IKEv2 Router (Route Based VPN)
    • Microsoft Azure Virtual Hub
    • Palo Alto
    • SonicWALL
    • Zscaler
    • Generic IKEv1 Router (Route Based VPN)
    • Generic Firewall (Policy Based VPN)
      Note: Arista supports both Generic Route-based and Policy-based Non SD-WAN Destination from Gateway.

    For information on how to configure Non SD-WAN Destinations via Gateway, see Configure Non SD-WAN Destinations via Gateway.

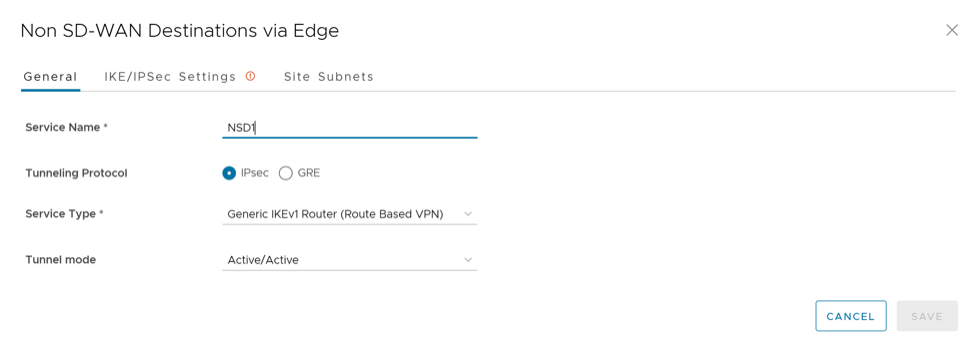

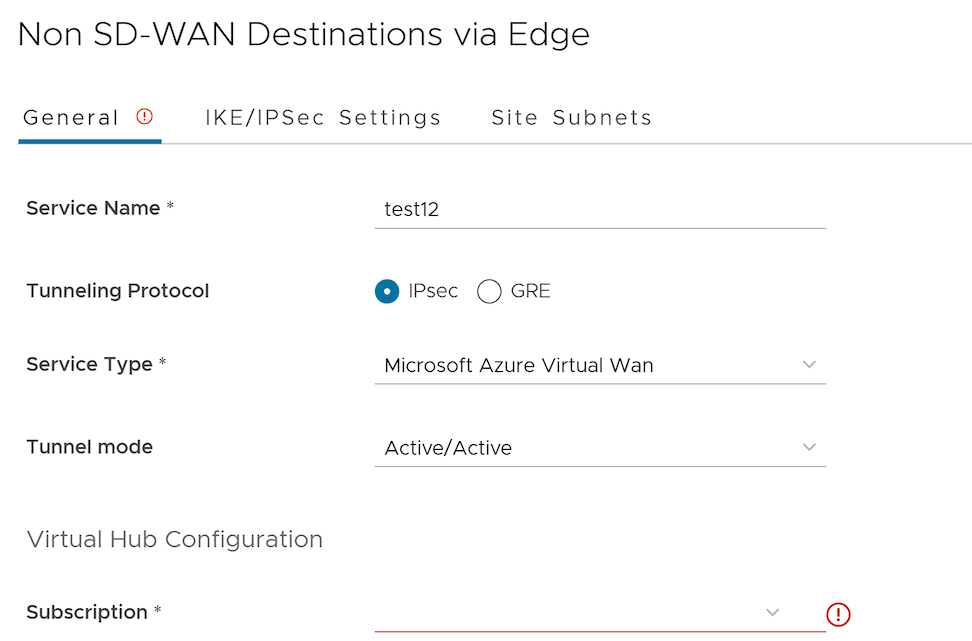

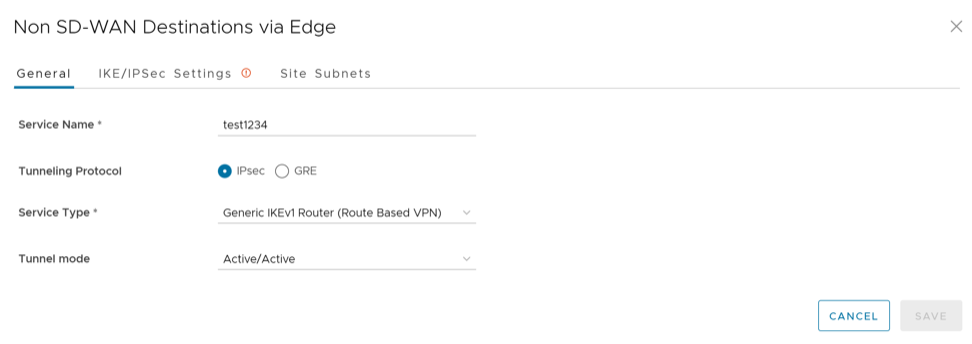

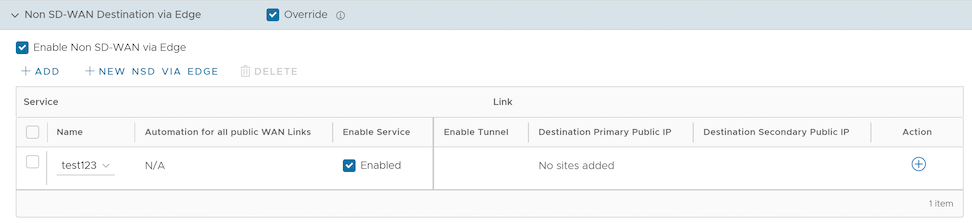

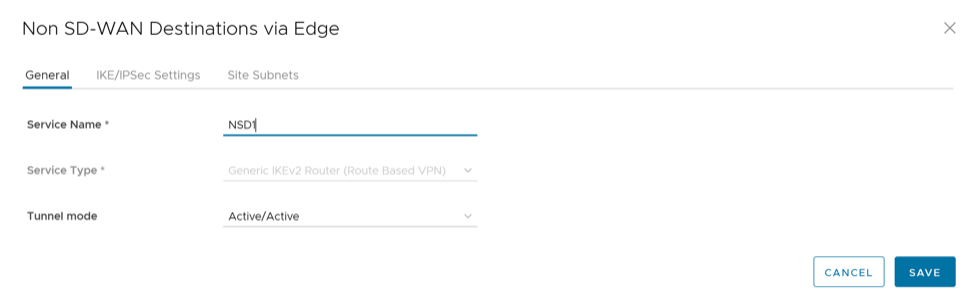

  • Non SD-WAN Destinations via Edge- Allows an Edge to establish an IPsec tunnel directly to a Non SD-WAN Destination (AWS and Azure Datacenter). It supports the following Non SD-WAN Destination configurations through Edge:
    • Generic IKEv1 Router (Route Based VPN)
    • Generic IKEv2 Router (Route Based VPN)
    • Microsoft Azure Virtual Wan

For information on how to configure Non SD-WAN Destinations via Edge, see Configure Non SD-WAN Destinations via Edge.

Non SD-WAN DestinationConfiguration Workflow

  • Configure a Non SD-WAN Destination Network Service.
  • Associate a Non SD-WAN Destination Network Service to a Profile or Edge.
  • Configure Tunnel Parameters: WAN link selection and Per tunnel credentials.

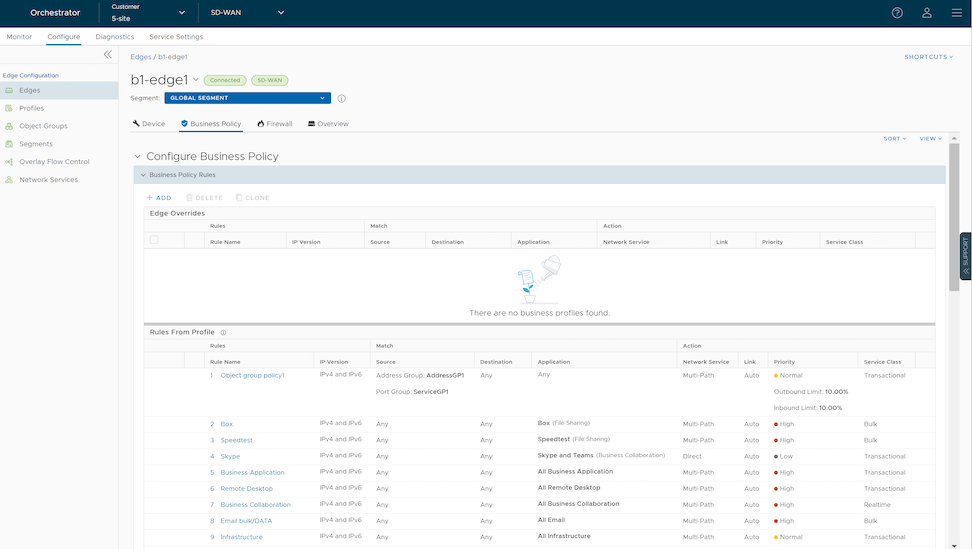

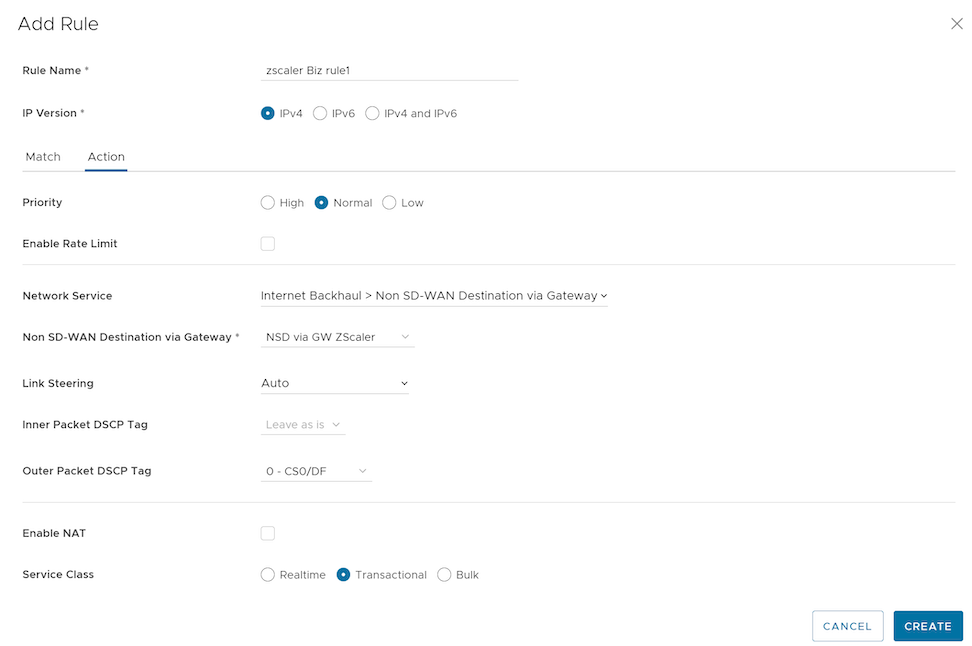

  • Configure Business Policy.

VPN Workflow

This is an optional service that allows you to create VPN tunnel configurations to access one or more Non SD-WAN Destinations. It provides the configuration required to create the tunnel(s) – including creating IKE IPsec configuration and generating a pre-shared key.

Overview

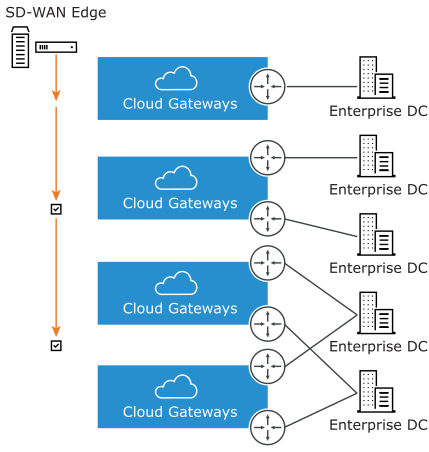

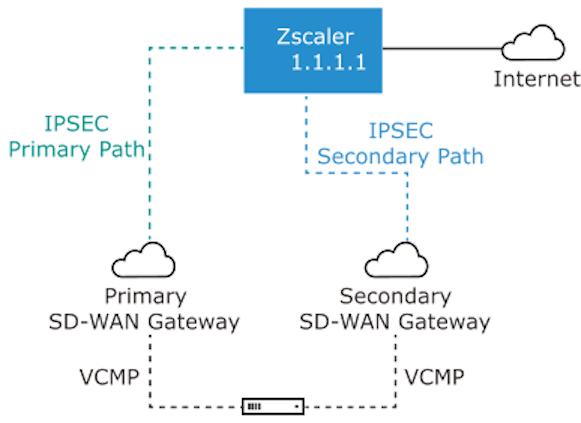

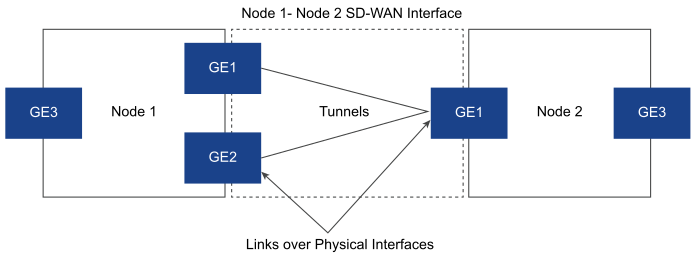

The following figure shows an overview of the VPN tunnels that can be created between the Arista and a Non SD-WAN Destination.

Figure 2. VPN Workflow Overview
Note: It is required that an IP address be specified for a Primary VPN Gateway at the Non SD-WAN Destination. The IP address is used to form a Primary VPN Tunnel between a Gateway and the Primary VPN Gateway.
Optionally, an IP address can be specified for a Secondary VPN Gateway to form a Secondary VPN Tunnel between a Gateway and the Secondary VPN Gateway. Using Advanced Settings, Redundant VPN Tunnels can be specified for any VPN tunnels you create.
Important: Beginning with the 4.0 release, it is required that the AES-NI instruction set be supported by the CPU on all types of Virtual Machines.

Configure Non SD-WAN Destinations via Gateway

VeloCloud SD-WAN allows the Enterprise users to define and configure a Non SD-WAN Destination instance to establish a secure IPsec tunnel to a Non SD-WAN Destination through an Gateway.

The Orchestrator selects the nearest Gateway for the Non SD-WAN Destination with its configured IP address, using geolocation service.

You can configure Non SD-WAN Destination via Gateway only at the Profile Level and cannot override at the SD-WAN Edge level.

ECMP

To optimize the utilization of the aggregated bandwidth across the ingress interfaces of non-SD-WAN sites, SD-WAN solution incorporates active-active mode support in its gateways.

This can be achieved by enabling the establishment of multiple IPsec tunnels in active-active mode towards non-SD-WAN sites. This configuration allows load balancing of network traffic across tunnels optimizing the flow of distribution.

To implement active-active mode with multiple IPsec tunnels towards non SD-WAN sites, the following three steps are required:
  1. Set up tunnels connecting to Non-SD-WAN sites with tunnel mode as Active-Active.
  2. Choose the preferred load balancing algorithm.
  3. Configure BGP or Static site subnet routes directing traffic to these sites.
  1. In the SD-WAN service of the Enterprise portal, go to Configure > Network Services , and then under Non SD-WAN Destinations, expand Non SD-WAN Destinations via Gateway.

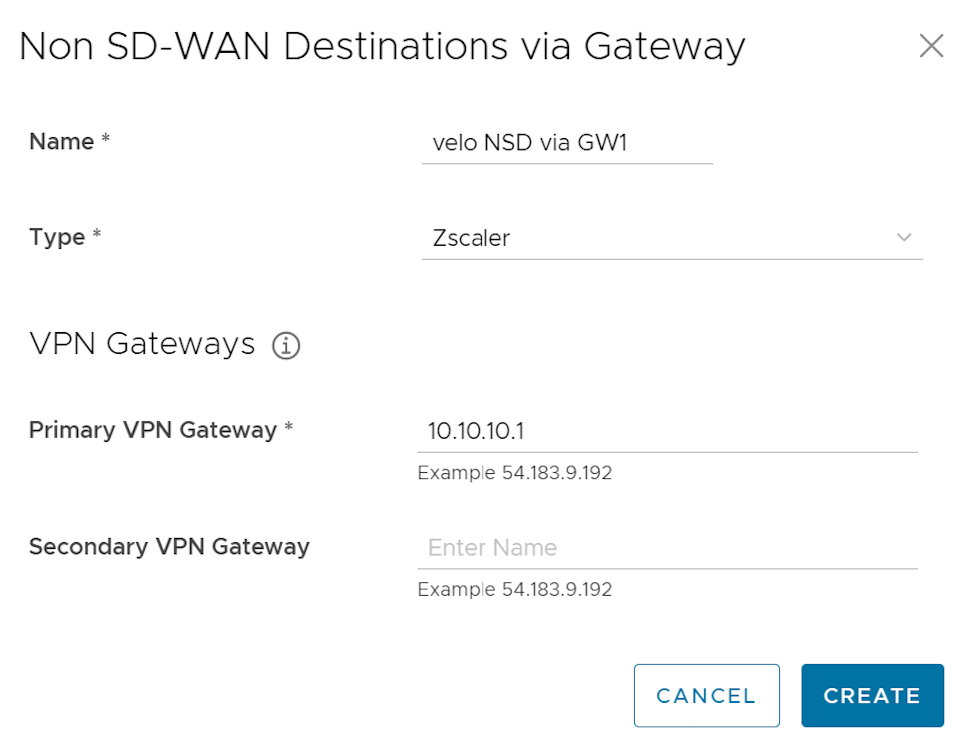

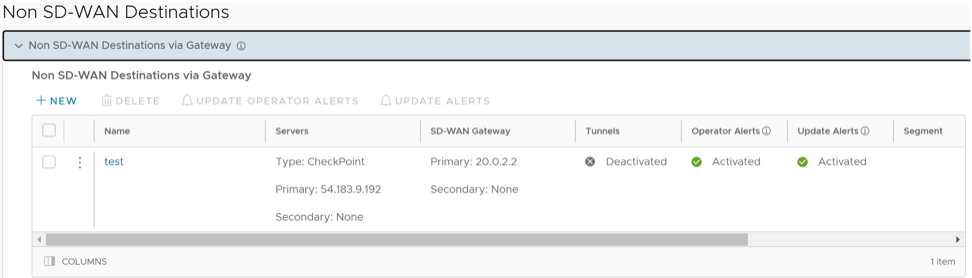

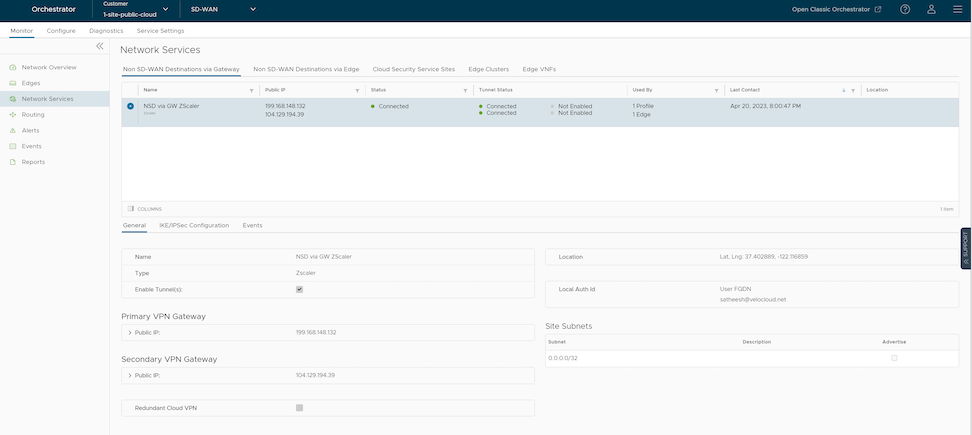

    Figure 3. Non SD-WAN Destinations via Gateway
  2. Select New or New NSD via Gateway option to create a new Non SD-WAN Destination.
    Note: The New NSD via Gateway option appears only when there are no items in the table.

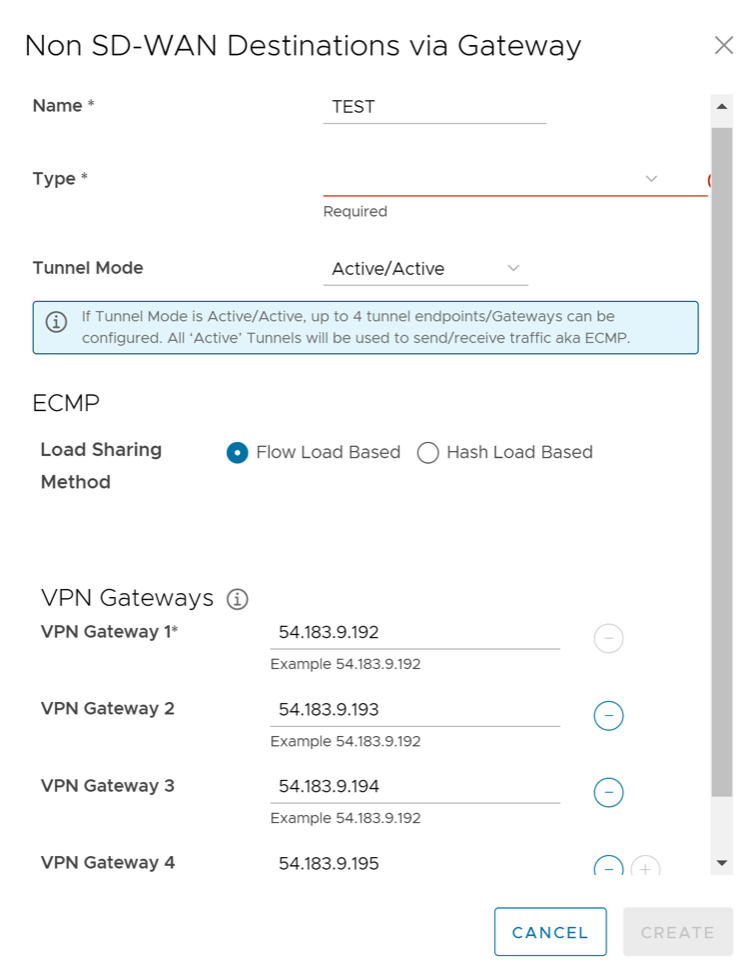

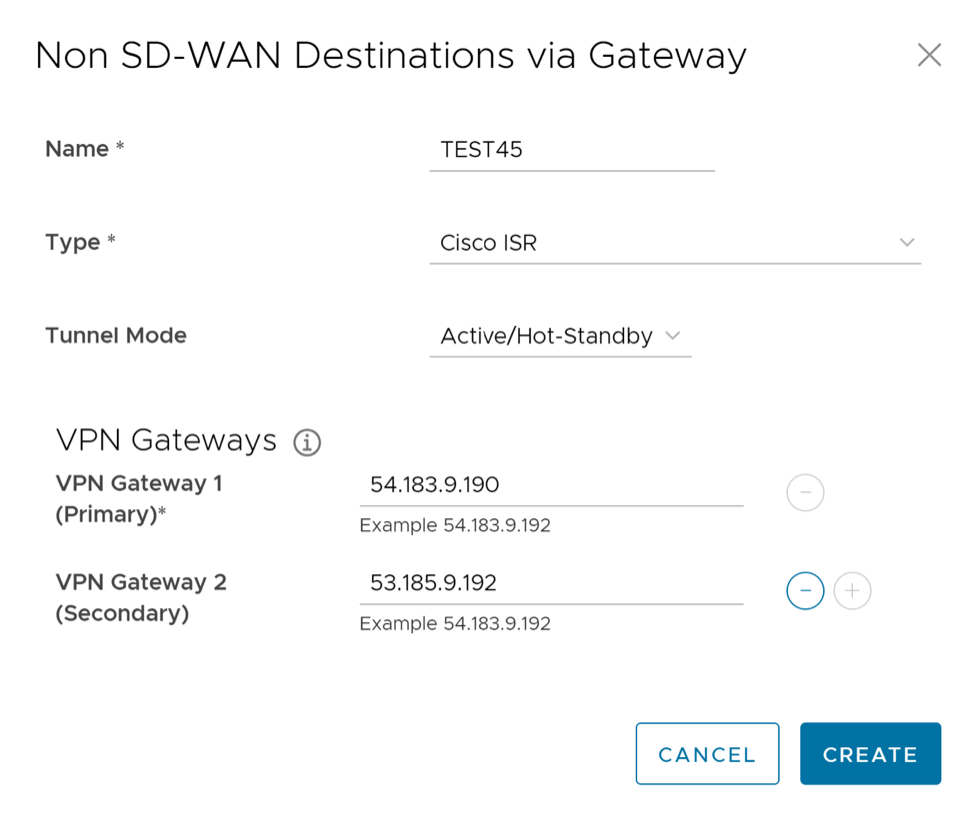

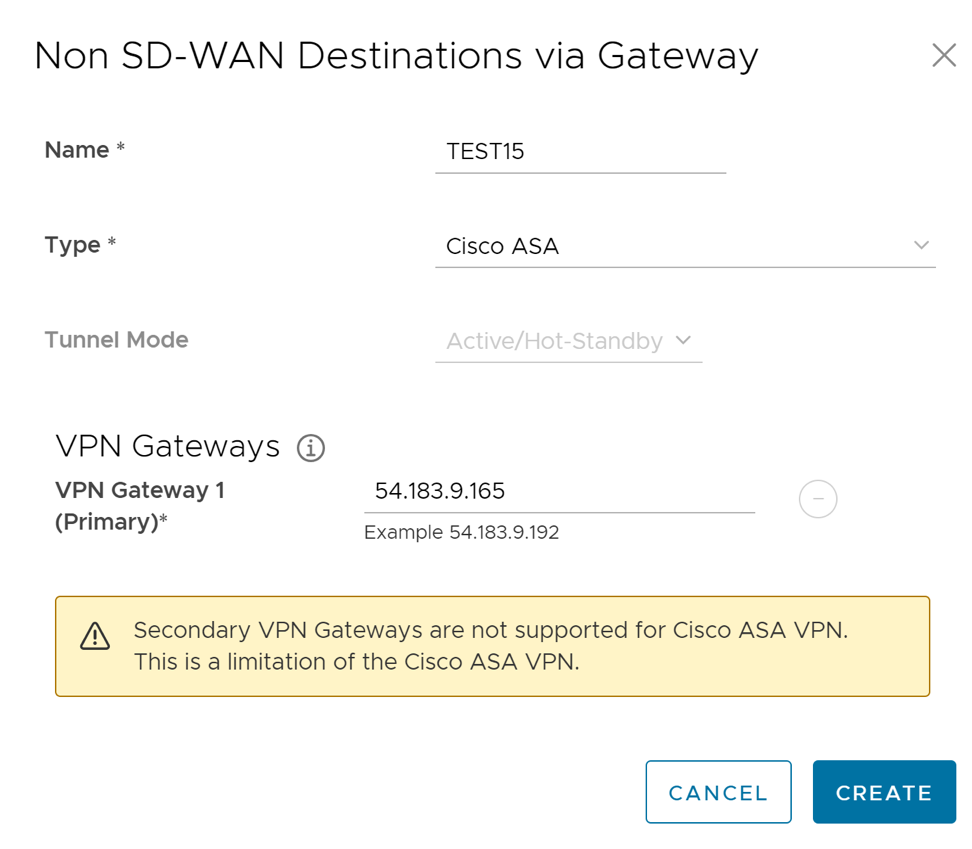

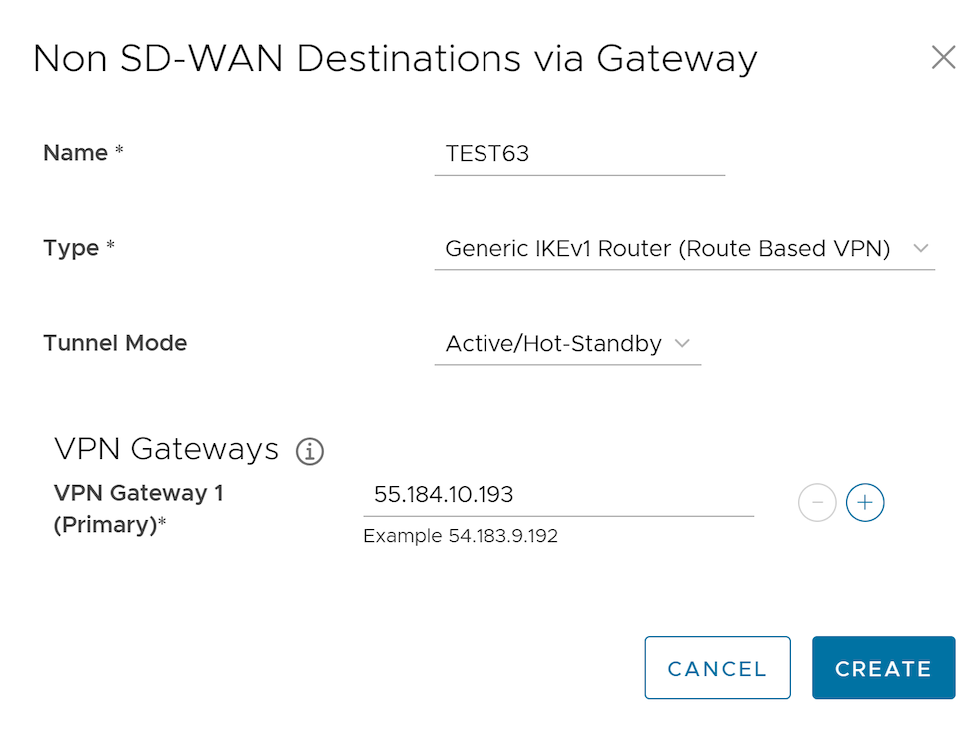

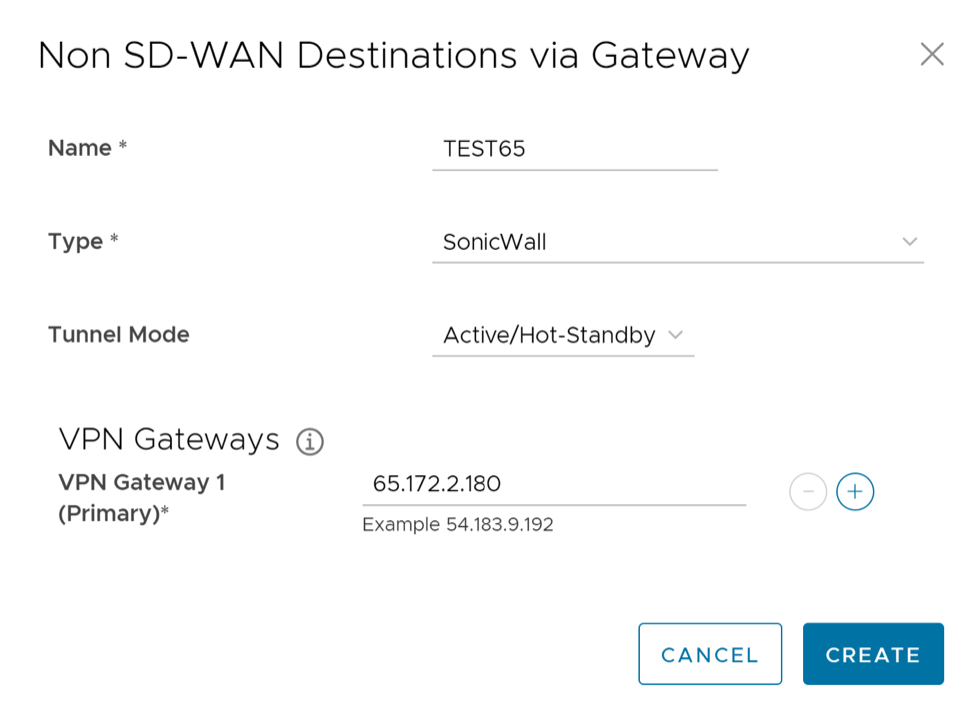

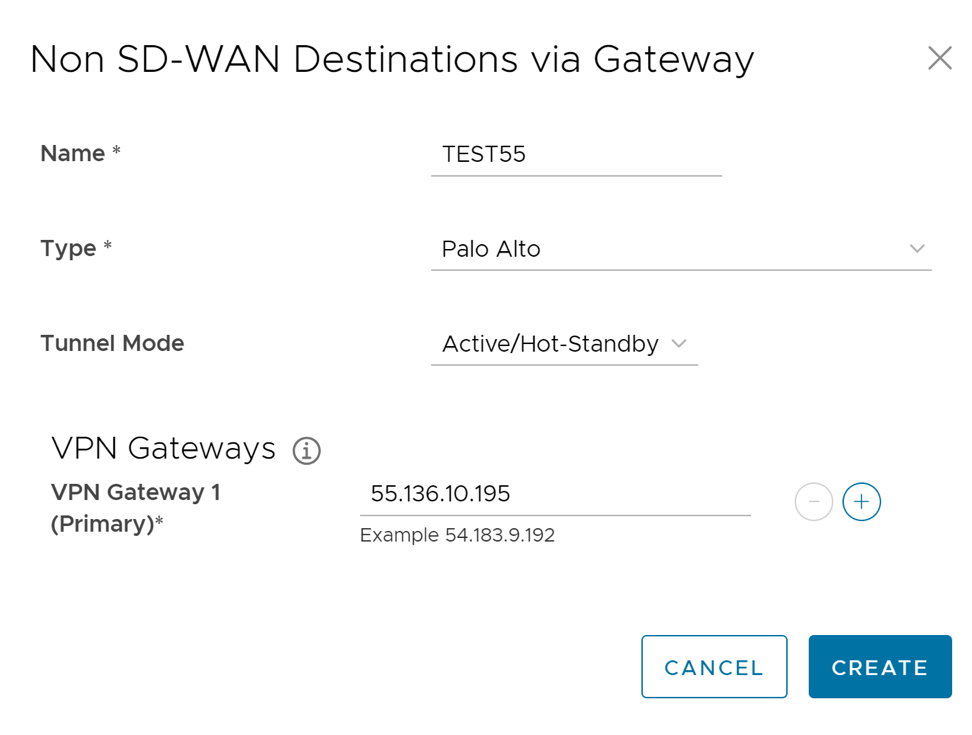

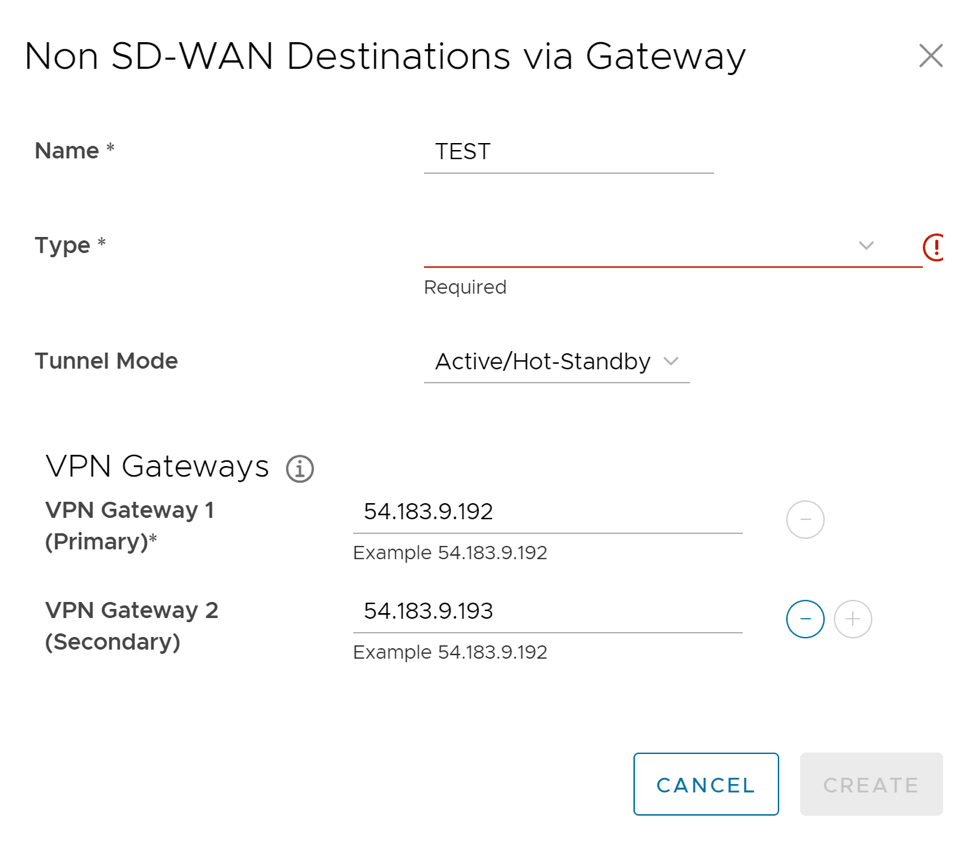

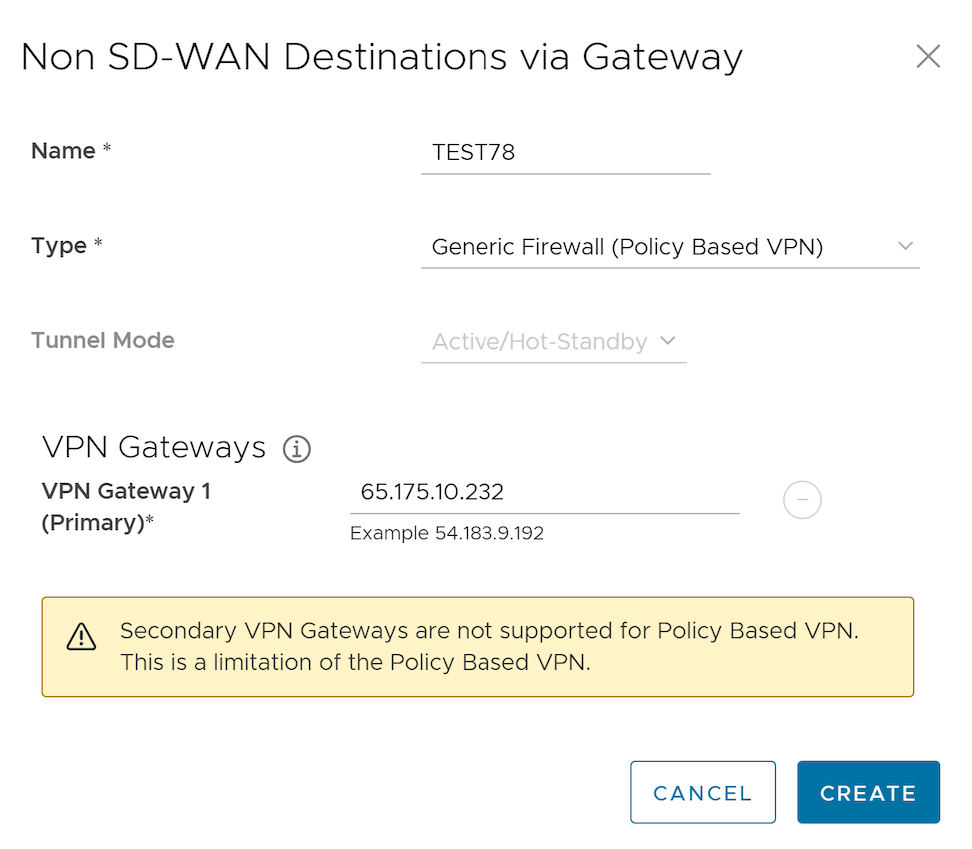

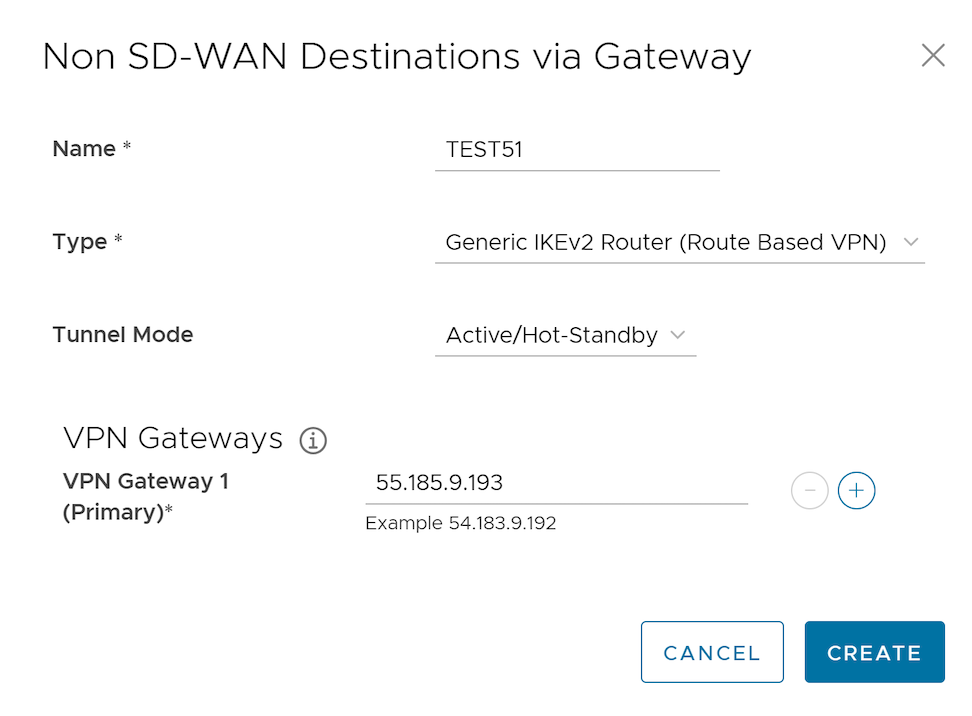

    Figure 4. Non SD-WAN Destination via Gateway



    Figure 5. ECMP- Flow Load Based

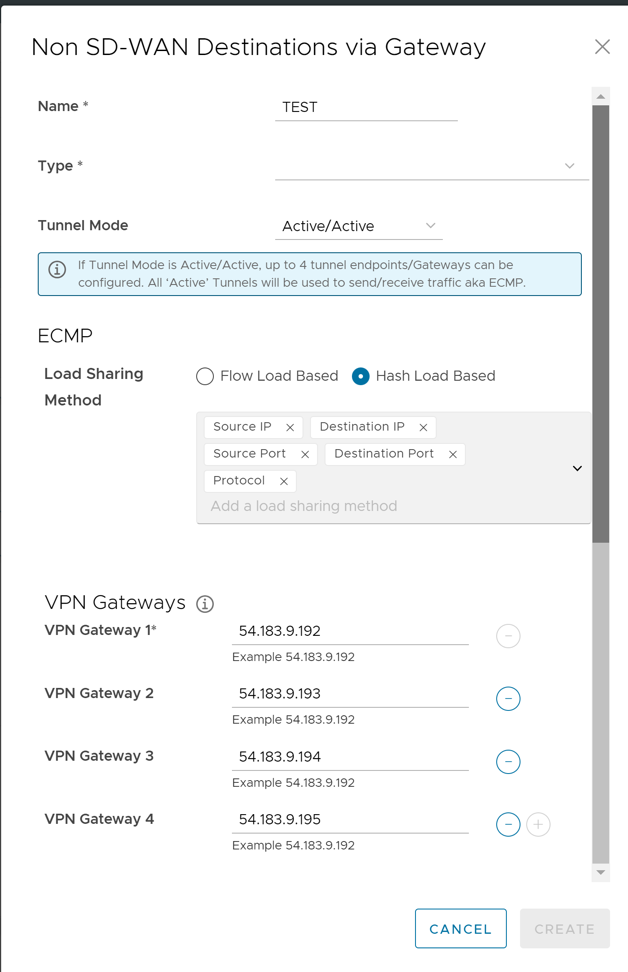

    Figure 6. ECMP- Hash Load Based
    Table 1. Non SD-WAN Destination via Gateway Option Descriptions
    Option Description
    Name Enter a name for the Non SD-WAN Destination in the text box.
    Type Select an IPsec tunnel type. The available options are:
    Tunnel Mode Active/Hot-Standby mode supports to set up a maximum of 2 tunnel endpoints or Gateways.

    Active/Active mode supports to set up a maximum of 4 tunnel endpoints or Gateways. All Active tunnels can send and receive traffic through ECMP.

    Note: When the Non SD-WAN Destination via Gateway type is configured as Active/Hot-Standby and the peer end is configured as Active/Active, then the Non SD-WAN Destination via Gateway accepts the traffic received over Hot-Standby tunnel.
    ECMP
    Load Sharing Method Flow Load Based (Default) Flow load based algorithm maps the new flow to the path with least number of flows mapped among the available paths to the destination.
    Hash Load Based algorithm takes input parameters from 5-tuple (SrcIP, DestIP, SrcPort, DestPort, Protocol). These inputs can be any or all or any subset of this tuple based on user configuration. Flow is mapped to the path based on hash value with selected inputs.
    VPN Gateways
    VPN Gateway 1 Enter a valid IP address.
    VPN Gateway 2 Enter a valid IP address. This field is optional.
    VPN Gateway 3 Enter a valid IP address. This field is optional.
    VPN Gateway 4 Enter a valid IP address. This field is optional.
    Note: The Gateway functions as the tunnel initiator in tunnel negotiation and cannot be configured to serve as the tunnel responder during the negotiation process.
  3. Select the Create button. You are redirected to an additional configuration options page based on the selected IPsec tunnel type. Select each of the links in the table above for additional information on these tunnel types.
  4. Following are the various options available under the Non SD-WAN Destinations via Gateway section:
    Table 2. Non SD-WAN Destinations via Gateway Option Descriptions
    Option Description
    Delete Select an item and select this option to delete it.
    Operator Alerts Select an item and set the Operator Alert to On or Off.
    Update Alerts Select an item and update the previously set Operator Alert.
    Columns Select and select the columns to be displayed or hidden on the page.
    Note:
    • You can also access these options by selecting the vertical ellipsis next to the item name in the table.
    • The Edit option takes you to the additional configuration settings screen.
    • Select the information icon at the top of the table to view the Conceptual Destination Diagram, and then hover across the diagram for additional details.

    To edit or configure BGP, see Configure BGP Over IPsec from Gateways.

    To edit or configure BFD, see Configure BFD for Gateways.

    Table 3. Non SD-WAN Peer Type Tunnel Allowances
    Non SD-WAN Peer Type Number of Tunnels Allowed
      Active/Active Mode Active/Hot-Standby Mode
    AWS VPN Gateway up to 4 up to 2
    Check Point up to 4 up to 2
    Cisco ASA 1 (Mode not applicable) 1 (Mode not applicable)
    Cisco ISR up to 4 up to 2
    Generic IKEv2 Router (Route Based VPN) up to 4 up to 2
    Microsoft Azure Virtual Hub up to 2 up to 2
    Palo Alto up to 4 up to 2
    SonicWALL up to 4 up to 2
    Zscaler up to 4 up to 2
    Generic IKEv1 Router (Route Based VPN) up to 4 up to 2
    Generic Firewall (Policy Based VPN) 1 (Mode not applicable) 1 (Mode not applicable)

    Flow Pinning Behavior

    Existing flows are pinned to the same path as long as the path/route is available. These flows are not affected during mode or algorithm change.

Configure a Non SD-WAN Destination of Type AWS VPN Gateway

This service allows you to create VPN tunnel configurations to access one or more Non SD-WAN Destinations. It provides the configuration required to create the tunnel(s) – including creating IKE IPsec configuration and generating a pre-shared key.

Overview

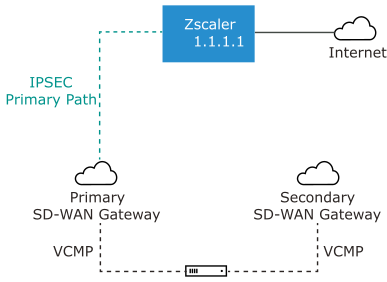

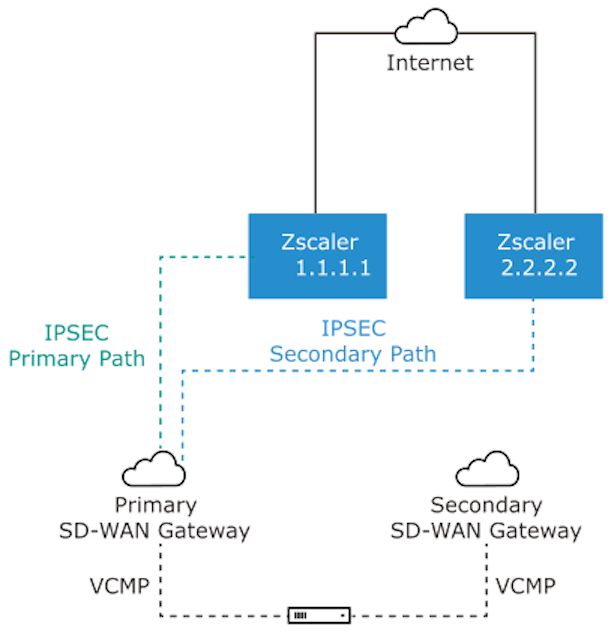

The following figure shows an overview of the VPN tunnels that can be created between Arista and a Non SD-WAN Destination.

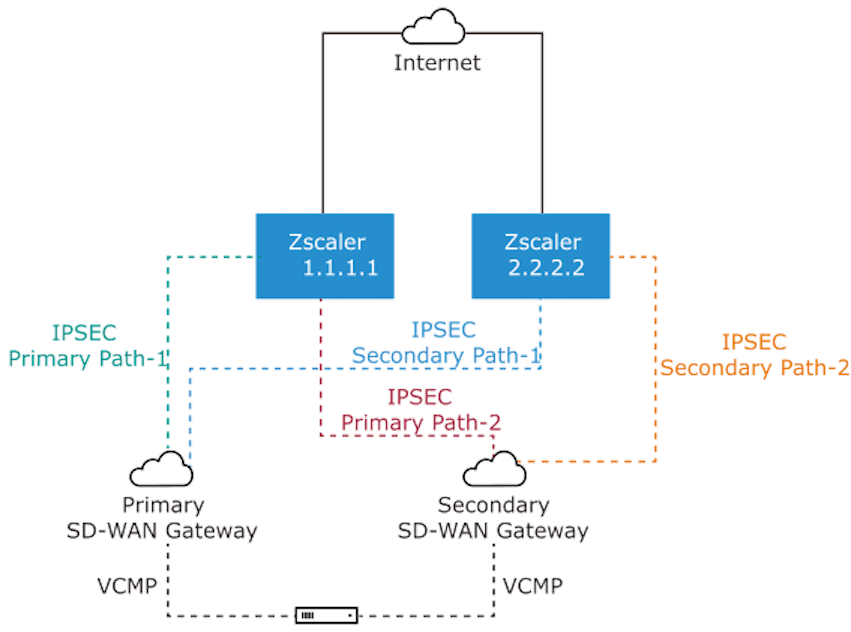

Figure 7. Tunnels between Arista and a Non SD-WAN Destination
Note: It is required that an IP address be specified for a Primary VPN Gateway at the Non SD-WAN Destination. The IP address is used to form a Primary VPN Tunnel between a Gateway and the Primary VPN Gateway.

Optionally, an IP address can be specified for a Secondary VPN Gateway to form a Secondary VPN Tunnel between an Gateway and the Secondary VPN Gateway. Redundant VPN Tunnels can be specified for any VPN tunnels you create.

Configure a Non SD-WAN Destination of type AWS VPN Gateway
Once you have created a Non SD-WAN Destination configuration of the type AWS VPN Gateway, you are redirected to an additional configuration options page:

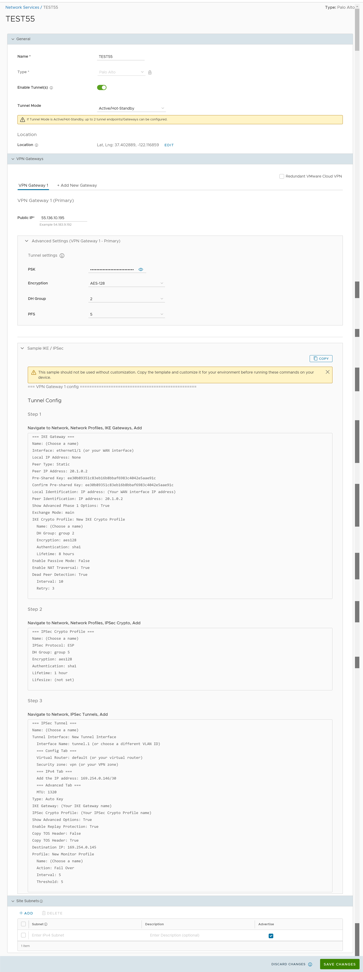

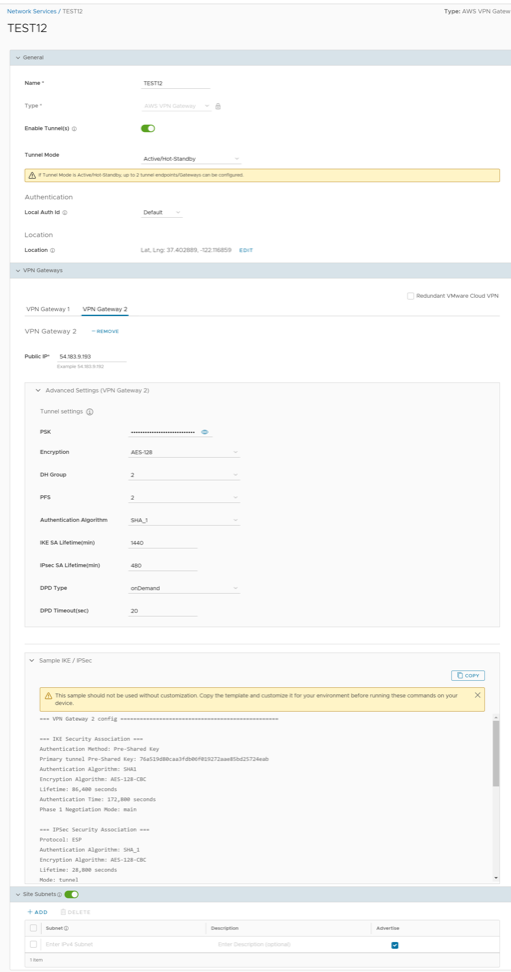

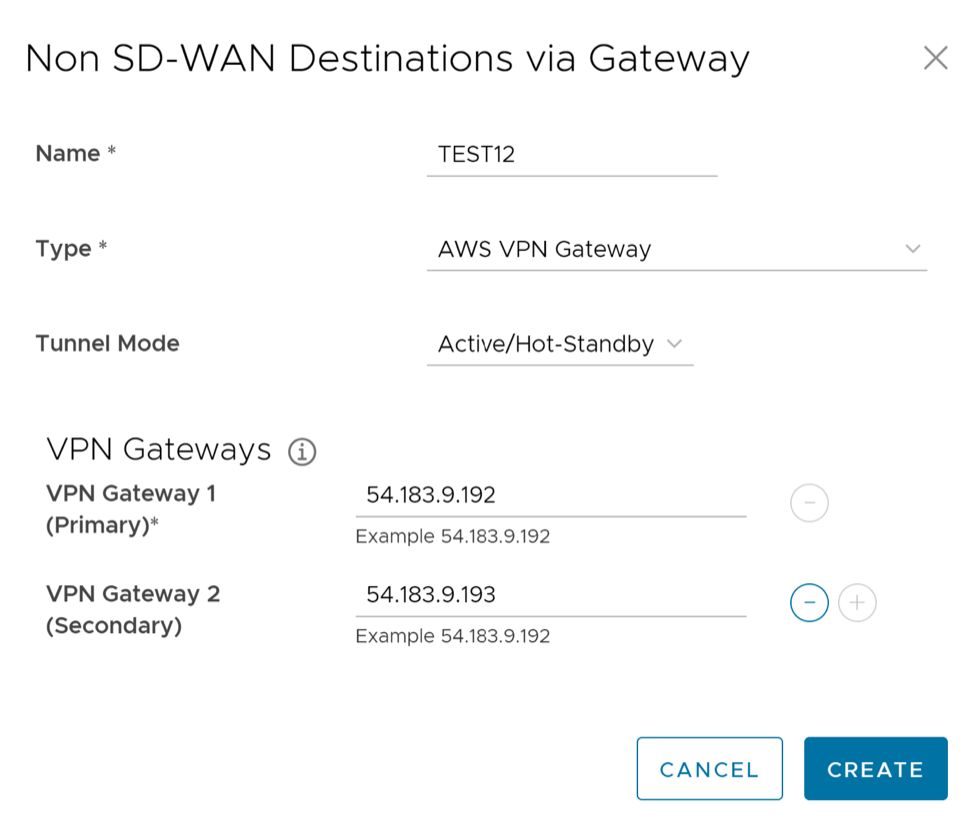

Figure 8. Create AWS VPN Gateways



Figure 9. Network Test
You can configure the following tunnel settings, and then select Save Changes.
Table 4. Tunnel Settings Option Descriptions
Option Description
General
Name You can edit the previously entered name for the Non SD-WAN Destination.
Type Displays the type as AWS VPN Gateway. You cannot edit this option.
Enable Tunnel(s) Select the toggle button to initiate the tunnel(s) from the SD-WAN Gateway to the AWS VPN Gateway.
Tunnel Mode Active/Hot-Standby mode supports to set up a maximum of two tunnel endpoints or Gateways.
Active/Active mode supports to set up a maximum of four tunnel endpoints or Gateways. All Active tunnels can send and receive traffic through ECMP.
ECMP Load Sharing Method Flow Load Based (Default) Flow load based algorithm maps the new flow to the path with least number of flows mapped among the available paths to the destination.
Hash Load Based algorithm takes input parameters from 5-tuple (SrcIP, DestIP, SrcPort, DestPort, Protocol). These inputs can be any or all or any subset of this tuple based on user configuration. Flow is mapped to the path based on hash value with selected inputs.
VPN Gateway 1 Enter a valid IP address.
VPN Gateway 2 Enter a valid IP address. This field is optional.
VPN Gateway 3 Enter a valid IP address. This field is optional.
VPN Gateway 4 Enter a valid IP address. This field is optional.
Public IP Displays the IP address of the Primary VPN Gateway.
PSK The Pre-Shared Key (PSK) is the security key for authentication across the tunnel. The Orchestrator generates a PSK by default. If you want to use your own PSK or password, enter it in the text box.
Encryption Select either AES-128 or AES-256 as the AES algorithm key size to encrypt data. The default value is AES-128.
DH Group Select the Diffie-Hellman (DH) Group algorithm from the drop-down menu. This is used for generating keying material. The DH Group sets the strength of the algorithm in bits. The supported DH Groups are 2, 5, and 14. The default value is 2.
PFS Select the Perfect Forward Secrecy (PFS) level for additional security. The supported PFS levels are deactivated, 2, and 5. The default value is 2.
Authentication Algorithm Select the authentication algorithm for the VPN header. Select one of the supported Secure Hash Algorithm (SHA) functions from the drop-down menu:
  • SHA1
  • SHA256
  • SHA384
  • SHA512

The default value is SHA 1.
IKE SA Lifetime(min) Time when Internet Key Exchange (IKE) rekeying is initiated for SD-WAN Edges. The minimum IKE lifetime is 10 minutes and maximum is 1440 minutes. The default value is 1440 minutes.
IPsec SA Lifetime(min) Time when Internet Security Protocol (IPsec) rekeying is initiated for Edges. The minimum IPsec lifetime is 3 minutes and maximum is 480 minutes. The default value is 480 minutes.
DPD Type The Dead Peer Detection (DPD) method is used to detect if the Internet Key Exchange (IKE) peer is alive or dead. If the peer is detected as dead, the device deletes the IPsec and IKE Security Association. Select either Periodic or onDemand from the drop-down menu. The default value is onDemand.
DPD Timeout(sec) Enter the DPD timeout value. The DPD timeout value will be added to the internal DPD timer, as described below. Wait for a response from the DPD message before considering the peer to be dead (Dead Peer Detection).
Prior to the 5.1.0 release, the default value is 20 seconds. For the 5.1.0 release and later, see the list below for the default value.
  • Library Name: Quicksec
  • Probe Interval: Exponential (0.5 sec, 1 sec, 2 sec, 4 sec, 8 sec, 16 sec)
  • Default Minimum DPD Interval: 47.5sec (Quicksec waits for 16 seconds after the last retry. Therefore, 0.5+1+2+4+8+16+16 = 47.5).
  • Default Minimum DPD interval + DPD Timeout(sec): 67.5 sec
Note: Prior to the 5.1.0 release, you can deactivate DPD by configuring the DPD timeout timer to 0 seconds. However, for the 5.1.0 release and later, you cannot deactivate DPD by configuring the DPD timeout timer to 0 seconds. The DPD timeout value in seconds will get added onto the default minimum value of 47.5 seconds).
Secondary VPN Gateway Select the Add button, and then enter the IP address of the Secondary VPN Gateway. Select Save Changes.

The Secondary VPN Gateway is immediately created for this site and provisions a VPN tunnel to this Gateway.

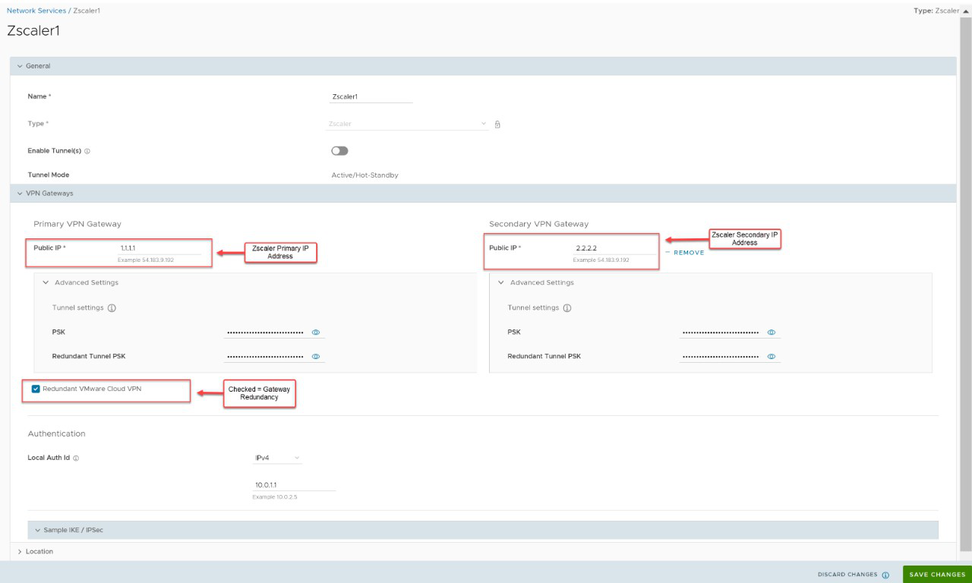

Redundant Cloud VPN Select the check box to add redundant tunnels for each VPN Gateway. Changes made to Encryption, DH Group, or PFS of Primary VPN Gateway also apply to the redundant VPN tunnels, if configured
Local Auth Id Local authentication ID defines the format and identification of the local gateway. From the drop-down menu, choose from the following types and enter a value:
  • FQDN- The Fully Qualified Domain Name or hostname. For example: arista.com
  • User FQDN- The User Fully Qualified Domain Name in the form of email address. For example: This email address is being protected from spambots. You need JavaScript enabled to view it.
  • IPv4- The IP address used to communicate with the local gateway.
  • IPv6- The IP address used to communicate with the local gateway.
Note: If you do not specify a value, Default is used as the local authentication ID.
Sample IKE / IPsec Select to view the information needed to configure the Non SD-WAN Destination Gateway. The Gateway administrator should use this information to configure the Gateway VPN tunnel(s).
Location Select Edit to set the location for the configured Non SD-WAN Destination. The latitude and longitude details are used to determine the best Edge or Gateway to connect to in the network.
Site Subnets Use the toggle button to activate or deactivate the Site Subnets. Select Add to add subnets for the Non SD-WAN Destination. If you do not need subnets for the site, select the subnet and select Delete.
Note:
  • To support the datacenter type of Non SD-WAN Destination, besides the IPsec connection, you must configure Non SD-WAN Destination local subnets into the system.
  • If there are no site subnets configured, deactivate Site Subnets to activate the tunnel.

Configure a Non SD-WAN Destination of Type Check Point

The Gateway connects to the Check Point CloudGuard service using IKEv1/IPsec. There are two steps to configure a Check Point: Configuring the Check Point CloudGuard service and configuring the Non SD-WAN Destination of type Check Point. You must perform the first step on the Check Point Infinity Portal and the second step on the Orchestrator.

You must have an active Check Point account and login credentials to access Check Point's Infinity Portal.

Configure the Check Point CloudGuard service
  1. Login to the Check Point’s Infinity Portal using the link https://portal.checkpoint.com/.
  2. Once logged in, create a site at Check Point's Infinity Portal using the link https://sc1.checkpoint.com/documents/integrations/VeloCloud/check-point-VeloCloud-integration.html.
Configure a Non SD-WAN Destination of type Check Point
  1. Once you have created a Non SD-WAN Destination configuration of the type Check Point, you are redirected to an additional configuration options page:

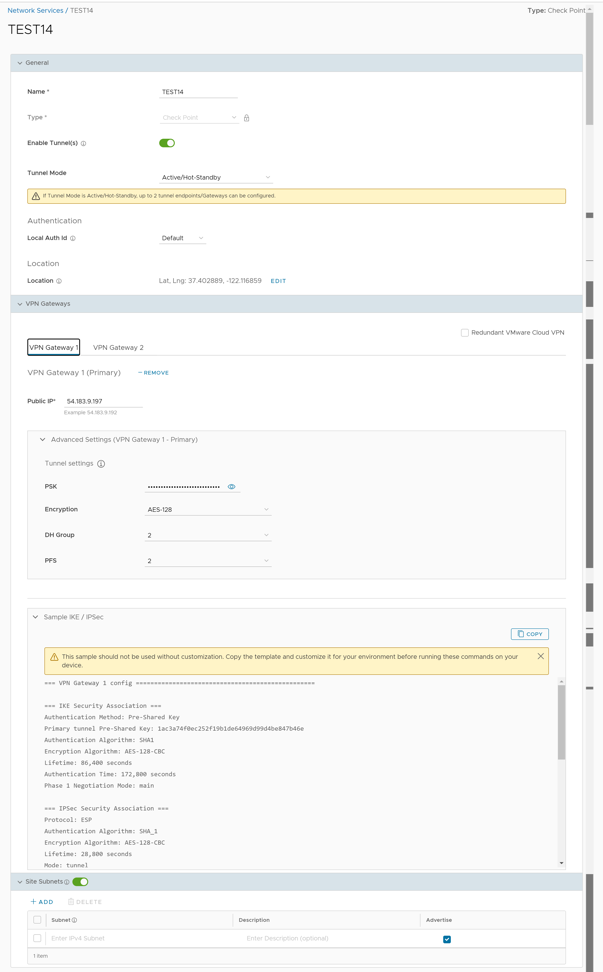

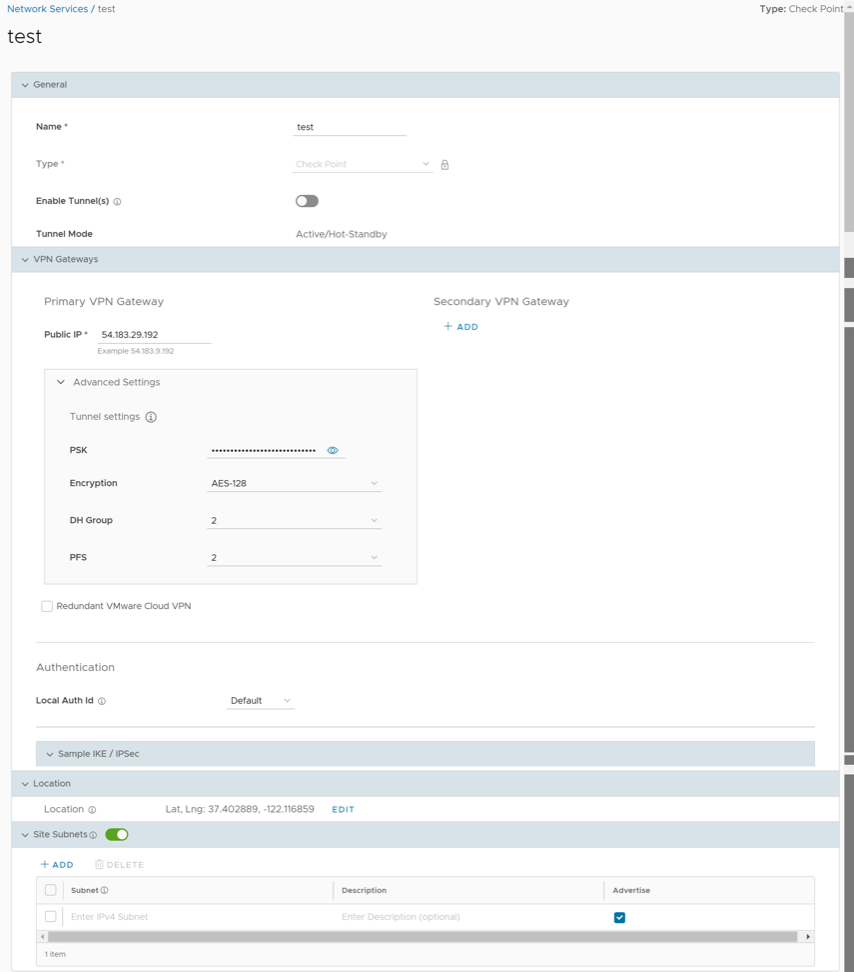

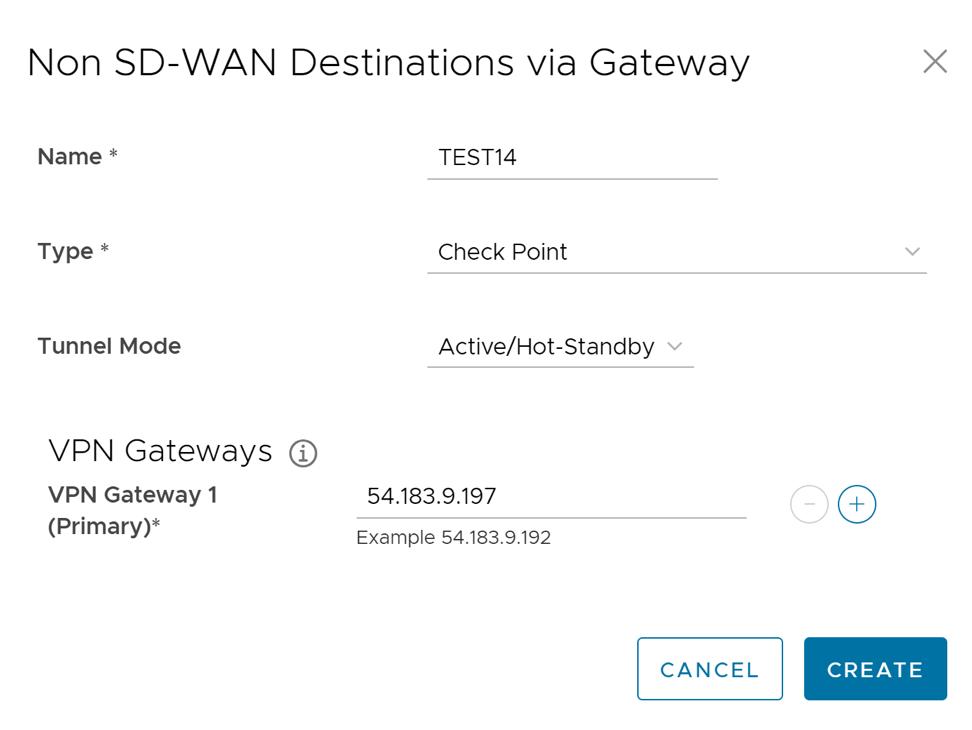

    Figure 10. Check Point Creation

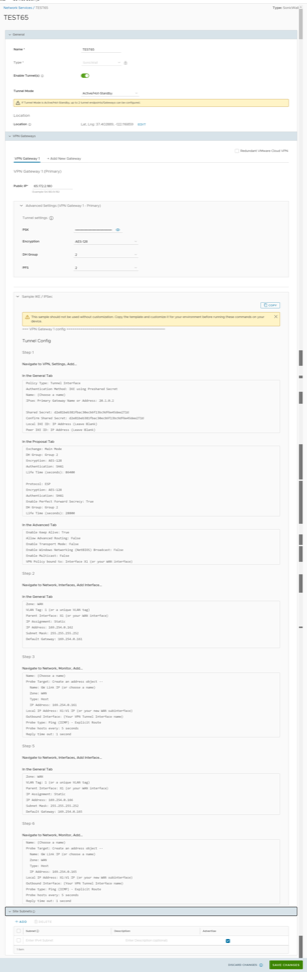

    Figure 11. Network Service Test



    Figure 12. Network Service Test 2
  2. You can configure the following tunnel settings:
    Table 5. Tunnel Option Descriptions
    Option Description
    General
    Name You can edit the previously entered name for the Non SD-WAN Destination.
    Type Displays the type as Check Point. You cannot edit this option.
    Enable Tunnel(s) Select the toggle button to initiate the tunnel(s) from the Gateway to the Check Point VPN Gateway.
    ECMP Load Sharing Method Flow Load Based (Default) Flow load based algorithm maps the new flow to the path with least number of flows mapped among the available paths to the destination.
    Hash Load Based algorithm takes input parameters from 5-tuple (SrcIP, DestIP, SrcPort, DestPort, Protocol). These inputs can be any or all or any subset of this tuple based on user configuration. Flow is mapped to the path based on hash value with selected inputs.
    VPN Gateway 1 Enter a valid IP address.
    VPN Gateway 2 Enter a valid IP address. This field is optional.
    VPN Gateway 3 Enter a valid IP address. This field is optional.
    VPN Gateway 4 Enter a valid IP address. This field is optional.
    Public IP Displays the IP address of the Primary VPN Gateway.
    PSK The Pre-Shared Key (PSK) is the security key for authentication across the tunnel. The Orchestrator generates a PSK by default. If you want to use your own PSK or password, enter it in the text box.
    Encryption Select either AES-128 or AES-256 as the AES algorithm key size to encrypt data. The default value is AES-128.
    DH Group Select the Diffie-Hellman (DH) Group algorithm from the drop-down menu. This is used for generating keying material. The DH Group sets the strength of the algorithm in bits. The supported DH Groups are 2, 5, and 14. The default value is 2.
    PFS Select the Perfect Forward Secrecy (PFS) level for additional security. The supported PFS levels are deactivated, 2, and 5. The default value is 2.
    Redundant Cloud VPN Select the check box to add redundant tunnels for each VPN Gateway. Changes made to Encryption, DH Group, or PFS of Primary VPN Gateway also apply to the redundant VPN tunnels, if configured.
    Secondary VPN Gateway Select the Add button, and then enter the IP address of the Secondary VPN Gateway. Select Save Changes.

    The Secondary VPN Gateway is immediately created for this site and provisions a VPN tunnel to this Gateway.
    Local Auth Id Local authentication ID defines the format and identification of the local gateway. From the drop-down menu, choose from the following types and enter a value:
    • FQDN- The Fully Qualified Domain Name or hostname. For example: arista.com
    • User FQDN- The User Fully Qualified Domain Name in the form of email address. For example: user@arista
    • IPv4- The IP address used to communicate with the local gateway.
    • IPv6- The IP address used to communicate with the local gateway.
    Note:
    • If you do not specify a value, Default is used as the local authentication ID.
    • For Checkpoint Non SD-WAN Destination, the default local authentication ID value used is Gateway Interface Public IP.
    Sample IKE / IPsec Select to view the information needed to configure the Non SD-WAN Destination Gateway. The Gateway administrator should use this information to configure the Gateway VPN tunnel(s).
    Location Select Edit to set the location for the configured Non SD-WAN Destination. The latitude and longitude details are used to determine the best Edge or Gateway to connect to in the network.
    Site Subnets Use the toggle button to activate or deactivate the Site Subnets. Select Add to add subnets for the Non SD-WAN Destination. If you do not need subnets for the site, select the subnet and select Delete.
    Note: To support the datacenter type of Non SD-WAN Destination, besides the IPsec connection, you must configure Non SD-WAN Destination local subnets into the system
  3. Select Save Changes.

Configure a Non SD-WAN Destination of Type Cisco ASA

Follow the below steps to configure a Non SD-WAN Destination of type Cisco ASA in the Orchestrator.
  1. Once you have created a Non SD-WAN Destination configuration of the type Cisco ASA, you are redirected to an additional configuration options page:
    Figure 13. Cisco ASA Configuration



    Figure 14. Cisco ASA Additional Configuration Options
    Note: Secondary VPN Gateway is not supported for the Cisco ASA service type.
  2. You can configure the following tunnel settings:
    Table 6. Tunnel Settings Option
    Option Description
    General
    Name You can edit the previously entered name for the Non SD-WAN Destination.
    Type Displays the type as Cisco ASA. You cannot edit this option.
    Enable Tunnel(s) Select the toggle button to initiate the tunnel(s) from the SD-WAN Gateway to the Cisco ASA VPN Gateway.
    Tunnel Mode Active/Hot-Standby mode supports to set up a maximum of 2 tunnel endpoints or Gateways.
    Active/Active mode supports to set up a maximum of 4 tunnel endpoints or Gateways. All Active tunnel can send and receive traffic through ECMP.
    VPN Gateway 1 Enter a valid IP address.
    Public IP Displays the IP address of the Primary VPN Gateway.
    PSK The Pre-Shared Key (PSK) is the security key for authentication across the tunnel. The Orchestrator generates a PSK by default. If you want to use your own PSK or password, enter it in the text box.
    Encryption Select either AES-128 or AES-256 as the AES algorithm key size to encrypt data. The default value is AES-128.
    DH Group Select the Diffie-Hellman (DH) Group algorithm from the drop-down menu. This is used for generating keying material. The DH Group sets the strength of the algorithm in bits. The supported DH Groups are 2, 5, and 14. The default value is 2.
    PFS Select the Perfect Forward Secrecy (PFS) level for additional security. The supported PFS levels are deactivated, 2, and 5. The default value is deactivated.
    Local Auth Id Local authentication ID defines the format and identification of the local gateway. From the drop-down menu, choose from the following types and enter a value:
    • FQDN- The Fully Qualified Domain Name or hostname. For example: arista.com
    • User FQDN- The User Fully Qualified Domain Name in the form of email address. For example: This email address is being protected from spambots. You need JavaScript enabled to view it.
    • IPv4- The IP address used to communicate with the local gateway.
    • IPv6- The IP address used to communicate with the local gateway.
    Note:
    • If you do not specify a value, Default is used as the local authentication ID.
    • For Cisco ASA Non SD-WAN Destination, the default local authentication ID value used is the Local IP address of the Gateway.
    Sample IKE / IPsec Select to view the information needed to configure the Non SD-WAN Destination Gateway. The Gateway administrator should use this information to configure the Gateway VPN tunnel(s).
    Location Select Edit to set the location for the configured Non SD-WAN Destination. The latitude and longitude details are used to determine the best Edge or Gateway to connect to in the network.
    Site Subnets Use the toggle button to activate or deactivate the Site Subnets. Select Add to add subnets for the Non SD-WAN Destination. If you do not need subnets for the site, select the subnet and select Delete.
    Note: To support the datacenter type of Non SD-WAN Destination, besides the IPsec connection, you must configure Non SD-WAN Destination local subnets into the arista system.
    Custom Site Subnets Use this section to override the source subnets routed to this VPN device. Normally, source subnets are derived from the Edge LAN subnets routed to this device.
  3. Select Save Changes.

Configure a Non SD-WAN Destination of Type Cisco ISR

Follow the below steps to configure a Non SD-WAN Destination of type Cisco ISR in the Orchestrator.
  1. Once you have created a Non SD-WAN Destination configuration of the type Cisco ISR, you are redirected to an additional configuration options page:

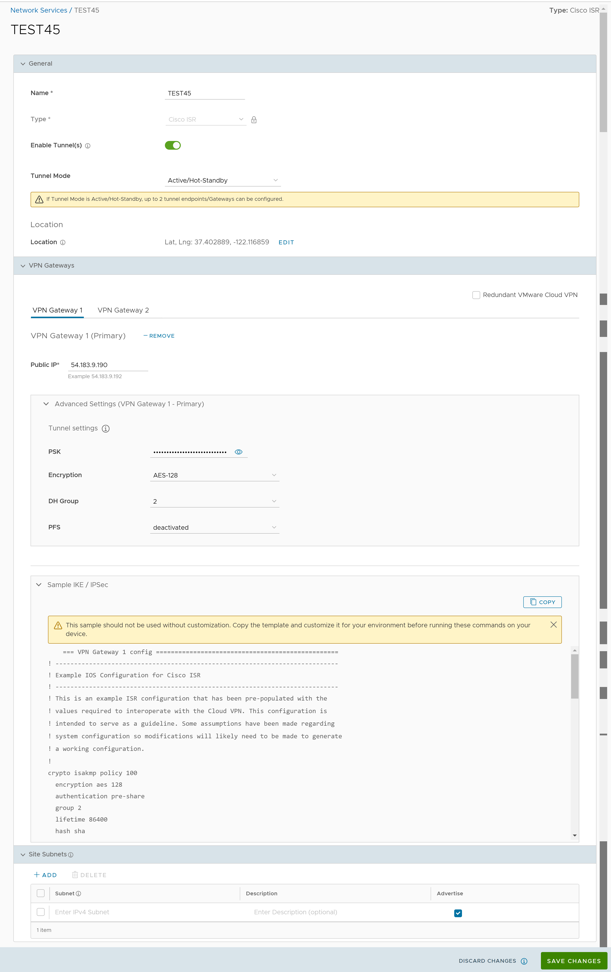

    Figure 15. Cisco ISR Configuration



    Figure 16. Cisco ISR Additional Configuration Options
  2. You can configure the following tunnel settings:
    Table 7. Tunnel Settings Option
    Option Description
    General
    Name You can edit the previously entered name for the Non SD-WAN Destination.
    Type Displays the type as Cisco ISR. You cannot edit this option.
    Tunnel Mode Active/Hot-Standby mode supports to set up a maximum of 2 tunnel endpoints or Gateways.
    Active/Active mode supports to set up a maximum of 4 tunnel endpoints or Gateways. All Active tunnels can send and receive traffic through ECMP.
    ECMP Load Sharing Method Flow Load Based (Default) Flow load based algorithm maps the new flow to the path with least number of flows mapped among the available paths to the destination.
    Hash Load Based algorithm takes input parameters from 5-tuple (SrcIP, DestIP, SrcPort, DestPort, Protocol). These inputs can be any or all or any subset of this tuple based on user configuration. Flow is mapped to the path based on hash value with selected inputs.
    VPN Gateway 1 Enter a valid IP address.
    VPN Gateway 2 Enter a valid IP address. This field is optional.
    VPN Gateway 3 Enter a valid IP address. This field is optional.
    VPN Gateway 4 Enter a valid IP address. This field is optional.
    Public IP Displays the IP address of the Primary VPN Gateway.
    PSK The Pre-Shared Key (PSK) is the security key for authentication across the tunnel. The Orchestrator generates a PSK by default. If you want to use your own PSK or password, enter it in the text box.
    Encryption Select either AES-128 or AES-256 as the AES algorithm key size to encrypt data. The default value is AES-128.
    DH Group Select the Diffie-Hellman (DH) Group algorithm from the drop-down menu. This is used for generating keying material. The DH Group sets the strength of the algorithm in bits. The supported DH Groups are 2, 5, and 14. The default value is 2.
    PFS Select the Perfect Forward Secrecy (PFS) level for additional security. The supported PFS levels are deactivated, 2, and 5. The default value is deactivated.
    Redundant Cloud VPN Select the check box to add redundant tunnels for each VPN Gateway. Changes made to Encryption, DH Group, or PFS of Primary VPN Gateway also apply to the redundant VPN tunnels, if configured.
    Secondary VPN Gateway Select the Add button, and then enter the IP address of the Secondary VPN Gateway. Select Save Changes.

    The Secondary VPN Gateway is immediately created for this site and provisions a VPN tunnel to this Gateway.
    Sample IKE / IPsec Select to view the information needed to configure the Non SD-WAN Destination Gateway. The Gateway administrator should use this information to configure the Gateway VPN tunnel(s).
    Location Select Edit to set the location for the configured Non SD-WAN Destination. The latitude and longitude details are used to determine the best Edge or Gateway to connect to in the network.
    Site Subnets Use the toggle button to activate or deactivate the Site Subnets. Select Add to add subnets for the Non SD-WAN Destination. If you do not need subnets for the site, select the subnet and select Delete.
    Note: To support the datacenter type of Non SD-WAN Destination, besides the IPsec connection, you must configure Non SD-WAN Destination local subnets into the system.
    Note:

    For Cisco ISR Non SD-WAN Destination, by default, the local authentication ID value used is Gateway Interface Local IP.

  3. Select Save Changes.

Configure a Non SD-WAN Destination of Type Generic IKEv2 Router (Route Based VPN)

Follow the below steps to configure a Non SD-WAN Destination of type Generic IKEv2 Router (Route Based VPN) in the Orchestrator.

  1. Once you have created a Non SD-WAN Destination configuration of the type Generic IKEv2 Router (Route Based VPN), you are redirected to an additional configuration options page:

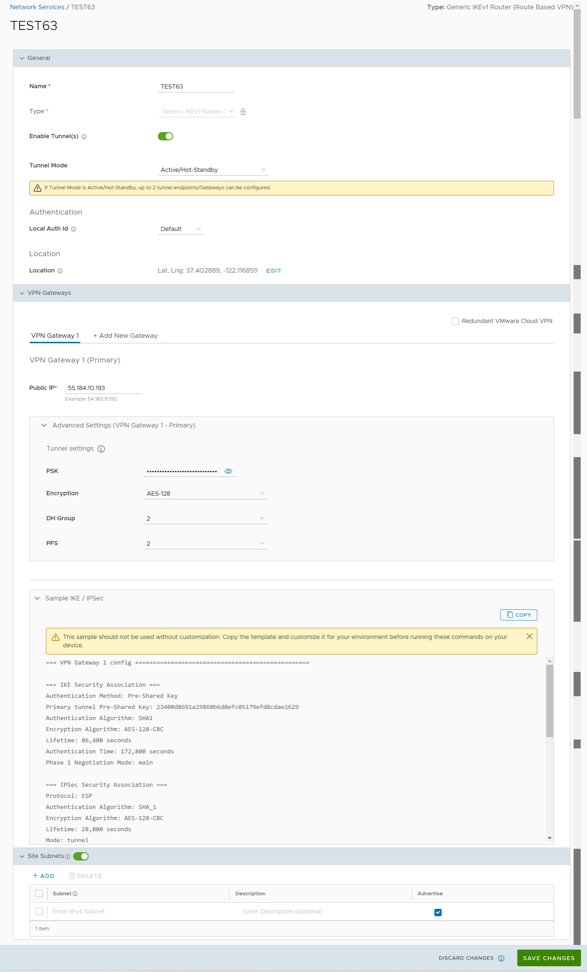

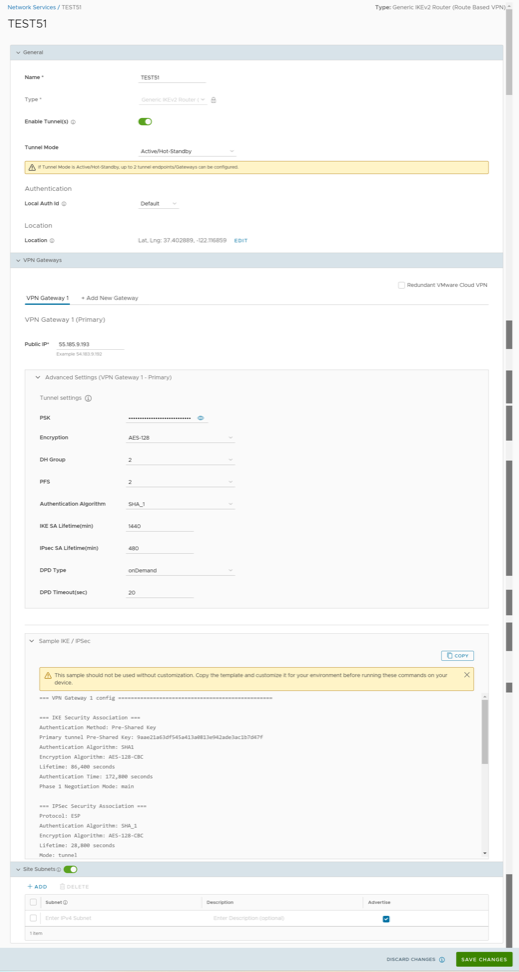

    Figure 17. Configuring a Generic IKEv2 Router



    Figure 18. Displaying Additional Configuration Details
  2. You can configure the following tunnel settings:
    Table 8. Generic IKEv2 Router Tunnel Settings Option
    Option Description
    General
    Name You can edit the previously entered name for the Non SD-WAN Destination.
    Type Displays the type as Generic IKEv2 Router (Route Based VPN). You cannot edit this option.
    Enable Tunnel(s) Select the toggle button to initiate the tunnel(s) from the SD-WAN Gateway to the Generic IKEv2 Router VPN Gateway.
    Tunnel Mode Active/Hot-Standby mode supports to set up a maximum of 2 tunnel endpoints or Gateways.
    Active/Active mode supports to set up a maximum of 4 tunnel endpoints or Gateways. All Active tunnels can send and receive traffic through ECMP.
    ECMP Load Sharing Method Flow Load Based (Default) Flow load based algorithm maps the new flow to the path with least number of flows mapped among the available paths to the destination.
    Hash Load Based algorithm takes input parameters from 5-tuple (SrcIP, DestIP, SrcPort, DestPort, Protocol). These inputs can be any or all or any subset of this tuple based on user configuration. Flow is mapped to the path based on hash value with selected inputs.
    VPN Gateway 1 Enter a valid IP address.
    VPN Gateway 2 Enter a valid IP address. This field is optional.
    VPN Gateway 3 Enter a valid IP address. This field is optional.
    VPN Gateway 4 Enter a valid IP address. This field is optional.
    Public IP Displays the IP address of the Primary VPN Gateway.
    PSK The Pre-Shared Key (PSK) is the security key for authentication across the tunnel. The Orchestrator generates a PSK by default. If you want to use your own PSK or password, enter it in the text box.
    Encryption Select either AES-128 or AES-256 as the AES algorithm key size to encrypt data. The default value is AES-128.
    DH Group Select the Diffie-Hellman (DH) Group algorithm from the drop-down menu. This is used for generating keying material. The DH Group sets the strength of the algorithm in bits. The supported DH Groups are 2, 5, and 14. The default value is 2.
    PFS Select the Perfect Forward Secrecy (PFS) level for additional security. The supported PFS levels are deactivated, 2, and 5. The default value is 2.
    Authentication Algorithm Select the authentication algorithm for the VPN header. Select one of the supported Secure Hash Algorithm (SHA) functions from the drop-down menu:
    • SHA1
    • SHA256
    • SHA384
    • SHA512

    The default value is SHA 1.
    IKE SA Lifetime(min) Time when Internet Key Exchange (IKE) rekeying is initiated for SD-WAN Edges. The minimum IKE lifetime is 10 minutes and maximum is 1440 minutes. The default value is 1440 minutes.
    IPsec SA Lifetime(min) Time when Internet Security Protocol (IPsec) rekeying is initiated for Edges. The minimum IPsec lifetime is 3 minutes and maximum is 480 minutes. The default value is 480 minutes.
    DPD Type The Dead Peer Detection (DPD) method is used to detect if the Internet Key Exchange (IKE) peer is alive or dead. If the peer is detected as dead, the device deletes the IPsec and IKE Security Association. Select either Periodic or onDemand from the drop-down menu. The default value is onDemand.
    DPD Timeout(sec) Enter the DPD timeout value. The DPD timeout value will be added to the internal DPD timer, as described below. Wait for a response from the DPD message before considering the peer to be dead (Dead Peer Detection).
    Prior to the 5.1.0 release, the default value is 20 seconds. For the 5.1.0 release and later, see the list below for the default value.
    • Library Name: Quicksec
    • Probe Interval: Exponential (0.5 sec, 1 sec, 2 sec, 4 sec, 8 sec, 16 sec)
    • Default Minimum DPD Interval: 47.5sec (Quicksec waits for 16 seconds after the last retry. Therefore, 0.5+1+2+4+8+16+16 = 47.5).
    • Default Minimum DPD interval + DPD Timeout(sec): 67.5 sec
    Note: Prior to the 5.1.0 release, you can deactivate DPD by configuring the DPD timeout timer to 0 seconds. However, for the 5.1.0 release and later, you cannot deactivate DPD by configuring the DPD timeout timer to 0 seconds. The DPD timeout value in seconds will get added onto the default minimum value of 47.5 seconds).
    Redundant Cloud VPN Select the check box to add redundant tunnels for each VPN Gateway. Changes made to Encryption, DH Group, or PFS of Primary VPN Gateway also apply to the redundant VPN tunnels, if configured.
    Secondary VPN Gateway Select the Add button, and then enter the IP address of the Secondary VPN Gateway. Select Save Changes.

    The Secondary VPN Gateway is immediately created for this site and provisions a VPN tunnel to this Gateway.
    Local Auth Id Local authentication ID defines the format and identification of the local gateway. From the drop-down menu, choose from the following types and enter a value:
    • FQDN- The Fully Qualified Domain Name or hostname. For example: arista.com
    • User FQDN- The User Fully Qualified Domain Name in the form of email address. For example: This email address is being protected from spambots. You need JavaScript enabled to view it.
    • IPv4- The IP address used to communicate with the local gateway.
    • IPv6- The IP address used to communicate with the local gateway.
    Note:
    • If you do not specify a value, Default is used as the local authentication ID.
    • The default local authentication ID value is the Gateway Interface Public IP.
    Sample IKE / IPsec Select to view the information needed to configure the Non SD-WAN Destination Gateway. The Gateway administrator should use this information to configure the Gateway VPN tunnel(s).
    Location Select Edit to set the location for the configured Non SD-WAN Destination. The latitude and longitude details are used to determine the best Edge or Gateway to connect to in the network.
    Site Subnets Use the toggle button to activate or deactivate the Site Subnets. Select Add to add subnets for the Non SD-WAN Destination. If you do not need subnets for the site, select the subnet and select Delete.
    Note:
    • To support the datacenter type of Non SD-WAN Destination, besides the IPsec connection, you must configure Non SD-WAN Destination local subnets into the system.
    • If there are no site subnets configured, deactivate Site Subnets to activate the tunnel.
    Note: When AWS initiates the rekey tunnel with a VeloCloud Gateway (in Non SD-WAN Destinations), a failure can occur and the tunnel may not be established, which can cause traffic interruption. In this case, adhere to the following:
    • IPsec SA Lifetime(min) timer configurations for the Gateway must be less than 60 minutes (recommended value = 50 minutes), to match the AWS default IPsec configuration.
    • DH Group and PFS values must be matched.
  3. Select Save Changes.

Configure a Non SD-WAN Destination of Type Microsoft Azure Virtual Hub

Follow the below steps to configure a Non SD-WAN Destination of type Microsoft Azure Virtual Hub in the Orchestrator.
  1. In the SD-WAN service of the Enterprise portal, go to Configure > Network Services , and then under Non SD-WAN Destinations, expand Non SD-WAN Destinations via Gateway.
  2. Select New, and then enter the Name and Type of the Non SD-WAN Destination. Once you enter the Type as Microsoft Azure Virtual Hub, Virtual Hub Configuration section is displayed in the dialog:

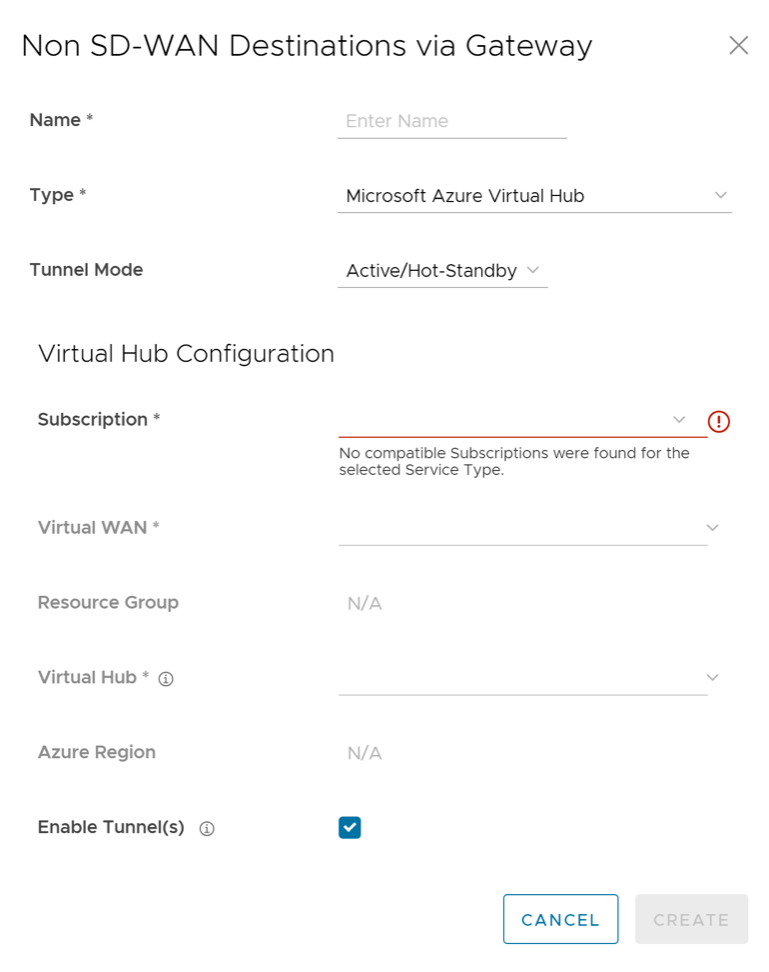

    Figure 19. Microsoft Azure Virtual Hub Configuration
  3. You can configure the following settings:
    Table 9. Microsoft Azure Virtual Hub Settings Options
    Option Description
    Name You can edit the previously entered name for the Non SD-WAN Destination.
    Type Displays the type as Microsoft Azure Virtual Hub. You cannot edit this option.
    Tunnel Mode Active/Hot-Standby mode supports to set up a maximum of 2 tunnel endpoints or Gateways.
    Active/Active mode supports to set up a maximum of 4 tunnel endpoints or Gateways. All Active tunnels can send and receive traffic through ECMP.
    ECMP Load Sharing Method Flow Load Based (Default) Flow load based algorithm maps the new flow to the path with least number of flows mapped among the available paths to the destination.
    Hash Load Based algorithm takes input parameters from 5-tuple (SrcIP, DestIP, SrcPort, DestPort, Protocol). These inputs can be any or all or any subset of this tuple based on user configuration. Flow is mapped to the path based on hash value with selected inputs.
    Subscription Select a subscription from the drop-down menu.
    Virtual WAN The application fetches all the available Virtual WANs dynamically from Azure. Select a virtual WAN from the drop-down menu.
    Resource Group The application auto-populates the resource group to which the selected Virtual WAN is associated.
    Virtual Hub Select a virtual Hub from the drop-down menu.
    Azure Region The application auto-populates the Azure region corresponding to the selected Virtual Hub.
    Enable Tunnel(s) Select the Enable Tunnel(s) check box to allow VPN Gateways to initiate VPN connections to the target Virtual Hub as soon as the site is successfully provisioned.
    Note:
    • The VPN Gateways initiate the IKE negotiation only when the Non SD-WAN Destination is configured on at least one profile.
    • For Microsoft Azure Non SD-WAN Destination, the default local authentication ID value used is Gateway Interface Public IP.
  4. Select Create. The Orchestrator automatically initiates deployment, provisions Azure VPN Sites, and downloads the VPN Site Configuration for the newly configured sites. It stores the configuration in the Orchestrator’s Non SD-WAN Destination configuration database.

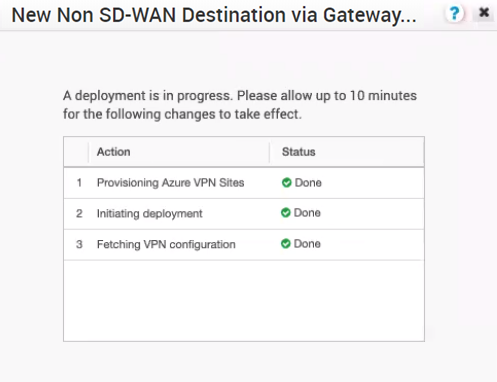

    Figure 20. Non SD-WAN Destination configuration

    Once the Azure VPN sites are provisioned at the Orchestrator side, you can view the VPN sites (Primary and Redundant) in the Azure portal by navigating to Virtual WAN > Virtual WAN architecture > VPN sites .

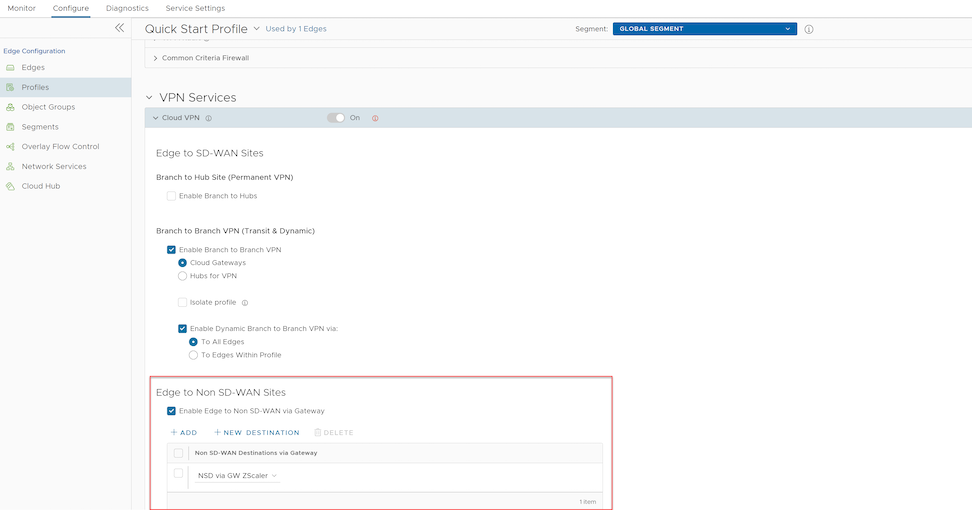

  • Associate the Microsoft Azure Non SD-WAN Destination to a Profile to establish a tunnel between a branch and Azure Virtual Hub. For additional information, see Associate a Microsoft Azure Non SD-WAN Destination to an SD-WAN Profile.
  • You must add SD-WAN routes into Azure network manually. For additional information, see Edit a VPN Site.
  • After associating a Profile to the Microsoft Azure Non SD-WAN Destination, you can return to the Non SD-WAN Destinations via Gateway section by navigating to Configure > Network Services , and then configure the BGP settings for the Non SD-WAN Destination. Scroll to the name of your Non SD-WAN Destination, and then select the Edit link in the BGP column. For additional information, see Configure BGP Over IPsec from Gateways.
  • In the Non SD-WAN Destinations via Gateway area, select the Edit link in the BFD column for a Non SD-WAN Destination, to configure the BFD settings. For additional information, see Configure BFD for Gateways.

For information about Azure Virtual WAN Gateway Automation, see Configure Orchestrator for Azure Virtual WAN IPsec Automation from Gateway.

Configure a Non SD-WAN Destination of Type Palo Alto

Follow the below steps to configure a Non SD-WAN Destination of type Palo Alto in the Orchestrator.

  1. Once you have created a Non SD-WAN Destination configuration of the type Palo Alto, you are redirected to an additional configuration options page:
    Figure 21. Palo Alto Non SD-WAN Destinations Configuration



    Figure 22. Palo Alto Non SD-WAN Destinations Additional Configuration
  2. You can configure the following tunnel settings:
    Table 10. Palo Alto Tunnel Settings
    Option Description
    General
    Name You can edit the previously entered name for the Non SD-WAN Destination.
    Type Displays the type as Palo Alto. You cannot edit this option.
    Enable Tunnel(s) Select the toggle button to initiate the tunnel(s) from the SD-WAN Gateway to the Palo Alto VPN Gateway.
    Tunnel Mode Active/Hot-Standby mode supports to set up a maximum of 2 tunnel endpoints or Gateways.
    Active/Active mode supports to set up a maximum of 4 tunnel endpoints or Gateways. All Active tunnels can send and receive traffic through ECMP.
    ECMP Load Sharing Method Flow Load Based (Default) Flow load based algorithm maps the new flow to the path with least number of flows mapped among the available paths to the destination.
    Hash Load Based algorithm takes input parameters from 5-tuple (SrcIP, DestIP, SrcPort, DestPort, Protocol). These inputs can be any or all or any subset of this tuple based on user configuration. Flow is mapped to the path based on hash value with selected inputs.
    VPN Gateway 1 Enter a valid IP address.
    VPN Gateway 2 Enter a valid IP address. This field is optional.
    VPN Gateway 3 Enter a valid IP address. This field is optional.
    VPN Gateway 4 Enter a valid IP address. This field is optional.
    Primary VPN Gateway
    Public IP Displays the IP address of the Primary VPN Gateway.
    PSK The Pre-Shared Key (PSK) is the security key for authentication across the tunnel. The Orchestrator generates a PSK by default. If you want to use your own PSK or password, enter it in the text box.
    Encryption Select either AES-128 or AES-256 as the AES algorithm key size to encrypt data. The default value is AES-128.
    DH Group Select the Diffie-Hellman (DH) Group algorithm from the drop-down menu. This is used for generating keying material. The DH Group sets the strength of the algorithm in bits. The supported DH Groups are 2, 5, and 14. The default value is 2. It is recommended to use DH Group 14.
    Note: The Non SD-WAN Destination via Gateway of type Palo Alto does not support any value higher than 14.
    PFS Select the Perfect Forward Secrecy (PFS) level for additional security. The supported PFS levels are deactivated, 2, and 5. The default value is 5.
    Redundant Cloud VPN Select the check box to add redundant tunnels for each VPN Gateway. Changes made to Encryption, DH Group, or PFS of Primary VPN Gateway also apply to the redundant VPN tunnels, if configured.
    Secondary VPN Gateway Select the Add button, and then enter the IP address of the Secondary VPN Gateway. Select Save Changes.

    The Secondary VPN Gateway is immediately created for this site and provisions a VPN tunnel to this Gateway.
    Sample IKE / IPsec Select to view the information needed to configure the Non SD-WAN Destination Gateway. The Gateway administrator should use this information to configure the Gateway VPN tunnel(s).
    Location Select Edit to set the location for the configured Non SD-WAN Destination. The latitude and longitude details are used to determine the best Edge or Gateway to connect to in the network.
    Site Subnets Use the toggle button to activate or deactivate the Site Subnets. Select Add to add subnets for the Non SD-WAN Destination. If you do not need subnets for the site, select the subnet and select Delete.
    Note:
    • To support the datacenter type of Non SD-WAN Destination, besides the IPsec connection, you must configure Non SD-WAN Destination local subnets into the system.
    • If there are no site subnets configured, deactivate Site Subnets to activate the tunnel.
    Note:
    • For Palo Alto Non SD-WAN Destination, the default local authentication ID value used is the Gateway Interface Public IP.
    • The Palo Alto Non SD-WAN Destination template uses the below parameters:
      • IKE Version = IKEv1
      • Phase 1 Lifetime = 86400 seconds
      • Phase 2 Lifetime = 28800 seconds
  3. Select Save Changes.

Configure a Non SD-WAN Destination of Type SonicWALL

Follow the below steps to configure a Non SD-WAN Destination of type SonicWALL in the Orchestrator.

  1. Once you have created a Non SD-WAN Destination configuration of the type SonicWALL, you are redirected to an additional configuration options page:
    Figure 23. SonicWALL Non SD-WAN Destinations Configuration



    Figure 24. SonicWALL Non SD-WAN Destinations Additional Configuration
  2. You can configure the following tunnel settings:
    Table 11. SonicWALL Non SD-WAN Destinations Tunnel Settings
    Option Description
    General
    Name You can edit the previously entered name for the Non SD-WAN Destination.
    Type Displays the type as SonicWALL. You cannot edit this option.
    Enable Tunnel(s) Select the toggle button to initiate the tunnel(s) from the SD-WAN Gateway to the SonicWALL VPN Gateway.
    Tunnel Mode Active/Hot-Standby mode supports to set up a maximum of 2 tunnel endpoints or Gateways.
    Active/Active mode supports to set up a maximum of 4 tunnel endpoints or Gateways. All Active tunnels can send and receive traffic through ECMP.
    ECMP Load Sharing Method Flow Load Based (Default) Flow load based algorithm maps the new flow to the path with least number of flows mapped among the available paths to the destination.
    Hash Load Based algorithm takes input parameters from 5-tuple (SrcIP, DestIP, SrcPort, DestPort, Protocol). These inputs can be any or all or any subset of this tuple based on user configuration. Flow is mapped to the path based on hash value with selected inputs.
    VPN Gateway 1 Enter a valid IP address.
    VPN Gateway 2 Enter a valid IP address. This field is optional.
    VPN Gateway 3 Enter a valid IP address. This field is optional.
    VPN Gateway 4 Enter a valid IP address. This field is optional.
    Public IP Displays the IP address of the Primary VPN Gateway.
    PSK The Pre-Shared Key (PSK) is the security key for authentication across the tunnel. The Orchestrator generates a PSK by default. If you want to use your own PSK or password, enter it in the text box.
    Encryption Select either AES-128 or AES-256 as the AES algorithm key size to encrypt data. The default value is AES-128.
    DH Group Select the Diffie-Hellman (DH) Group algorithm from the drop-down menu. This is used for generating keying material. The DH Group sets the strength of the algorithm in bits. The supported DH Groups are 2, 5, and 14. The default value is 2.
    PFS Select the Perfect Forward Secrecy (PFS) level for additional security. The supported PFS levels are deactivated, 2, and 5. The default value is 2.
    Redundant Cloud VPN Select the check box to add redundant tunnels for each VPN Gateway. Changes made to Encryption, DH Group, or PFS of Primary VPN Gateway also apply to the redundant VPN tunnels, if configured.
    Secondary VPN Gateway Select the Add button, and then enter the IP address of the Secondary VPN Gateway. Select Save Changes.

    The Secondary VPN Gateway is immediately created for this site and provisions a VPN tunnel to this Gateway.
    Sample IKE / IPsec Select to view the information needed to configure the Non SD-WAN Destination Gateway. The Gateway administrator should use this information to configure the Gateway VPN tunnel(s).
    Location Select Edit to set the location for the configured Non SD-WAN Destination. The latitude and longitude details are used to determine the best Edge or Gateway to connect to in the network.
    Site Subnets Use the toggle button to activate or deactivate the Site Subnets. Select Add to add subnets for the Non SD-WAN Destination. If you do not need subnets for the site, select the subnet and select Delete.
    Note:
    • To support the datacenter type of Non SD-WAN Destination, besides the IPsec connection, you must configure Non SD-WAN Destination local subnets into the system.
    • If there are no site subnets configured, deactivate Site Subnets to activate the tunnel.
    Note: For SonicWALL Non SD-WAN Destination, the default local authentication ID value used is Gateway Interface Public IP.
  3. Select Save Changes.

Zscaler and VeloCloud SD-WAN Integration

Enterprises can take advantage of secure local Internet breakout by using VeloCloud SD-WAN integrated with Zscaler. Using VeloCloud SD-WAN, the network administrator can decide what traffic should be forwarded to Zscaler, using IPsec tunnels (with NULL encryption).

Prerequisites
Provisioning a new service with Zscaler and VeloCloud SD-WAN requires the following:
  • Zscaler Internet Access (ZIA)
    • A working instance of ZIA (any cloud)
    • Administrator login credentials
  • VeloCloud Edge Cloud Orchestrator
    • Enterprise account access to VeloCloud Edge Cloud Orchestrator
    • Administrator login credentials
    • One or more VeloCloud Edge appliances with “Online” status in VeloCloud Edge Cloud Orchestrator
Zscaler Gateway Selection and Routing Behavior
The VeloCloud Edge Cloud Orchestrator configuration process for building tunnels to Zscaler does not require the manual selecting of specific VeloCloud Gateways. Using a geo-IP lookup process, the VeloCloud Gateways are dynamically chosen based on proximity to the provided Zscaler IP endpoint. Operator and Partner Administrators with sufficient permissions can manually override the Orchestrator-default Gateway selections. Normally, this is not necessary, and the recommended best-practice is to accept the Gateways as chosen by the system. After the Zscaler configuration has been completed on the Orchestrator and the tunnels are up and active, Operator and Partner Administrators with sufficient permissions can verify the chosen Gateways. To verify which Gateways were selected, login to the Orchestrator and go to Operator > Gateways . Select on a specific Gateway and look for Secure VPN Gateway. Listed beside Secure VPN Gateway will be the name of the Zscaler setup as set during the configuration process. The primary Gateway will be denoted with the Zscaler_Nameand the redundant Gateway will be denoted as Zscaler_Name[redundant].

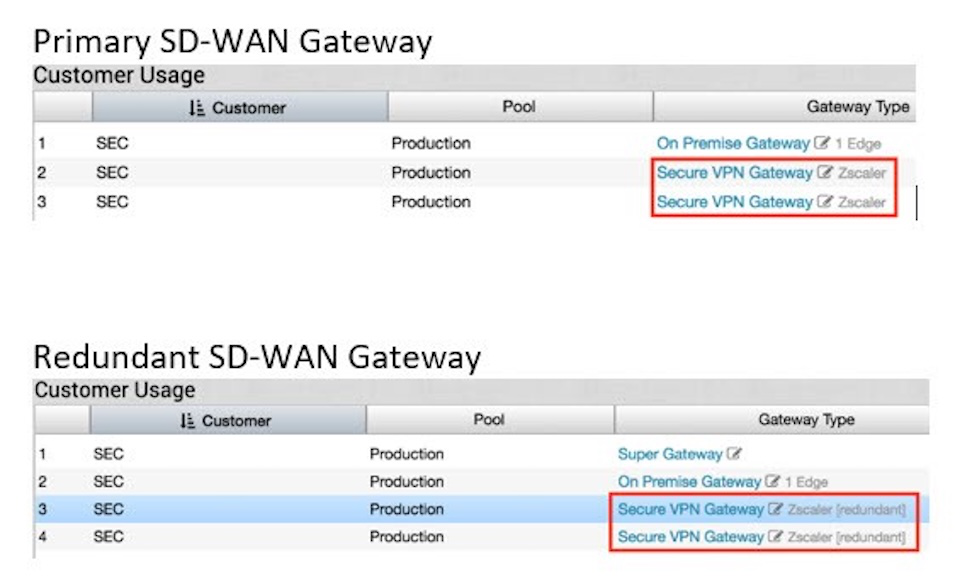

Figure 25. Displaying Zscaler Information

To set the Zscaler tunnel to a specific Gateway, you must first locate which Gateway has the tunnel by following the process above. Select Secure VPN Gateway and move/assign the tunnel to a different Gateway.

  1. Locate current tunnel location.

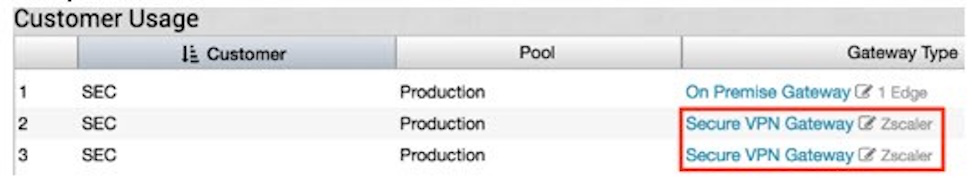

    Figure 26. Tunnel Location

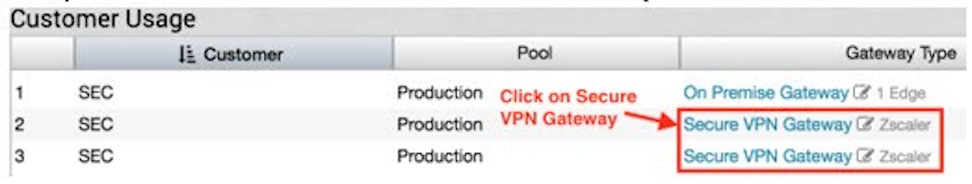

  2. Select Secure VPN Gateway.
    Figure 27. Secure VPN Gateway

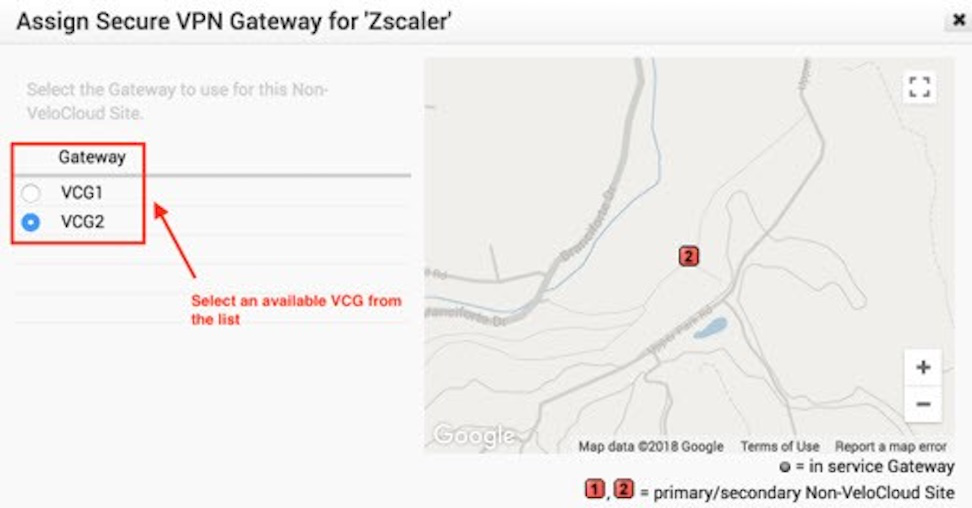

  3. Select a Gateway.
    Figure 28. Selecting a Gateway
    Note: Assigning/Moving a tunnel to a different Gateway is service affecting. The existing tunnel connection will terminate and a new tunnel from the newly assigned Gateway will be established.

    During the VeloCloud Edge configuration/activation process, each Edge is assigned a pair of cloud Gateways or a set of Partner Gateways, in accordance with the device configuration. If the Gateways used by the Edge are not the same Gateways which contain the Zscaler tunnels, the Edge will automatically build VCMP tunnels to the Gateways that connect to Zscaler in addition to the Gateways that are selected during the activation process. This ensures the Edge has a path to reach Zscaler.

Zscaler Setup Examples

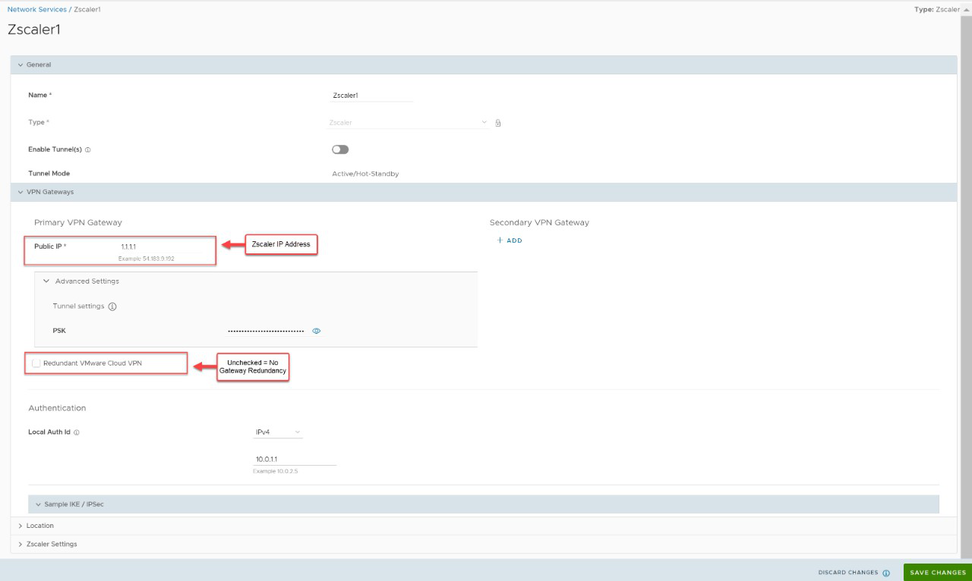

Example 1: Primary Zscaler tunnel to 1.1.1.1 with NO Redundant VeloCloud Cloud VPN Selected

Figure 29. Example 1



Figure 30. Example Topology

In this example, only one Zscaler VPN tunnel is created, and no Redundant VeloCloud Cloud VPN selected. A single Gateway (Primary Gateway in this case) selected based on the proximity to the remote VPN Gateway (as determined via Geo-IP lookup), will create an IPsec tunnel to the Zscaler VPN endpoint. Dependent on Business Policy configuration, traffic will flow from the Edge, to the Primary Gateway and then on to Zscaler. Even though the Edge always has VCMP tunnels to at least two Gateways, there is no redundancy in this design. Since the Redundant VeloCloud Cloud VPN checkbox is not selected, there will not be a backup Gateway tunnel to Zscaler. If either Zscaler or the primary Gateway fails or if the IPsec tunnel between the two goes down for any reason traffic to Zscaler will be dropped.

Example 2: Primary Zscaler tunnel to 1.1.1.1 with Redundant VeloCloud Cloud VPN Selected

Figure 31. Example 2



Figure 32. Example 2 Topology

In this example, only one Zscaler VPN tunnel is created, and the Redundant VeloCloud Cloud VPN checkbox is selected. Two Gateways selected based on the proximity to the remote VPN Gateway (as determined via Geo-IP lookup) that are the closest to the Zscaler location will build IPsec tunnels to Zscaler. Both of these tunnels are active, however all traffic to Zscaler will traverse through the Primary Gateway. If the Primary Gateway fails traffic will then shift to the Secondary Gateway. Since only a single Zscaler endpoint is defined if it goes down traffic to Zscaler will be dropped.

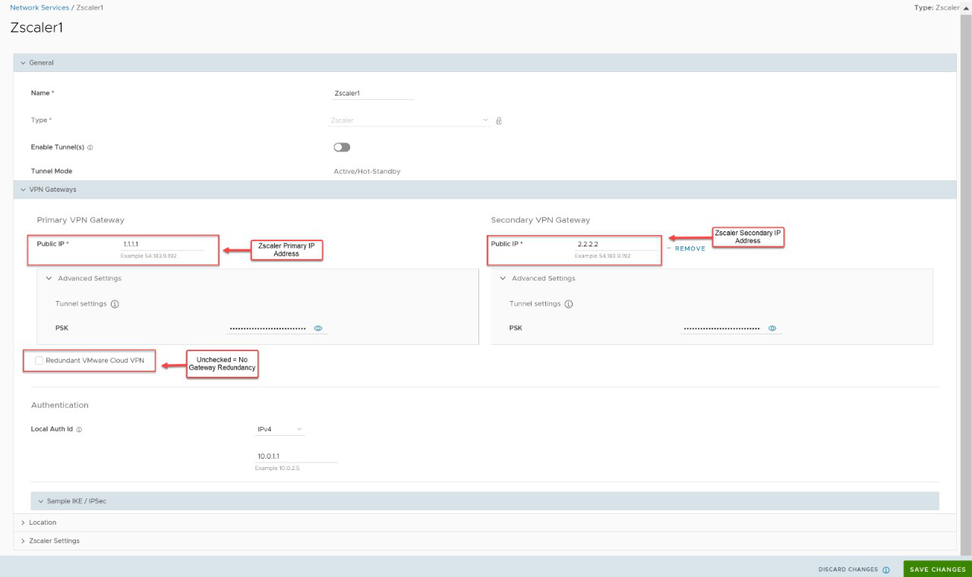

Example 3: Primary Zscaler tunnel to 1.1.1.1, Secondary Zscaler tunnel to 2.2.2.2 with NO Redundant VeloCloud Cloud VPN Selected

Figure 33. Example 3



Figure 34. Example Topology

In this example, redundant IPsec tunnels to Zscaler are configured in the Orchestrator by adding a secondary Zscaler IP address, however Redundant VeloCloud Cloud VPN checkbox is not selected. A single Gateway selected based on the proximity to the remote VPN Gateway (as determined via Geo-IP lookup), will create an IPsec tunnel to both Zscaler VPN endpoints. Both of these tunnels are active, but by configuration settings the Gateway knows which IPsec tunnel to Zscaler is the primary path and will send traffic through that tunnel. Zscaler does not mark primary or backup IPsec tunnels. Zscaler will simply return traffic via the Gateway that originated the request. Should the primary Zscaler location go down, traffic from the Gateway will shift to the secondary Zscaler IPsec tunnel. Since the Redundant VeloCloud Cloud VPN checkbox is not selected, there are no redundant Gateway connections to Zscaler. If the Gateway fails, then traffic to Zscaler will be dropped.

Example 4: Primary Zscaler tunnel to 1.1.1.1, Secondary Zscaler tunnel to 2.2.2.2 with Redundant VeloCloud VPN Selected

Figure 35. Example 4



Figure 36. Example 4 Topology

In this example, redundant IPsec tunnels to Zscaler are configured in the Orchestrator by adding a secondary Zscaler IP address and Redundant VeloCloud Cloud VPN checkbox is selected. Two Gateways selected based on the proximity to the remote VPN Gateway (as determined via Geo-IP lookup), will create IPsec tunnels to both Zscaler VPN endpoints. All of these tunnels are active, but by configuration settings the Gateways knows which of the two is the primary Gateway and which is secondary. The Gateways also know which of their IPsec tunnels to Zscaler is the primary path and which is the secondary path. Zscaler does not mark primary or backup IPsec tunnels. Zscaler will simply return traffic via the Gateway that originated the request. Should the primary Zscaler location go down, traffic from the primary Gateway will shift to the secondary Zscaler IPsec tunnel. Since the Redundant VeloCloud Cloud VPN checkbox is selected, if the primary Gateway fails traffic will shift to the secondary Gateway. The secondary Gateway will utilize the primary IPsec tunnel provided that path is available. If not, it will use the secondary IPsec tunnel to reach Zscaler.

Layer 7 Health Checks

When you establish an IPsec/GRE tunnel to a given Zscaler datacenter for Zscaler Internet Access (ZIA), the tunnel is established between the Edge or Gateway, to a virtual IP (VIP) on a Zscaler load balancer for ZIA. When the end user traffic from the branch reaches the load balancer, the load balancer distributes traffic to ZIA Public Service Edges. Dead Peer Detection (DPD) and GRE keepalives can only detect the availability to the public VIP on the load balancer (since it is the tunnel destination). The public VIP is a highly available endpoint and does not reflect the availability of a given ZIA Public Service Edge. Layer 7 health checking allows you to monitor performance and availability of ZIA Edges based on HTTP probes and allows you to failover to an alternate tunnel based on the results. The Edge or Gateway sends probe requests periodically to the HTTP probe URL (in the following format) if probe is activated.

http://gateway.<zscaler_cloud>.net/vpntest

The probe URL is configurable in the Orchestrator, but the probe interval and number of retries are currently not editable in the Orchestrator. If the probe fails consecutively for the number of retries defined, the tunnel is marked down, and the traffic will failover to the secondary tunnel if defined. The probe failure could be either because the https response (200 OK) is not received, or the latency is greater than the defined threshold. If conditional backhaul is configured in an Edge, probe failures to both primary and secondary tunnel will trigger traffic failover to the backhaul hub configured. When the probe is UP again, traffic will fall back to the CSS tunnel. If Redundant Cloud VPN is configured for Non SD-WAN Destination (NSD) via Gateway, probe failures to both primary and secondary tunnel from primary gateway will trigger traffic failover to secondary gateway. When the probe in the primary gateway is UP again, traffic will fall back to the CSS tunnel on the primary gateway.

Zscaler and VeloCloud SD-WAN Deployment Configurations
Describes the configuration steps for integrating Zscaler Internet Access (ZIA) and VeloCloud SD-WAN:
  1. Configure Zscaler Internet Access (ZIA)- Create an account, add VPN credentials, add a location.
  2. Create and Configure a Non SD-WAN Destination.
  3. Add a Non SD-WAN Destination to the Configuration Profile.
  4. Configure Business Priority Rules.

For additional information, see https://www.zscaler.com/resources/solution-briefs/partner-vmware-sdwan-deployment-guide.pdf. This guide provides examples for configuring Zscaler Internet Access and VeloCloud Edge Cloud Orchestrator.

Layer 7 Health Check Events

Event Displayed on Orchestrator UI as Severity Notification Configurable Generated By Generated When
EDGE_NVS_TUNNEL_UP Edge Direct IPsec tunnel up INFO N Orchestrator A Cloud Security Service tunnel or NSD via Edge tunnel is up.
EDGE_NVS_TUNNEL_DOWN Edge Direct IPsec tunnel down INFO N Orchestrator A Cloud Security Service tunnel or NSD via Edge tunnel is down.
VPN_DATACENTER_STATUS VPN Tunnel state change NOTICE N Gateway The VPN Tunnel state is changed.
For information about events related to cloud security services, see Monitor Cloud Security Services Events.
Configure a Non SD-WAN Destination of Type Zscaler

To create and configure a Non SD-WAN Destination of type Zscaler, perform the following steps:

  1. From the navigation panel in the Orchestrator, go to Configure > Network Services . The Services screen appears.
  2. In the Non SD-WAN Destinations via Gateway area, select the +New button.

    The New Non SD-WAN Destinations via Gateway dialog box appears.

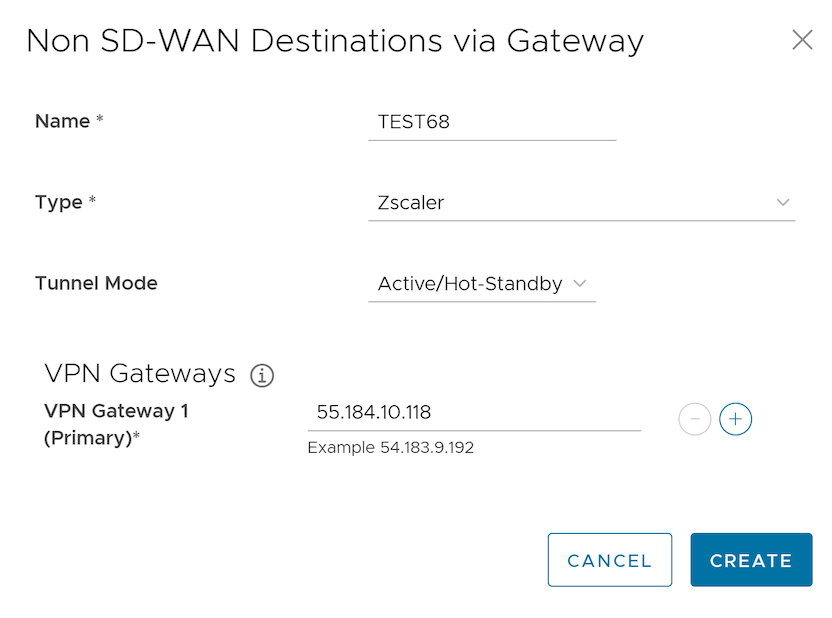

    Figure 37. Configuring Zscaler
  3. In the Name text box, enter the name for the Non SD-WAN Destination.
  4. From the Type drop-down menu, select Zscaler.
  5. Enter the IP address for the Primary VPN Gateway (and the Secondary VPN Gateway if necessary) and select Next. A Non SD-WAN Destination of type Zscaler is created and a dialog box for your Non SD-WAN Destination appears.

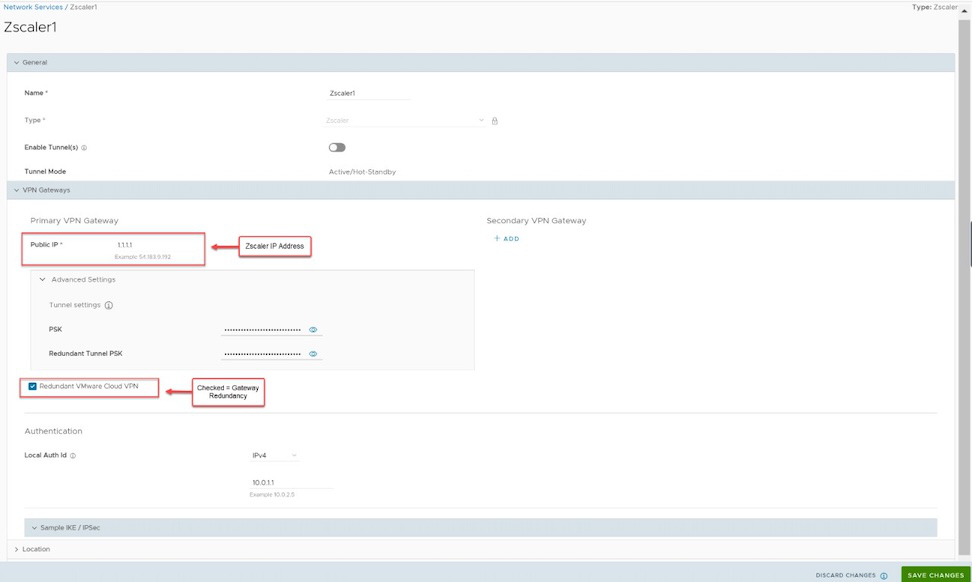

    Figure 38. Additional Configuration

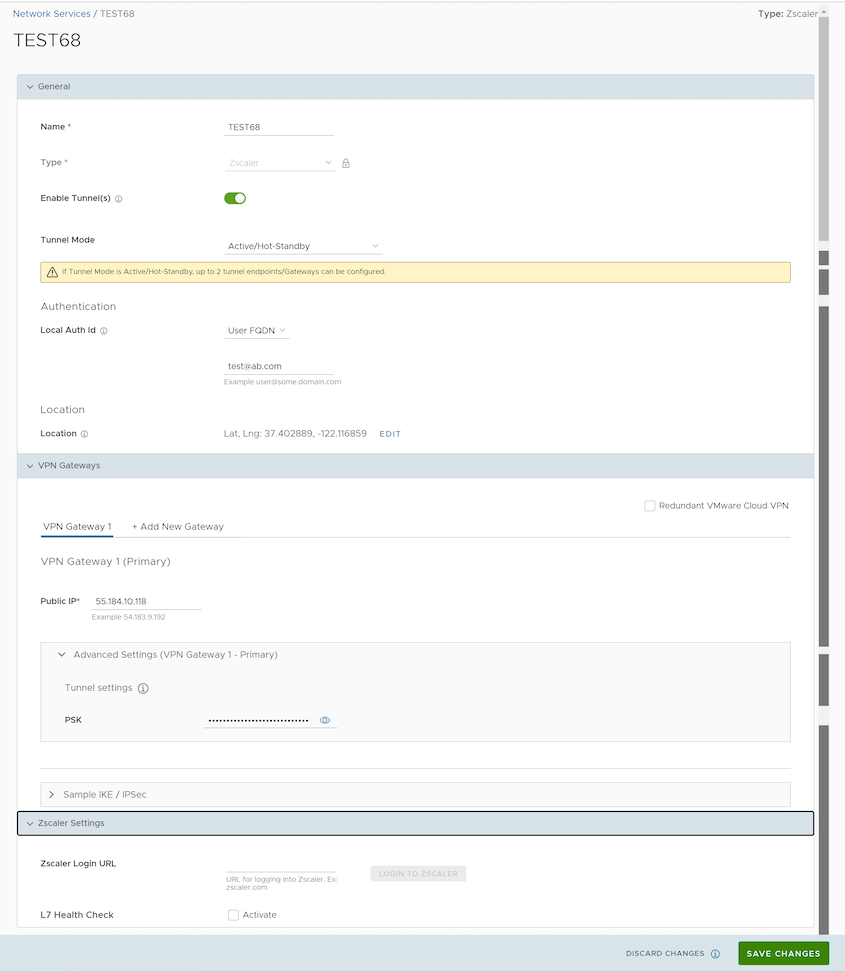

    Figure 39. Configuring Zscaler
  6. To configure tunnel settings for the Non SD-WAN Destination’s Primary VPN Gateway, select the Advanced Settings expand button.
  7. In the Primary VPN Gateway area, under Tunnel Settings, you can configure the Pre-Shared Key (PSK), which is the security key for authentication across the tunnel. The Orchestrator generates a PSK by default. If you want to use your own PSK or password, then you can enter it in the textbox.
    Note: Starting from the 4.5 release, the use of the special character "<" in the password is no longer supported. In cases where users have already used "<" in their passwords in previous releases, they must remove it to save any changes on the page.
  8. If you want to create a Secondary VPN Gateway for this site, then select the +Add button next to VPN Gateway 1. In the pop-up window, enter the IP address of the VPN Gateway 2 and select Save Changes. The VPN Gateway 2 will be created immediately for this site and will provision a VMware VPN tunnel to this Gateway.
  9. Select the Redundant VMware Cloud VPN checkbox to add redundant tunnels for each VPN Gateway. Any changes made to PSK of Primary VPN Gateway will also be applied to the redundant VPN tunnels, if configured. After modifying the tunnel settings of the VPN Gateway 1, save the changes and then select Sample IKE/IPSec to view the updated tunnel configuration.
  10. Under the Location area, select the Edit link to update the location for the configured Non SD-WAN Destination. The latitude and longitude details are used to determine the best Edge or Gateway to connect to in the network.
  11. Local authentication ID defines the format and identification of the local gateway. From the Local Auth Id drop-down menu, choose from the following types and enter a value that you determine:
    • FQDN- The Fully Qualified Domain Name or hostname. For example, google.com.
    • User FQDN- The User Fully Qualified Domain Name in the form of email address. For example, This email address is being protected from spambots. You need JavaScript enabled to view it..
    • IPv4- The IPv4 address used to communicate with the local gateway.
    • IPv6- The IPv6 address used to communicate with the local gateway.
    Note:

    For Zscaler Non SD-WAN Destination, it is recommended to use FQDN or User FQDN as the local authentication ID.

  12. When the Zscaler Cloud Security Service is selected as the Service type, to determine and monitor the health of Zscaler Server, you can configure additional settings such as Zscaler Cloud and Layer 7 (L7) Health check.
    1. Select the L7 Health Check checkbox to enable L7 Health check for the Zscaler Cloud Security Service provider, with default probe details (HTTP Probe interval = 5 seconds, Number of Retries = 3, RTT Threshold = 3000 milliseconds). By default, L7 Health Check is deactivated.
      Note: Configuration of health check probe details is not supported.
    2. From the Zscaler Cloud drop-down menu, select a Zscaler cloud service or enter the Zscaler cloud service name in the textbox.
  13. To login to Zscaler portal from here, enter the login URL in the Zscaler Login URL textbox and then select Login to Zscaler. This will redirect you to the Zscaler Admin portal of the selected Zscaler cloud. The Login to Zscaler button will be enabled if you have entered the Zscaler login URL.

    For additional information, see Configure a Cloud Security Service.

  14. Check the Enable Tunnel(s) checkbox to initiate the tunnel from the Gateway to the Zscaler VPN gateways.
  15. Select Save Changes.
    Note: A Zscaler tunnel is established with IPsec Encryption Algorithm as NULL and Authentication Algorithm as SHA-256 irrespective of whether Customer Export Restriction is activated or deactivated.

The configured network service appears under the Non SD-WAN Destinations via Gateway area in the Network Services window. You can associate the network service to a Profile. For additional information, see Associate a Non SD-WAN Destination to a Configuration Profile.

You can view the L7 health status along with the L7 health check RTT from Monitor > Network Services > Non SD-WAN Destinations via Gateway > Service Status .
Figure 40. Displaying Network Services
Associate a Non SD-WAN Destination to a Configuration Profile

After configuring a Non SD-WAN Destination of type Zscaler in Orchestrator, associate the Non SD-WAN Destination to the desired Profile in order to establish the tunnels between Gateways and Zscaler VPN Gateways. To associate a Non SD-WAN Destination to a configuration profile, perform the following steps:

  1. Login to the Orchestrator as an Enterprise user.
  2. In the SD-WAN service of the Enterprise portal, go to Configure > Profiles. The Configuration Profiles page appears.
  3. Select a profile you want to associate your Non SD-WAN Destination of type Zscaler and select the View link under the Device column. The Device Settings page for the selected profile appears.
  4. Under VPN Services category, navigate to Cloud VPN > Edge to Non SD-WAN Sites, select the Enable Edge to Non SD-WAN via Gateway checkbox.
    Figure 41. Associating the Destination to a Profile
  5. From the menu, select your Non SD-WAN Destination of type Zscaler to establish VPN connection between the branch and the Zscaler Non SD-WAN Destination.
  6. Select Save Changes.
Configure Zscaler

This section discusses Zscaler configuration.

Complete the following these steps on the Zscaler website. From there, you will create a Zscaler account, add VPN credentials, and add a location.

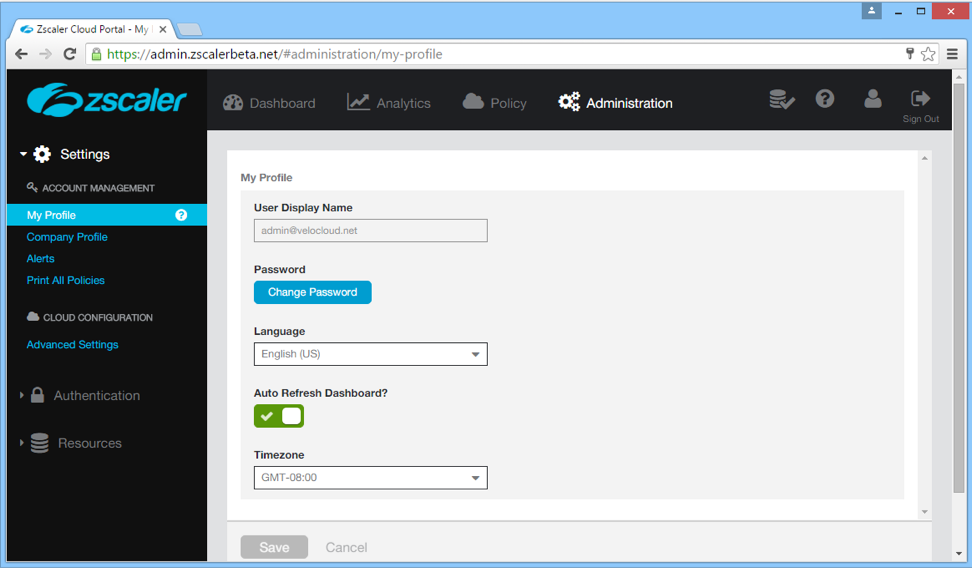

  1. From the Zscaler website, create a Zscaler web security account.
    Figure 42. Creating a Security Account
  2. Set up your VPN Credentials:

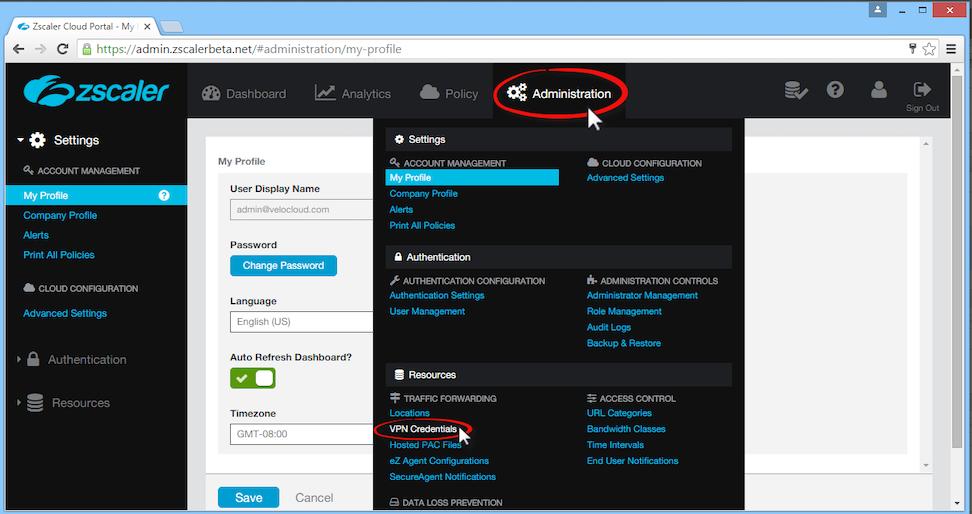

    1. At the top of the Zscaler screen, hover over the Administration option to display the drop down menu.
    2. Under Resources, select VPN Credentials.
      Figure 43. Establishing Credentials

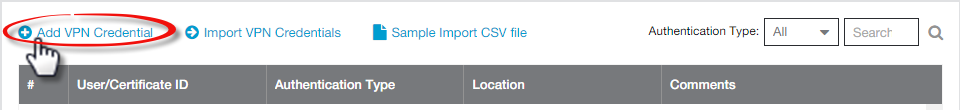

    3. Select Add VPN Credentials at the top left corner.
      Figure 44. Adding VPN Credentials

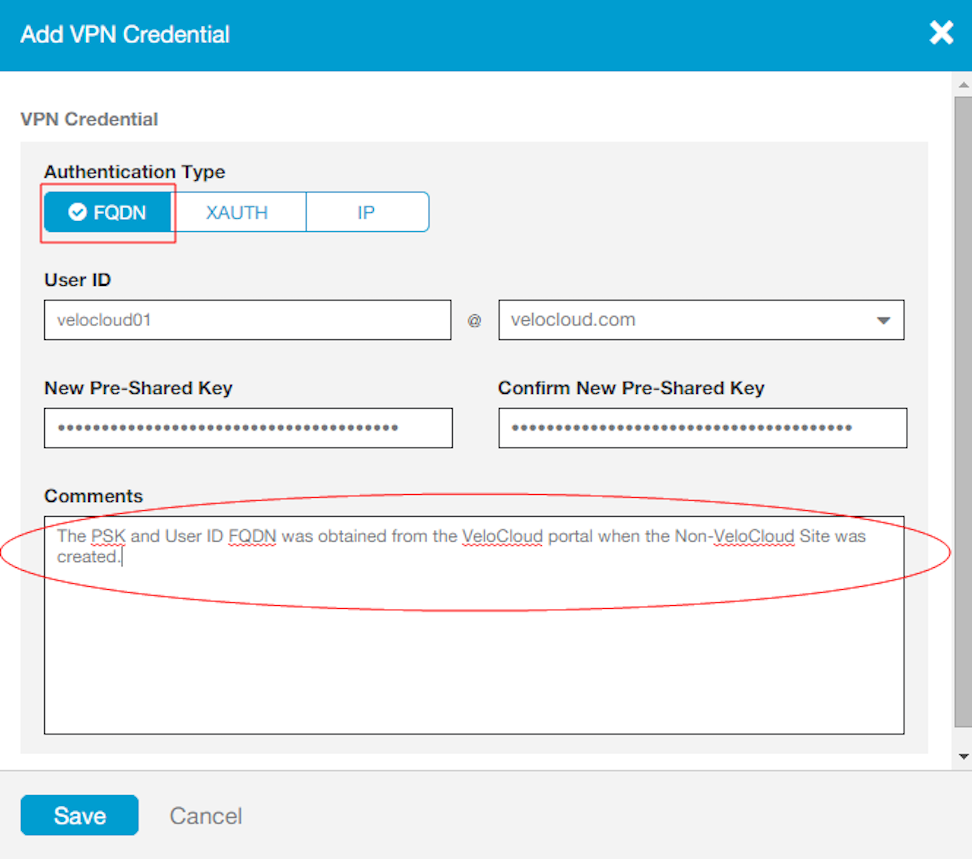

    4. From the Add VPN Credential dialog box:
      1. Choose FQDN as the Authentication Type.
      2. Type the User ID and Pre-Shared Key (PSK). You obtained this information from your Non SD-WAN Destination's dialog box in the Orchestrator.
      3. If necessary, type in any comments in the Comments section.
        Figure 45. Adding Comments
      4. Select Save.
  3. Assign a location:
    1. At the top of the Zscaler screen, hover over the Administration option to display the drop-down menu.
    2. Under Resources, select Locations.
    3. Select Add Location at the top left corner.
    4. In the Add Location dialog box:
      1. Complete the text boxes in the Location area (Name, Country, State/Province, Time Zone).
      2. Choose None from the Public IP Addresses drop-down menu.
      3. In the VPN Credentials menu, select the credential you just created.
      4. Select Done.
      5. Select Save.

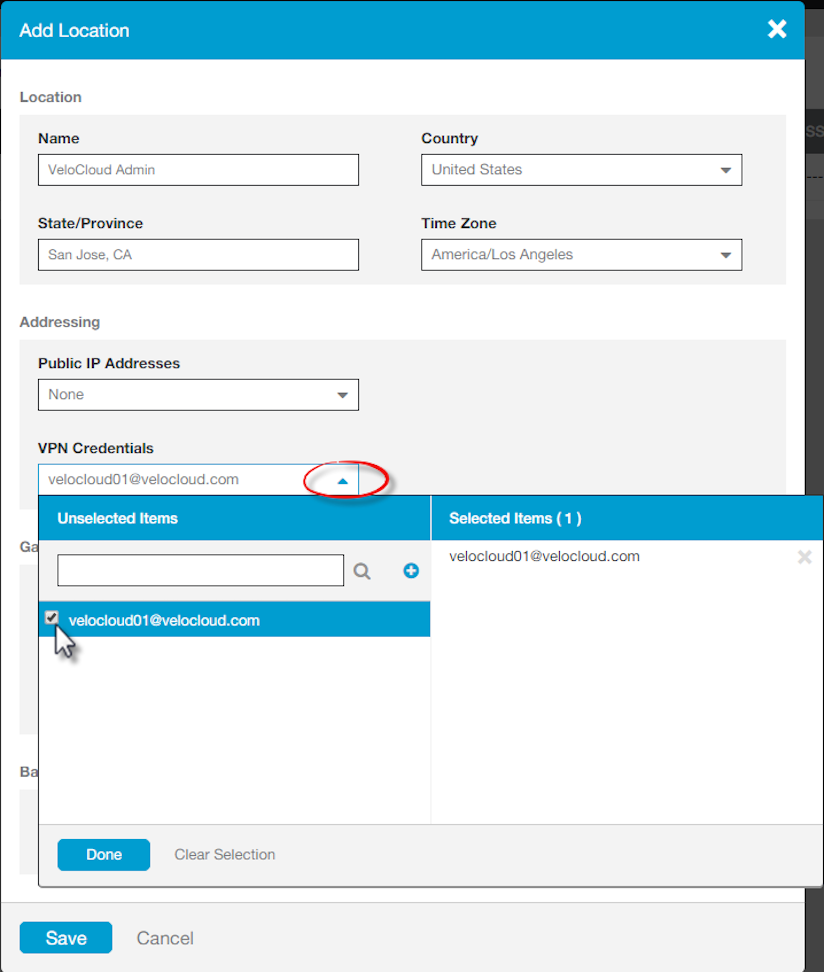

        Figure 46. Adding the Location
Configure Business Priority Rules

Define the business policy in your Orchestrator to determine web security screening. The business policy matches parameters such as IP addresses, ports, VLAN IDs, interfaces, domain names, protocols, operating system, object groups, applications, and DSCP tags. When a data packet matches the match conditions, the associated action or actions are taken. If a packet does not match any parameters, then a default action is taken on the packet.

You can configure Business Policy rules using the Business Policy tab in the Profile Configuration page. Optionally, you can also override the Profile Business Policy rules at the Edge-level. To create a business policy at the Edge level:
  1. In the SD-WAN service of the Enterprise portal, select Configure > Edges . The Edges page displays the existing Edges.
  2. Select the link to an Edge, and then select the Business Policy tab. Alternatively, you can select the View link in the Business Policy column of the Edge. The Configure Business Policy page appears.
    Figure 47. Configuring a Business Policy
  3. The business policy rules and other settings inherited from the associated Profile are displayed under the Rules From Profile section of the Configure Business Policy page. You can edit the existing rules or add new rules for the selected Edge, by selecting the Override check box. The new and overridden rules appear in the Edge Overrides section.
  4. To create a new business policy rule, under Business Policy Rules, select +ADD. The Add Rule dialog box appears.
    Figure 48. Adding a Rule
    1. Enter the Rule Name and select the IP version. You can configure the Source and Destination IP addresses according to the selected IP version.
    2. Under the Match area, configure the match criteria for Source, Destination, and Application traffic.
    3. In the Action area, configure the actions for the rule.
      Note: VeloCloud recommends configuring a business policy rules to backhaul web traffic, using Port 80 and 443. You can send all Internet traffic to Backhaul Zscaler.
    4. After configuring the required settings, select Create.

For additional information, see Create Business Policy Rule.

Configure a Non SD-WAN Destination of Type Generic IKEv1 Router (Route Based VPN)

Follow the below steps to configure a Non SD-WAN Destination of type Generic IKEv1 Router (Route Based VPN) in the Orchestrator.

  1. Once you have created a Non SD-WAN Destination configuration of the type Generic IKEv1 Router (Route Based VPN), you are redirected to an additional configuration options page:
    Figure 49. Configuring an IKEv1 Non SD-WAN Destination



    Figure 50. Configuring Details
  2. You can configure the following tunnel settings:
    Table 12. Tunnel Settings Option Descriptions
    Option Description
    General
    Name You can edit the previously entered name for the Non SD-WAN Destination.
    Type Displays the type as Generic IKEv1 Router (Route Based VPN). You cannot edit this option.
    Enable Tunnel(s) Select the toggle button to initiate the tunnel(s) from the SD-WAN Gateway to the Generic IKEv1 Router VPN Gateway.
    Tunnel Mode Active/ Hot-Standbymode supports to set up a maximum of 2 tunnel endpoints or Gateways.
    Active/Activemode supports to set up a maximum of 4 tunnel endpoints or Gateways. All Active tunnels can send and receive traffic through ECMP.
    ECMP Load Sharing Method Flow Load Based (Default) Flow load based algorithm maps the new flow to the path with least number of flows mapped among the available paths to the destination.
    Hash Load Based algorithm takes input parameters from 5-tuple (SrcIP, DestIP, SrcPort, DestPort, Protocol). These inputs can be any or all or any subset of this tuple based on user configuration. Flow is mapped to the path based on hash value with selected inputs.
    VPN Gateway 1 Enter a valid IP address.
    VPN Gateway 2 Enter a valid IP address. This field is optional.
    VPN Gateway 3 Enter a valid IP address. This field is optional.
    VPN Gateway 4 Enter a valid IP address. This field is optional.
    Public IP Displays the IP address of the Primary VPN Gateway.
    PSK The Pre-Shared Key (PSK) is the security key for authentication across the tunnel. The Orchestrator generates a PSK by default. If you want to use your own PSK or password, enter it in the text box.
    Note: Starting from the 4.5 release, the use of the special character "<" in the password is no longer supported. In cases where users have already used "<" in their passwords in previous releases, they must remove it to save any changes on the page.
    Encryption Select either AES-128 or AES-256 as the AES algorithm key size to encrypt data. The default value is AES-128.
    DH Group Select the Diffie-Hellman (DH) Group algorithm from the drop-down menu. This is used for generating keying material. The DH Group sets the strength of the algorithm in bits. The supported DH Groups are 2, 5, and 14. The default value is 2.
    PFS Select the Perfect Forward Secrecy (PFS) level for additional security. The supported PFS levels are deactivated, 2, and 5. The default value is 2.
    Redundant VMware Cloud VPN Select the check box to add redundant tunnels for each VPN Gateway. Changes made to Encryption, DH Group, or PFS of Primary VPN Gateway also apply to the redundant VPN tunnels, if configured.
    Secondary VPN Gateway Select the Add button, and then enter the IP address of the Secondary VPN Gateway. Select Save Changes.

    The Secondary VPN Gateway is immediately created for this site and provisions a VeloCloud VPN tunnel to this Gateway.
    Local Auth Id Local authentication ID defines the format and identification of the local gateway. From the drop-down menu, choose from the following types and enter a value:
    • FQDN- The Fully Qualified Domain Name or hostname. For example: vmware.com
    • User FQDN- The User Fully Qualified Domain Name in the form of email address. For example: This email address is being protected from spambots. You need JavaScript enabled to view it.
    • IPv4- The IP address used to communicate with the local gateway.
    • IPv6- The IP address used to communicate with the local gateway.
    Note:
    • If you do not specify a value, Default is used as the local authentication ID.
    • The default local authentication ID value is the Gateway Interface Public IP.
    Sample IKE / IPsec Select to view the information needed to configure the Non SD-WAN Destination Gateway. The Gateway administrator should use this information to configure the Gateway VPN tunnel(s).
    Location Select Edit to set the location for the configured Non SD-WAN Destination. The latitude and longitude details are used to determine the best Edge or Gateway to connect to in the network.
    Site Subnets Use the toggle button to activate or deactivate the Site Subnets. Select Add to add subnets for the Non SD-WAN Destination. If you do not need subnets for the site, select the subnet and select Delete.
    Note:
    • To support the datacenter type of Non SD-WAN Destination, besides the IPsec connection, you must configure Non SD-WAN Destination local subnets into the VeloCloud system.
    • If there are no site subnets configured, deactivate Site Subnets to activate the tunnel.
  3. Select Save Changes.

Configure a Non SD-WAN Destination of Type Generic Firewall (Policy Based VPN)

Follow the below steps to configure a Non SD-WAN Destination of type Generic Firewall (Policy Based VPN) in the Orchestrator.

  1. Once you have created a Non SD-WAN Destination configuration of the type Generic Firewall (Policy Based VPN), you are redirected to an additional configuration options page:

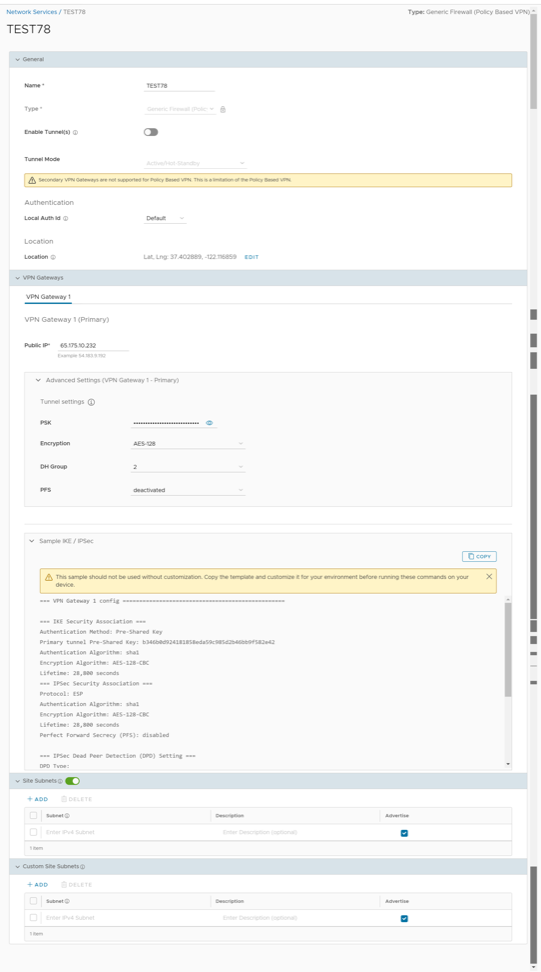

    Figure 51. Configuring a Generic Firewall as a Non SD-WAN Destination



    Figure 52. Additional Configuration
    Note: Secondary VPN Gateway is not supported for the Generic Firewall (Policy Based VPN) service type.
  2. You can configure the following tunnel settings:
    Table 13. Tunnel Settings Option Descriptions
    Option Description
    General
    Name You can edit the previously entered name for the Non SD-WAN Destination.
    Type Displays the type as Generic Firewall (Policy Based VPN). You cannot edit this option.
    Enable Tunnel(s) Select the toggle button to initiate the tunnel(s) from the SD-WAN Gateway to the Generic Firewall VPN Gateway.
    Tunnel Mode Active/ Hot-Standbymode supports to set up a maximum of 2 tunnel endpoints or Gateways.
    VPN Gateway 1 Enter a valid IP address.
    Public IP Displays the IP address of the Primary VPN Gateway.
    PSK The Pre-Shared Key (PSK) is the security key for authentication across the tunnel. The Orchestrator generates a PSK by default. If you want to use your own PSK or password, enter it in the text box.
    Note: Starting from the 4.5 release, the use of the special character "<" in the password is no longer supported. In cases where users have already used "<" in their passwords in previous releases, they must remove it to save any changes on the page.
    Encryption Select either AES-128 or AES-256 as the AES algorithm key size to encrypt data. The default value is AES-128.
    DH Group Select the Diffie-Hellman (DH) Group algorithm from the drop-down menu. This is used for generating keying material. The DH Group sets the strength of the algorithm in bits. The supported DH Groups are 2, 5, and 14. The default value is 2.
    PFS Select the Perfect Forward Secrecy (PFS) level for additional security. The supported PFS levels are deactivated, 2, and 5. The default value is deactivated.
    Local Auth Id Local authentication ID defines the format and identification of the local gateway. From the drop-down menu, choose from the following types and enter a value:
    • FQDN- The Fully Qualified Domain Name or hostname. For example: vmware.com
    • User FQDN- The User Fully Qualified Domain Name in the form of email address. For example: This email address is being protected from spambots. You need JavaScript enabled to view it.
    • IPv4- The IP address used to communicate with the local gateway.
    • IPv6- The IP address used to communicate with the local gateway.
    Note:
    • If you do not specify a value, Default is used as the local authentication ID.
    • The default local authentication ID value is the Gateway Interface Local IP.
    Sample IKE / IPsec Select to view the information needed to configure the Non SD-WAN Destination Gateway. The Gateway administrator should use this information to configure the Gateway VPN tunnel(s).
    Note: Currently, the supported IKE version is IKEv1.
    Location Select Edit to set the location for the configured Non SD-WAN Destination. The latitude and longitude details are used to determine the best Edge or Gateway to connect to in the network.
    Site Subnets Use the toggle button to activate or deactivate the Site Subnets. Select Add to add subnets for the Non SD-WAN Destination. If you do not need subnets for the site, select the subnet and select Delete.
    Note:
    • To support the datacenter type of Non SD-WAN Destination, besides the IPsec connection, you must configure Non SD-WAN Destination local subnets into the VMware system.
    • If there are no site subnets configured, deactivate Site Subnets to activate the tunnel.
    Custom Site Subnets Use this section to override the source subnets routed to this VPN device. Normally, source subnets are derived from the Edge LAN subnets routed to this device.
  3. Select Save Changes.

Configure Non SD-WAN Destinations via Edge

VeloCloud Edge allows the Enterprise users to define and configure a Non SD-WAN Destination instance in order to establish a secure IPSec v4 and v6 tunnels directly from an Edge to a Non SD-WAN Destination. This section also allows you to configure Cloud Security Services.
  1. In the SD-WAN service of the Enterprise portal, go to Configure > Network Services , and then under Non SD-WAN Destinations, expand Non SD-WAN Destinations via Edge.

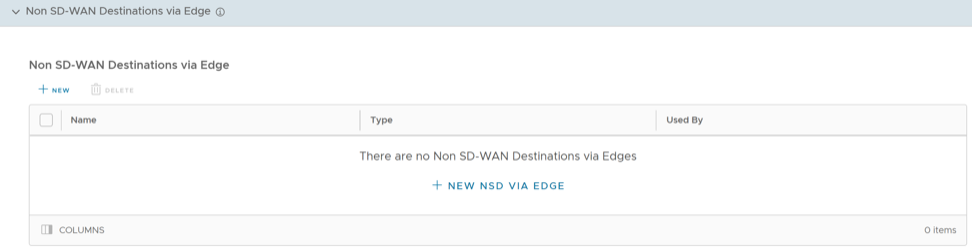

    Figure 53. Non SD-WAN Destinations via Edge Screen
  2. In the Non SD-WAN Destinations via Edge area, select New or New NSD via Edge option to create a new Non SD-WAN Destination.
    Note: The New NSD via Edge option appears only when there are no items in the table.
  3. Following configuration options are available:
    Note: To support the datacenter type of Non SD-WAN Destination, besides the IKE/IPSec settings, you must configure Non SD-WAN Destination local subnets into the system.
    Figure 54. Non SD-WAN Destination Local Subnets
    Table 14. Non SD-WAN Destination Local Subnets Options
    Option Description
    General
    Service Name Enter a name for the Non SD-WAN Destination. This field is mandatory.
    Service Type Select the service type from the drop-down menu. The available options are Generic IKEv1 Router (Route Based VPN), Generic IKEv2 Router (Route Based VPN), and Microsoft Azure Virtual Wan. This field is mandatory.
    Tunnel mode Select a tunnel mode from the drop-down menu. The available options are Active/Active, Active/Hot-Standby, and Active/Standby.
    IKE/IPSec Settings
    IP Version Select an IP version (IPv4 or IPv6) of the current Non SD-WAN Destination from the drop-down menu.
    Primary VPN Gateway
    Public IP Enter a valid IPv4 or IPv6 address. This field is mandatory.
    View advanced settings for IKE Proposal: Expand this option to view the following fields.
    Encryption Select the AES algorithm key size from the drop-down list, to encrypt data. The available options are AES 128, AES 256, AES 128 GCM, AES 256 GCM, and Auto. The default value is AES 128.
    DH Group Select the Diffie-Hellman (DH) Group algorithm from the drop-down list. This is used for generating keying material. The DH Group sets the strength of the algorithm in bits. The supported DH Groups are 2, 5, 14, 15, 16, 19, 20, and 21. The default value is 14.
    Hash Select one of the following supported Secure Hash Algorithm (SHA) functions from the drop-down list:
    • SHA 1
    • SHA 256
    • SHA 384
      Note: This value is not available for the Microsoft Azure Virtual Wan Service Type.
    • SHA 512
      Note: This value is not available for the Microsoft Azure Virtual Wan Service Type.
    • Auto

    The default value is SHA 256.
    IKE SA Lifetime(min) Enter the time when Internet Key Exchange (IKE) rekeying is initiated for Edges. The minimum IKE lifetime is 10 minutes and maximum is 1440 minutes. The default value is 1440 minutes.
    Note: Rekeying must be initiated before 75-80 % of lifetime expires.
    DPD Timeout(sec) Enter the DPD timeout value. The DPD timeout value will be added to the internal DPD timer, as described below. Wait for a response from the DPD message before considering the peer to be dead (Dead Peer Detection).
    Prior to the 5.1.0 release, the default value is 20 seconds. For the 5.1.0 release and later, see the list below for the default value.
    • Library Name: Quicksec
    • Probe Interval: Exponential (0.5 sec, 1 sec, 2 sec, 4 sec, 8 sec, 16 sec)
    • Default Minimum DPD Interval: 47.5sec (Quicksec waits for 16 seconds after the last retry. Therefore, 0.5+1+2+4+8+16+16 = 47.5).
    • Default Minimum DPD interval + DPD Timeout(sec): 67.5 sec
    Note: For the 5.1.0 release and later, you cannot deactivate DPD by configuring the DPD timeout timer to 0 seconds. The DPD timeout value in seconds gets added into the default minimum value of 47.5 seconds.
    View advanced settings for IPsec Proposal: Expand this option to view the following fields.
    Encryption Select the AES algorithm key size from the drop-down list, to encrypt data. The available options are None, AES 128, and AES 256. The default value is AES 128.
    PFS Select the Perfect Forward Secrecy (PFS) level for additional security. The supported PFS levels are 2, 5, 14, 15, 16, 19, 20, and 21. The default value is 14.
    Hash Select one of the following supported Secure Hash Algorithm (SHA) functions from the drop-down list:
    • SHA 1
    • SHA 256
    • SHA 384
      Note: This value is not available for the Microsoft Azure Virtual Wan Service Type.
    • SHA 512
      Note: This value is not available for the Microsoft Azure Virtual Wan Service Type.

    The default value is SHA 256.
    IPsec SA Lifetime(min) Enter the time when Internet Security Protocol (IPsec) rekeying is initiated for Edges. The minimum IPsec lifetime is 3 minutes and maximum is 480 minutes. The default value is 480 minutes.
    Note: Rekeying must be initiated before 75-80 % of lifetime expires.
    Secondary VPN Gateway
    Add- Select this option to add a secondary VPN Gateway. Following fields are displayed.
    Public IP Enter a valid IPv4 or IPv6 address.
    Remove Deletes the Secondary VPN Gateway.
    Tunnel settings are the same as Primary VPN Gateway Select this check box if you want to use the same settings for Primary and Secondary Gateways. You can choose to enter the settings for the Secondary VPN Gateway manually.
    Site Subnets
    Add Select this option to add a subnet and a description for the Non SD-WAN Destination.
    Delete Select this option to delete the selected Subnet
  4. Select Save.
    Note: Non SD-WAN Destination via Edge acts as an initiator for forming the tunnel. However, it does not support this action as a responder.
  5. In the Cloud Security Services area, select New.

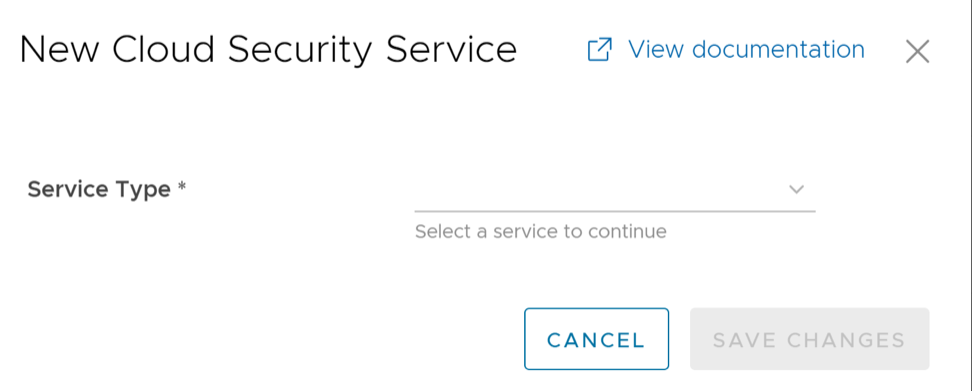

    Figure 55. Cloud Security Services > New
    1. In the New Cloud Security Service window, select a service type from the drop-down menu. VeloCloud SD-WAN supports the following CSS types:
      • Generic Cloud Security Service
      • Symantec / Palo Alto Cloud Security Service
      • Zscaler Cloud Security Service
    2. If you have selected either "Generic" or "Symantec / Palo Alto" Cloud Security Service as the Service Type, then configure the following fields, and then select Save Changes.
      Table 15. Symantec / Palo Alto Cloud Security Service Options
      Option Description
      Service Name Enter a descriptive name for the cloud security service.
      Primary Point-of-Presence/Server Enter the IP address or hostname for the Primary server.
      Secondary Point-of-Presence/Server Enter the IP address or hostname for the Secondary server. This field is optional.
    3. If you have selected Zscaler Cloud Security Service as the Service Type, then configure the following fields, and then select Save Changes.
      Table 16. Zscaler Cloud Security Service Option
      Option Description
      Service Name Enter a descriptive name for the cloud security service.
      Automate Cloud Service Deployment Select the check box to choose automation deployment.
      URL for logging in to Zscaler You can choose to use the existing Zscaler URL from the drop-down list or enter a new URL.
      Primary Server Enter the IP address or hostname for the Primary server.
      Secondary Server Enter the IP address or hostname for the Secondary server. This field is optional.
      L7 Health Check Select the check box to monitor the health of Zscaler Server.
      Note: For a given Edge/Profile, a user cannot override the L7 Health Check parameters configured in the Network Services.
      HTTP Probe Interval Displays the duration of the interval between individual HTTP probes. The default probe interval is 5 seconds.
      Number of Retries Select the number of retries allowed before marking the cloud service as DOWN. The default value is 3.
      RTT Threshold The Round Trip Time (RTT) threshold, expressed in milliseconds, is used to calculate the cloud service status. The cloud service is marked as DOWN if the measured RTT is above the configured threshold. The default value is 3000 milliseconds.
      Zscaler Login URL Enter the login URL and then select Login to Zscaler. This will redirect you to the Zscaler Admin portal of the selected Zscaler cloud.
      Note: The Login to Zscaler link is activated only if you enter the Zscaler login URL.
    Note: For additional information, see Monitor Cloud Security Services.
  6. Following are the other options available under the Non SD-WAN Destinations via Edge section:
    Table 17. Non SD-WAN Destinations via Edge Options
    Option Description
    Delete Select an item and select this option to delete it.
    Columns Select the columns to be displayed or hidden on the page.
    Note: Select the information icon at the top of the table to view the Conceptual Diagram, and then hover across the diagram for additional details.
  7. Configure tunnel settings for your Non SD-WAN Destination. For additional information, see:

    Associate your Non SD-WAN Destination to a Profile or Edge.

    For additional information, see Configure Tunnel Between Branch and Non SD-WAN Destinations via Edge.

    Configure Tunnel parameters (WAN link selection and Per tunnel credentials) at the Edge level. For additional information, see VeloCloud SASE Global Settings Guide.

    Configure Business Policy. Configuring business policy is an optional procedure for Non SD-WAN Destinations via Edge. If there are no Non SD-WAN Destinations configured then you can redirect the Internet traffic via business policy. For additional information, see Create Business Policy Rule.

Configure a Non SD-WAN Site of Type Generic IKEv1 Router via Edge

This topic describes how to configure a Non SD-WAN Destination of type Generic IKEv1 Router (Route Based VPN) through Edge in Orchestrator.
  1. In the SD-WAN service of the Enterprise portal, go to Configure > Network Services . The Network Services screen appears.
  2. In the Non SD-WAN Destinations via Edge area, select the New button. The Non SD-WAN Destinations via Edge dialog box appears.
    Figure 56. Generic IKEv1 Router Configuration
  3. In the Service Name text box, enter a name for the Non SD-WAN Destination.
  4. From the Service Type drop-down menu, select Generic IKEv1 Router (Route Based VPN) as the IPSec tunnel type.
  5. Select the IKE/IPSec Settings tab and configure the following parameters:
    Table 18. IKE/IPSec Settings Options
    Option Description
    IP Version Select an IP version (IPv4 or IPv6) of the current Non SD-WAN Destination from the drop-down menu.
    Primary VPN Gateway
    Public IP Enter a valid IPv4 or IPv6 address. This field is mandatory.
    View advanced settings for IKE Proposal: Expand this option to view the following fields.
    Encryption Select the AES algorithm key size from the drop-down list, to encrypt data. The available options are AES 128, AES 256, AES 128 GCM, AES 256 GCM, and Auto. The default value is AES 128.
    DH Group Select the Diffie-Hellman (DH) Group algorithm from the drop-down list. This is used for generating keying material. The DH Group sets the strength of the algorithm in bits. The supported DH Groups are 2, 5, 14, 15, 16, 19, 20, and 21. The default value is 14.
    Hash Select one of the following supported Secure Hash Algorithm (SHA) functions from the drop-down list:
    • SHA 1
    • SHA 256
    • SHA 384
      Note: This value is not available for the Microsoft Azure Virtual Wan Service Type.
    • SHA 512
      Note: This value is not available for the Microsoft Azure Virtual Wan Service Type.
    • Auto
    The default value is SHA 256.
    IKE SA Lifetime(min) Enter the time when Internet Key Exchange (IKE) rekeying is initiated for Edges. The minimum IKE lifetime is 10 minutes and maximum is 1440 minutes. The default value is 1440 minutes.
    Note: Rekeying must be initiated before 75-80 % of lifetime expires.
    DPD Timeout(sec) Enter the DPD timeout value. The DPD timeout value will be added to the internal DPD timer, as described below. Wait for a response from the DPD message before considering the peer to be dead (Dead Peer Detection).
    Prior to the 5.1.0 release, the default value is 20 seconds. For the 5.1.0 release and later, see the list below for the default value.
    • Library Name: Quicksec
    • Probe Interval: Exponential (0.5 sec, 1 sec, 2 sec, 4 sec, 8 sec, 16 sec)
    • Default Minimum DPD Interval: 47.5sec (Quicksec waits for 16 seconds after the last retry. Therefore, 0.5+1+2+4+8+16+16 = 47.5).
    • Default Minimum DPD interval + DPD Timeout(sec): 67.5 sec
    Note: For the 5.1.0 release and later, you cannot deactivate DPD by configuring the DPD timeout timer to 0 seconds. The DPD timeout value in seconds gets added into the default minimum value of 47.5 seconds.
    View advanced settings for IPsec Proposal: Expand this option to view the following fields.
    Encryption Select the AES algorithm key size from the drop-down list, to encrypt data. The available options are None, AES 128, and AES 256. The default value is AES 128.
    PFS Select the Perfect Forward Secrecy (PFS) level for additional security. The supported PFS levels are 2, 5, 14, 15, 16, 19, 20, and 21. The default value is 14.
    Hash Select one of the following supported Secure Hash Algorithm (SHA) functions from the drop-down list:
    • SHA 1
    • SHA 256
    • SHA 384
      Note: This value is not available for the Microsoft Azure Virtual Wan Service Type.
    • SHA 512
      Note: This value is not available for the Microsoft Azure Virtual Wan Service Type.

    The default value is SHA 256.
    IPsec SA Lifetime(min) Enter the time when Internet Security Protocol (IPsec) rekeying is initiated for Edges. The minimum IPsec lifetime is 3 minutes and maximum is 480 minutes. The default value is 480 minutes.
    Note: Rekeying must be initiated before 75-80 % of lifetime expires.
    Secondary VPN Gateway
    Add- Select this option to add a secondary VPN Gateway. Following fields are displayed.
    Public IP Enter a valid IPv4 or IPv6 address.
    Remove Deletes the Secondary VPN Gateway.
    Keep Tunnel Active Select this check box to keep the Secondary VPN tunnel active for this site.
    Tunnel settings are the same as Primary VPN Gateway Select this check box if you want to apply the same advanced settings for Primary and Secondary Gateways. You can choose to enter the settings for the Secondary VPN Gateway manually.
    Note: When AWS initiates the rekey tunnel with a VeloCloud Gateway (in Non SD-WAN Destinations), a failure can occur and a tunnel is not established, which can cause traffic interruption. Adhere to the following:
    • IPsec SA Lifetime(min) timer configurations for the Gateway must be less than 60 minutes (50 minutes recommended) to match the AWS default IPsec configuration.
    • DH Group and PFS values must match.

    The Secondary VPN Gateway is created immediately for this site and provisions a VPN tunnel to this Gateway.

  6. Select the Site Subnets tab and configure the following:
    Table 19. Site Subnets Options
    Option Description
    Add Select this option to add a subnet and a description for the Non SD-WAN Destination.
    Delete Select this option to delete the selected Subnet.
    Note: To support the datacenter type of Non SD-WAN Destination, besides the IPSec connection, you must configure Non SD-WAN Destination local subnets into the system.
  7. Select Save.

Configure a Non SD-WAN Site of Type Generic IKEv2 Router via Edge

This topic discusses how to configure a Non SD-WAN Destination of type Generic IKEv2 Router (Route Based VPN) through Edge in Orchestrator.

  1. In the SD-WAN service of the Enterprise portal, go to Configure > Network Services .
  2. In the Non SD-WAN Destinations via Edge area, select the New button. The Non SD-WAN Destinations via Edge dialog box appears.
    Figure 57. Non SD-WAN Destinations via Edge window
  3. In the Service Name text box, enter a name for the Non SD-WAN Destination.
  4. From the Service Type drop-down menu, select Generic IKEv2 Router (Route Based VPN) as the IPSec tunnel type.
  5. Select the IKE/IPSec Settings tab and configure the following parameters:
    Table 20. IKE/IPSec Settings Option Descriptions
    Option Description
    IP Version Select an IP version (IPv4 or IPv6) of the current Non SD-WAN Destination from the drop-down menu.
    Primary VPN Gateway
    Public IP Enter a valid IPv4 or IPv6 address. This field is mandatory.
    View advanced settings for IKE Proposal: Expand this option to view the following fields.
    Encryption Select the AES algorithm key size from the drop-down list, to encrypt data. The available options are AES 128, AES 256, AES 128 GCM, AES 256 GCM, and Auto. The default value is AES 128.
    DH Group Select the Diffie-Hellman (DH) Group algorithm from the drop-down list. This is used for generating keying material. The DH Group sets the strength of the algorithm in bits. The supported DH Groups are 2, 5, 14, 15, 16, 19, 20, and 21. The default value is 14.
    Hash Select one of the following supported Secure Hash Algorithm (SHA) functions from the drop-down list:
    • SHA 1
    • SHA 256
    • SHA 384
      Note: This value is not available for the Microsoft Azure Virtual Wan Service Type.
    • SHA 512
      Note: This value is not available for the Microsoft Azure Virtual Wan Service Type.
    • Auto

    The default value is SHA 256.
    IKE SA Lifetime(min) Enter the time when Internet Key Exchange (IKE) rekeying is initiated for Edges. The minimum IKE lifetime is 10 minutes and maximum is 1440 minutes. The default value is 1440 minutes.
    Note: Rekeying must be initiated before 75-80 % of lifetime expires.
    DPD Timeout(sec) Enter the DPD timeout value. The DPD timeout value will be added to the internal DPD timer, as described below. Wait for a response from the DPD message before considering the peer to be dead (Dead Peer Detection).
    Prior to the 5.1.0 release, the default value is 20 seconds. For the 5.1.0 release and later, see the list below for the default value.
    • Library Name: Quicksec
    • Probe Interval: Exponential (0.5 sec, 1 sec, 2 sec, 4 sec, 8 sec, 16 sec)
    • Default Minimum DPD Interval: 47.5sec (Quicksec waits for 16 seconds after the last retry. Therefore, 0.5+1+2+4+8+16+16 = 47.5).
    • Default Minimum DPD interval + DPD Timeout(sec): 67.5 sec
    Note: For the 5.1.0 release and later, you cannot deactivate DPD by configuring the DPD timeout timer to 0 seconds. The DPD timeout value in seconds gets added into the default minimum value of 47.5 seconds.
    View advanced settings for IPsec Proposal: Expand this option to view the following fields.
    Encryption Select the AES algorithm key size from the drop-down list, to encrypt data. The available options are None, AES 128, and AES 256. The default value is AES 128.
    PFS Select the Perfect Forward Secrecy (PFS) level for additional security. The supported PFS levels are 2, 5, 14, 15, 16, 19, 20, and 21. The default value is 14.
    Hash Select one of the following supported Secure Hash Algorithm (SHA) functions from the drop-down list:
    • SHA 1
    • SHA 256
    • SHA 384
      Note: This value is not available for the Microsoft Azure Virtual Wan Service Type.
    • SHA 512
      Note: This value is not available for the Microsoft Azure Virtual Wan Service Type.

    The default value is SHA 256.
    IPsec SA Lifetime(min) Enter the time when Internet Security Protocol (IPsec) rekeying is initiated for Edges. The minimum IPsec lifetime is 3 minutes and maximum is 480 minutes. The default value is 480 minutes.
    Note: Rekeying must be initiated before 75-80 % of lifetime expires.
    Secondary VPN Gateway
    Add- Select this option to add a secondary VPN Gateway. Following fields are displayed.
    Public IP Enter a valid IPv4 or IPv6 address.
    Remove Deletes the Secondary VPN Gateway.
    Keep Tunnel Active Select this check box to keep the Secondary VPN tunnel active for this site.
    Tunnel settings are the same as Primary VPN Gateway Select this check box if you want to apply the same advanced settings for Primary and Secondary Gateways. You can choose to enter the settings for the Secondary VPN Gateway manually.
    Note: When AWS initiates the rekey tunnel with a VeloCloud Gateway (in Non SD-WAN Destinations), a failure can occur and a tunnel will not be established, which can cause traffic interruption. Adhere to the following:
    • IPsec SA Lifetime(min) timer configurations for the Gateway must be less than 60 minutes (50 minutes recommended) to match the AWS default IPsec configuration.
    • DH and PFS DH groups must be matched.
  6. The Secondary VPN Gateway is created immediately for this site and provisions a VMware VPN tunnel to this Gateway.
  7. Select the Site Subnets tab and configure the following:
    Table 21. Site Subnets Option Descriptions
    Option Description
    Add Select this option to add a subnet and a description for the Non SD-WAN Destination.
    Delete Select this option to delete the selected Subnet.
    Note: To support the datacenter type of Non SD-WAN Destination, besides the IPSec connection, you must configure Non SD-WAN Destination local subnets into the VMware system.
  8. Select Save.

Configure a Non SD-WAN Site of Type Microsoft Azure via Edge

This topic discusses how to configure a Non SD-WAN Destination of type Microsoft Azure Virtual Hub via Edge in Orchestrator.

To configure a Non SD-WAN Destination of type Microsoft Azure Virtual Hub via Edge in Orchestrator:

  1. In the SD-WAN service of the Enterprise portal, go to Configure > Network Services , and then under Non SD-WAN Destinations, expand Non SD-WAN Destinations via Edge.
  2. In the Non SD-WAN Destinations via Edge area, click the New button. The New Non SD-WAN Destinations via Edge dialog box appears.
    Figure 58. Non SD-WAN Destinations via Edge Window
  3. Enter the Service Name and Service Type of the Non SD-WAN Destination. Once you enter the Service Type as Microsoft Azure Virtual Hub, Virtual Hub Configuration section is displayed.
  4. From the Subscription drop-down menu, select a cloud subscription. The application fetches all the available Virtual WANs dynamically from Azure.
  5. From the Virtual WANdrop-down menu, select a virtual WAN. The application auto-populates the resource group to which the virtual WAN is associated.
  6. From the Virtual Hub drop-down menu, select a Virtual Hub. The application auto-populates the Azure region corresponding to the Hub
  7. Select the IKE/IPSec Settings tab and configure the following parameters:
    Table 22. IKE/IPSec Settings Option Descriptions
    Option Description
    IP Version Select an IP version (IPv4 or IPv6) of the current Non SD-WAN Destination from the drop-down menu.
    Primary VPN Gateway
    Public IP Enter a valid IPv4 or IPv6 address. This field is mandatory.
    View advanced settings for IKE Proposal: Expand this option to view the following fields.
    Encryption Select the AES algorithm key size from the drop-down list, to encrypt data. The available options are AES 128, AES 256, AES 128 GCM, AES 256 GCM, and Auto. The default value is AES 128.
    DH Group Select the Diffie-Hellman (DH) Group algorithm from the drop-down list. This is used for generating keying material. The DH Group sets the strength of the algorithm in bits. The supported DH Groups are 2, 5, 14, 15, 16, 19, 20, and 21. The default value is 14.
    Hash Select one of the following supported Secure Hash Algorithm (SHA) functions from the drop-down list:
    • SHA 1
    • SHA 256
    • SHA 384
      Note: This value is not available for the Microsoft Azure Virtual Wan Service Type.
    • SHA 512
      Note: This value is not available for the Microsoft Azure Virtual Wan Service Type.
    • Auto

    The default value is SHA 256.
    IKE SA Lifetime(min) Enter the time when Internet Key Exchange (IKE) rekeying is initiated for Edges. The minimum IKE lifetime is 10 minutes and maximum is 1440 minutes. The default value is 1440 minutes.
    Note: Rekeying must be initiated before 75-80 % of lifetime expires.
    DPD Timeout(sec) Enter the DPD timeout value. The DPD timeout value will be added to the internal DPD timer, as described below. Wait for a response from the DPD message before considering the peer to be dead (Dead Peer Detection).
    Prior to the 5.1.0 release, the default value is 20 seconds. For the 5.1.0 release and later, see the list below for the default value.
    • Library Name: Quicksec
    • Probe Interval: Exponential (0.5 sec, 1 sec, 2 sec, 4 sec, 8 sec, 16 sec)
    • Default Minimum DPD Interval: 47.5sec (Quicksec waits for 16 seconds after the last retry. Therefore, 0.5+1+2+4+8+16+16 = 47.5).
    • Default Minimum DPD interval + DPD Timeout(sec): 67.5 sec
    Note: For the 5.1.0 release and later, you cannot deactivate DPD by configuring the DPD timeout timer to 0 seconds. The DPD timeout value in seconds gets added into the default minimum value of 47.5 seconds.
    View advanced settings for IPsec Proposal: Expand this option to view the following fields.
    Encryption Select the AES algorithm key size from the drop-down list, to encrypt data. The available options are None, AES 128, and AES 256. The default value is AES 128.
    PFS Select the Perfect Forward Secrecy (PFS) level for additional security. The supported PFS levels are 2, 5, 14, 15, 16, 19, 20, and 21. The default value is 14.
    Hash Select one of the following supported Secure Hash Algorithm (SHA) functions from the drop-down list:
    • SHA 1
    • SHA 256
    • SHA 384
      Note: This value is not available for the Microsoft Azure Virtual Wan Service Type.
    • SHA 512
      Note: This value is not available for the Microsoft Azure Virtual Wan Service Type.

    The default value is SHA 256.
    IPsec SA Lifetime(min) Enter the time when Internet Security Protocol (IPsec) rekeying is initiated for Edges. The minimum IPsec lifetime is 3 minutes and maximum is 480 minutes. The default value is 480 minutes.
    Note: Rekeying must be initiated before 75-80 % of lifetime expires.
    Secondary VPN Gateway
    Add- Select this option to add a secondary VPN Gateway. Following fields are displayed.
    Public IP Enter a valid IPv4 or IPv6 address.
    Remove Deletes the Secondary VPN Gateway.
    Keep Tunnel Active Select this check box to keep the Secondary VPN tunnel active for this site.
    Tunnel settings are the same as Primary VPN Gateway Select this check box if you want to apply the same advanced settings for Primary and Secondary Gateways. You can choose to enter the settings for the Secondary VPN Gateway manually.
    Note:

    Non SD-WAN Destination via Edge of type Microsoft Azure Virtual WAN automation supports only IKEv2 protocol with Azure Default IPsec policies (except GCM mode), when Edge act as an Initiator and Azure act as a Responder during an IPsec tunnel setup.

  8. The Secondary VPN Gateway is created immediately for this site and provisions a VeloCloud VPN tunnel to this Gateway.
  9. Select the Site Subnets tab and configure the following:
    Table 23. Site Subnets Option Descriptions
    Option Description
    Add Select this option to add a subnet and a description for the Non SD-WAN Destination.
    Delete Select this option to delete the selected Subnet.
    Note: To support the datacenter type of Non SD-WAN Destination, besides the IPSec connection, you must configure Non SD-WAN Destination local subnets into the VeloCloud system.
  10. Select Save. The Microsoft Azure Non SD-WAN Destination is created and a dialog box for your Non SD-WAN Destination appears.

For information about Azure Virtual WAN Edge Automation, see Configure Orchestrator for Azure Virtual WAN IPsec Automation from Edge.

Configure Tunnel Between Branch and Non SD-WAN Destinations via Edge

After configuring a Non SD-WAN Destination via Edge in Orchestrator, associate the Non SD-WAN Destination to the desired Profile in order to establish the tunnels between Gateways and the Non SD-WAN Destination.

To establish a VPN connection between a branch and a Non SD-WAN Destination configured via Edge, perform the following steps:
  1. In the SD-WAN service of the Enterprise portal, go to Configure > Profiles .
  2. Select the link to the Profile or select the link under the Device column of the selected Profile. The Device Settings page for the selected profile appears.
  3. Go to the VPN Services area and activate the Cloud VPN by turning on the toggle button.
  4. To establish a VPN connection directly from a Edge to a Non SD-WAN Destination, a VPN gateway of a Cloud provider such as Azure or AWS, under Non SD-WAN Destination via Edge, select the Enable Non SD-WAN via Edge check box.
    Figure 59. Configuring a Tunnel
  5. From the list of configured Services, select a Non SD-WAN Destination to establish VPN connection. Select Add to add additional Non SD-WAN Destinations.
    Note: Only one Non SD-WAN Destinations via Edge service is allowed to be activated in at most one segment. Two segments cannot have the same Non SD-WAN Destinations via Edge service activated.
  6. To deactivate a particular service, deselect the respective Enable Service check box.
  7. Select Save Changes.
    Note: Before associating a Non SD-WAN Destination to a Profile, ensure that the Gateway for the Enterprise Data Center is already configured by the Enterprise Data Center Administrator and the Data Center VPN Tunnel is activated.

Configure API Credentials

This section allows you to configure both, Iaas and Cloud Subscriptions. Iaas Subscription refers to Microsoft Azure Subscription and Cloud Subscription refers to Zscaler Subscription.
  1. In the SD-WAN service of the Enterprise portal, go to Configure > Network Services , and then expand API Credentials to display the Iaas Subscriptions and Cloud Subscriptions sections.
  2. In the IaaS Subscriptions area, select +New or Configure Iaas Subscriptions. The +Create Iaas Subscription dialog appears.
    Note: The +Configure Iaas Subscriptions option appears only when there are no items in the table.

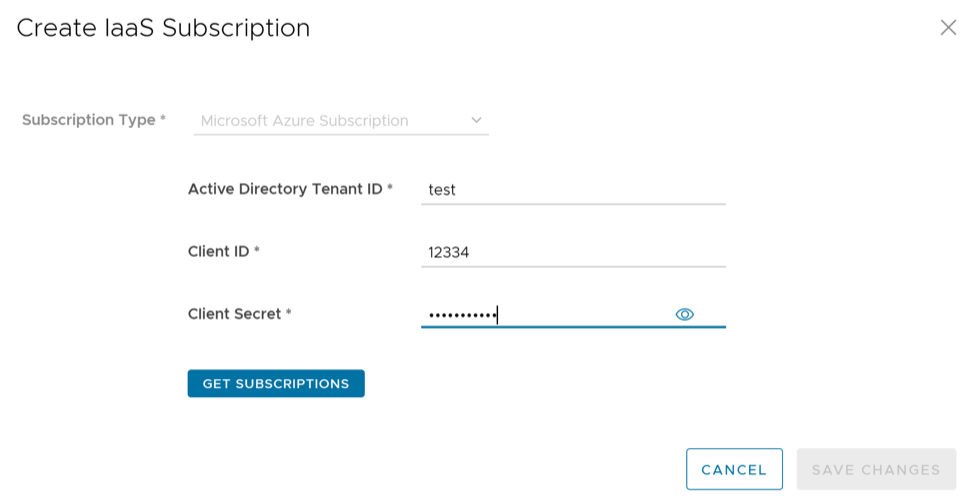

    Figure 60. Create Iaas Subscription

    The following configuration options are available:

    Table 24. Iaas Subscriptions Options
    Option Description
    Subscription Type Displays Microsoft Azure Subscription by default. This field cannot be edited.
    Active Directory Tenant ID Enter a valid Tenant ID.
    Client ID Enter the Client ID.
    Client Secret Enter a password corresponding to your Orchestrator Application Registration.
    Note: Starting from the 4.5 release, the use of the special character "<" in the password is no longer supported. In cases where users have already used "<" in their passwords in previous releases, they must remove it to save any changes on the page.
    Get Subscriptions Select this button to retrieve the list of Azure Subscriptions.
  3. Select Save Changes.
  4. To configure Zscaler Cloud subscriptions, go to the Cloud Subscriptions area, and then select +New or +Configure Cloud Subscriptions. The Create Cloud Subscription dialog appears.
    Note: The +Configure Cloud Subscriptions option appears only when there are no items in the table.

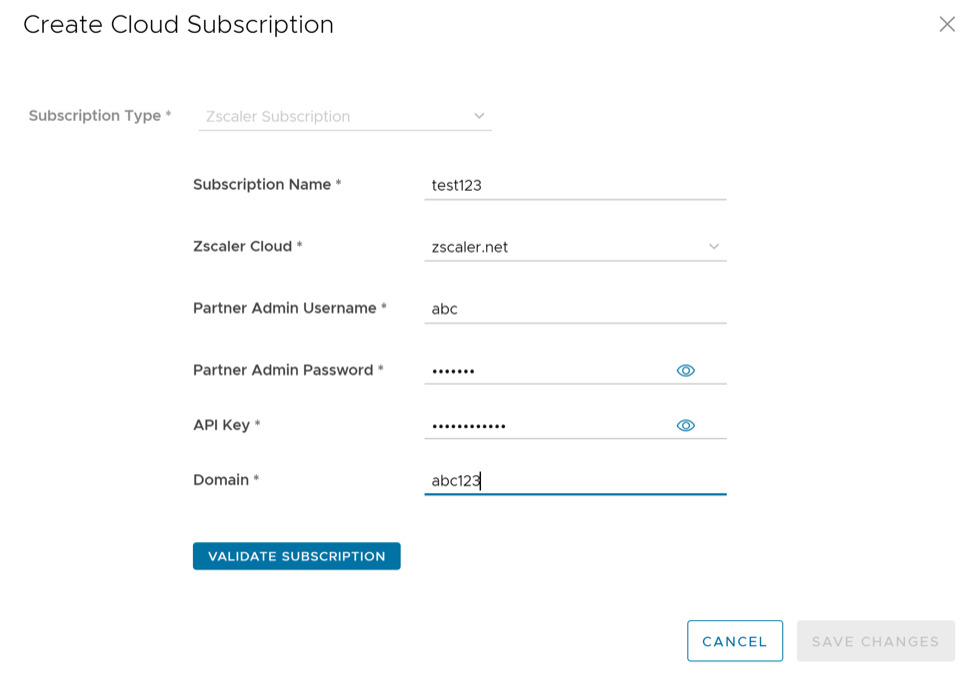

    Figure 61. Configure Cloud Subscriptions

    The following configuration options are available:

    Table 25. Cloud Subscriptions Option
    Option Description
    Subscription Type Displays Zscaler Subscription by default. This field cannot be edited.
    Subscription Name Enter a name for the Cloud subscription.
    Zscaler Cloud From the drop-down menu, select a value from the following list:
    • newCloud
    • zscaler.net
    • zscalerone.net
    • zscalertwo.net
    • zscalerthree.net
    • zscalerbeta.net
    • zscloud.net
    Partner Admin Username Enter the Partner Admin username.
    Partner Admin Password Enter the Partner Admin password.
    Note: Starting from the 4.5 release, the use of the special character "<" in the password is no longer supported. In cases where users have already used "<" in their passwords in previous releases, they must remove it to save any changes on the page.
    API Key Enter the API Key. Minimum length must be 12 alphanumeric characters.
    Domain Enter a valid domain name.
    Validate Subscription Select this button to validate the cloud subscription details.
  5. Select Save Changes.
    The following are the other options available in the Iaas Subscriptions and Cloud Subscriptions areas:
    Table 26. Iaas Subscriptions and Cloud Subscriptions Options
    Option Description
    Delete Select this option to delete it.
    Columns Select the columns to be displayed or hidden on the page.

Configure Clusters and Hubs

This section allows you to configure Edge Clusters. You can also view the existing Cloud VPN Hubs.
  1. n the SD-WAN service of the Enterprise portal, go to Configure > Network Services , and then under SD-WAN Destinations, expand Clusters and Hubs.

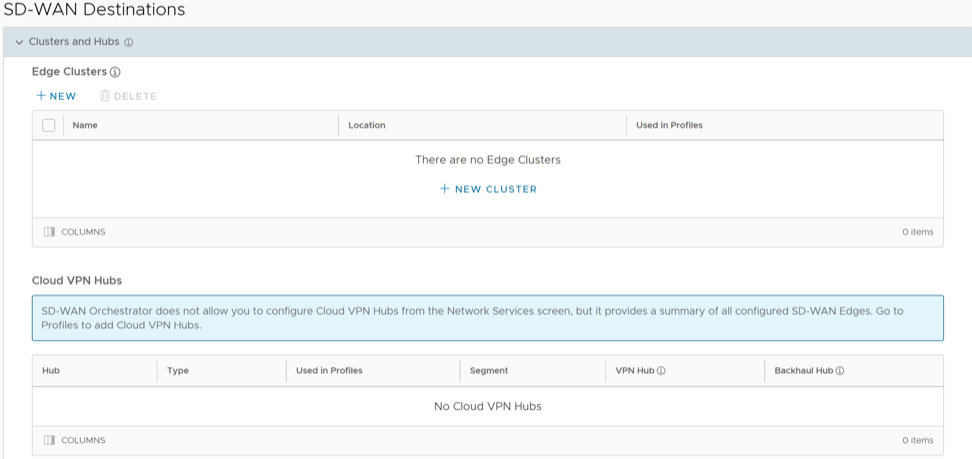

    Figure 62. SD-WAN Destinations Screen
  2. In the Edge Clusters area, select New or New Cluster
    Note: The New Cluster option appears only when there are no items in the table.

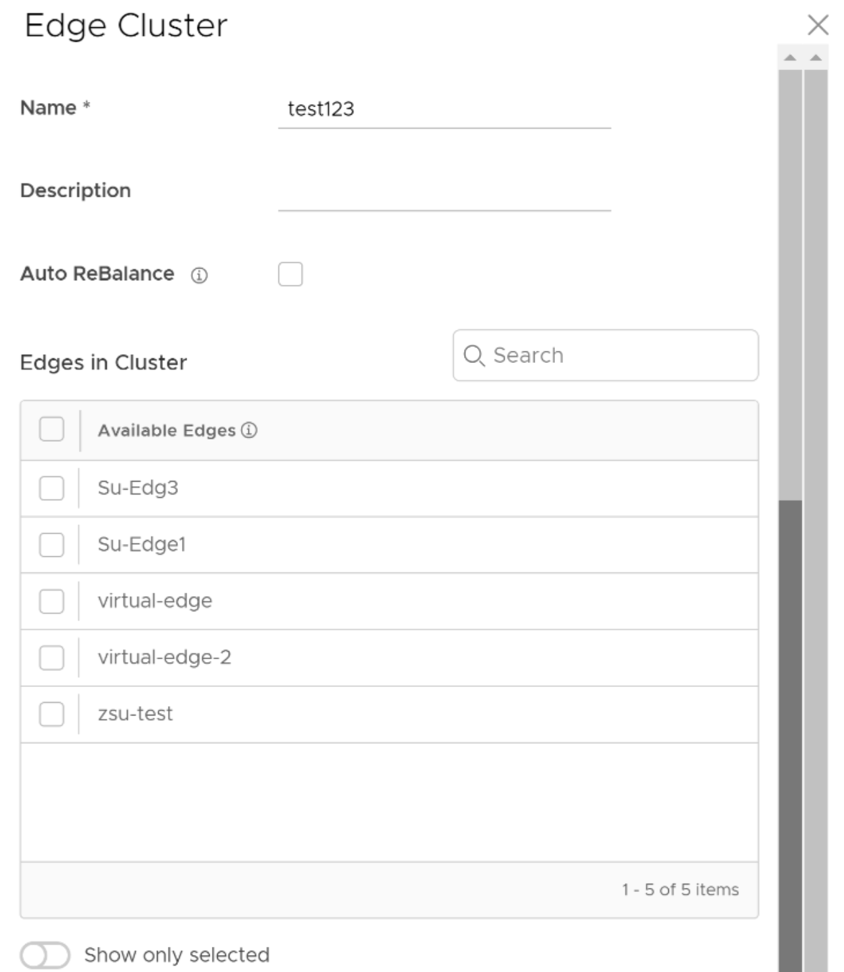

    Figure 63. Edge Clusters Tab
  3. Following configuration options are available:
    Table 27. Edge Cluster Options
    Option Description
    Name Enter the name of the Edge Cluster.
    Description Enter the description for the Edge Cluster. This field is optional.
    Auto ReBalance Select the check box if required.
    Note: If this check box is selected, when an individual Edge in a Hub Cluster exceeds a Cluster Score of 70, Spoke Edges rebalance at the rate of one Spoke Edge per minute until the Cluster Score is reduced to below 70. When a Spoke Edge is reassigned to a different Hub, the Spoke Edge's VPN tunnels are disconnected and there may be up to 6-10 seconds of downtime. If all of the Hubs in a Cluster exceed a 70 Cluster Score, no rebalancing is performed. For additional information, see How Edge Clustering Works.
    Edges in Cluster Displays the available Edges. Select the required Edges to be moved in the Edge Cluster. For additional information, see About Edge Clustering.
    Show only selected Use this toggle button to display only the selected Edges.
  4. Select Save Changes.
    Following are the other options available in the Edge Clusters area:
    Table 28. Additional Edge Cluster Options
    Option Description
    Delete Select this option to delete it.
    Columns Select the columns to be displayed or hidden on the page.
  5. Select the information icon at the top of the Edge Clusters table to view the Conceptual Diagram.
  6. The Cloud VPN Hubs area displays all the configured VeloCloud SD-WAN Edges.

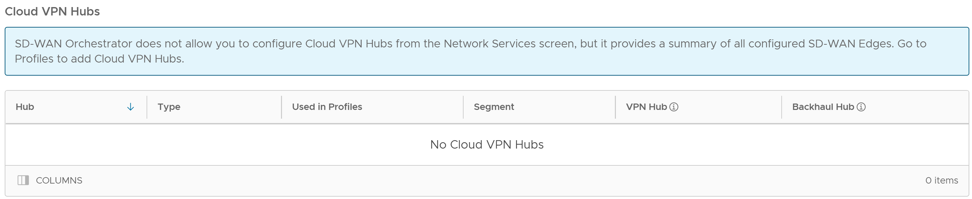

    Figure 64. Cloud VPN Hubs Screen
  7. To add a new Cloud VPN Hub, go to Configure > Profiles > Device tab > VPN Services > Cloud VPN .

    For information on Hub or Cluster Interconnect, see Configure Clusters and Hubs.

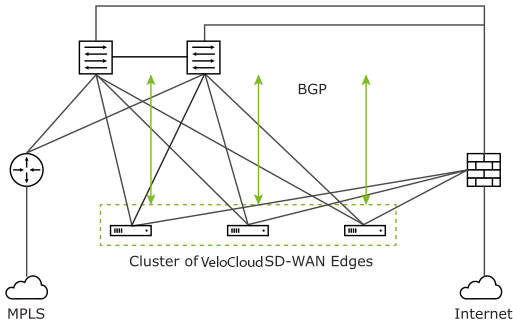

About Edge Clustering

The size of a single VPN Network with a VeloCloud Hub is constrained by the scale of the individual Hub. For large networks containing thousands of remote sites, it would be preferable for both scalability and risk mitigation to use multiple Hubs to handle the Edges. However, it is impractical to mandate that the customer manage individual separate Hubs to achieve this. Clustering allows multiple Hubs to be leveraged while providing the simplicity of managing those Hubs as one common entity with built-in resiliency.

Edge Clustering addresses the issue of Hub scale because it can be used to easily expand the tunnel capacity of the Hub dynamically by creating a logical cluster of Edges. Edge Clustering also provides resiliency via the Active/Active High Availability (HA) topology that a cluster of Edge would provide. A cluster is functionally treated as an individual Hub from the perspective of other Edges.

The Hubs in a Cluster can be either physical or Virtual Edges. If they are virtual, they may exist on a single hypervisor or across multiple hypervisors.

Each Edge in a cluster periodically reports usage and load stats to the Gateway. The load value is calculated based on Edge CPU and memory utilization along with the number of tunnels connected to the Hub as a percentage of the Edge model’s tunnel capacity. The Hubs within the cluster do not directly communicate nor exchange state information. Typically, Edge Clusters are deployed as Hubs in data centers.

Note: Theoretically, Edge Clustering could be used to horizontally scale other vectors, such as throughput. However, the current Edge Clustering implementation has been specifically designed and tested to scale at tunnel capacity only.
For additional information, see:

How Edge Clustering Works

This section provides an in-depth overview of how the SD-WAN Edge Clustering functionality works.

The following are important concepts that describe the VeloCloud Edge Clustering functionality:
  • Edge Clustering can be used on Hubs as follows:
    • To allow greater tunnel capacity for a Hub than an individual Edge serving as a Hub can provide.
    • To distribute the remote Spoke Edges among multiple Hubs and reduce the impact of any incident that may occur.
  • Cluster Score is a mathematical calculation of the overall utilization of the system as follows:
    The three measured utilization factors are CPU usage, memory usage, and tunnel capacity.
    • Each measure of utilization is treated as a percentage out of a maximum of 100%.
    • Tunnel capacity is based on the rated capacity for a given hardware model or Virtual Edge configuration.
    • All three utilization percentages are averaged to arrive at an integer-based Cluster Score (1-100).
    • While throughput is not directly considered, CPU and memory usage indirectly reflect throughput and flow volume on a given Hub.
    • For example, on an Edge 2000:
      • CPU usage = 20%
      • Memory usage = 30%
      • Connected Tunnels = 600 (out of a capacity of 6000) = 10%
      • Cluster Score: (20 + 30 + 10)/3 = 20
  • A Cluster Score greater than 70 is considered "over capacity."
  • A “logical ID” is a 128-bit UUID that uniquely identifies an element inside the Network.
    • For instance, each Edge is represented by a logical ID and each Cluster is represented by a logical ID.
    • While the user is providing the Edge and Cluster names, the logical IDs are guaranteed to be unique and are used for internal identification of elements.
  • By default, the load is evenly distributed among Hubs. Hence, it is necessary that all Edges that are part of a cluster must be of the same model and capacity.
Each cluster member will have its own IP addressing for the WAN and LAN Interfaces. All the VeloCloud Edges in the hub cluster are required to run a dynamic routing protocol, like eBGP, with the Layer 3 devices on the LAN side with a unique Autonomous System Number (ASN) for each cluster member. Dynamic routing on the clusters LAN side ensures that traffic from the DC to a particular Spoke site is routed through the appropriate Edge Cluster member.
Important: Hub Edges in a cluster do not connect or communicate with each other through tunnels or routing protocols. They act as independent Edges for data plane functions. They depend on the LAN-side BGP peering to the core switch to handle Branch to Branch traffic when the Branch Edges are connected to different Hub Edges in the cluster.

The Hub Cluster members must learn the exact Spoke prefixes from the other Cluster members. This is required for Dynamic Branch to Branch via Hub tunnels to be established between Spokes when the Spokes are connected to different Cluster members. The source Spoke checks the reachability of the destination Spoke's exact route via the source Spoke's Hub, so if the Hub doesn't have this exact route, then it is marked as unreachable, and the traffic fails.

How are Edge Clusters Tracked by the VeloCloud Gateway?

Once a Hub is added to a VeloCloud SD-WAN Cluster, the Hub will tear down and rebuild tunnels to all of its assigned Gateways and indicate to each Gateway that the Hub has been assigned to a Cluster and provide a Cluster logical ID.

Figure 65. Edge Clusters tracked by the VeloCloud Gateway
For the Cluster, the SD-WAN Gateway tracks:
  • The logical ID
  • The name
  • Whether Auto Rebalance is activated
  • A list of Hub objects for members of the Cluster
For each Hub object in the Cluster, the Gateway tracks:
  • The logical ID
  • The name
  • A set of statistics, updated every 30 seconds via a periodic message sent from the Hub to each assigned Gateway, including:
    • Current CPU usage of the Hub
    • Current memory usage of the Hub
    • Current tunnel count on the Hub
    • Current BGP route count on the Hub
  • The current computed Cluster Score based on the formula provided above.

A Hub is removed from the list of Hub objects when the Gateway has not received any packets from the Hub Edge for more than seven seconds.

How are Edges Assigned to a Specific Hub in a Cluster?

In a traditional Hub and Spoke topology, the Orchestrator provides the Edge with the logical ID of the Hub to which it must be connected. The Edge asks its assigned Gateways for connectivity information for that Hub logical ID—i.e. IP addresses and ports, which the Edge will use to connect to that Hub.

From the Edge’s perspective, this behavior is identical when connecting to a Cluster. The Orchestrator informs the Edge that the logical ID of the Hub it should connect to is the Cluster logical ID rather than the individual Hub logical ID. The Edge follows the same procedure of sending a Hub connection request to the Gateways and expects connectivity information in response.

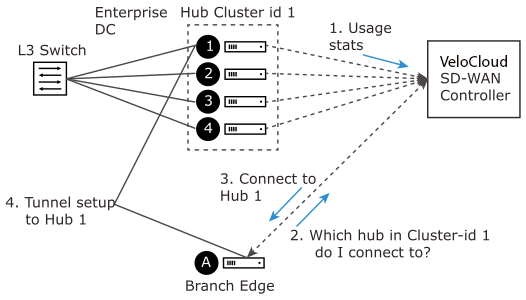

Figure 66. Edges assigned to a specific Hub in a Cluster
There are two divergences from basic Hub behavior at this point:
  • Divergence Number One: The Gateway must choose which Hub to assign.
  • Divergence Number Two: Due to Divergence Number One, the Edge may get different assignments from its different Gateways.

Divergence Number One was originally addressed by using the Cluster Score to assign the least loaded Hub in a Cluster to an Edge. While in practice this is logical, in the real world, it turned out to be a less than ideal solution because a typical reassignment event can involve hundreds or even thousands of Edges and the Cluster Score is only updated every 30 seconds. In other words, if Hub 1 has a Cluster Score of 20 and Hub 2 has a Cluster Score of 21, for 30 seconds all Edges would choose Hub 1, at which point it may be overloaded and trigger further reassignments.

Instead, the Gateway first attempts a fair mathematical distribution disregarding the Cluster Score. The Edge logical IDs, which were generated by a secure random-number generator on the Orchestrator, will (given enough Edges) have an even distribution of values. That means that using the logical ID, a fair share distribution can be calculated.
  • Edge logical ID modulo the number of Hubs in Cluster = Assigned Hub index
  • For example:
    • Four Edges that have logical IDs ending in 1, 2, 3, 4
    • Cluster with 2 Hubs
    • 1 % 2 = 1, 2 % 2 = 0, 3 % 2 = 1, 4 % 2 = 0 (Note: "%” is used to indicate the modulo operator)
    • Edges 2 and 4 are assigned Hub Index 0
    • Edges 1 and 3 are assigned Hub Index 1
    Figure 67. Number of Hubs in Cluster

    This is more consistent than a round-robin type assignment because it means that Edges will tend to be assigned the same Hub each time, which makes assignment and troubleshooting more predictive.

Note: When a Hub restarts (e.g. due to maintenance or failure), it will be disconnected from the Gateway and removed from the Cluster. This means that Edges will always be evenly distributed following all Edges restarting (due to the above described logic), but will be unevenly distributed following any Hub event that causes it to lose connectivity.
What Happens when a Hub Exceeds its Maximum Allowed Tunnel Capacity?

The Edge assignment logic will attempt to evenly distribute the Edges between all available Hubs. However, after an event (like restart) on the Hub, the Edge distribution will no longer be even.

Note: Generally, the Gateway tries at initial assignment to evenly distribute Edges among Hubs. An uneven distribution is not considered an invalid state. If the assignments are uneven but no individual Hub exceeds 70% tunnel capacity, the assignment is considered valid.

Due to such an event on the Hub (or adding additional Edges to the network), Clusters might reach a point where an individual Hub has exceeded 70% of its permitted tunnel capacity. If this happens, and at least one other Hub is at less than 70% tunnel capacity, then fair share redistribution is performed automatically regardless of whether rebalancing is activated on the Orchestrator. Most Edges will retain their existing assignment due to the predictive mathematical assignment using logical IDs, and the Edges that have been assigned to other Hubs due to failovers or previous utilization rebalancing will be rebalanced to ensure the Cluster is returned to an even distribution automatically.

What Happens when a Hub Exceeds its Maximum Allowed Cluster Score?

Unlike tunnel percentage (a direct measure of capacity), which can be acted upon immediately, the Cluster Score is only updated every 30 seconds and the Gateway cannot automatically calculate what the adjusted Cluster Score will be after making an Edge reassignment. In the Cluster configuration, an Auto Rebalance parameter is provided to indicate whether the Gateway should dynamically attempt to shift the Edge load for each Hub as needed.

If Auto Rebalance is deactivated and a Hub exceeds a 70 Cluster Score (but not 70% tunnel capacity), then no action is taken.

If Auto Rebalance is activated and one or more Hubs exceed a 70 Cluster Score, the Gateway will reassign one Edge per minute to the Hub with the lowest current Cluster Score until all Hubs are below 70 or there are no more reassignments possible.

Note: Auto Rebalance is deactivated by default.
What Happens when Two VeloCloud Gateways Give Different Hub Assignments?

As is the nature of a distributed control plane, each Gateway is making an individual determination of the Cluster assignment. In most cases, Gateways will use the same mathematical formula and thus arrive at the same assignment for all Edges. However, in cases like Cluster Score-based rebalancing this cannot be assured.

If an Edge is not currently connected to a Hub in a Cluster, it will accept the assignment from any Gateway that responds. This ensures that Edges are never left unassigned in a scenario where some Gateways are down and others are up.

If an Edge is connected to a Hub in a Cluster and it gets a message indicating it should choose an alternate Hub, this message is processed in order of “Gateway Preference.” For instance, if the Super Gateway is connected, the Edge will only accept reassignments from the Super Gateway. Conflicting assignments requested by other Gateways will be ignored. Similarly, if the Super Gateway is not connected, the Edge would only accept reassignments from the Alternate Super Gateway. For Partner Gateways (where no Super Gateways exist), the Gateway Preference is based on the order of configured Partner Gateways for that specific Edge.
Note: When using Partner Gateways, the same Gateways must be assigned to both the Hubs in a Cluster and the Spoke Edges, otherwise a scenario may arise where a Spoke Edge is not able to receive Hub assignments because the Spoke Edge is connected to a Gateway that is not also connected to the Hubs in a Cluster.
What Happens when a VeloCloud Gateway Goes Down?

When a SD-WAN Gateway goes down, Edges may be reassigned if the most preferred Gateway was the one that went down, and the next most preferred Gateway provided a different assignment. For instance, the Super Gateway assigned Hub A to this Edge while the Alternate Super Gateway assigned Hub B to the same Edge.

The Super Gateway going down will trigger the Edge to fail over to Hub B, since the Alternate Super Gateway is now the most preferred Gateway for connectivity information.

When the Super Gateway recovers, the Edge will again request a Hub assignment from this Gateway. In order to prevent the Edge switching back to Hub A again in the scenario above, the Hub assignment request includes the currently assigned Hub (if there is one). When the Gateway processes the assignment request, if the Edge is currently assigned a Hub in the Cluster and that Hub has a Cluster Score less than 70, the Gateway updates its local assignment to match the existing assignment without going through its assignment logic. This ensures that the Super Gateway, on recovery, will assign the currently connected Hub and prevent a gratuitous failover for its assigned Edges.

What Happens if a Hub in a Cluster Loses its Dynamic Routes?

As noted above, the Hubs report to the SD-WAN Gateways the number of dynamic routes they have learned via BGP every 30 seconds. If routes are lost for only one Hub in a Cluster, either because they are erroneously retracted or the BGP neighborship fails, the SD-WAN Gateways will failover Spoke Edges to another Hub in the Cluster that has an intact routing table.

As the updates are sent every 30 seconds, the route count is based on the moment in time when the update is sent to the SD-WAN Gateway. The SD-WAN Gateway rebalancing logic occurs every 60 seconds, meaning that users can expect failover to take 30-60 seconds in the unlikely event of total loss of a LAN-side BGP neighbor. To ensure that all Hubs have a chance to update the Gateways again following such an event, rebalancing is limited to a maximum of once per 120 seconds. This means that users can expect failover to take 120 seconds for a second successive failure.

Note:
  • Routes received from BGP over IPsec/GRE are not accounted for LAN side failure detection. When BGP over IPsec/GRE session goes down, the issue is not detected by LAN side failure and therefore this does not trigger cluster failover.
  • BGP routes learned from a BGP neighbor connected to a routed interface with the "Enable WAN Link" option enabled, are not counted towards the number of dynamic routes the Hub reports to the SD-WAN Gateways. Only LAN-side BGP routes are reported and "Enable WAN Link" implies that the link is on the WAN-side.
How to Configure Routing on Cluster Hubs?

As the Gateway can instruct the spokes to connect to any member Hub of the Cluster, the routing configuration should be mirrored on all the Hubs. For example, if the spokes must reach a BGP prefix 192.168.2.1 behind the Hubs, all the Hubs in the cluster should advertise 192.168.2.1 with the exact same route attributes.

BGP uplink community tags should be used in the cluster deployment. Configure the cluster nodes to set the uplink community tag when redistributing routes to BGP peers.

What Happens if a Hub in a Cluster fails?

The SD-WAN Gateway will wait for tunnels to be declared dead (7 seconds) before failing over Spoke Edges. This means that users can expect failover to take 7-10 seconds (depending on RTT) when an SD-WAN Hub or all its associated WAN links fail.

Troubleshooting Edge Clustering

This section describes the troubleshooting enhancements for Edge Clustering.

Overview
Edge Clustering includes a troubleshooting feature to rebalance VeloCloud SD-WAN Spoke Edges within a Cluster. The rebalancing of the Spokes can be performed on any of the Hubs within the Cluster. There are two methods to rebalance Spokes:
  • Evenly rebalance Spokes across all the Hubs in the Cluster.
  • Exclude one Hub and rebalance the Spokes across the remaining Hubs in the Cluster.
Rebalancing Spokes on the Hub Using the Edge Cloud Orchestrator

An administrator may rebalance Spokes in a Cluster via Remote Diagnostics on the Edge Cloud Orchestrator. When an Edge is deployed as a Hub in a Cluster, a new Remote Diagnostics option will appear named Rebalance Hub Cluster, which offers users two choices.

Redistribute Spokes in Hub Cluster
  • This option attempts to evenly re-distribute Spoke Edges among all Hub Edges in the Cluster.
Redistribute Spokes Excluding this Hub
  • This option attempts to evenly re-distribute Spokes among Hubs in the Cluster, excluding the Hub Edge from which a user is running the Redistribute Spokes utility.
  • This option can be used for troubleshooting or maintenance to remove all Spokes from this Hub Edge.
Note: Rebalancing Spokes causes a brief traffic interruption when the Spoke is moved to a different Hub in the Cluster. Therefore, it is highly recommended to use this troubleshooting mechanism during a maintenance window.
Note: In case of Partner Gateway setups, the "Rebalance Hub Cluster" from Remote Diagnostics would not take effect if the Primary Gateway of the Spoke and the Hub are not common. For such scenarios, customers are expected to reach out to Support Team for manually rebalancing the Spoke from it's Primary Gateway.

Hub or Cluster Interconnect

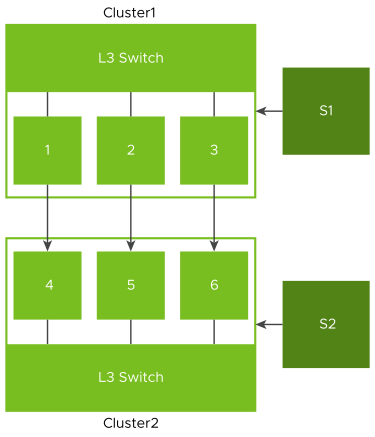

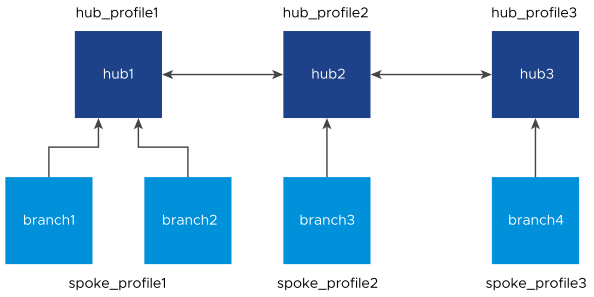

VeloCloud SASE supports interconnection of multiple Hub Edges and/or Hub Clusters to increase the range of Spoke Edges that can communicate with each other. This feature allows communication between the Spoke Edges connected to one Hub Edge/Hub Cluster and the Spoke Edges connected to another Hub Edge/Hub Cluster, using multiple overlay and underlay connections.
  • Ensure to upgrade the Orchestrator, Gateways, and Hubs or Hub Clusters to version 5.4.0.0 or above.
  • The Cloud VPN service must be activated for the Cluster Profile associated with the Edge Clusters or Hubs.
  • The Branch to Branch VPN (Transit & Dynamic) check box must not be selected in interconnect Hub Profiles, as shown below.

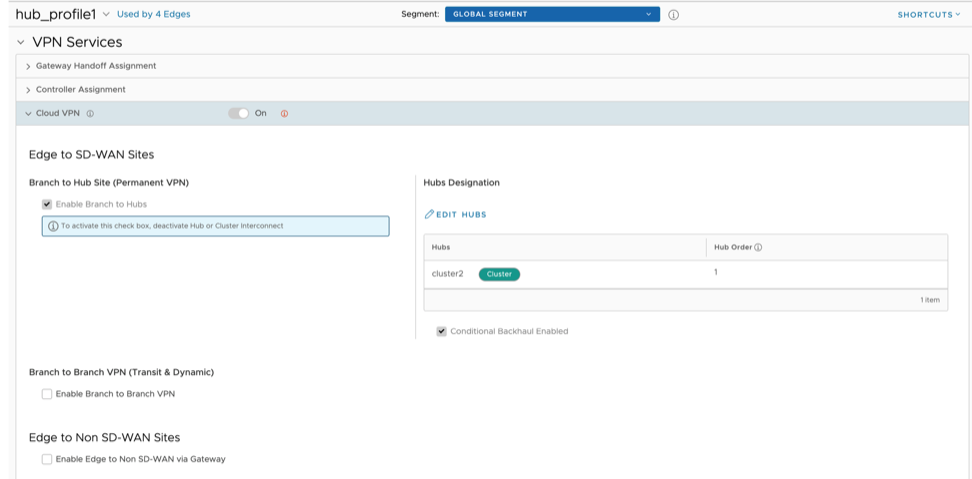

    Figure 68. Branch to Branch VPN Check box

    Configuring Hubs Designation on interconnect Profiles is sufficient for end to end communication with all nodes. You can configure the Branch to Branch via Hubs for Spoke Profiles.

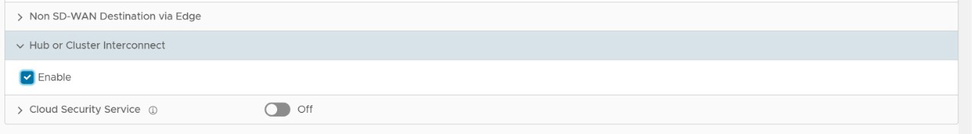

  • Hub or Cluster Interconnect feature must be activated in all the Hub Profiles involved in the interconnect process.
  • Cluster members must run the BGP with LAN/L3 router, and the router must be configured to forward the BGP extended communities.
  • There must be at least one common Gateway for all Edges (Spokes and Hubs) in case of Partner Gateway assignment. The order of Partner Gateways assignment should be same across all the Hub/Cluster Profiles.
Note: Activating a Hub or Cluster Interconnect feature introduces a fundamental change to the VeloCloud SD-WAN Routing Protocol where it allows packets to traverse more than one hop in the network. Starting from the 5.4.0.0 release, the maximum supported interconnect hops are 4. In order to connect more than 4 hops, contact Support Team.

When a Spoke Edge tries to connect to a Hub Cluster, one of the members from the Hub Cluster is selected as the Hub to the Spoke Edge. If this Hub goes down, another member from the same Hub Cluster is automatically selected to serve the Spoke Edge, without any user configuration. The Hub Cluster members are connected to each other via underlay (BGP), and can exchange the routes and data using this underlay connection. Spoke Edges connected to different members of the same Hub Cluster can then communicate with each other using this underlay connection. This solution provides better resiliency.

Figure 69. Orchestration configuration

The Orchestration configuration is shown below:

In this case, for all the three profiles:
  • The Hub or Cluster Interconnect feature must be activated.
  • The Branch to Hub Site (Permanent VPN) check box must be selected. The two interconnected Hub nodes must be configured as Hubs to each other as explained in the below table.
The following table explains the Profile and the corresponding Hubs Designation:
Table 29. Profile and Hubs Designation
Profile Hubs Designation
hub_profile1 hub2
hub_profile2 hub1 and hub3
hub_profile3 hub2
Note: Activating the Branch to Branch VPN (Transit & Dynamic) option is not required in Hub Profiles. The branches are a part of Spoke Profile with their corresponding Hub(s) as Branch to Branch VPN Hubs.

When Hub or Cluster Interconnect feature is activated, tunnels are formed from one Cluster to another Cluster with at least one peer in other Cluster. Based on the condition, two members from one Cluster can form tunnels to same members in another Cluster. In case of individual Hub and Hub Cluster interconnect, all the Cluster members form tunnels to that individual Hub. The end Spoke Edges connected to these Hub Clusters can then communicate with each other through these two Hub Clusters and the intermediate VeloCloud SD-WAN Routing Protocol hops.

The intra Cluster routes are advertised with special BGP extended community, wherein the last four bytes of the Cluster ID are embedded in the extended community. For example, if the Cluster ID is fee2f589-eab6-4738-88f2-8af84b1a3d9c, 4b1a3d9c is reversed and used to derive the Cluster community as 9c3d1a4b00000003. Based on this community tag, the intra Cluster routes are filtered out towards the controller. This avoids reflecting redundant routes from multiple Cluster member.

Figure 70. Hub or Cluster Interconnect
In the above example, Cluster 1 (C1) and Cluster 2 (C2) are Hub Clusters, and S1 and S2 are the set of Spoke Edges connected to C1 and C2 respectively. S1 can communicate with S2 through the following connections:
  • Overlay connection between S1 and C1.
  • Overlay connection between S2 and C2.
  • Overlay connection between C1 and C2.
  • Underlay connection within C1.
  • Underlay connection within C2.

In this way, the Hub Clusters can exchange routes with each other, providing a way for the packets to flow between Spoke Edges connected to different Hub Clusters.

Supported Use Cases:
  • Dynamic branch to branch is supported between Spokes connected to two different or same Clusters.
  • Profile isolation in Spoke Profile is supported.
  • Internet Backhaul via Cluster is supported.

Limitations:

When the Hub or Cluster Interconnect feature is activated:
  • Hub or Cluster Interconnect through Gateway is not supported.
  • Exchanging routes between Hub Cluster members using OSPF is not supported.
  • Asymmetric routing can occur when two Clusters are interconnected. Enhanced Firewall Services or Stateful Firewall must not be activated as they can block the traffic due to asymmetric routing.
  • When all the Overlay tunnels go down between two Cluster members, traffic drop is expected until they form a tunnel with other members in the peer Cluster.
  • If there are more than one LAN/WAN routers running BGP with Cluster, Trusted Source check box must be selected and the value of Reverse Path Forwarding must be Not enabled, on the Cluster Edge interfaces connecting BGP routers. For additional information, see Configure Edge Settings.
  • Without Hub or Cluster Interconnect feature, a Cluster Profile cannot have another Cluster or Hub configured as a Hub.

Configuring Hub or Cluster Interconnect

  1. Create new Clusters:
    1. In the SD-WAN service of the Enterprise portal, go to Configure > Network Services > Clusters and Hubs .
    2. Select New to create new Clusters. For additional information, see Configure Clusters and Hubs.
    3. Associate the available Edges to these Clusters.
    4. Select Save Changes.
  2. Create a Profile for each of these Clusters:
    1. Go to Configure > Profiles .
    2. Create a separate Profile for each new Cluster. For information on how to create a Profile, see Create Profile.
  3. Designate Hub to the Cluster Profile:
    1. On the Profile Device Settings screen, go to VPN Services and turn on the Cloud VPN service.
      Figure 71. Profile Device Settings Screen
    2. Select the Enable Branch to Hubs check box. Once Branch to Hubs is enabled, assigning a Hub is required.
    3. Select Edit Hubs located under Hub Designation.
    4. Select Update Hubs.
  4. Activate 'Hub or Cluster Interconnect' feature: On the Profile Device Settings screen, navigate to Hub or Cluster Interconnect located under VPN Services, and then select the Enable check box.
    Figure 72. Hub or Cluster Interconnect
    Note: Hub and Cluster Interconnect configurations can be done only at Profile level.
    This activates the feature and creates a tunnel between the Hub Clusters which allows their respective Spoke Edges to communicate with each other.
    CAUTION: Activating or deactivating the Hub or Cluster Interconnect feature causes all Edge devices associated with the Profile to restart. Hence, it is recommended to configure the feature only in a maintenance mode to prevent traffic disruption.
  • Assign Profiles to the Edges: Navigate to Configure > Edges to assign Profiles to the available Edges.

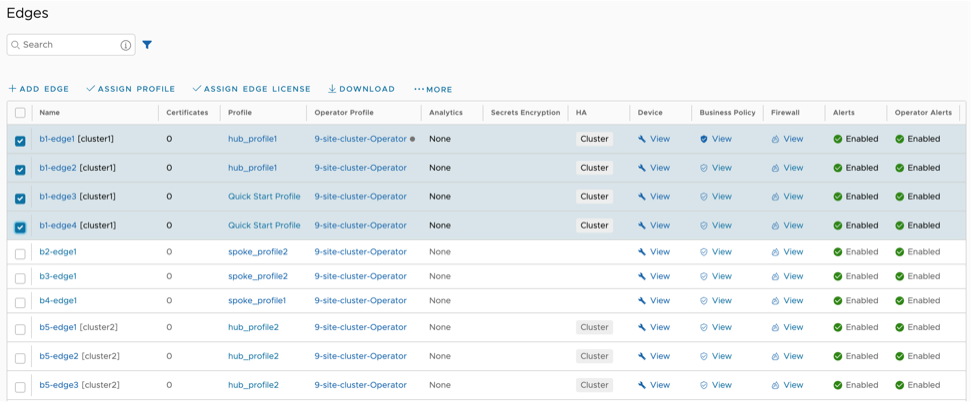

    Figure 73. Configure Edges Page
  • You can monitor the events by navigating to Monitor > Events . The following table lists the new Orchestrator events added for the Hub or Cluster Interconnect feature:
    Table 30. Hub or Cluster Interconnect
    Event Level Description
    CLUSTER_IC_ENABLED Info This event is generated whenever an Edge is associated with a Cluster service.
    CLUSTER_IC_DISABLED Info This event is generated whenever an Edge is disassociated from a Cluster service.
    CLUSTER_IC_PEER_UP Warning This event is generated whenever the first interconnect tunnel between two Cluster Hub nodes, comes up.
    CLUSTER_IC_PEER_DOWN Warning This event is generated whenever the last interconnect tunnel between two Cluster Hub nodes, goes down.
    CLUSTER_IC_TUNNEL_UP Warning This event is generated whenever interconnect tunnels between the Clusters, come up.
    CLUSTER_IC_TUNNEL_DOWN Warning This event is generated whenever the interconnect tunnels between the Clusters, go down.
    HUB_CLUSTER_REBALANCE Warning This event is generated whenever a Cluster rebalance action is triggered.
Note:
  1. After Hub or Cluster Interconnect feature is activated, removing or adding a Cluster member under Network Services, triggers service restart on that particular Edge. It is advised to perform such actions during maintenance window.
  2. When a Spoke is connected to primary and secondary Hub Cluster and learns same route from both of them, the route order is based on BGP attributes. If the routing attributes are same, then route sorting happens based on VPN Hub order configuration. On the other hand, the Spoke's subnets are redistributed by primary and secondary Hub or Hub Cluster to their neighbor with metric (MED) 33 and 34 respectively. You must configure "bgp always-compare-med" in the neighbor router for symmetric routing.
  3. When Hub or Hub Clusters are connected to MPLS core through CE, you must configure UPLINK tag in those BGP neighbors.
  4. In a network set up with a spoke, a primary hub, and a secondary hub, initiating a flow from behind the spoke creates a local flow on the spoke that is then routed through the primary hub. If the primary hub goes down, the route of the local flow is updated to the secondary hub. Since the route is checked with each packet for local flows, when the primary hub comes back up, the route is updated accordingly. However, the behavior is different when the flow is a peer flow. In this case, if the primary hub goes down, the peer flow is routed through the secondary hub, but when the primary hub comes back up, the peer route is not updated. This is because the peer flow relies on the peer's updates, which is the expected behavior. The workaround for this is to flush the affected flows.

Configure Netflow Settings

In an Enterprise network, Netflow monitors traffic flowing through Edge and exports Internet Protocol Flow Information Export (IPFIX) information directly from Edge to one or more Netflow collectors. IPFIX is an IETF protocol that defines the standard of exporting flow information from an end device to a monitoring system. VeloCloud supports IPFIX version 10 to export IP flow information to a collector. Generally, an IP flow uses five tuples for identification:
  • Source IP
  • Destination IP
  • Source Port
  • Destination Port
  • Protocol

But the Netflow records exported by the Edge aggregates the source port. This means that data of different flows with the same source and destination IPs, same destination port, but different source ports aggregate.

The Orchestrator allows you to configure Netflow collectors and filters as network services at the Profile, Edge, and Segment level. You can configure a maximum of two collectors per Segment and eight collectors per Profile and Edge. Also, you can configure a maximum of 16 filters per collector.

  1. In the SD-WAN service of the Enterprise portal, go to Configure > Network Services . The Network Services page appears.

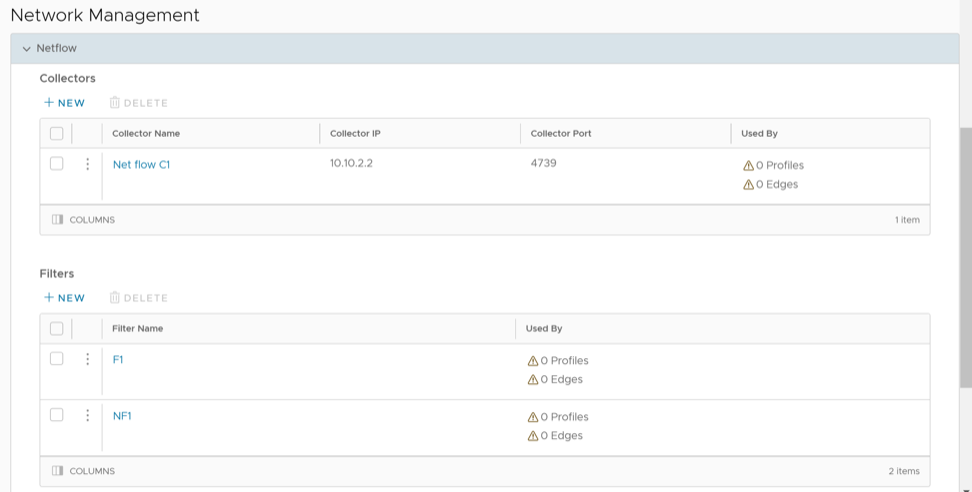

    Figure 74. Configure Netflow Settings
  2. To configure a collector, scroll down to the Network Management category and select Netflow.
  3. Under Collectors, select the + New. The New Collector dialog box appears.

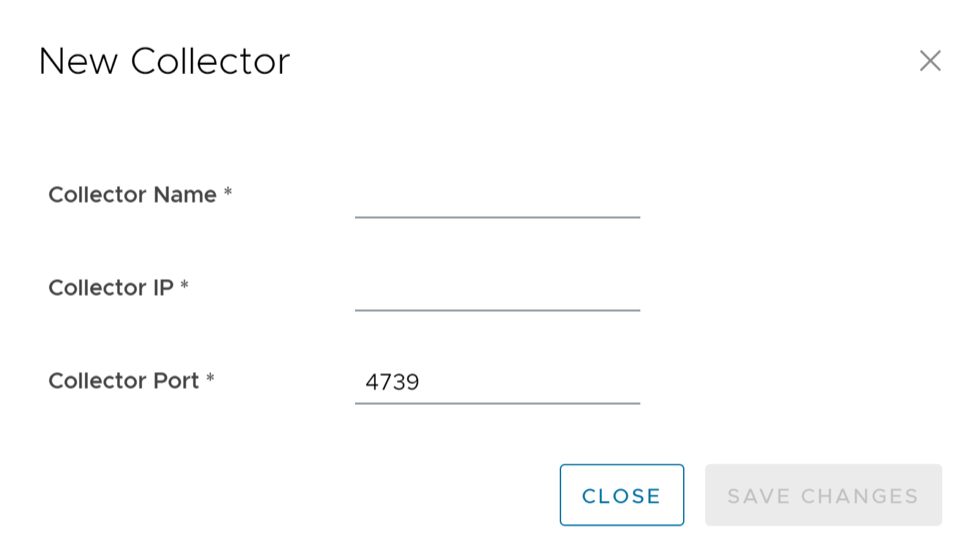

    Figure 75. Add New Collector
    1. In the Collector Name text box, enter a unique name for the collector.
    2. In the Collector IP text box, enter the IP address of the collector.
    3. In the Collector Port text box, enter the port ID of the collector.
    4. Select Save Changes. Under Network Services, the newly added collector appears in the Collector table.
  4. Orchestrator allows filtering of traffic flow records by source IP, destination IP, and application ID associated with the flow.
    Note: Netflow filters are not applicable for the SD-WAN Control, Overflow, and Private data.

    To configure a Netflow filter, under Filters select the +New button. The Add Filter dialog box appears.

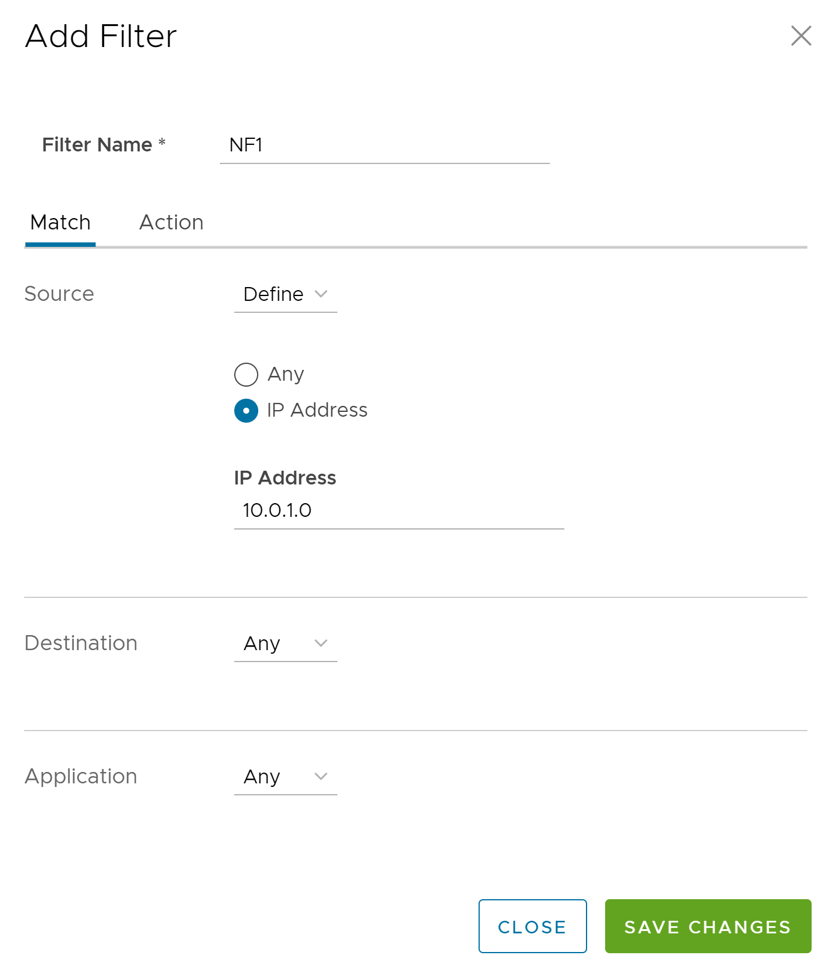

    Figure 76. Add Filter- Match Settings
    1. In the Filter Name text box, enter a unique name for the filter.
    2. In the Match tab, select Define to define per collector filtering rules to match by source IP or destination IP or application associated with the flow, or select Any to use any of the source IP or destination IP or application associated with the flow as the match criteria for Netflow filtering.
    3. In the Action tab, select either Allow or Deny as the filter action for the traffic flow, and select OK.

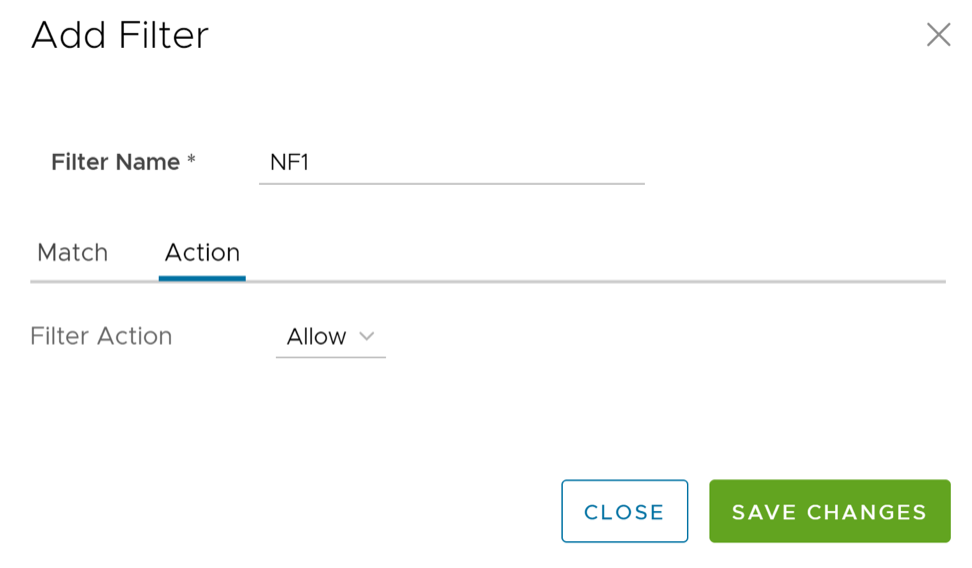

      Figure 77. Add Filter- Action Settings
      Under Network Services, the newly added filter appears in the Filter table.
At the Profile and Edge level, the configured collectors and filters appears as a list under the Netflow area in the Device tab.

After you enable Netflow on the Edge, it periodically sends messages to the configured collector. The contents of these messages are defined using IPFIX templates. For additional information on templates, see IPFIX Templates.

IPFIX Templates

After you enable Netflow on the VeloCloud Edge, it periodically sends messages to the configured collector. The contents of these messages are defined using templates. Internet Protocol Flow Information Export (IPFIX) templates have additional parameters that provide more information regarding the traffic flows.

Non-NAT Template

This is an aggregated flow. Keys for this flow record are as follows:
  • sourceIPv4Addres
  • destinationIPv4Address
  • destinationTransportPort
  • ingressVRFID
  • ApplicationID
  • protocolIdentifier

Source port is aggregated out.

The Non-NAT template is the common Netflow template.

Table 31. Template ID: 256
Element ID Name Type Description Recommended Implementation Applicable Edge Release
1 octetDeltaCount unsigned64 The number of octets includes IP header(s) and IP payload. Used to report on total bytes (aggregate of bytesTX and bytesRx) and BytesRX. 3.3.0
2 packetDeltaCount unsigned64 The number of incoming packets since the previous report (if any) for this flow at the observation point. Used to report on total packet (aggregate of packetTX and packetRX) and packetRX. 3.3.0
32769 octetDeltaCount_rev unsigned64 Biflow RFC5103. The number of outgoing byte. Used to report on total bytes (aggregate of bytesTX and bytesRX) and BytesTX. 3.3.0
32770 packetDeltaCount_rev unsigned64 Biflow RFC5103. The number of outgoing packets. Used to report on total packet (aggregate of packetTX and packetRx) and packetTX. 3.3.0
3 deltaFlowCount unsigned64 The conservative count of original flows contributing to this aggregated flow; may be distributed via any of the methods expressed by the valueDistributionMethod Information Element. See IPFIX Information Element Definitions. 3.3.0
4 protocolIdentifier unsigned8 The value of the protocol number in the IP packet header. The protocol number identifies the IP packet payload type. Protocol numbers are defined in the IANA Protocol Numbers registry. Implement as per description. 3.3.0
5 ipClassOfService unsigned8 For IPv4 packets, this is the value of the TOS field in the IPv4 packet header. Implement as per description. 3.3.0
8 sourceIPv4Address ipv4Address The IPv4 source address in the IP packet header. Implement as per description. 3.3.0
10 ingressInterface unsigned32 The index of the IP interface where packets of this flow are being received. The value matches the value of managed object 'ifIndex' as defined in RFC2863. This value maps to Interface option template 272 ‘ingressInterface’ value where to map the flow to SD-WAN link interface number. 3.3.0
11 destinationTransportPort unsigned16 The destination port identifier in the transport header. Implement as per description. 3.3.0
12 destinationIPv4Address ipv4Address The IPv4 destination address in the IP packet header. Implement as per description. 3.3.0
14 egressInterface unsigned32 The index of the IP interface where packets of this flow are being sent. The value matches the value of managed object 'ifIndex' as defined in RFC2863. Egress interface 3.3.0
15 ipNextHopIPv4Address ipv4Address The IPv4 address of the next IPv4 hop. RFC2863 This IP address identifies the next hop device when there is no SD-WAN overlay (underlay next hop). 3.3.0
56 sourceMacAddress macAddress The IEEE 802 source MAC address field. Implement as per description. 3.3.0
239 biflowDirection unsigned8 A description of the direction assignment method used to assign the biflow Source and destination. This Information element may be present in a flow data record or applied to all flows exported from an exporting process or observation domain using IPFIX options. If this Information element is not present in a flow record or associated with a biflow via scope, it is assumed that the configuration of the direction assignment method is done out-of-band.
Note: When using IPFIX options to apply this Information element to all flows within an observation domain or from an exporting process, the option should be sent reliably. If reliable transport is not available (i.e., when using UDP), this Information element should appear in each flow record.
 See IPFIX Information Element Definitions. 3.3.0
95 applicationId octetArray(8) Specifies an application ID. RFC6759. For details, see Application Option Template. Implement to recognize L7 app signature. 3.3.0
148 flowID unsigned64 An identifier of a flow that is unique within an observation domain. This Information element can be used to distinguish between different flows if flow keys such as IP addresses and port numbers are not reported or are reported in separate records. Unique flow ID maps to flow links stats option template 257. 3.3.0
152 flowStartMilliseconds dateTime Milliseconds The absolute timestamp of the first packet of this flow. Implement as per description. 3.3.0
153 flowEndMilliseconds dateTime Milliseconds The absolute timestamp of the last packet of this flow. Implement as per description. 3.3.0
136 flowEndReason unsigned8 The reason for flow termination. The range of values includes the following:
  • 0x01: idle timeout - The flow was terminated because it was considered to be idle.
  • 0x02: active timeout - The flow was terminated for reporting purposes while it was still active, for example, after the maximum lifetime of unreported Flows was reached.
  • 0x03: end of flow detected - The flow was terminated because the metering process detected signals indicating the end of the flow, for example, the TCP FIN flag.
  • 0x04: forced end - The flow was terminated because of some external event, for example, a shutdown of the metering process initiated by a network management application.
  • 0x05: lack of resources - The flow was terminated because of lack of resources available to the metering process and/or the exporting process.
 Implement as per description. 3.3.0
234 ingressVRFID unsigned32 A unique identifier of the VRFname where the packets of this flow are being received. This identifier is unique per metering process. This maps to the VeloCloud Orchestrator segments. A segment should be visualized and reported as a separated L3 domain within the Edge 3.3.0
Enterprise-Specific Fields (ID>32767)
Table 32. VeloCloud SD-WAN IANA-PEN: 45346
Element ID (Enterprise Element ID) Name Type Description Recommended Implementation Applicable Edge Release
45001 (12233) destinationUUID octetArray Destination node UUID This identifies the final SD-WAN endpoint in the path (same as nexthop UUID in e2e). 3.3.0
45002 (12234) vcPriority unsigned8
  • 0 - Unset
  • 1 - Control
  • 2 - High
  • 3 - Normal
  • 4 - Low
 This identifies the BizPolicy ‘Priority’ classification applied.

Unset should be monitored to deduce a warning since it would only occur during overflow.

 3.3.0
45003 (12235) vcRouteType unsigned8
  • 0 - Unset
  • 1 - Gateway (using hosted GW svc)
  • 2 - Direct (using direct Internet)
  • 3 - Backhaul (using Hub to Internet)
 This identifies the path type out to Internet the flow is taking.

Unset should be monitored to deduce a warning since it would only occur during overflow.

 3.3.0
45004 (12236) vcLinkPolicy unsigned8
  • 0 - NA
  • 1 - Fixed
  • 2 - Load balance
  • 3 - Replicate
 This value provides the type of link steering and remediation configured for this application under BizPolicy. 3.3.0
45005 (12237) vcTrafficType unsigned8
  • 0 - Realtime
  • 1 - Transactional
  • 2 - Bulk
 This identifies the BizPolicy ‘Service Class' classification applied. 3.3.0
45007 (12239) vcFlowPath unsigned8
  • 0 - Edge2CloudViaGateway (SaaS optimized)
  • 1 - Edge2CloudDirect (SaaS not optimized)
  • 2 - Edge2EdgeViaGateway (spoke2hub2spoke via VCG)
  • 3 - Edge2EdgeViaHub (spoke2hub2spoke via PDC Hub)
  • 4 - Edge2EdgeDirect (Edge2Edge dynamic)
  • 5 - Edge2DataCenterDirect (Edge2PDC using underlay routing)
  • 6 - Edge2DataCenter ViaGateway (Edge2PDC using NVS)
  • 7 - Edge2Backhaul (Edge2internet using PDC Hub)
  • 8 - Edge2Proxy
  • 9 - Edge2OPG (PGW)
  • 10 – Routed (path using underlay routing)
  • 11 - Edge2CloudVia SecurityService (path using a CASB service to internet)
 This identifies the type of ‘path’ the flow is taking. 3.3.0
45009 (12241) replicatedPackets RxDeltaCount unsigned64 Count of replicated packets received for the flow This value provides the number of packets replicated (FEC) in the Rx path due to loss (applies to real-time protocols). 3.3.0
45010 (12242) replicatedPackets TxDeltaCount unsigned64 Count of packets replicated for the flow This value provides the number of packets replicated (FEC) in the Tx path due to loss (applies to real-time protocols). 3.3.0
45011 (12243) lostPacketsRx DeltaCount unsigned64 Count of packets lost for the flow at the receive This value provides the total number of packets lost for the flow. 3.3.0
45012 (12244) retransmittedPackets TxDeltaCount unsigned64 Count of packets retransmitted for the flow This value provides the number of retransmitted packets due to loss (applies to transactional traffic). 3.3.0
45085 (12317) tcpRttMs unsigned16 Maximum RTT observed for a TCP flow The maximum Roundtrip Time observed in milliseconds for the tcp packets in the flow, since the previous report (if any) for this flow at the observation point. 4.0.0
45086 (12318) tcpRetransmits unsigned32 Count of TCP packets retransmitted for the flow The number of TCP packets retransmitted since the previous report (if any) for this flow at the observation point. 4.0.0
45080 (12312) bizPolicyId string Business policy logical Id this flow is matching. This value is a UUID and must be mapped to a BizPolicy via Orchestrator API. 3.3.2
45082 (12314) nextHopUUID octetArray Next hop UUID for this flow. This will be populated in case of overlay traffic. This value identifies the device that is in the path between source and destination in the SD-WAN overlay network (not underlay). 3.3.2

NAT Template

Common + NAT template

Table 33. Template ID: 259
Element ID Name Type Description Applicable Edge Release
225 postNATSourceIPv4Address ipv4Address The definition of this information element is identical to the definition of information element sourceIPv4Address, except that it reports a modified value caused by a NAT middlebox function after the packet passed the observation point. 3.4.0
226 postNATDestinationIPv4Address ipv4Address The definition of this information element is identical to the definition of information element destinationIPv4Address, except that it reports a modified value caused by a NAT middlebox function after the packet passed the observation point. 3.4.0
Note:
  • Netflow exports are unidirectional flows. VeloCloud SD-WAN needs to export flow stats as two flow records or implement RFC5103 (Bidirectional Flow Export).
  • flowID will need to be constructed to be unique within the Enterprise.
  • Direct NAT:
    • Consider a flow which comes from LAN client with IP 10.0.1.25 to Internet 169.254.6.18. This gets NATed due to business policy (SNAT source IP to a WAN interface IP 169.254.7.10). So, flow record for this flow will be with SIP: 10.0.1.25 and DIP: 169.254.6.18. The postNAT Source IP will be 169.254.7.10 and the postNAT Dest IP will be 169.254.6.18.

Tunnel Stats Template

A tunnel is established over a link and has communication with a peer. A peer can be a Gateway (edge to Cloud traffic), Hub (edge to data center traffic) or Edge (dynamic edge-to-edge VPN traffic). The Tunnel Stats template captures the stats of a tunnel and it is sent every one minute. The linkUUID field lists the link established for the tunnel. The interface Index field says to which peer it is communicating.

Difference between Tunnel and Path

Path is a unidirectional entity and tunnel is bi-directional. TX and RX paths make up a tunnel.

Note:
  • Only connected tunnels will be exported. If a tunnel goes DEAD, this tunnel’s stats will not be exported from the next export interval. For example: if the tunnel stats template export interval is 300 seconds and the tunnel was exported at time t1 and tunnel goes down at t1+100. Stats between (t1 and t1+100) will be exported at t1+300. And from the next interval, this tunnel’s stats will not be exported since the tunnel has gone DEAD.
  • Number of tunnels down events will be exported as part of tunnel stats template.
  • Formula for Loss computation:
    • TX Loss Percent = (( packetsLostDeltaTxCount) / ( packetsLostDeltaTxCount + packetsLostCompDeltaTxCount)) * 100
    • RX Loss Percent = (( packetsLostDeltaRxCount) / ( packetsLostDeltaRxCount + packetsLostCompDeltaRxCount)) * 100
Table 35. Template ID: 258
Element ID Name Type Description Applicable Edge Release
12 destinationIPv4Address Ipv4Address This is destination Ipv4 address of tunnel. 3.4.0
45008 (12240) linkUUID octetArray(16) This is link UUID on which tunnel is established. This value points to entry in link option template (276). 3.4.0
10 interfaceIndex Unsigned32 This value identifies a peer. This value points to entry in interface option template (272). 3.4.0
1 octetsDeltaTxCount Unsigned64 Total bytes transmitted on this path. 3.4.0
2 packetsDeltaTxCount Unsigned64 Total packets transmitted out of this path. 3.4.0
45079 (12311) packetsLostDeltaTxCount Unsigned64 Total packets lost on this path. 3.4.0
45083 (12315) txLossPercent Float32 Loss percentage in this TX path. 3.4.0
45058 (12290) jitterTxMs Unsigned32 Tx average jitter of path in configured interval period. 3.4.0
45060 (12292) avgLatencyTxMs Unsigned32 Average TX latency of path in configured interval period. 3.4.0
32769 octetDeltaRxCount_rev Unsigned64 Total bytes received on this path. 3.4.0
32770 packetsDeltaRxCount_rev Unsigned64 Total packets received on this path. 3.4.0
45011 (12243) packetsLostDeltaRxCount Unsigned64 Total packets lost on this path. 3.4.0
45084 (12316) rxLossPercent Float32 Loss percentage in this RX path. 3.4.0
45061 (12293) jitterRxMs Unsigned32 RX average jitter of path in configured interval period. 3.4.0
45063 (12295) avgLatencyRxMs Unsigned32 Average RX latency of path in configured interval period. 3.4.0

Application Option Template

The Application Option template is sent every five minutes or when changed. Only applications that have been referenced in flows are exported.

Table 36. Template ID: 271
Element ID Name Type Description Applicable Edge Release
95 applicationId octetArray(8) Scope field. Specifies an application ID. RFC 6759. 3.3.0
96 applicationName string Specifies the name of an application. 3.3.0
372 applicationCategoryName string An attribute that provides a first level categorization for each application ID. 3.3.0
Application ID Format
0 1 2 3
 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |20 | enterprise ID = 45346...|
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |...Ent.ID.contd| app ID|
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
Classification Engine ID: 20 (PANA-L7-PEN)
Proprietary Layer 7 definition, including a Private Enterprise Number (PEN) [IANA-PEN] to identify that the application registry being used is not owned by the exporter manufacturer or to identify the original enterprise in the case of a mediator or third-party device. The Selector ID represents the enterprise unique global ID for the Layer 7 applications. The Selector ID has a global significance for all devices from the same enterprise.
  • 45346 is VeloCloud SD-WAN PEN
  • App ID is internal application ID

Interface Option Template

Interfaces in the Netflow context can be broadly classified into two types: Physical and SD-WAN.
  • Physical – These are Ethernet (e.g. GE1, GE2), VLAN (e.g. br-network1), or IP interfaces (e.g. PPPoE or some USB modem interfaces).
  • SD-WAN – These are point-to-point interfaces between a pair of Arista devices. On the overlay, there may be several tunnels between a pair of Arista devices. These tunnels use a proprietary protocol called VCMP that provides several features including encryption, retransmission, and more. The tunnels between two devices may be always present or may be created on-demand depending on the configuration. The end points of these tunnels are called “links” in Arista terminology. Typically, there is a "link" for each physical WAN-facing interface on an Edge.
The diagram below depicts the relationship between physical/SD-WAN interfaces, links and tunnels. On both the nodes below, GE1, GE2 and GE3 are physical interfaces. GE1 and GE2 are WAN-side interfaces and have links defined over them. In contrast, GE3 is a LAN-side interface and thus does not have a link defined over it. Tunnels are formed between links on each node. The Node1-Node2 SD-WAN interface is the overlay interface on which traffic may be sent from Node 1 to Node 2. When traffic is sent on the Node1-Node2 SD-WAN interface, the individual packets may be either:
  • Replicated on both the tunnels.
  • Load-balanced between the two tunnels.
  • Sent on only one tunnel.
The treatment of the packets depends on the type of traffic, configuration, and network conditions.
Figure 78. Relationship between Physical/SD-WAN Interfaces and Links/Tunnels

The interface option template is sent every five minutes by default. The timer is configurable.

Table 37. Template ID: 272
Element ID (Enterprise Element ID) Name Type Description Applicable Edge Release
10 ingressInterface unsigned32 Scope field. The index of this interface. The value matches the value of managed object ifIndex as defined in [ RFC2863]. 3.3.0
82 interfaceName string A short name uniquely describing an interface, e.g. "Eth1/0". 3.3.0
83 interfaceDescription string The description of an interface, e.g. "FastEthernet1/0" or "ISP connection". 3.3.0
45000 (12232) interfaceType unsigned8
  • 1 - Physical
  • 2 - SDWAN E2E
  • 3 - SDWAN E2DC
  • 4 - SDWAN E2C
  • 5 - Physical Sub-Interface (Supported from 3.4.0)
 3.3.0
45001 (12233) destinationUUID octetArray Destination node UUID 3.3.0
45013 (12245) primaryIpv4Address ipv4Address Primary IP address of a physical interface. For SD-WAN interfaces this is always 0.0.0.0. 3.3.0

Segment ID to Segment Mapping Template

The template is sent every 10 minutes and utilizes VRF as the nomenclature to define a segment.

Table 38. Template ID: 273
Element ID Name Type Description Applicable Edge Release
234 ingressVRFID unsigned32 Scope field. A unique identifier of the VRFname where the packets of this flow are being received. This identifier is unique per metering process. 3.3.0
236 VRFname string The name of a VPN Routing and Forwarding table (VRF). 3.3.0

Netflow Source Address and Segmentation

Netflow source interface’s primary IP address should come from VeloCloud Orchestrator. In absence of the optional source interface configuration, the flow records would consume one of the up and advertised LAN/Routed IP address as source IP address. It is mandatory to have at least one up and advertised LAN/Routed interface on the particular segment, for Netflow to function. The Orchestrator UI needs to be modified to reflect this.

When multiple Netflow exporting processes originate from the same IP, Netflow provides the information element to ensure the uniqueness of the export. The options are:
  • Use different source interface for each segment.
  • If we consider segments distinct exporting processes, then use observation DomainId to distinguish between segments.
Interface Mappings
Interface numbering: 32-bit number (RFC2863). Ingress or egress is defined by source/destination route in flow container. Interface index is derived from route type and destination system ID or interface for direct traffic. The same mapping must be used for SNMP interface table (ifTable- RFC1213).
0..7 0..7 0..16 destination_type reserved destination_if_idx
destination_type:
  • E2E
  • E2DC
  • CLOUD
  • ANY/DIRECT
destination_if_idx:
  • E2E, E2DC, CLOUD: map(next_hop_id)-> if_idx
  • ANY/DIRECT: map(link_logical_id)-> if_idx
Filtering
Allow Netflow to be filtered by:
  • ingressVRFID (or all segments)
  • ApplicationID
  • sourceIPv4Address (mask)
  • destinationIPv4Address (mask)
  • protocolIdentifier

IPFIX Information Element Definitions

The following table lists the IPFIX information element definitions.

Table 40. IPFIX Information Element Definitions
384 valueDistributionMethod A description of the method used to distribute the counters from contributing flows into the aggregated flow records described by an associated scope, generally a template. The method is deemed to apply to all the non-key information elements in the referenced scope for which value distribution is a valid operation. If the originalFlowsInitiated and/or originalFlowsCompleted information elements appear in the template, they are not subject to this distribution method, as they each infer their own distribution method. This is intended to be a complete set of possible value distribution methods; it is encoded as follows:
+-------+-----------------------------------------------------------+

| Value | Description |

+-------+-----------------------------------------------------------+

| 0 | Unspecified: The counters for an Original Flow are|

| | explicitly not distributed according to any other method |

| | defined for this Information Element; use for arbitrary |

| | distribution, or distribution algorithms not described by |

| | any other codepoint.|

| | --------------------------------------------------------- |

| | |

| 1 | Start Interval: The counters for an Original Flow are |

| | added to the counters of the appropriate Aggregated Flow |

| | containing the start time of the Original Flow.This |

| | must be assumed the default if value distribution |

| | information is not available at a Collecting Process for |

| | an Aggregated Flow. |

| | --------------------------------------------------------- |

| | |

| 2 | End Interval: The counters for an Original Flow are added |

| | to the counters of the appropriate Aggregated Flow|

| | containing the end time of the Original Flow. |

| | --------------------------------------------------------- |

| | |

| 3 | Mid Interval: The counters for an Original Flow are added |

| | to the counters of a single appropriate Aggregated Flow |

| | containing some timestamp between start and end time of |

| | the Original Flow.|

| | --------------------------------------------------------- |

| | |

| 4 | Simple Uniform Distribution: Each counter for an Original |

| | Flow is divided by the number of time intervals the |

| | Original Flow covers (that is, of appropriate Aggregated |

| | Flows sharing the same Flow Key), and this number is|

| | added to each corresponding counter in each Aggregated|

| | Flow. |

| | --------------------------------------------------------- |

| | |

| 5 | Proportional Uniform Distribution: Each counter for an|

| | Original Flow is divided by the number of time units the |

| | Original Flow covers, to derive a mean count rate.This |

| | mean count rate is then multiplied by the number of times |

| | units in the intersection of the duration of the Original |

| | Flow and the time interval of each Aggregated Flow.This |

| | is like simple uniform distribution, but accounts for the |

| | fractional portions of a time interval covered by an|

| | Original Flow in the first- and last-time interval.|

| | --------------------------------------------------------- |

| | |

| 6 | Simulated Process: Each counter of the Original Flow is |

| | distributed among the intervals of the Aggregated Flows |

| | according to some function the Intermediate Aggregation |

| | Process uses based upon properties of Flows presumed to |

| | be like the Original Flow.This is essentially an|

| | assertion that the Intermediate Aggregation Process has |

| | no direct packet timing information but is nevertheless |

| | not using one of the other simpler distribution methods.|

| | The Intermediate Aggregation Process specifically makes |

| | no assertion as to the correctness of the simulation. |

| | --------------------------------------------------------- |

| | |

| 7 | Direct: The Intermediate Aggregation Process has access |

| | to the original packet timings from the packets making up |

| | the Original Flow, and uses these to distribute or|

| | recalculate the counters. |

+-------+-----------------------------------------------------------+
239 biflowDirection A description of the direction assignment method used to assign the Biflow Source and Destination. This Information Element may be present in a Flow Data Record or applied to all flows exported from an Exporting Process or Observation Domain using IPFIX Options. If this Information Element is not present in a Flow Record or associated with a Biflow via scope, it is assumed that the configuration of the direction assignment method is done out-of-band. when using IPFIX Options to apply this Information Element to all flows within an Observation Domain or from an Exporting Process, the Option must be sent reliably. If reliable transport is not available (that is, when using UDP), this Information Element must appear in each Flow Record. This field may take the following values:
+-------+------------------+----------------------------------------+

| Value | Name | Description|

+-------+------------------+----------------------------------------+

| 0x00| arbitrary| Direction is assigned arbitrarily.|

| 0x01| initiator| The Biflow Source is the flow|

| || initiator, as determined by the|

| || Metering Process' best effort to |

| || detect the initiator.|

| 0x02| reverseInitiator | The Biflow Destination is the flow |

| || initiator, as determined by the|

| || Metering Process' best effort to |

| || detect the initiator.This value is |

| || provided for the convenience of|

| || Exporting Processes to revise an |

| || initiator estimate without re-encoding |

| || the Biflow Record. |

| 0x03| perimeter| The Biflow Source is the endpoint|

| || outside of a defined perimeter.The |

| || perimeter's definition is implicit in |

| || the set of Biflow Source and Biflow|

| || Destination addresses exported in the |

| || Biflow Records.|

+-------+------------------+----------------------------------------+

Configure DNS Services

This is an optional service that allows you to create a configuration for DNS.

The DNS service can be a public DNS service or a private DNS service provided by your company. It is handled by the dnsmasq service, which sends the request to all the servers configured at the same time. The server with the fastest response is selected. The service is preconfigured to use Google and Open DNS servers.

  1. In the SD-WAN service of the Enterprise portal, go to Configure > Network Services , and then under Network Management area, expand DNS Services.

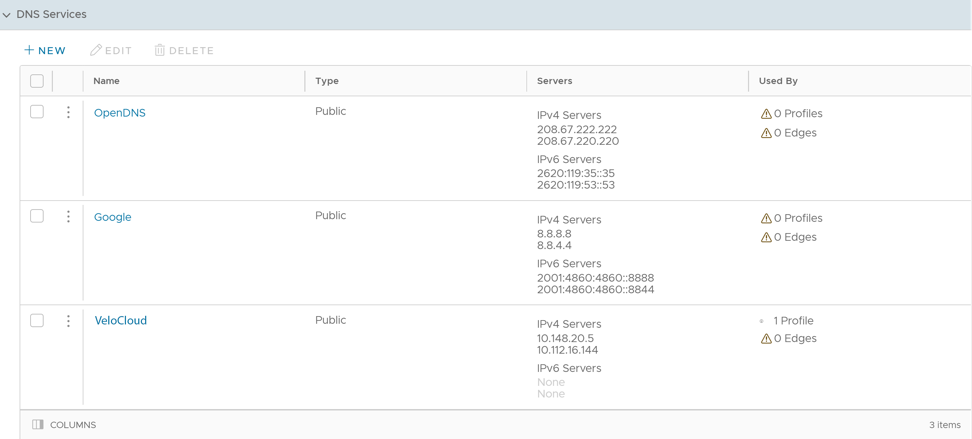

    Figure 79. Configure DNS Service
  2. To configure a DNS service, select New or New DNS Service option.
    Note: The New DNS Service option appears only when there are no items in the table.
  3. The following screen displays the sample configuration for a Public DNS.

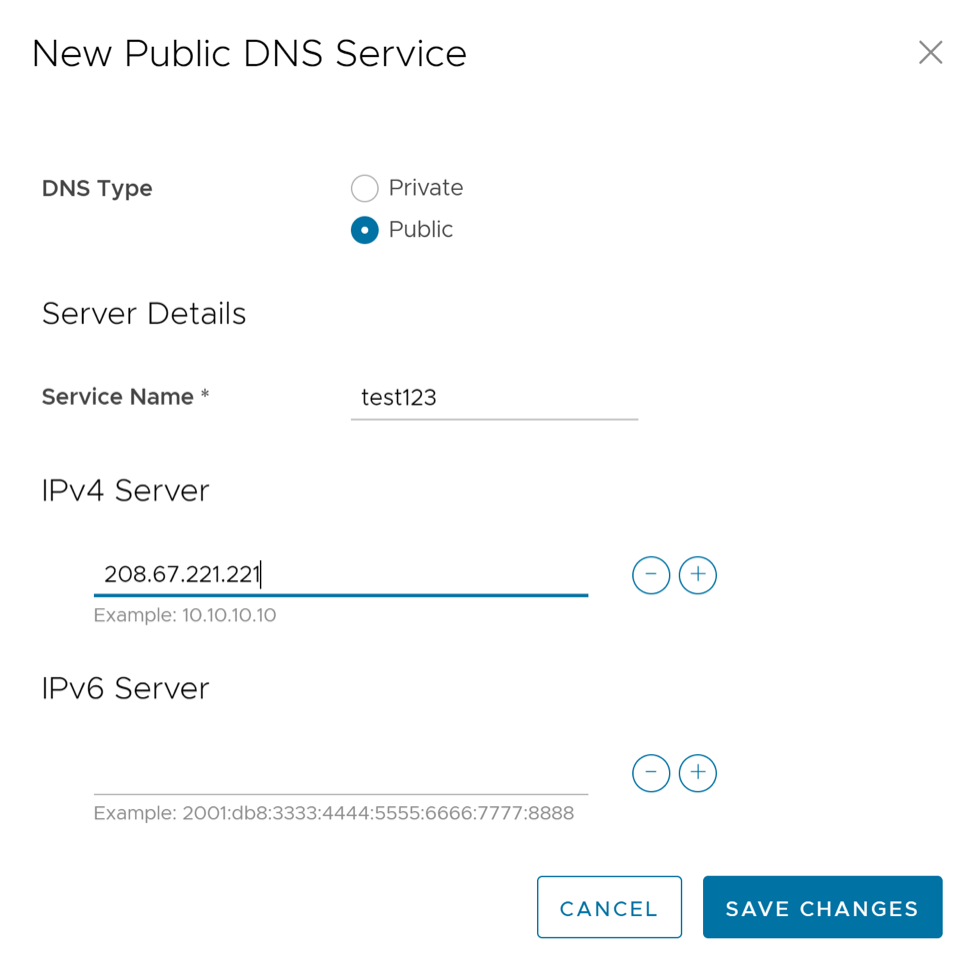

    Figure 80. New Public DNS Service
    Table 41. New DNS Service Field Descriptions
    Option Description
    DNS Type Choose either Private or Public as the DNS service type.
    Service Name Enter a name for the DNS Service.
    IPv4 Server Enter the IP address.
    IPv6 Server Enter the IP address. This field is optional.
    Note:
    • Use the '+' and '-' buttons to add or delete the IP addresses.
    • For a Private service, you can add one or more Private Domains.
  4. Select Save Changes. The newly added DNS service appears in the table.
You can perform the following actions in the DNS Services area.
Table 42. DNS Service Option Descriptions
Option Description
Edit Select this option to edit the selected DNS service.
Delete Select this option to delete it.
Columns Select the columns to be displayed or hidden on the page.
Note: You can also access these options by selecting the vertical ellipsis next to the item name in the table.

Configure Private Network Names

You can define multiple private networks and assign them to individual private WAN overlays.

  1. In the SD-WAN service of the Enterprise portal, go to Configure > Network Services , and then under Network Management area, expand Private Network Names.

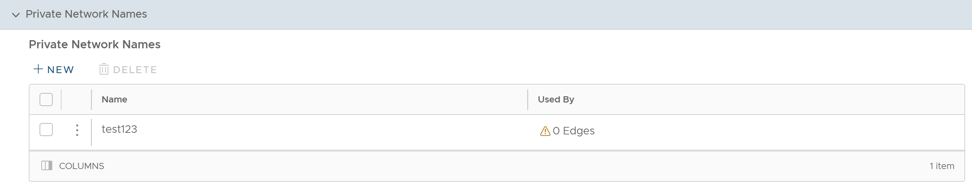

    Figure 81. Configure Private Network Names
  2. To configure a private network name, select New or New Private Network Name option.
    Note: The New Private Network Name option appears only when there are no items in the table.

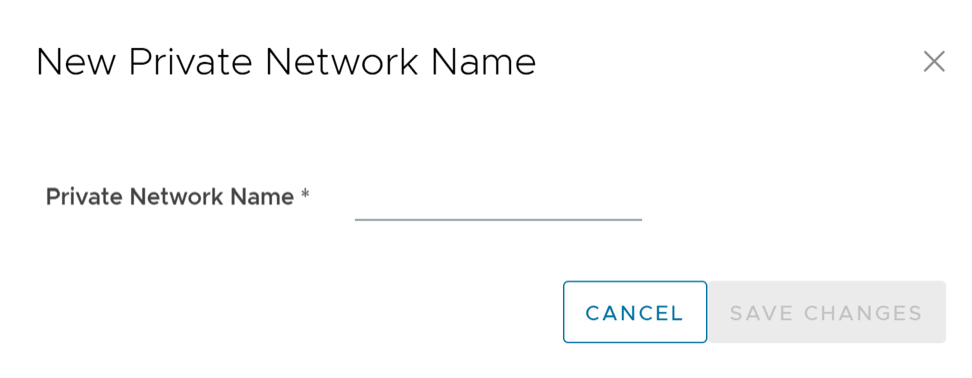

    Figure 82. New Private Network Name
  3. Enter an appropriate name for the Private Network.
  4. Select Save Changes. The new Private Network Name appears in the table.

You can perform the following actions in the Private Network Names area.

Table 43. Private Network Names Option Descriptions
Option Description
Delete Select this option to delete it.
Note:
  • Only private network names that are not used by an Edge device can be deleted.
  • Selecting this option opens another dialog where you must specify the number of items selected for deletion, and then select Delete.
Columns Select the columns to be displayed or hidden on the page.
Note: You can also access the New and Delete options by selecting the vertical ellipsis next to the item name in the table.

Configure Prefix Delegation Tags

Prefix Delegation tags are defined to connect the LAN and WAN interfaces. The LAN interfaces can receive the prefixes from the associated WAN interface only if they share a common tag.

You can define Prefix Delegation tags by performing the following steps:

  1. In the SD-WAN service of the Enterprise portal, go to Configure > Network Services , and then under Network Management area, expand Prefix Delegation Tags.

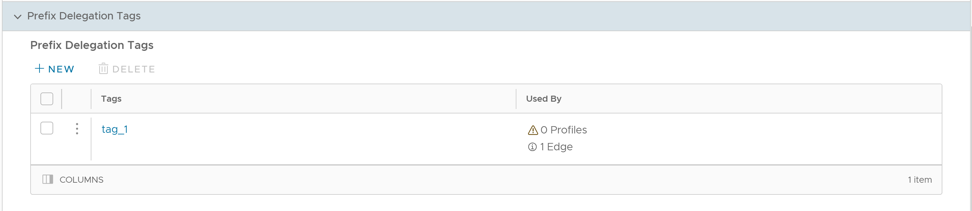

    Figure 83. Configure Prefix Delegation Tags
  2. To configure a Prefix Delegation tag, select New or New Prefix Delegation Tag option.
    Note: The New Prefix Delegation Tag option appears only when there are no items in the table.

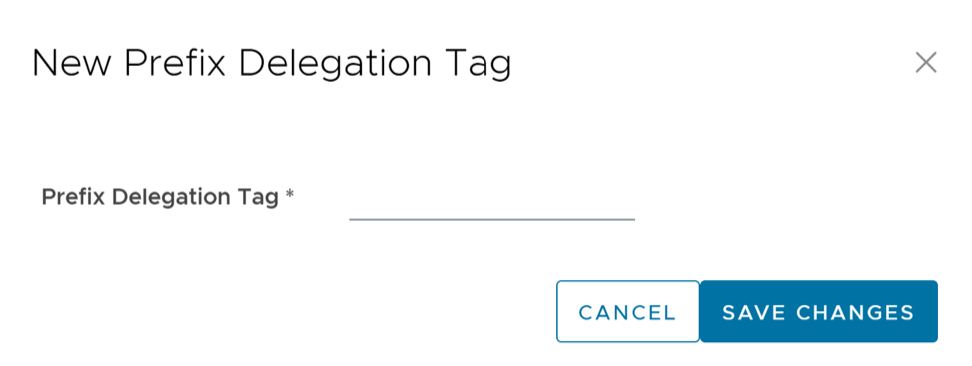

    Figure 84. New Prefix Delegation Tag
  3. Enter a unique name for the Prefix Delegation tag.
  4. Select Save Changes. The new Prefix Delegation tag appears in the table.
    The following are the other options available in the Prefix Delegation Tags area.
    Table 44. Prefix Delegation Tags Option Descriptions
    Option Description
    Delete Select this option to delete it.
    Note:
    • Only Prefix Delegation tags that are not used by an Edge device can be deleted.
    • Selecting this option opens another dialog where you must specify the number of items selected for deletion, and then select Delete.
    Columns Select the columns to be displayed or hidden on the page.
    Note: You can also access the New and Delete options by selecting the vertical ellipsis next to the item name in the table.

Configure Authentication Services

If your organization uses a service for authentication or accounting, you can create a Network Service that specifies the IP address and ports for the service. This is a part of the 802.1x configuration process, which is configured in the profile.

  1. In the SD-WAN service of the Enterprise portal, go to Configure > Network Services , and then under Network Management area, expand Authentication Services.
    Figure 85. Configure Authentication Services
  2. To configure an authentication service, select New or New Authentication option.
    Note: The New Authentication option appears only when there are no items in the table.

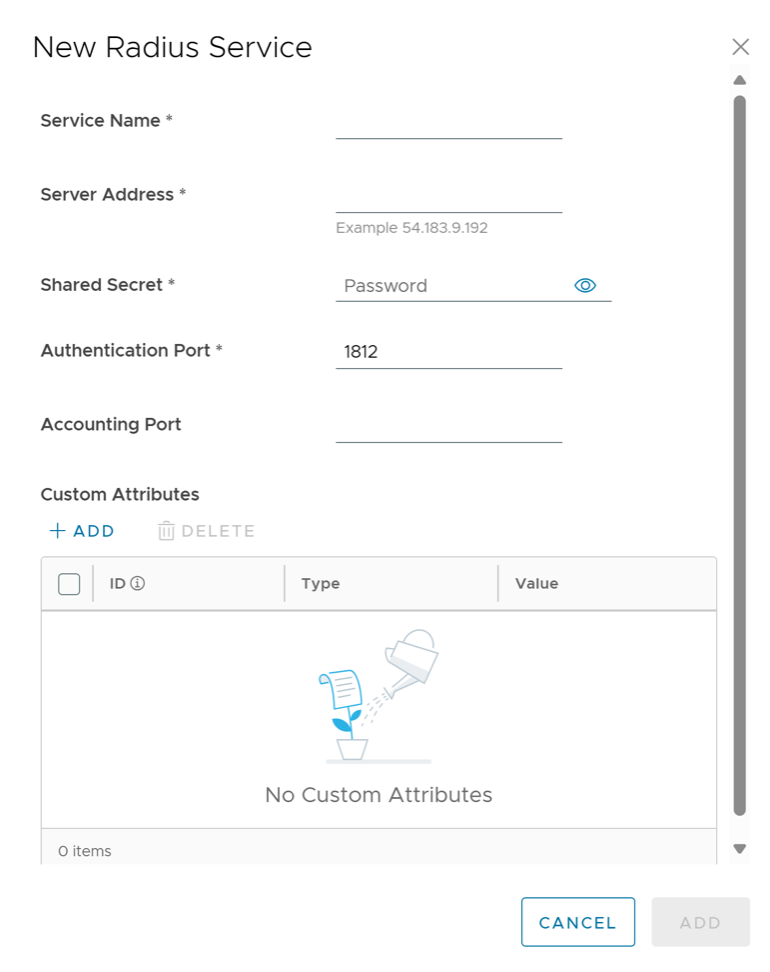

    Figure 86. New Radius Service
    Table 45. New Radius Service Field Descriptions
    Option Description
    Service Name Enter an appropriate name for the authentication service.
    Server Address Enter the server IP address.
    Shared Secret Enter a password.
    Note: Starting from the 4.5 release, the use of the special character "<" in the password is no longer supported. In cases where users have already used "<" in their passwords in previous releases, they must remove it to save any changes on the page.
    Authentication Port Enter a port number. The valid range is 1 to 65535. The default value is 1812.
    Accounting Port Enter a port number if required.
    Custom Attributes Select Add, and enter the attribute details.
    Note: Source interfaces are configured only at Edge level. For additional information, see Configure Edges with New Orchestrator UI.
  3. Select Add. The new Authentication service appears in the table.
    The following are the other options available in the Authentication Services area:
    Table 46. Authentication Service Option Descriptions
    Option Description
    Delete Select this option to delete it.
    Columns Select the columns to be displayed or hidden on the page.
    Note: You can also access the New and Delete options by selecting the vertical ellipsis next to the item name in the table.

Configure TACACS Services

TACACS services are used by organizations for authentication purpose to access the router or Network-attached Storage (NAS).

You can configure the TACACS settings for an Edge from the TACACS Services section available under Configure > Edges > Device Settings > Edge Services category.

Note: By default, TACACS Services section is not available in the Device page for Edges. Contact your Operator to get this feature activated.
  1. In the SD-WAN service of the Enterprise portal, go to Configure > Network Services , and then under Network Management area, expand TACACS Services.

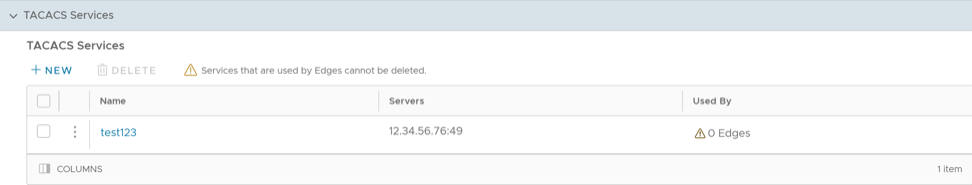

    Figure 87. Configure TACACS Services
  2. To configure TACACS services, select the New or the Configure TACACS Service option.
    Note: The Configure TACACS Service option appears only when there are no items in the table.

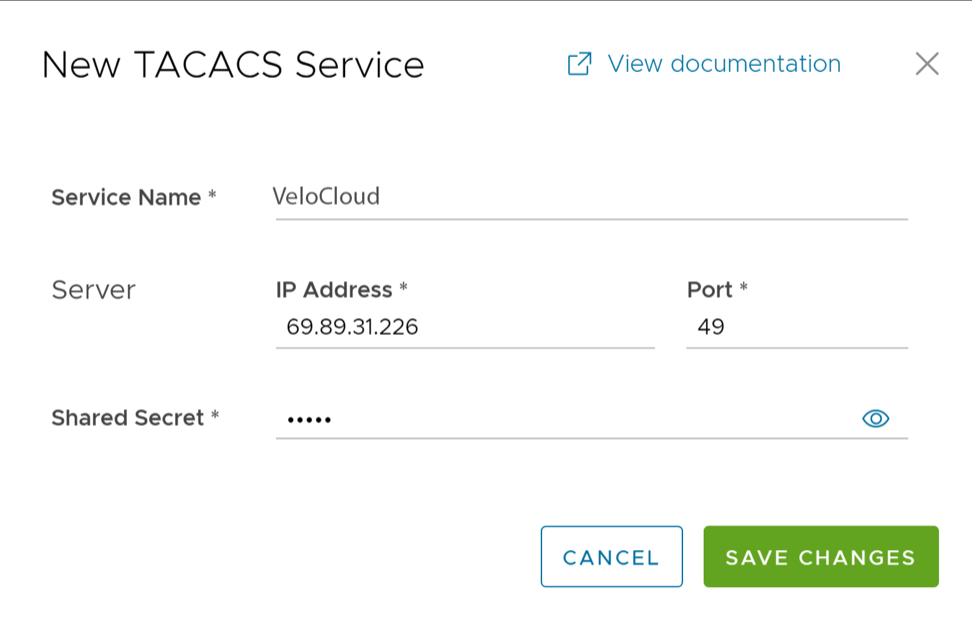

    Figure 88. New TACACS Service
  3. You can configure the following options:
    Table 47. New TACACS Service Field Descriptions
    Option Description
    Service Name Enter an appropriate name for the authentication service.
    Server Address Enter the server IP address.
    Port Enter the port value.
    Shared Secret Enter a password.
    Note: Starting from the 4.5 release, the use of the special character "<" in the password is no longer supported. In cases where users have already used "<" in their passwords in previous releases, they must remove it to save any changes on the page.
  4. Select Save Changes. The newly created TACACS service appears in the TACACS Services list.
  5. To delete the TACACS service, select Delete.
    Note: Selecting Delete removes the service from the TACACS Services list but the TACACS service that is used by an Edge cannot be deleted.

    To configure TACACS services for Edges, see Configure TACACS Services for Edges.

Configure Edge Services

This section allows you to configure VNFs and VNF Licenses. Virtual Network Functions (VNFs) are individual network services, such as routers and firewalls, running as software-only Virtual Machine (VM) instances on generic hardware.

  1. In the SD-WAN service of the Enterprise portal, go to Configure > Network Services , and then under Edge Services area, expand VNFs.

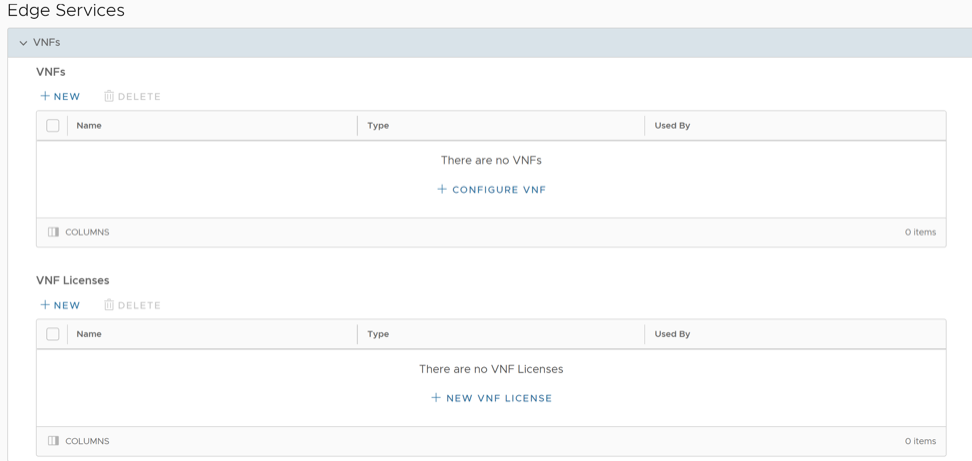

    Figure 89. Configure Edge Services
  2. To configure a new VNF, select the New or Configure VNF option.
    Note: The Configure VNF option appears only when there are no items in the table.

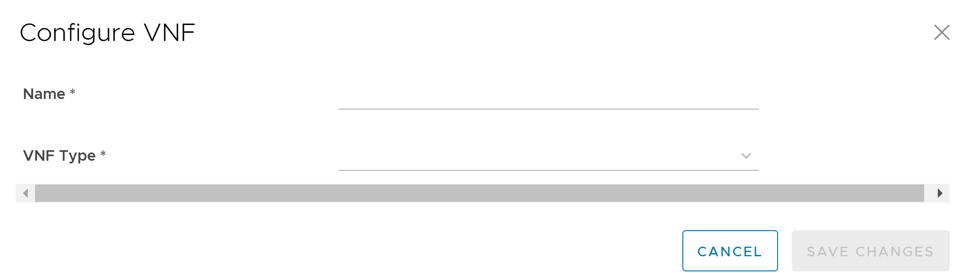

    Figure 90. Configure VNF
  3. Enter a name for the VNF service and select a VNF type from the drop-down list.
  4. Configure the settings based on the selected VNF Type.
    1. For the VNF type Check Point Firewall, configure the following and select Save Changes.

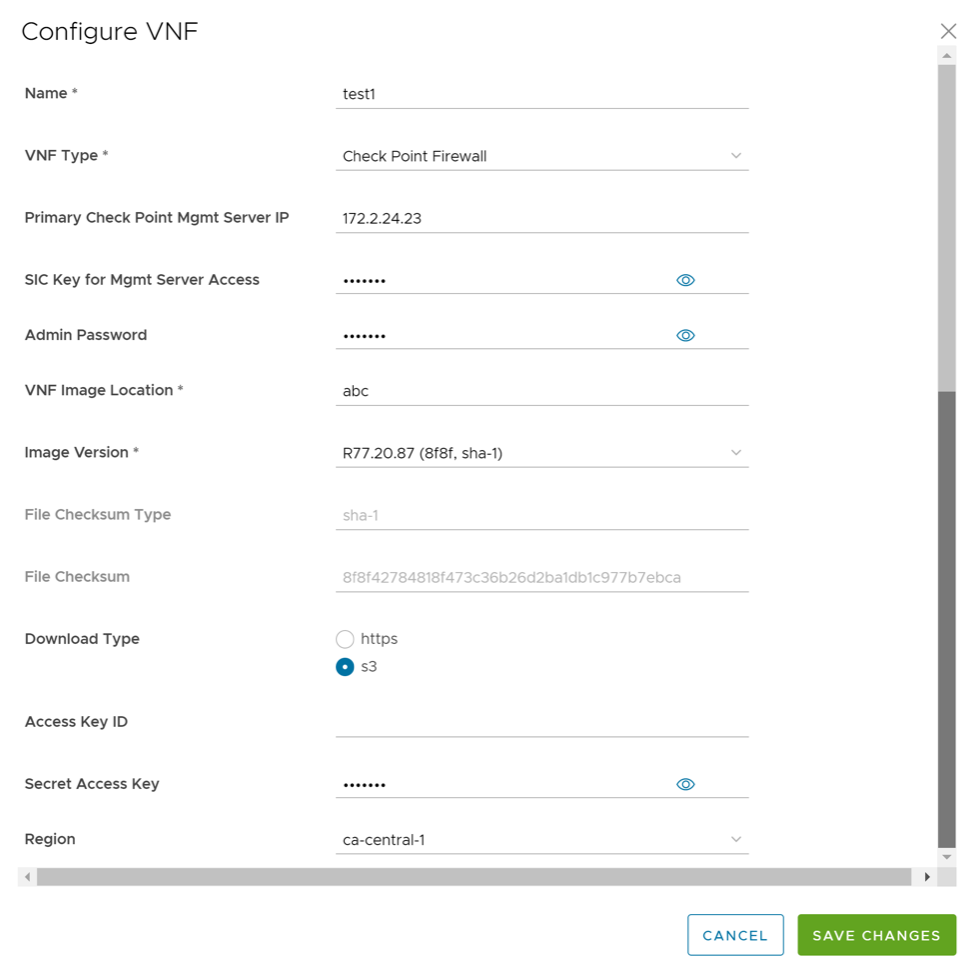

      Figure 91. Configure Check Point Firewall VNF



      Table 48. Check Point Firewall VNF Field Descriptions
      Option Description
      Primary Check Point Mgmt Server IP Enter the Check Point Smart Console IP address that must connect to the Check Point Firewall.
      SIC Key for Mgmt Server Access Enter the password used to register the VNF to the Check Point Smart Console.
      Admin Password Enter the administrator password.
      VNF Image Location Enter the image location from where the Orchestrator must download the VNF image.
      Image Version Select a version of the Check Point VNF image from the drop-down list. The image version is derived from the system property edge.vnf.extraImageInfos.
      File Checksum Type Displays the method used to validate the VNF image and is automatically populated after you select an image version.
      File Checksum Displays the checksum used to validate the VNF image and is automatically populated after you select an image version. The checksum value is derived from the system property edge.vnf.extraImageInfos.
      Download Type Choose the type of the image. For https, enter the Username and Password. For s3, enter the Access Key ID, Secret Access Key, and choose the Region.
    2. For the VNF type Fortinet Firewall, configure the following and select Save Changes.

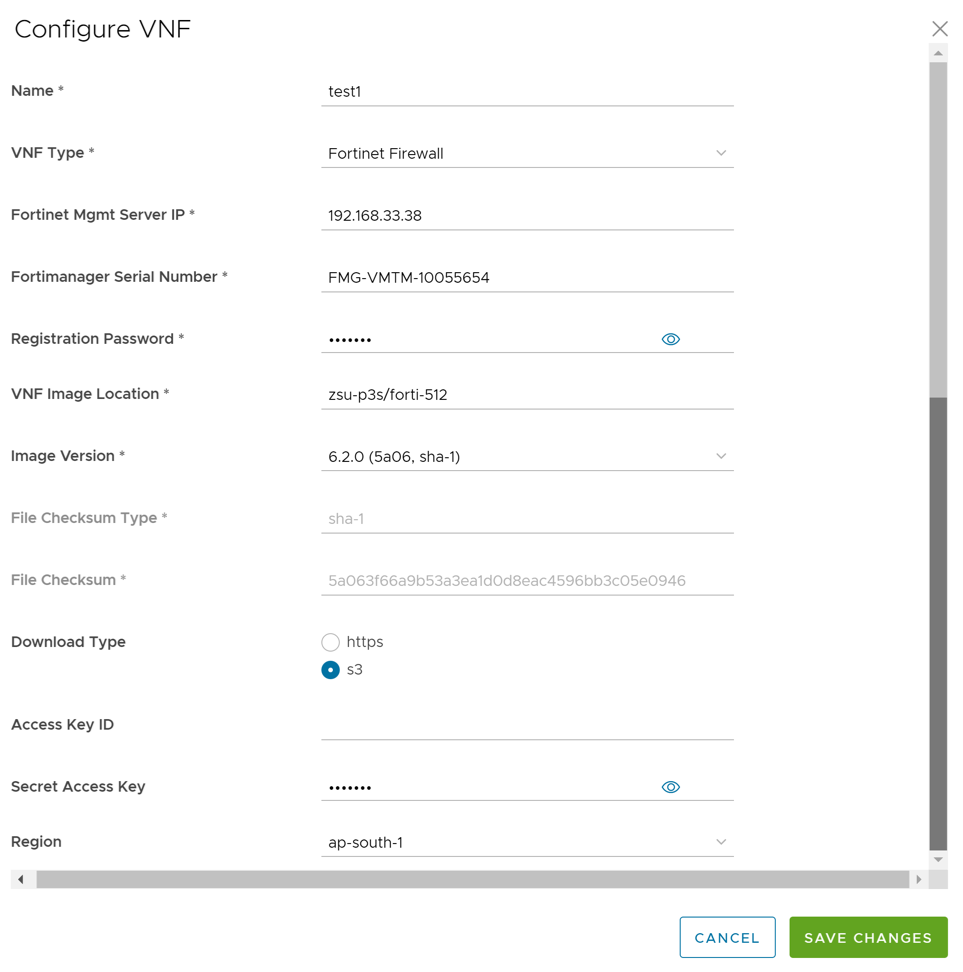

      Figure 92. Configure Fortinet Firewall VNF



      Table 49. Fortinet Firewall VNF Field Descriptions
      Option Description
      Fortinet Mgmt Server IP Enter the IP address of the FortiManager to connect to the FortiGate.
      FortiManager Serial Number Enter the serial number of FortiManager.
      Registration Password Enter the password used to register the VNF to the FortiManager.
      VNF Image Location Enter the image location from where the Orchestrator must download the VNF image.
      Image Version Select a version of the Fortinet VNF image from the drop-down list. The following options are available: 6.4.0, 6.2.4, 6.0.5, 6.2.0. The image version is derived from the system property edge.vnf.extraImageInfos.
      File Checksum Type Displays the method used to validate the VNF image and is automatically populated after you select an image version.
      File Checksum Displays the checksum used to validate the VNF image and is automatically populated after you select an image version. The checksum value is derived from the system property edge.vnf.extraImageInfos.
      Download Type Choose the type of the image. For https, enter the Username and Password. For s3, enter the Access Key ID, Secret Access Key, and choose the Region.
    3. For the VNF type Palo Alto Networks Firewall, configure the following and select Save Changes.

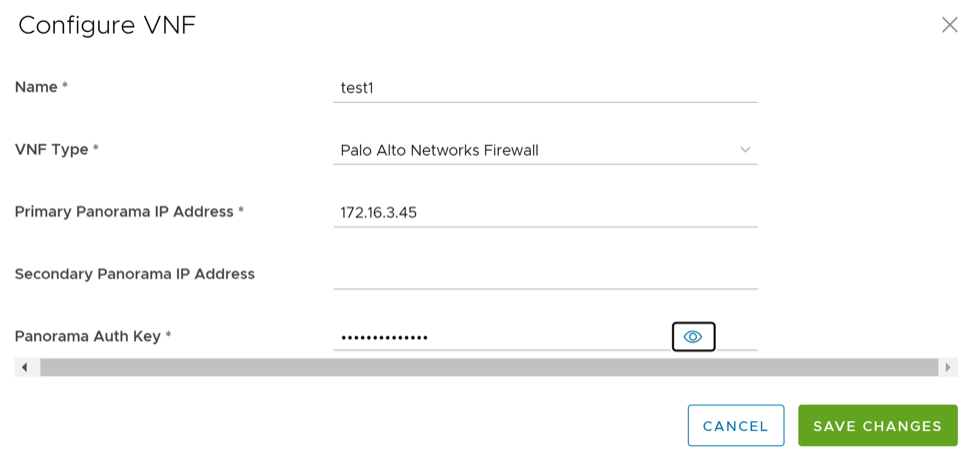

      Figure 93. Configure Palo Alto Networks Firewall VNF



      Table 50. Palo Alto Networks Firewall VNF Field Descriptions
      Option Description
      Primary Panorama IP Address Enter the primary IP address of the Panorama server.
      Secondary Panorama IP Address Enter the secondary IP address of the Panorama server.
      Panorama Auth Key Enter the authentication key configured on the Panorama server. VNF uses the Auth Key to login and communicate with Panorama.
  5. After configuring Palo Alto Networks as the VNF Type, define the VNF Licenses. These licenses are applied to one or more VNF configured Edges. To configure a VNF License, select New or New VNF License option, in the VNF Licenses area.
    Note: The New VNF License option appears only when there are no items in the table.

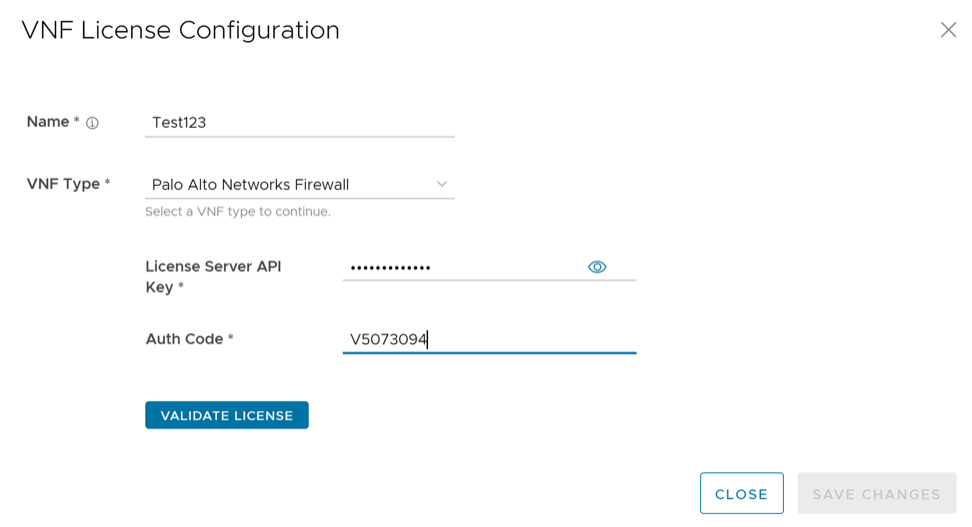

    Figure 94. Configure New VNF License
  6. In the VNF License Configuration window, configure the following:
    Table 51. VNF License Configuration Field Descriptions
    Option Description
    Name Enter a name for the VNF license.
    VNF Type Select the VNF type from the drop-down list. Currently, Palo Alto Networks Firewall is the only available option.
    License Server API Key Enter the license key from your Palo Alto Networks account. The Orchestrator uses this key to communicate with the Palo Alto Networks license server.
    Auth Code Enter the authorization code purchased from Palo Alto Networks.
    Validate License Select to validate the configuration.
  7. Select Save Changes.
    Note:
    • If you want to remove the deployment of Palo Alto Networks Firewall configuration from a VNF type, ensure that you have deactivated the VNF License of Palo Alto Networks before removing the configuration.
    • Starting from the 4.5 release, the use of the special character "<" in the password is no longer supported. In cases where users have already used "<" in their passwords in previous releases, they must remove it to save any changes on the page.
    The following are the other options available in the Edge Services area:
    Table 52. Edge Services Option Descriptions
    Option Description
    Delete Select this option to delete it.
    Columns Select the columns to be displayed or hidden on the page.
    Note: You can also access the New and Delete options by selecting the vertical ellipsis next to the item name in the table.
