Accessing Snapshots

Snapshots are stored under the CVP dataset, which you can access any time for detailed analysis. The Snapshots page displays all valid snapshots created over time. Each valid snapshot provides the following additional information:

  • Name - The name of the template (you assign the name when you create the template).

  • Capture Time - The date and time when the snapshot was last captured.

  • Last Executed By - The user that captured the snapshot.

It also allows navigating to snapshots of the corresponding snapshot template.

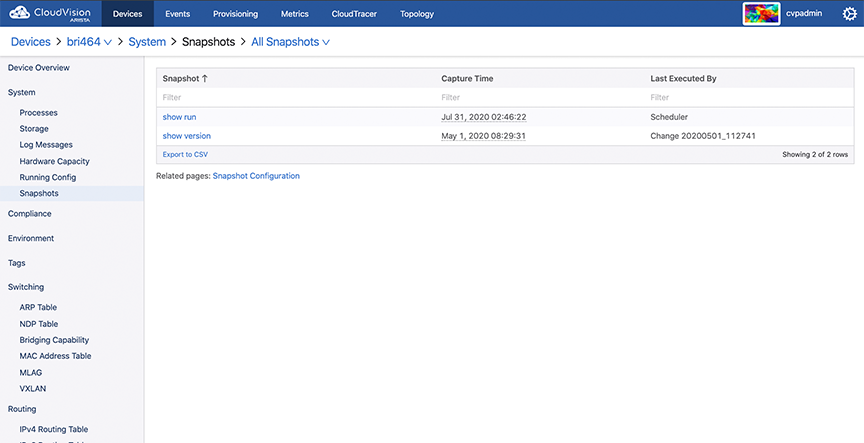

Figure 1. Snapshots Page

You can navigate to the Snapshots page through one of the following paths:

  • Inventory > Device_ID > Snapshots

  • Network Provisioning > Right-click on the required device > Snapshot.
